Smart Junction Box (SJB): Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

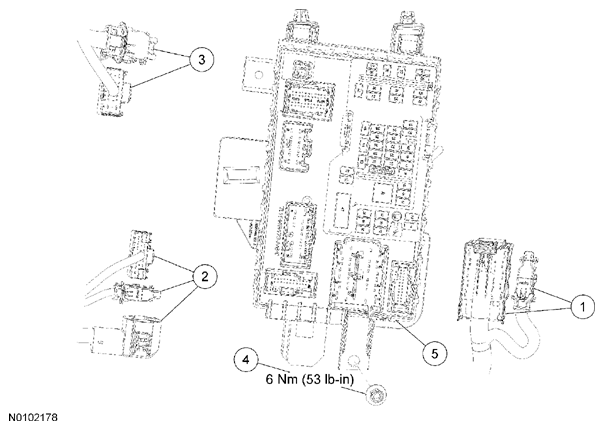

| Item |
Part Number |
Description |
| 1 |
- |
Smart Junction Box (SJB) Electrical connectors (part of 14A005) (2 required) |
| 2 |
- |
SJB Electrical connectors (part of 14290) (3 required) |
| 3 |
- |
SJB Electrical connectors (part of 14401) (2 required) |
| 4 |
W706287-S |
SJB nut |
| 5 |
14B476 |
SJB |
