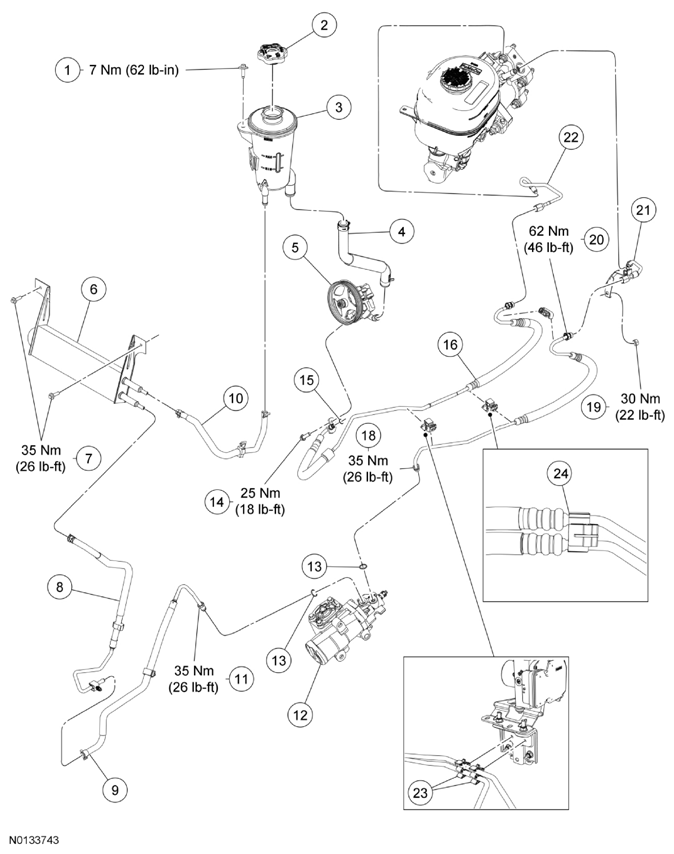

Power Steering System - Exploded View: Hydro-Boost®
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Install the pressure line-to-pressure line bracket (item 25) with both pressure line crimp shells aligned parallel to one another as shown in the illustration or damage to the lines and/or fluid leaks may occur.
| Item | Part Number | Description |
|---|---|---|
| 1 | W503294 | Power steering fluid reservoir bolt |
| 2 | 3A006 | Power steering fluid reservoir cap (part of 3E764) |
| 3 | 3E764 | Power steering fluid reservoir |
| 4 | 3691 | Supply hose |
| 5 | 3A696 | Power steering pump and pulley assembly |
| 6 | 3D746 | Power steering fluid cooler |
| 7 | W711851 | Power steering fluid cooler bolt (2 required) |
| 8 | 3A713 | Steering gear-to-fluid cooler return hose |
| 9 | 3A713 | Steering gear-to-fluid cooler return hose |
| 10 | 3A713 | Reservoir-to-fluid cooler return hose |
| 11 | - | Return hose-to-steering gear fitting (part of 3A713) |
| 12 | 3504 | Steering gear |
| 13 | N803257 | O-ring seal |
| 14 | W714824 | Pressure line clamp plate bolt |
| 15 | 388898 | O-ring seals (2 required) (also part of 3A717) |
| 16 | 3A717 | Power steering pump-to-hydraulic booster pressure line |
| 17 | 3A719 | Hydraulic booster-to-steering gear pressure line |
| 18 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 19 | 382802 | Jumper line bracket nut |
| 20 | - | Pressure line-to jumper line fitting (part of 3A719) |
| 21 | 3N999A | Jumper line |
| 22 | 3N999B | Jumper line |
| 23 | - | Pressure line-to-HCU bracket (2 required) (part of 3A719) |
| 24 | - | Pressure line-to pressure line bracket (part of 3A719) |
