Fuel Pump Control Module: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

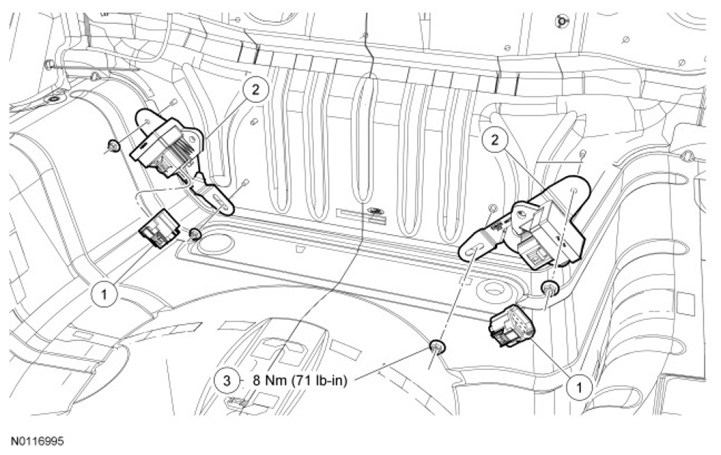

Fig 1: Fuel Pump Control Module, Nut And Electrical Connector With Torque Specification
G07488277Courtesy of FORD MOTOR CO.
Item Part Number Description
1 Part of 14A005 FPCM  electrical connector
2 9D370 FPCM
3 W707142 FPCM  nut (4 required)
