Throttle Body: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

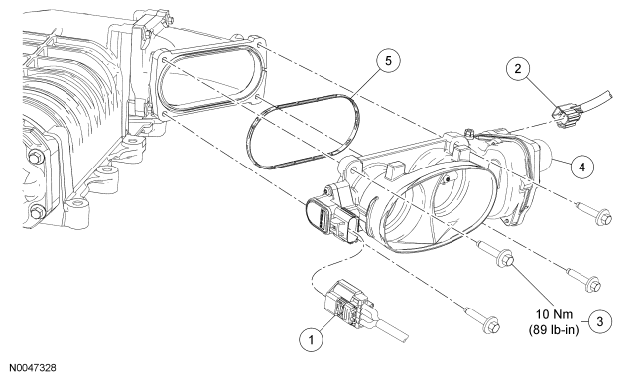

| Item | Part Number | Description |
|---|---|---|
| 1 | Part of 12C908 | Throttle Position (TP) sensor electrical connector |
| 2 | Part of 12C908 | Electronic throttle control electrical connector |
| 3 | N806154 | Throttle Body (TB) bolt (4 required) |
| 4 | 9E926 | TB |
| 5 | 9E936 | TB -to-TB spacer gasket |
