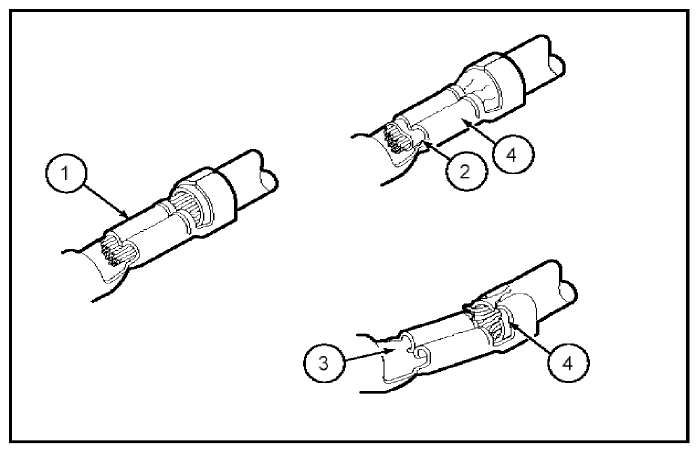

Defective Insulation Stripping

1 = Proper crimp

2 = Insulation not removed

3 = Wire strands missing

4 = Intermittent signals through pierced insulation

Fig 1: Identifying Defective Insulation Stripping

Courtesy of FORD MOTOR CO.
