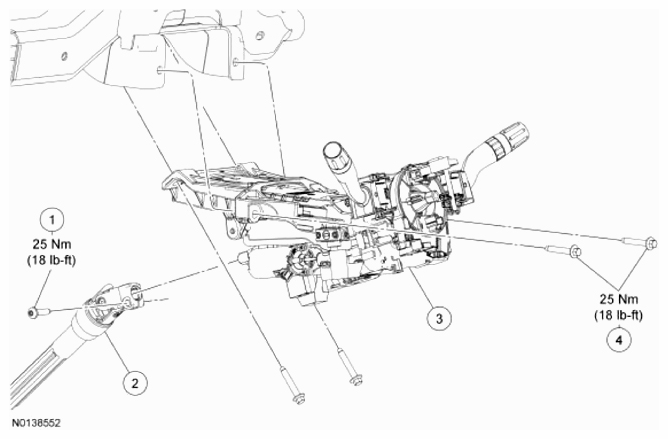

Exploded View
NOTE:
Power adjustable steering column shown in illustration, manual adjustable steering column similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714878 | Steering column shaft-to-steering column bolt |
| 2 | 3B676 | Steering column shaft |
| 3 | 3C529 | Steering column |
| 4 | W716505 | Steering column bolt (4 required) |

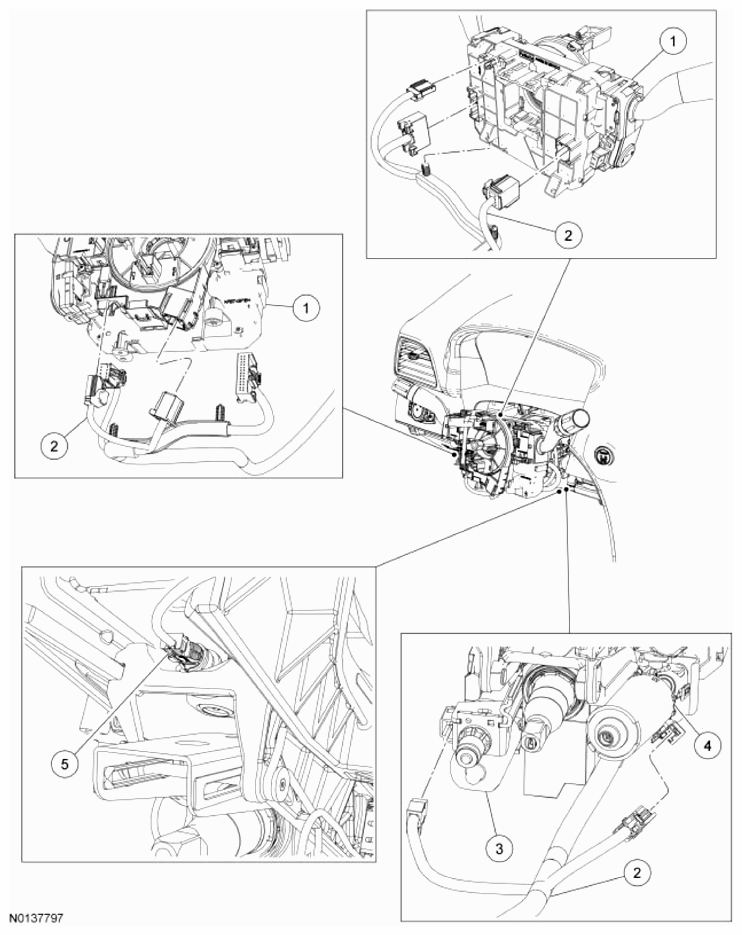

NOTE:
Power adjustable steering column shown in illustration, manual adjustable steering column similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3B504 | SCCM |
| 2 | 14401 | Wiring harness |
| 3 | - | Steering column telescoping motor (part of 3C529) |
| 4 | 3D538 | Steering column tilt motor (part of 3C529) |
| 5 | - | Collapsible steering column module electrical connector (part of 14401) |
