Head Up Display (HUD) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

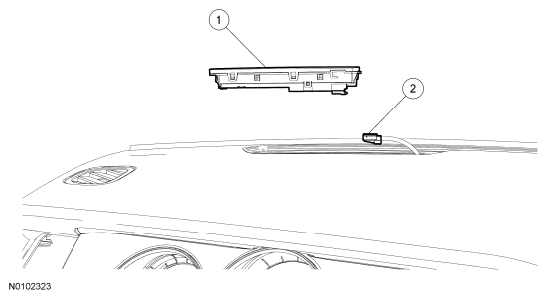

Fig 1: Identifying HUD Module And Electrical Connector
G06261018Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19G468 Head Up Display (HUD) module
2 - HUD  module electrical connector (part of 14401)
