Component Location View

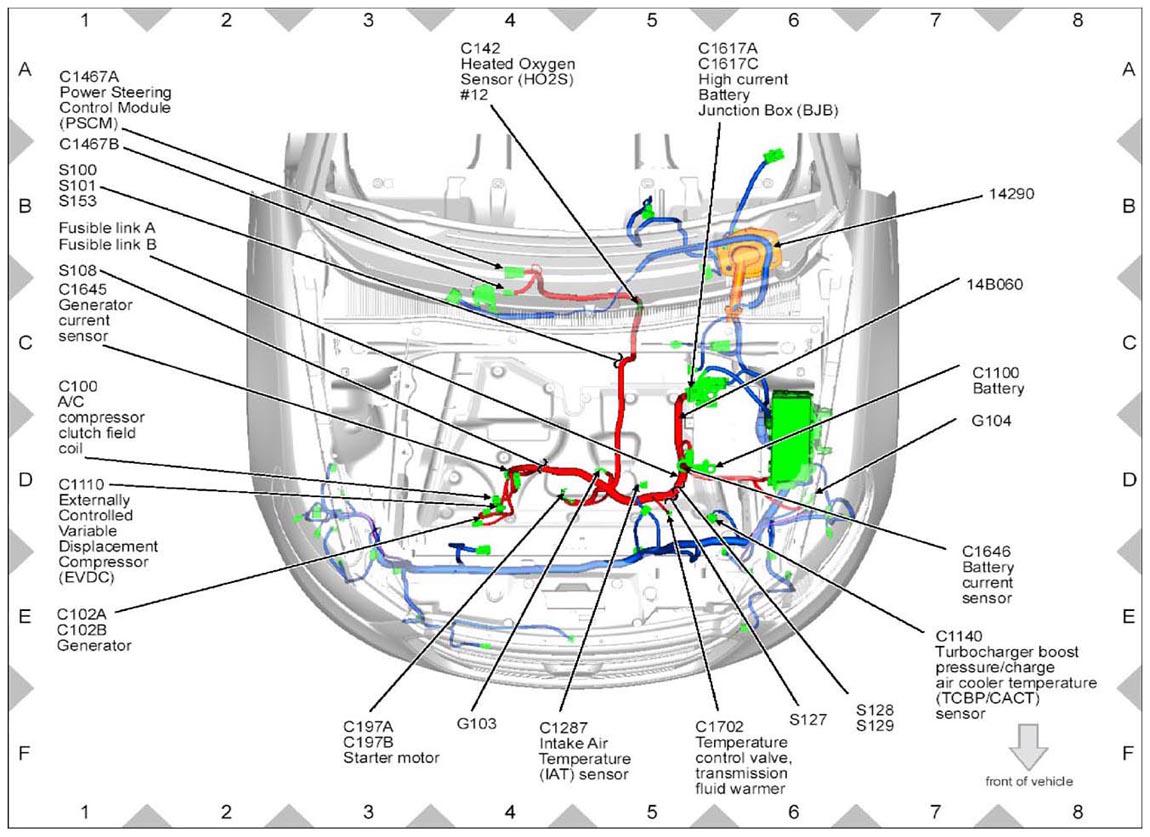

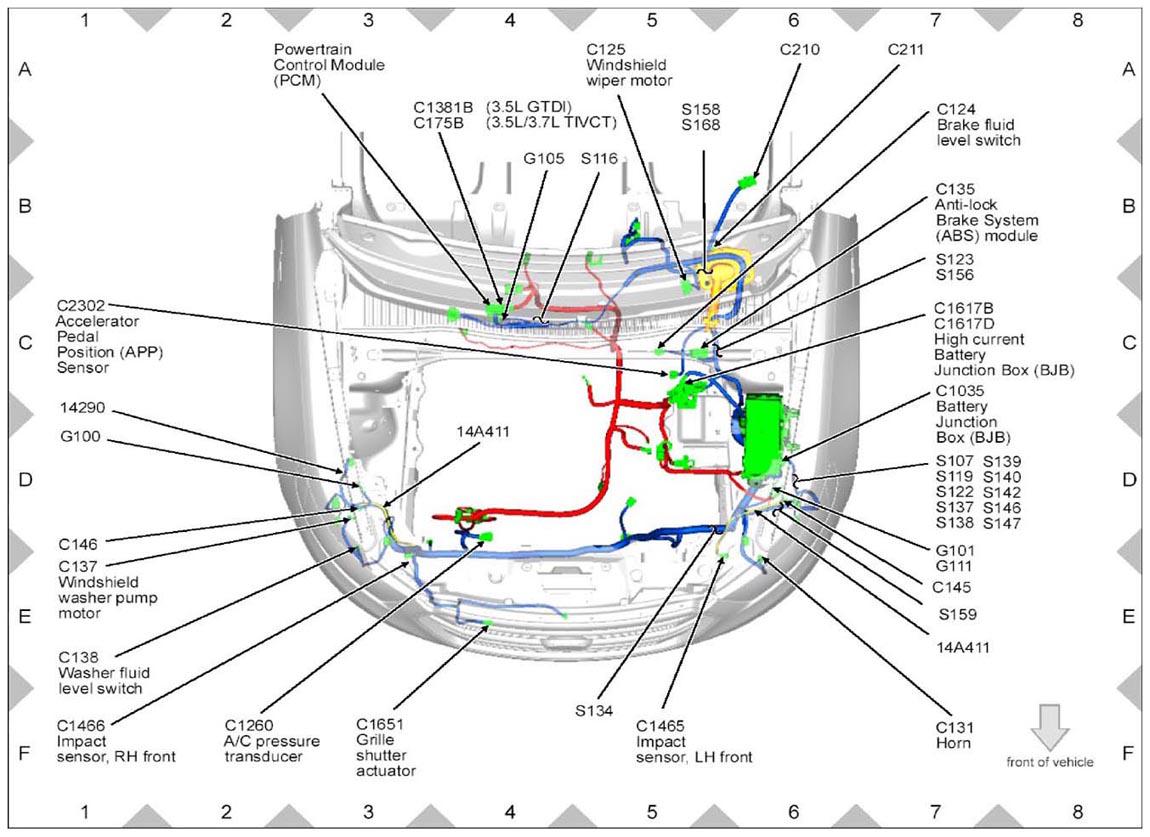

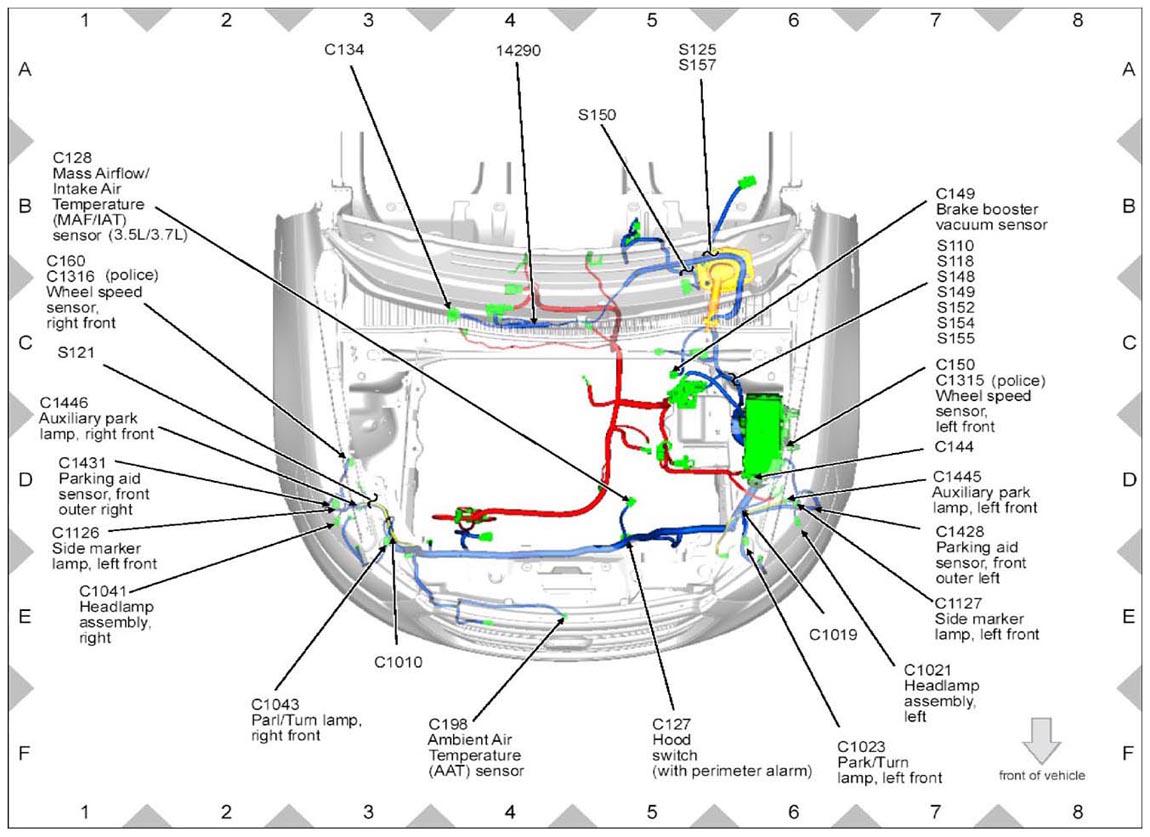

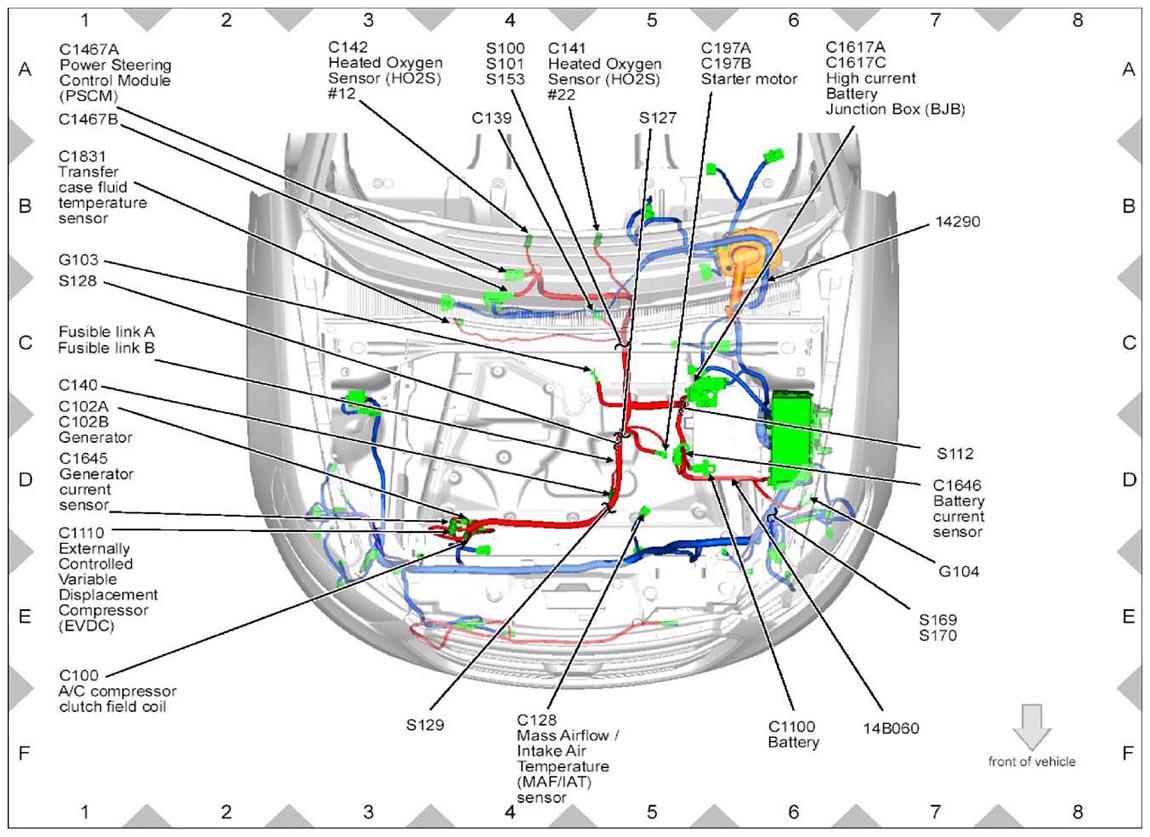

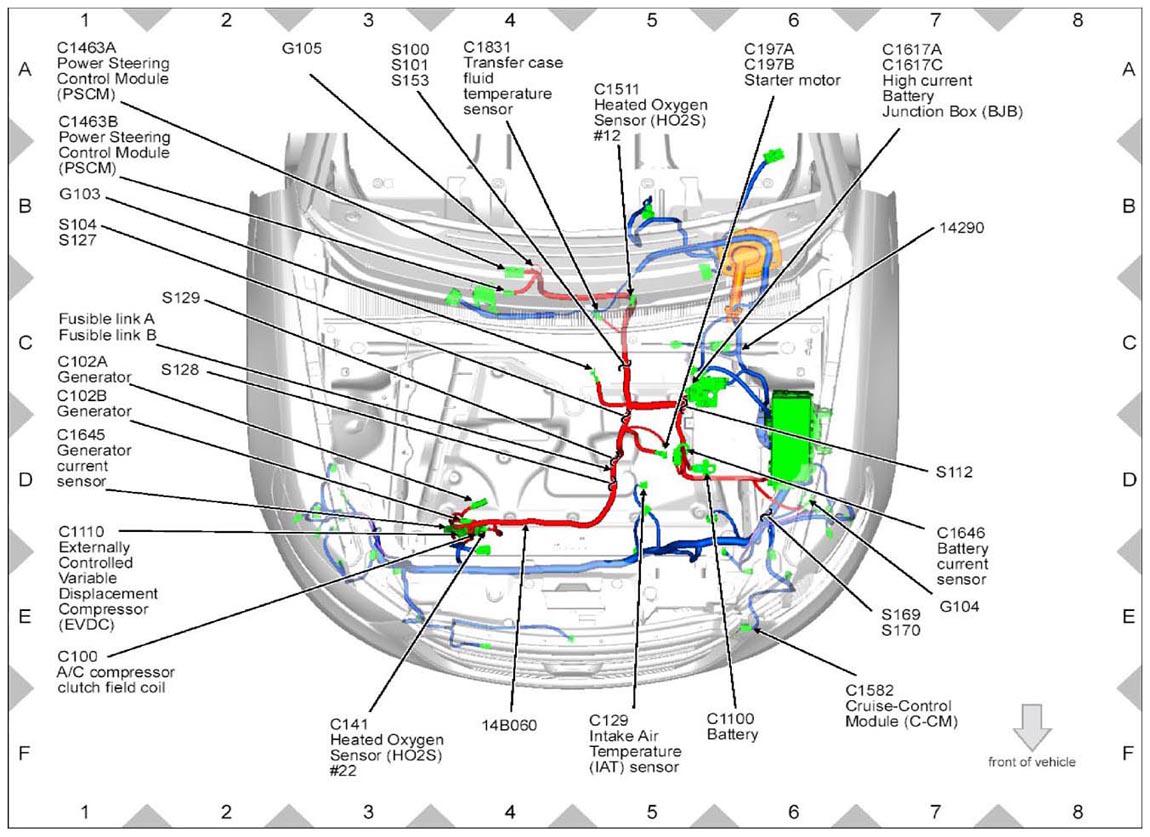

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 6)
Courtesy of FORD MOTOR CO.

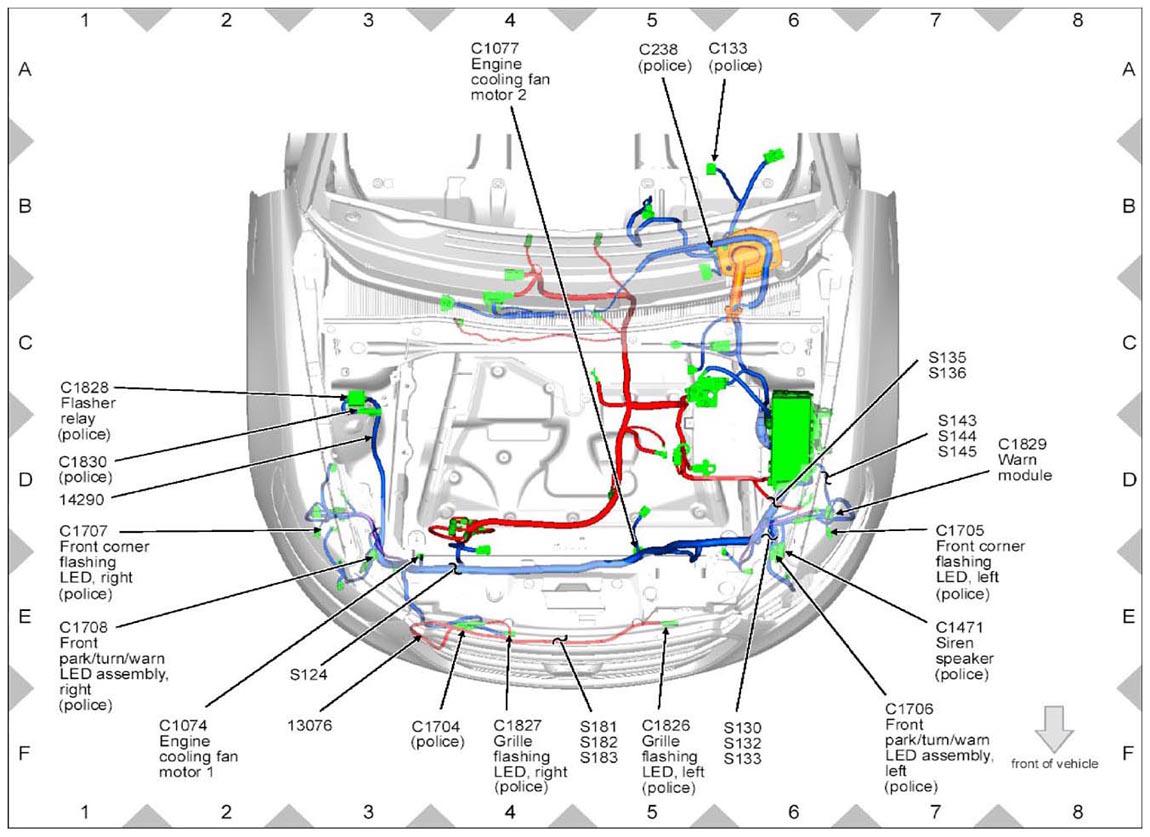

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 6)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 6)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 6)
Courtesy of FORD MOTOR CO.
Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 6)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Compartment Wiring Harness Connectors Location (6 Of 6)
Courtesy of FORD MOTOR CO.

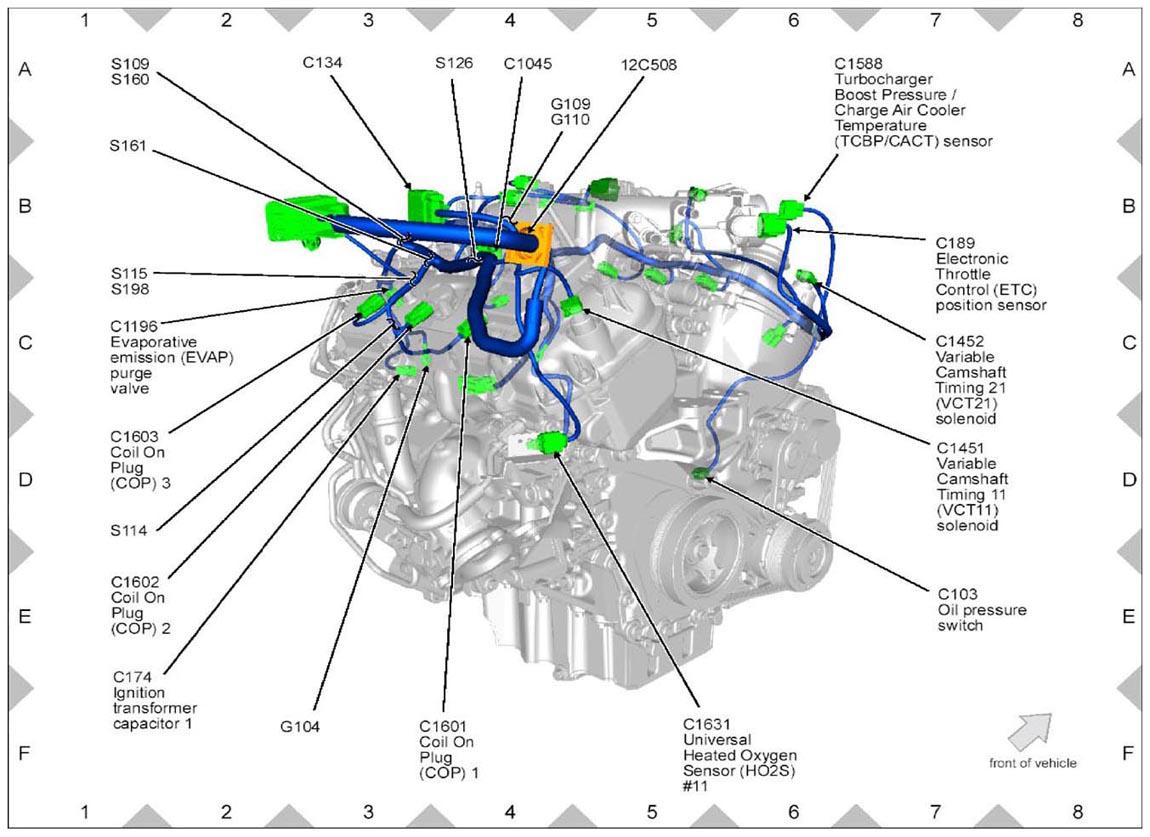

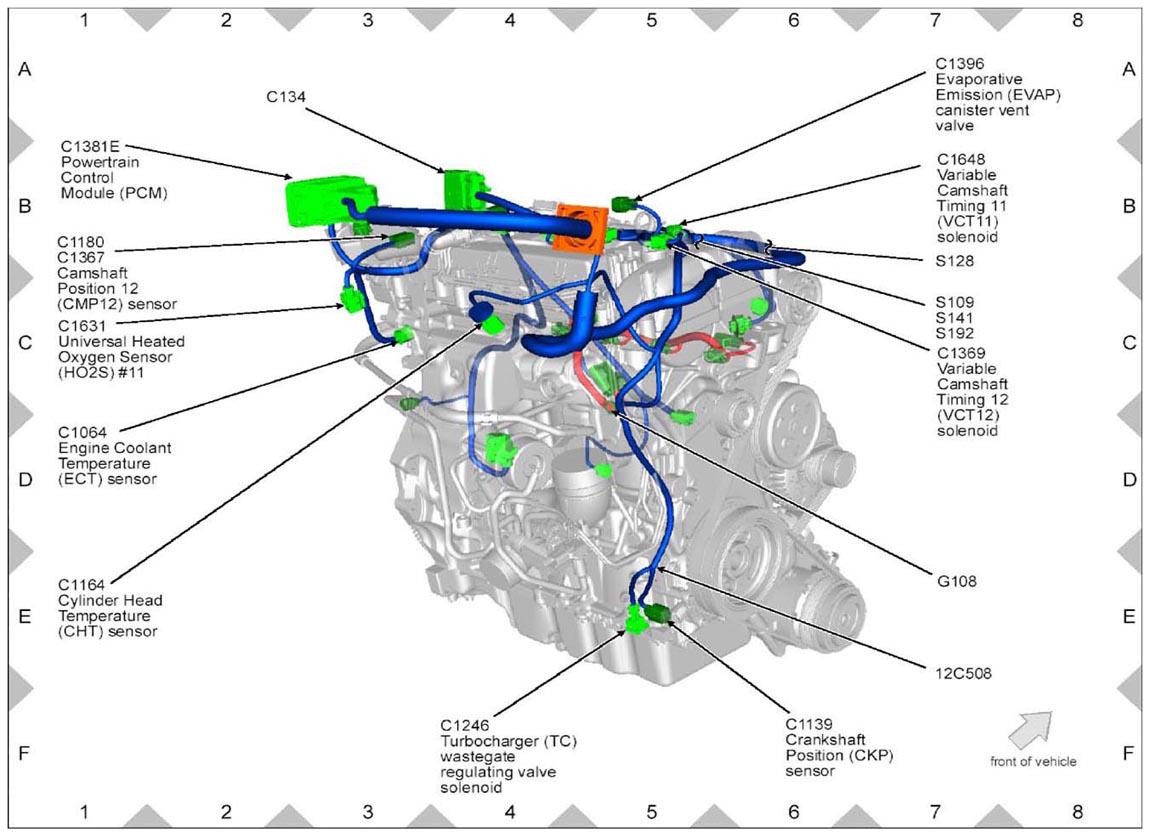

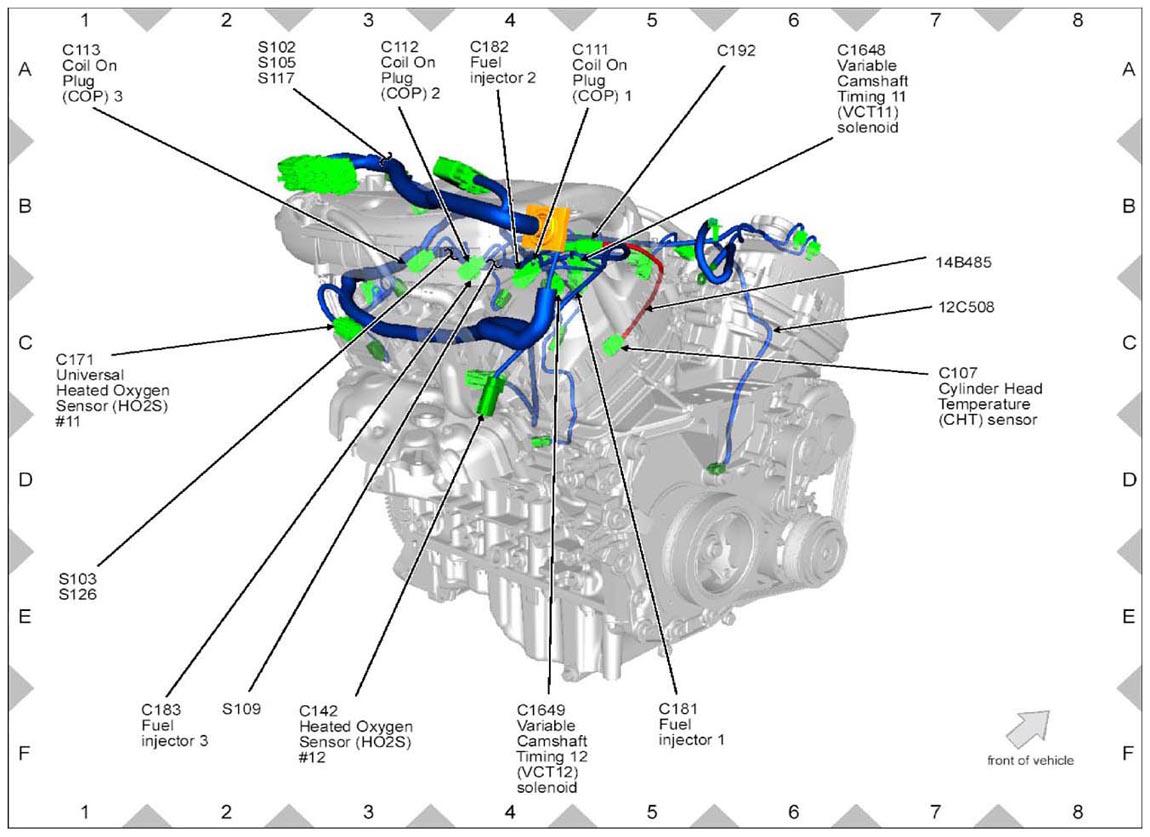

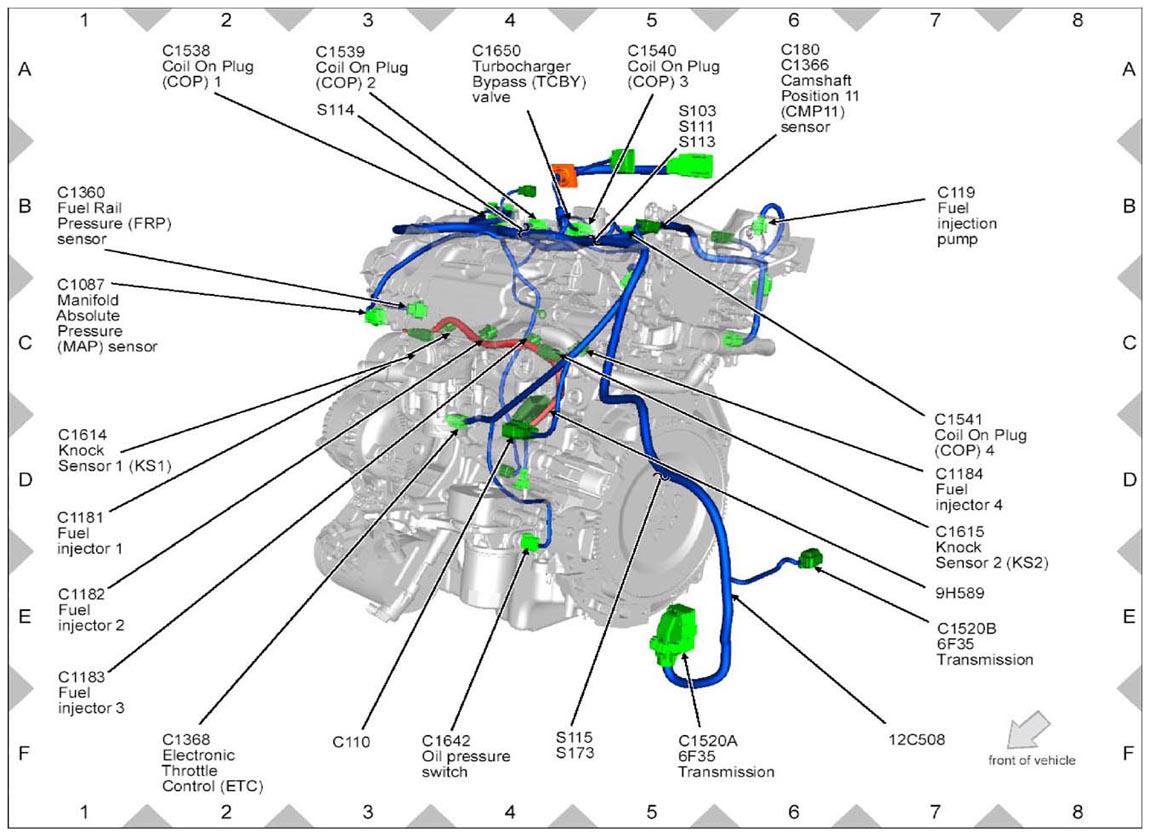

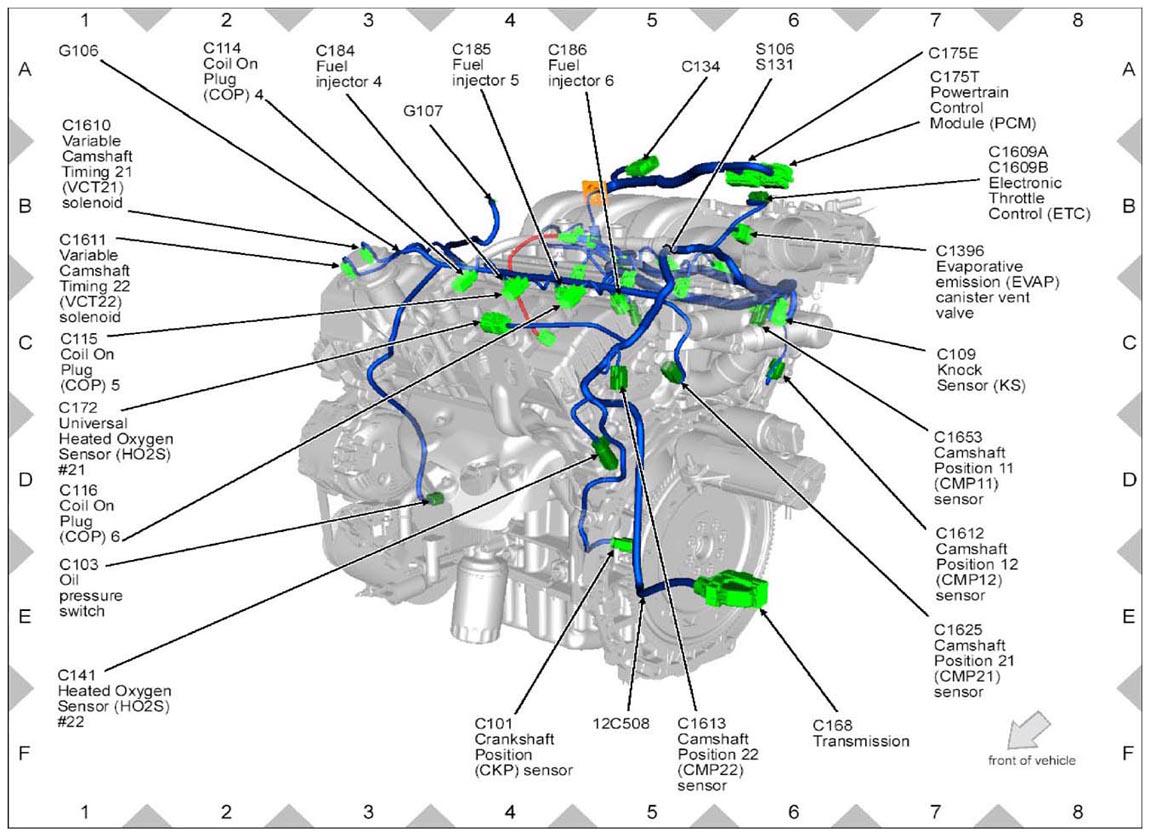

Fig 7: Engine Wiring Harness Connectors Location (1 Of 6)
Courtesy of FORD MOTOR CO.
Fig 8: Engine Wiring Harness Connectors Location (2 Of 6)
Courtesy of FORD MOTOR CO.
Fig 9: Engine Wiring Harness Connectors Location (3 Of 6)
Courtesy of FORD MOTOR CO.

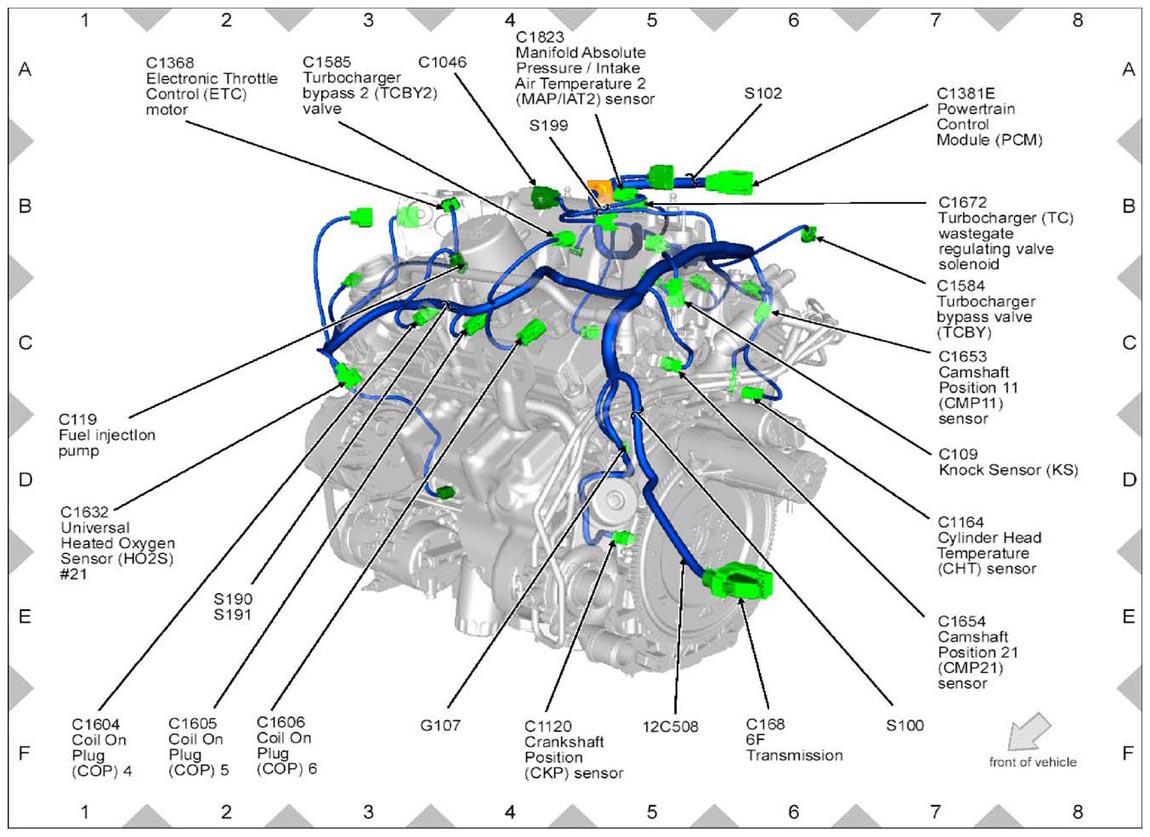

Fig 10: Engine Wiring Harness Connectors Location (4 Of 6)
Courtesy of FORD MOTOR CO.
Fig 11: Engine Wiring Harness Connectors Location (5 Of 6)
Courtesy of FORD MOTOR CO.
Fig 12: Engine Wiring Harness Connectors Location (6 Of 6)
Courtesy of FORD MOTOR CO.

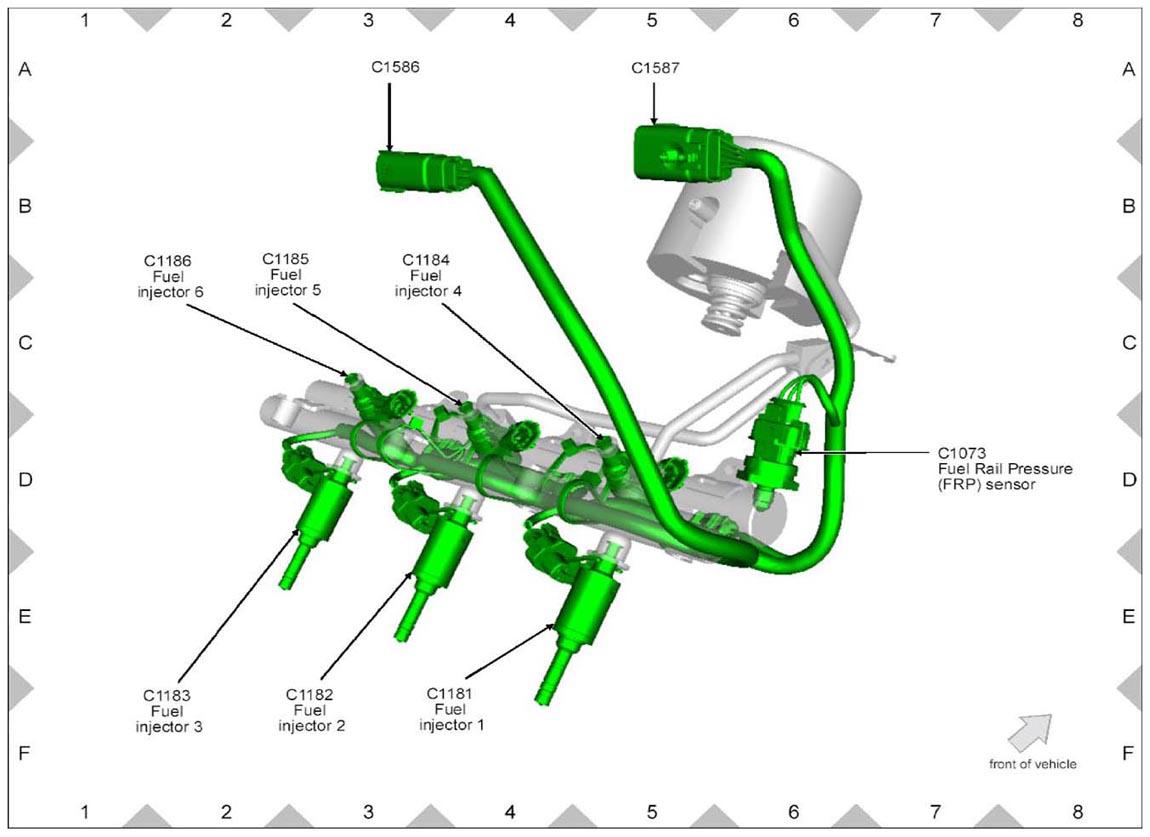

Fig 13: Fuel Injector Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

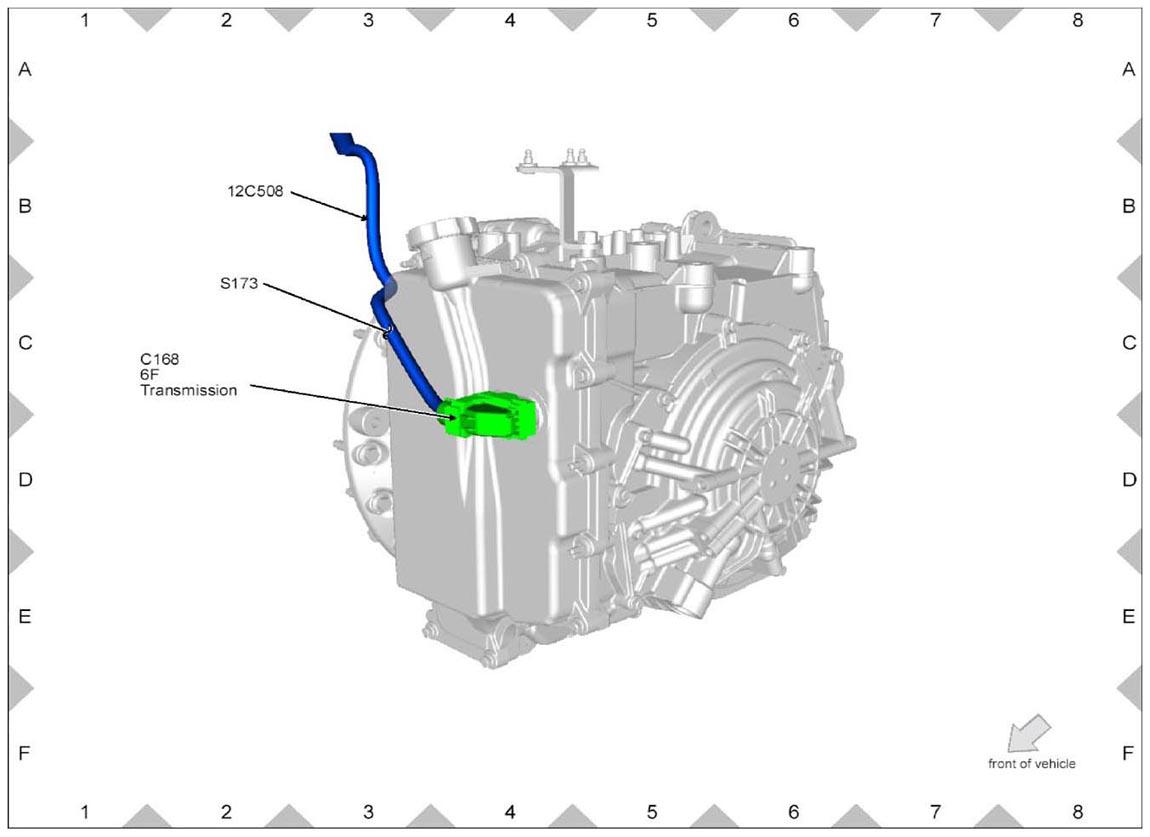

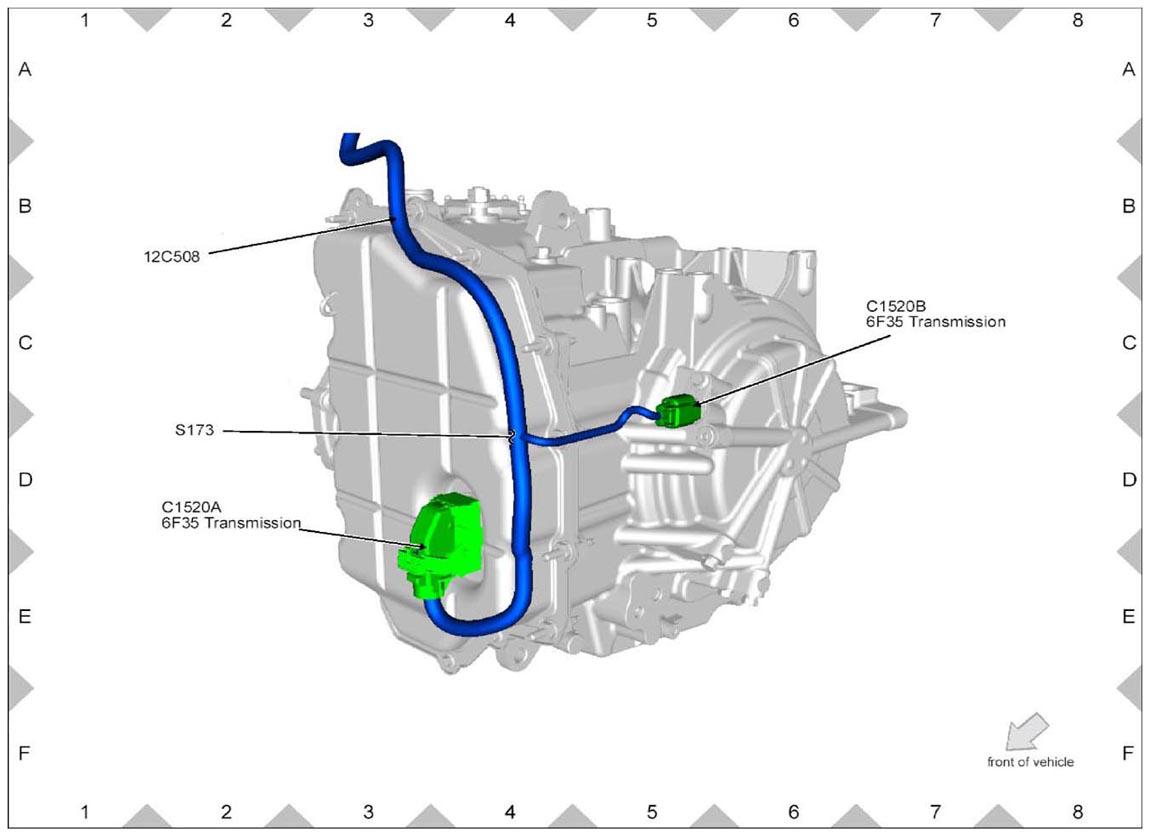

Fig 14: Transmission Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 15: Transmission Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

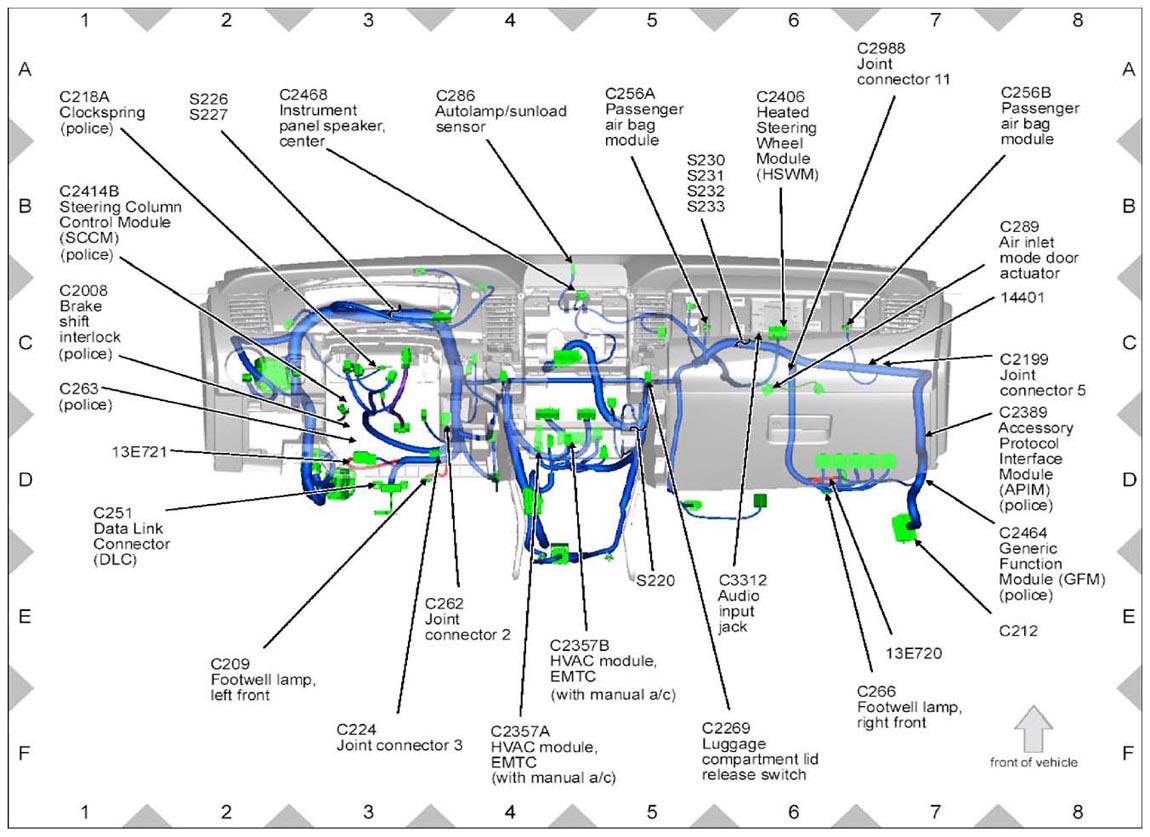

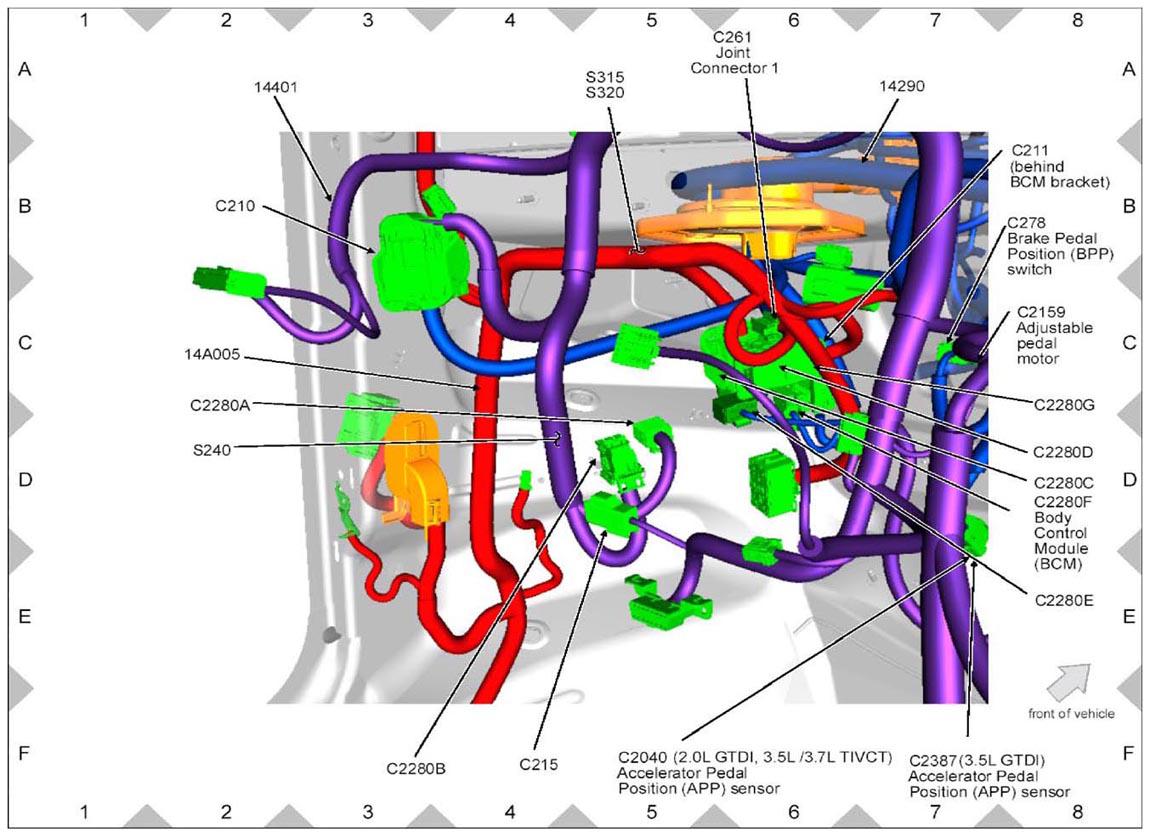

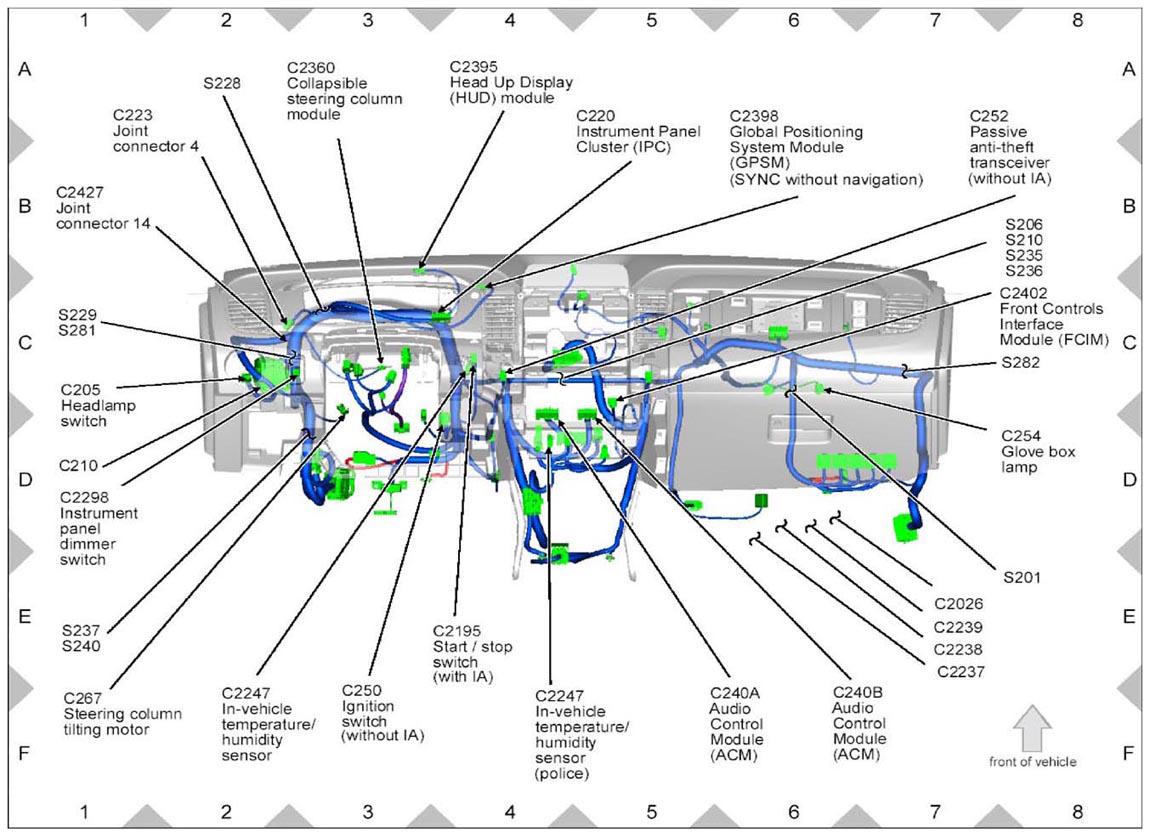

Fig 16: Dashboard Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.

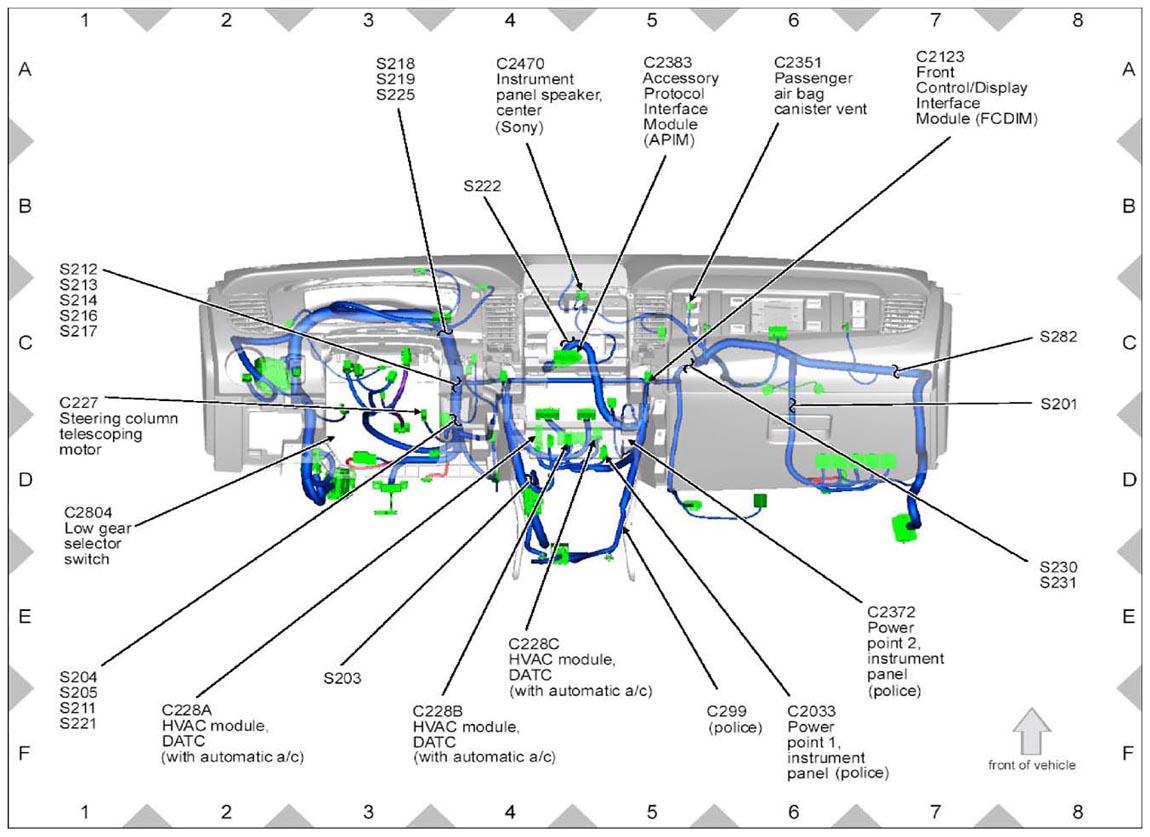

Fig 17: Dashboard Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 18: Dashboard Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 19: Dashboard Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

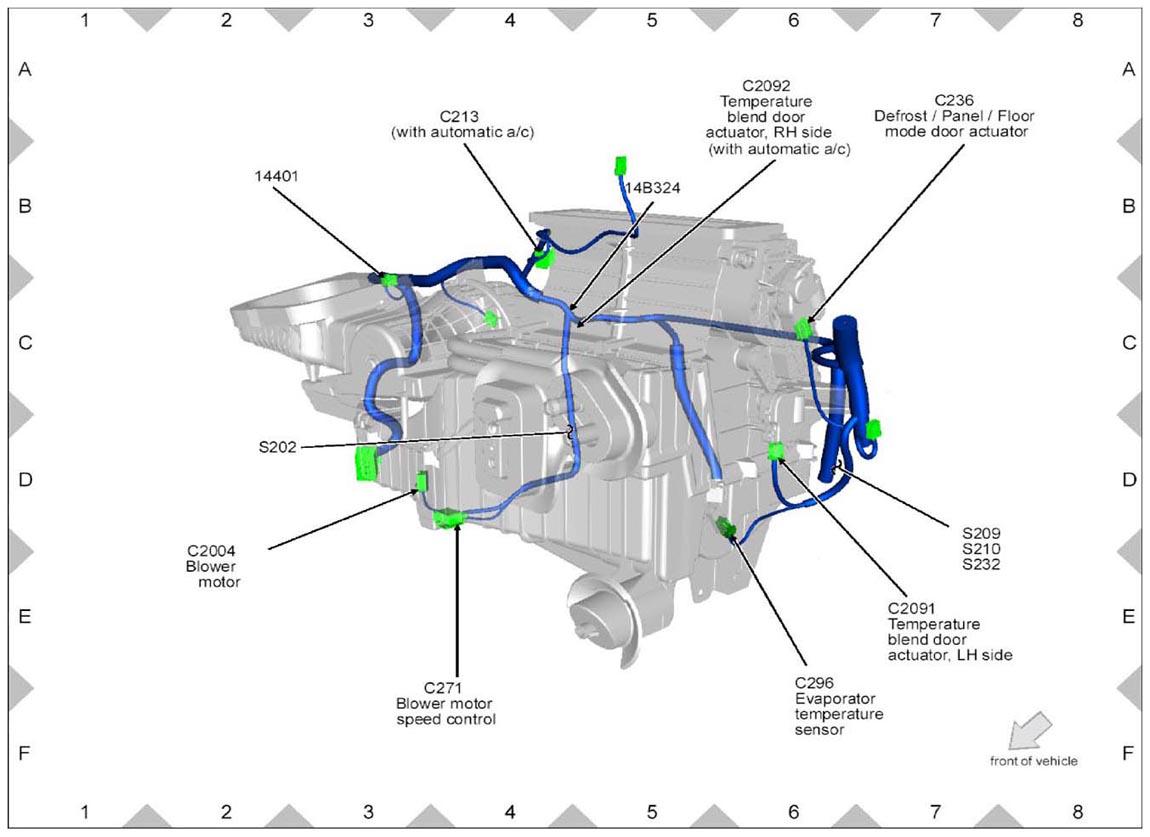

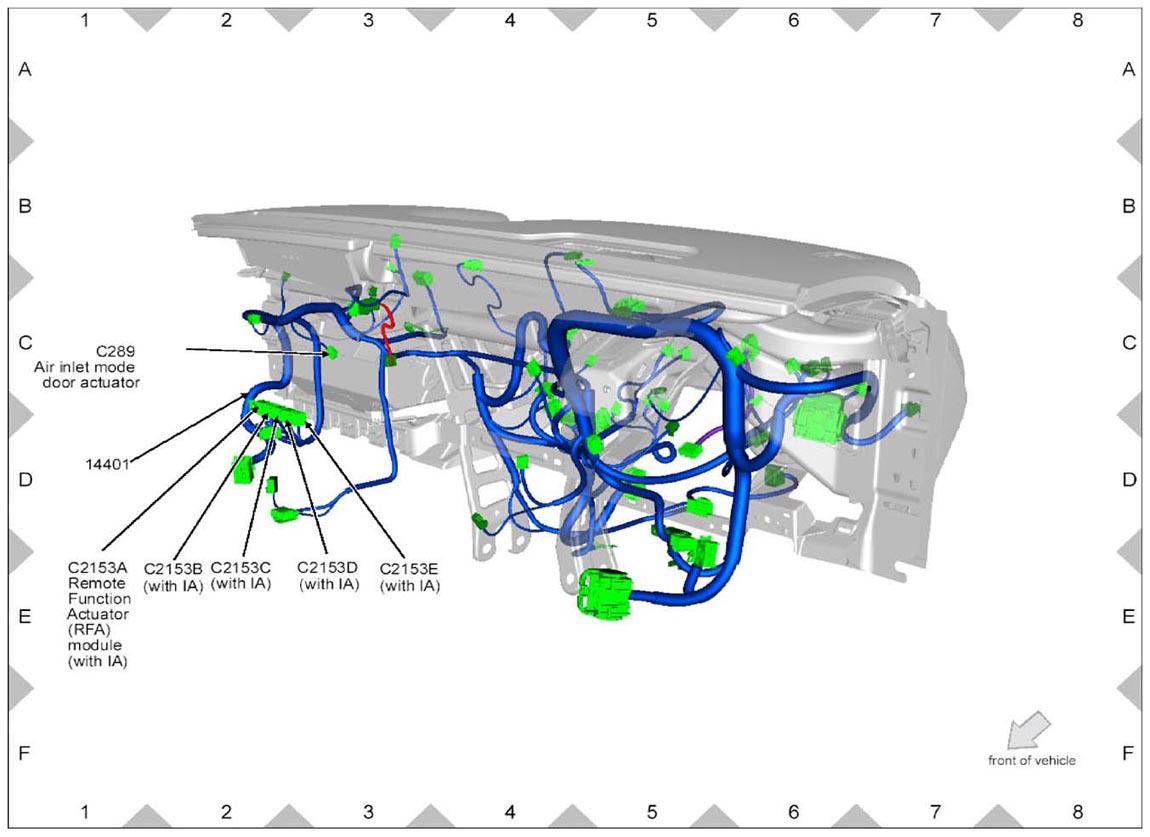

Fig 20: HVAC Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 21: Steering Column Control Module Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

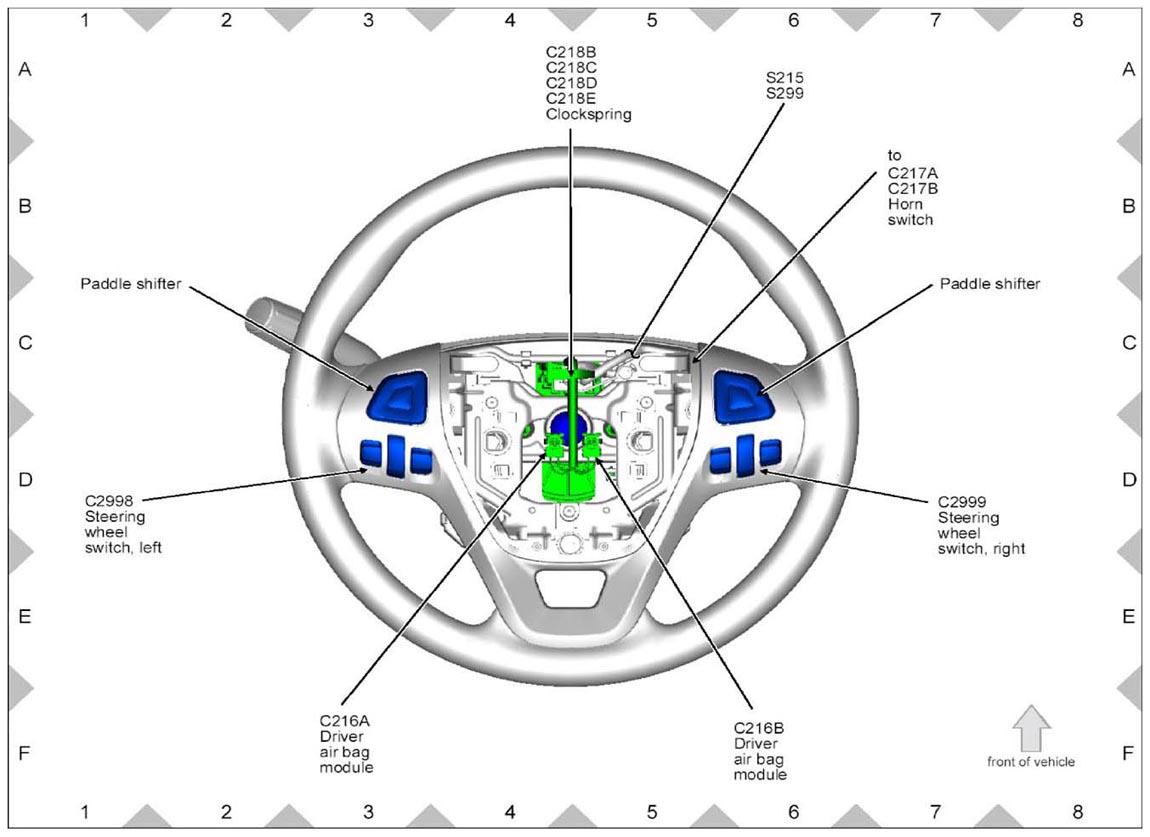

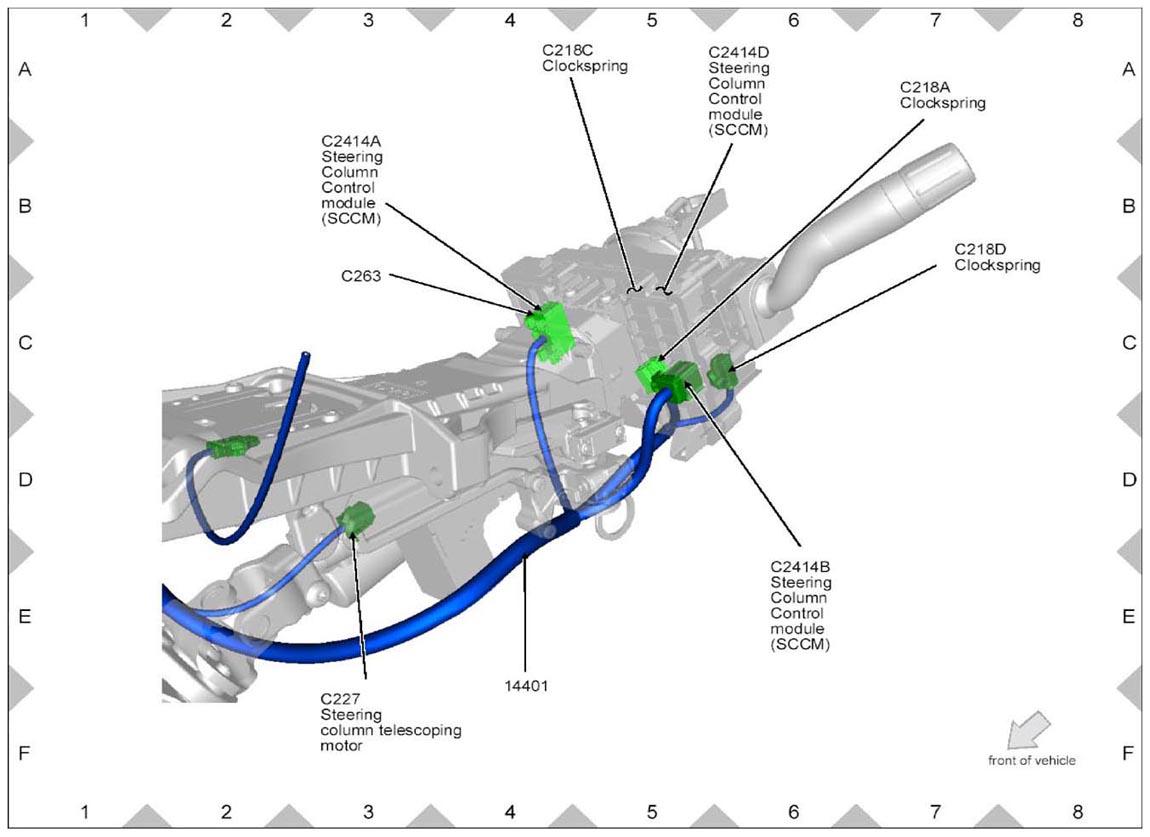

Fig 22: Steering Wheel Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

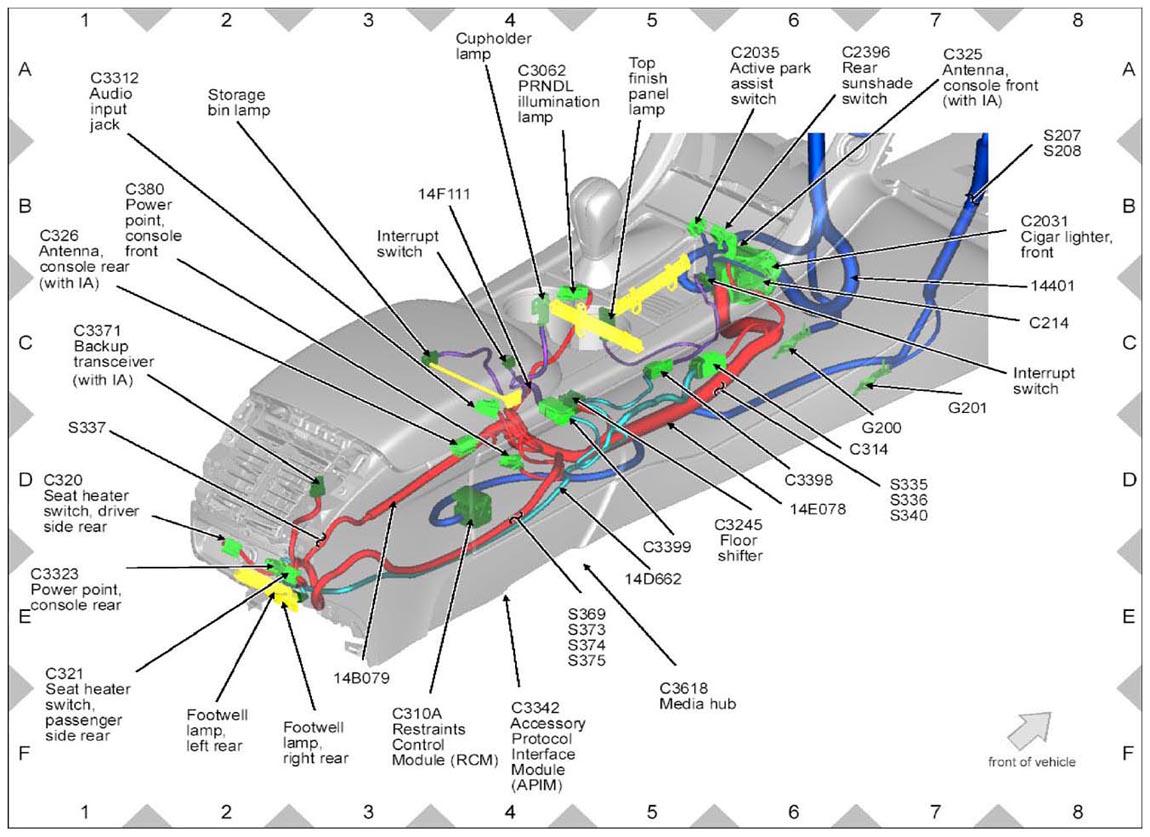

Fig 23: Center Console Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 24: Adjustable Pedal Motor Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

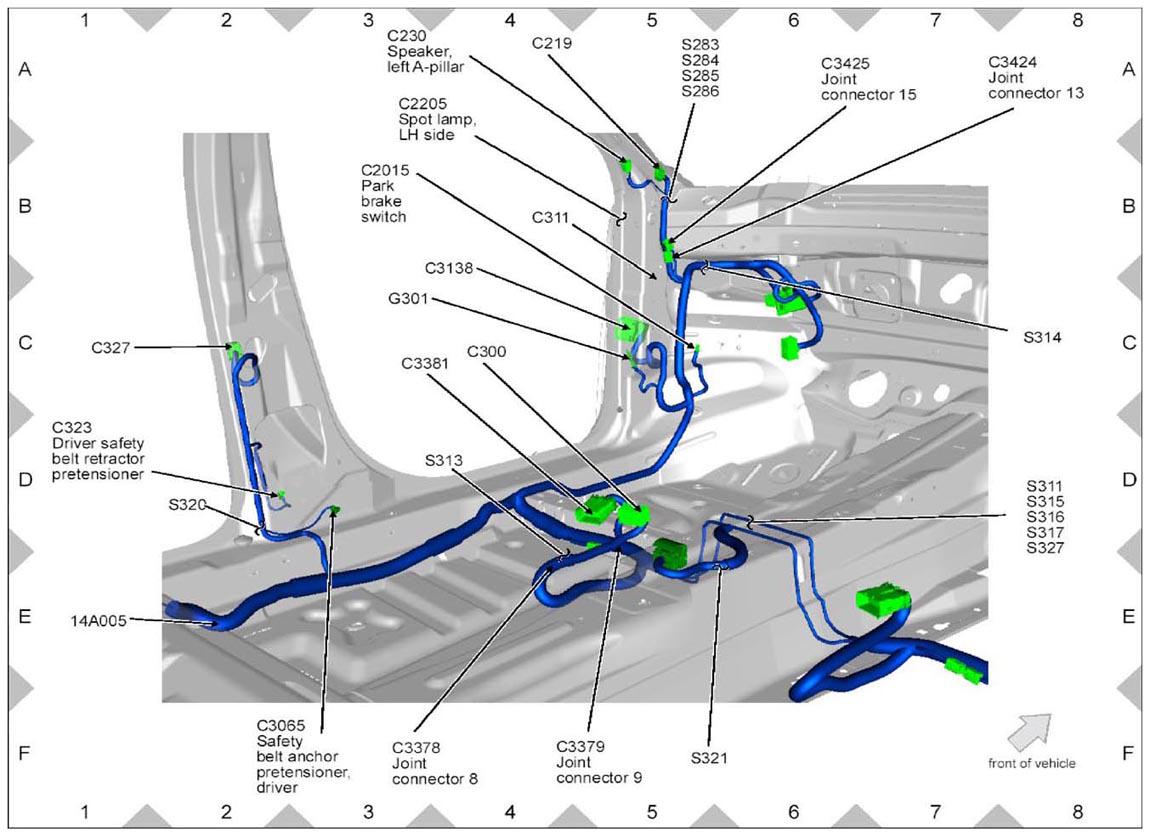

Fig 25: Front Compartment LH Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

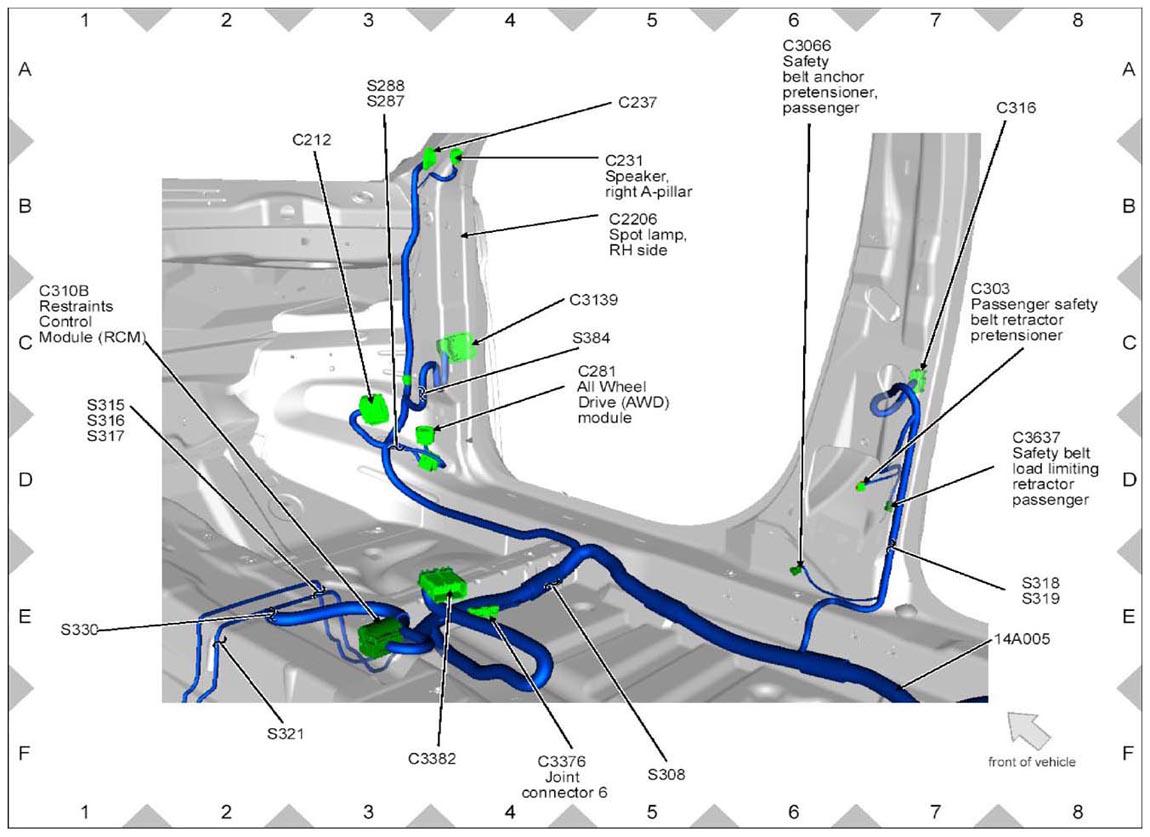

Fig 26: Front Compartment RH Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

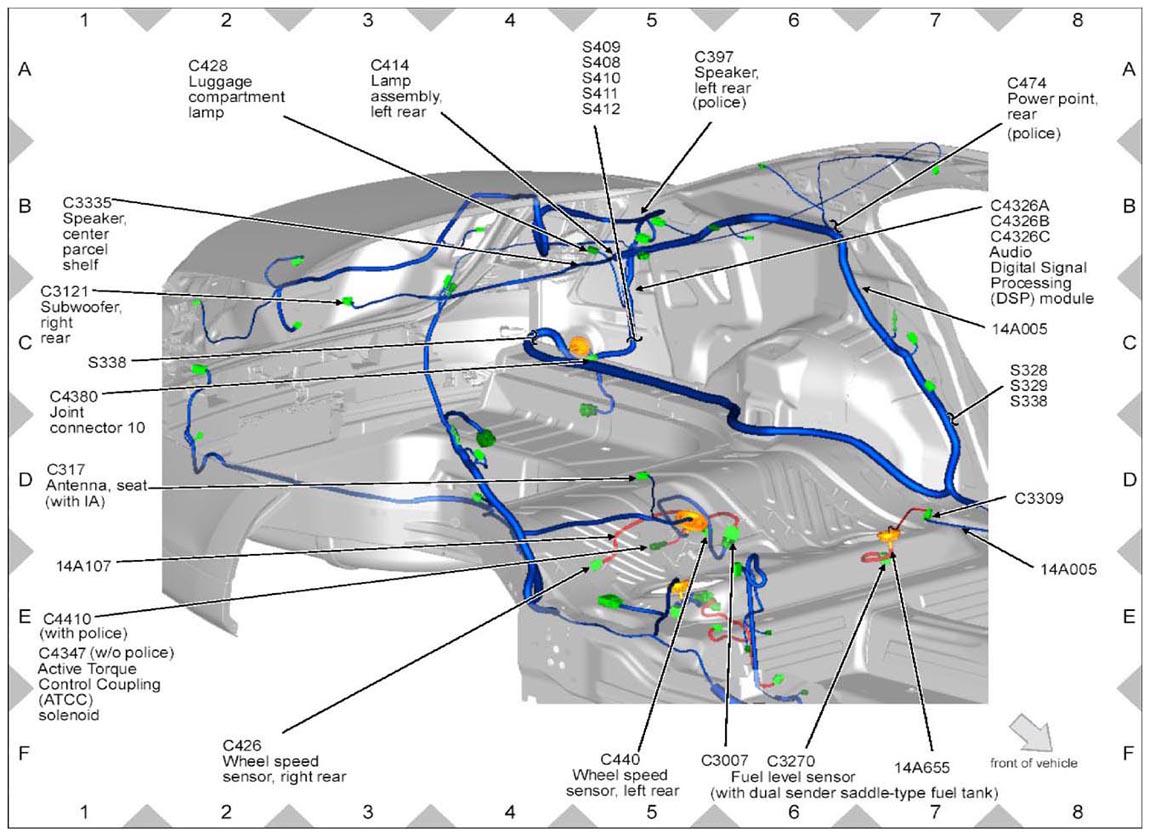

Fig 27: Rear Compartment LH Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

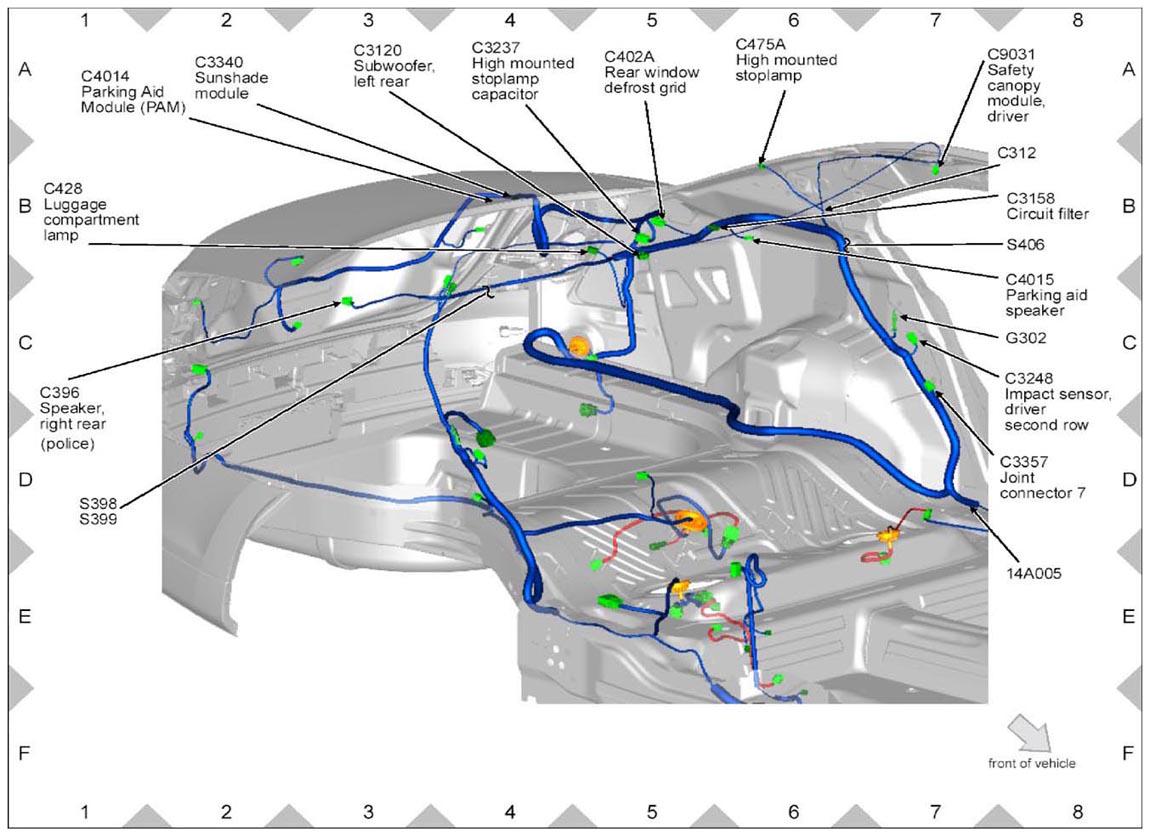

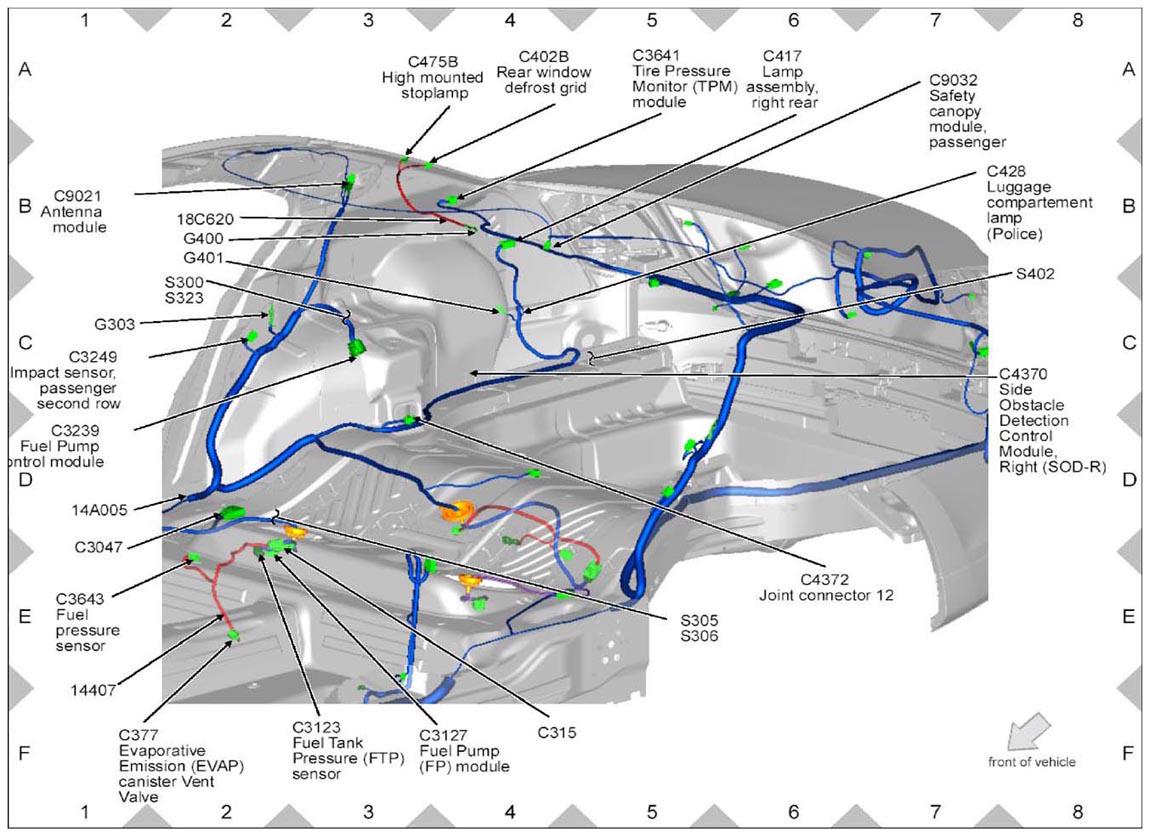

Fig 28: Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 29: Rear Compartment RH Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

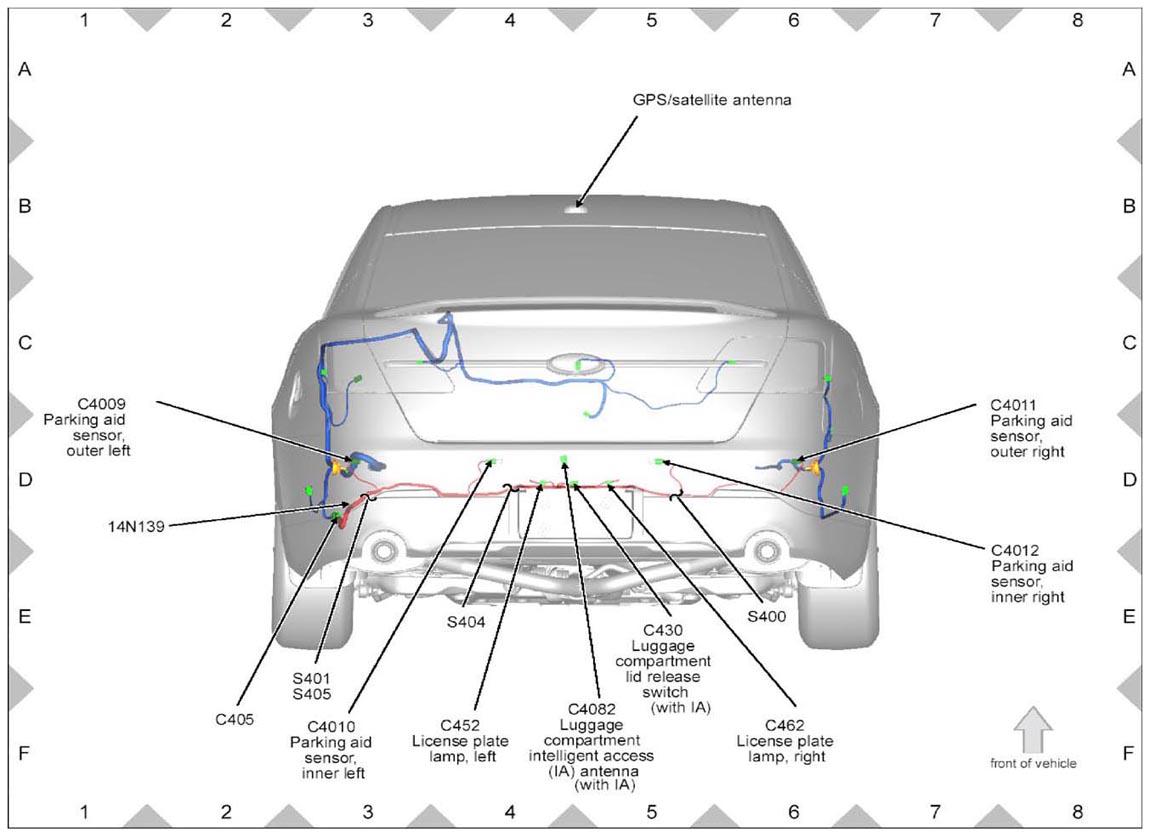

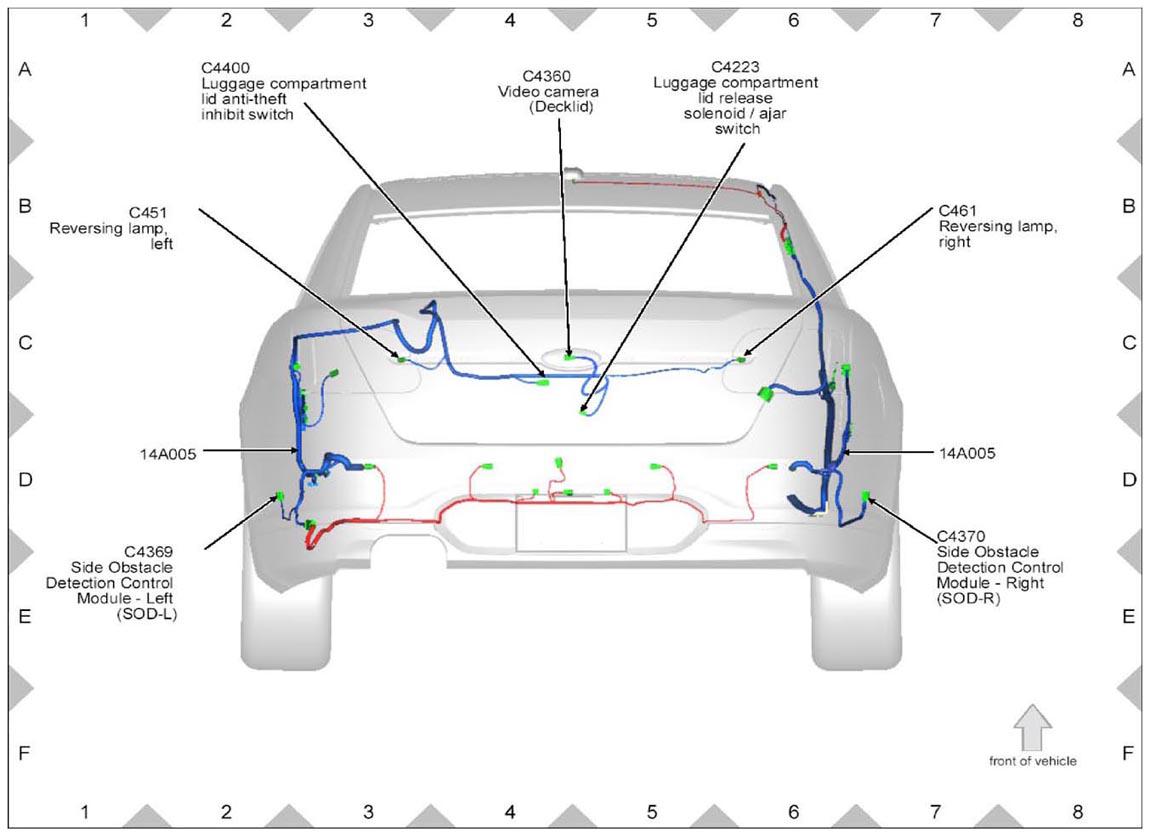

Fig 30: Rear End Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 31: Rear End Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.

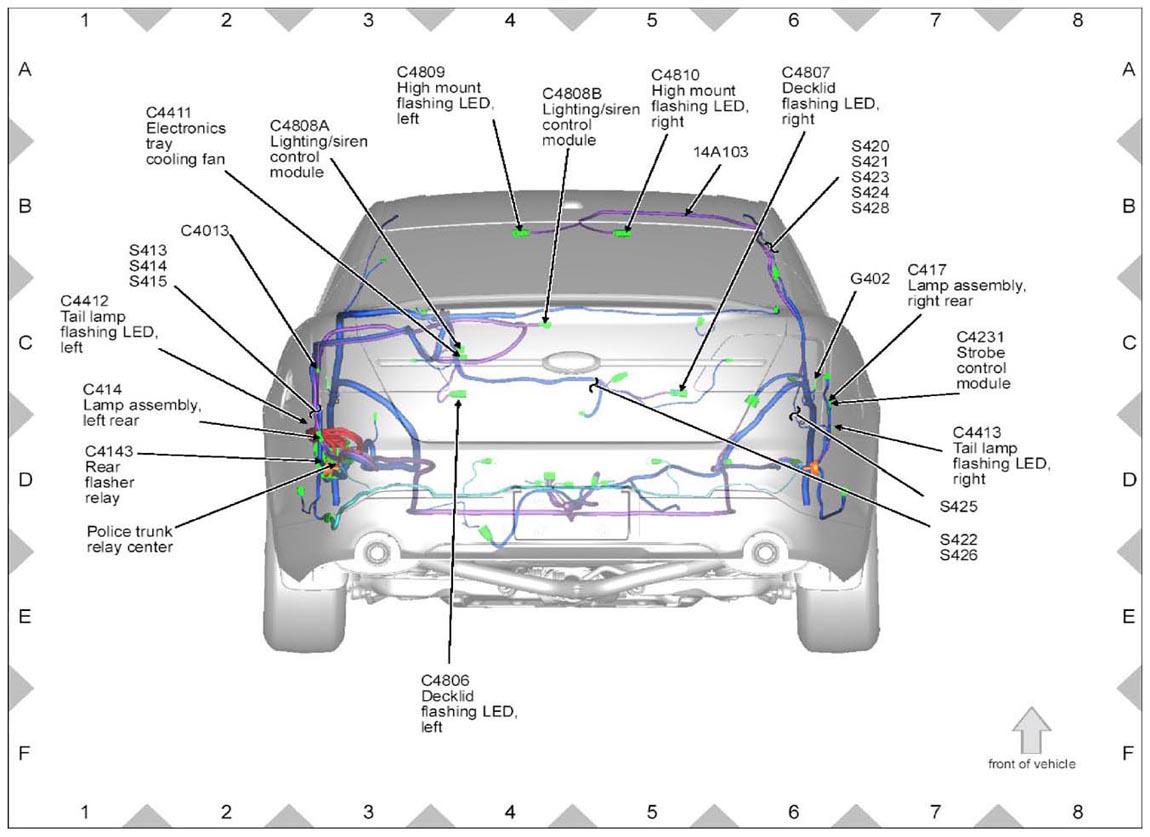

Fig 32: Rear End Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

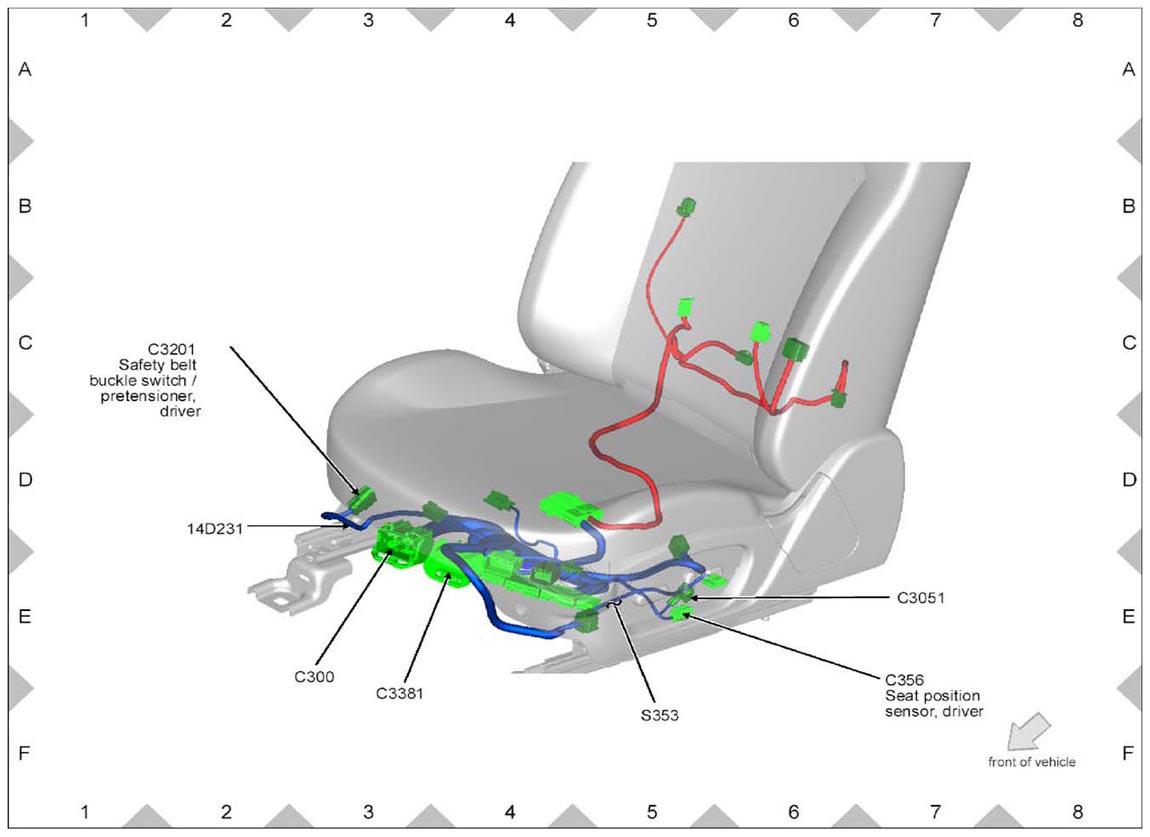

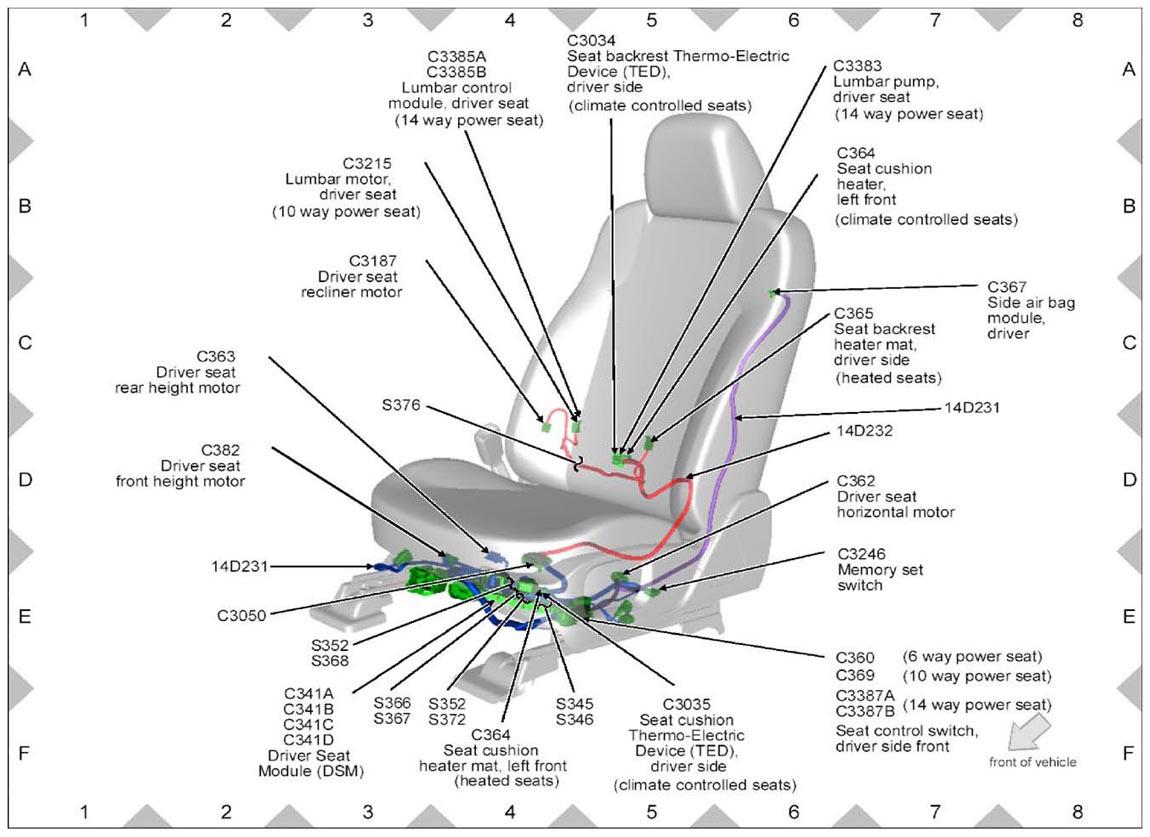

Fig 33: Driver Seat Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 34: Driver Seat Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

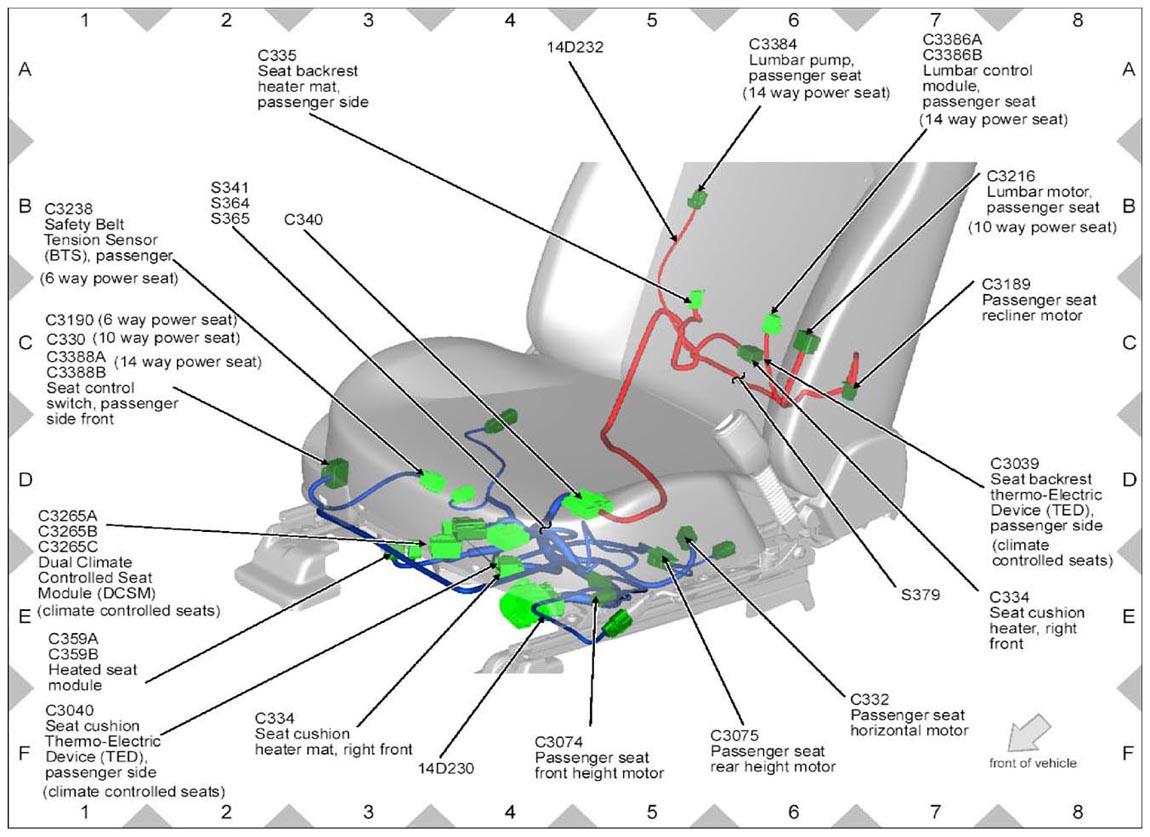

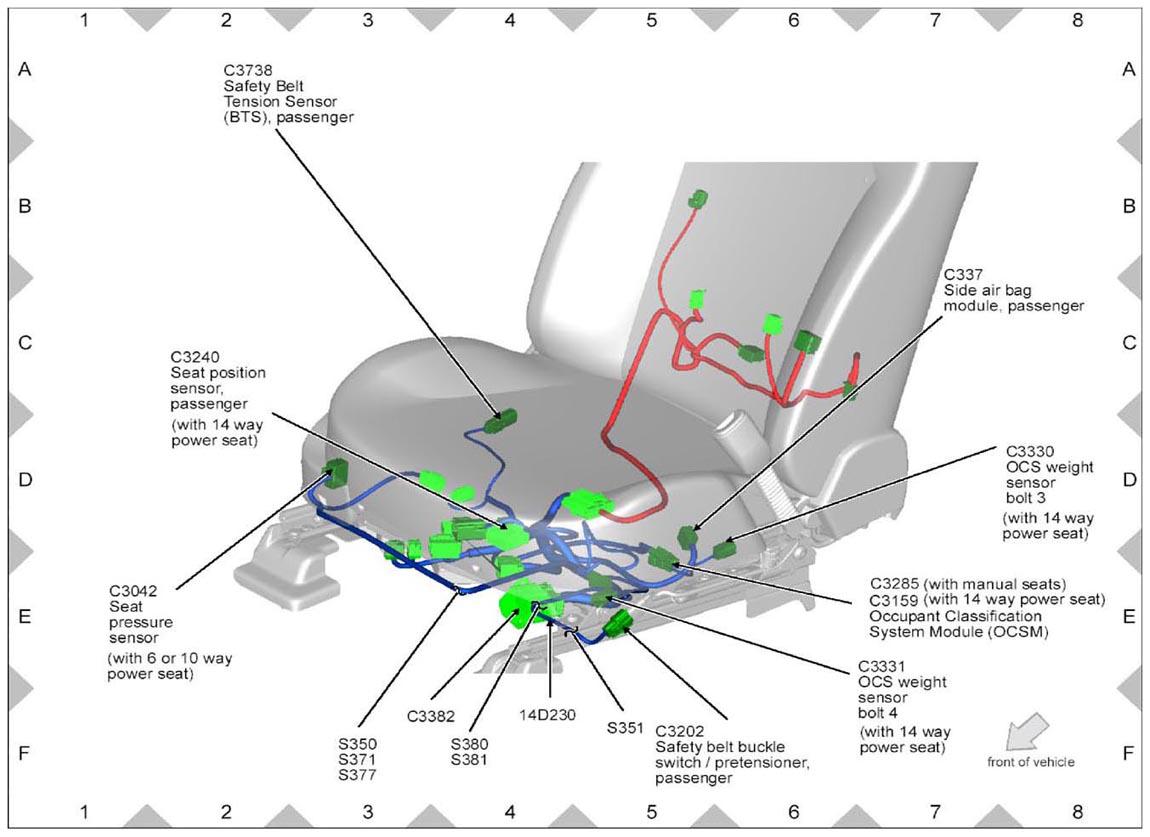

Fig 35: Passenger Seat Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 36: Passenger Seat Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

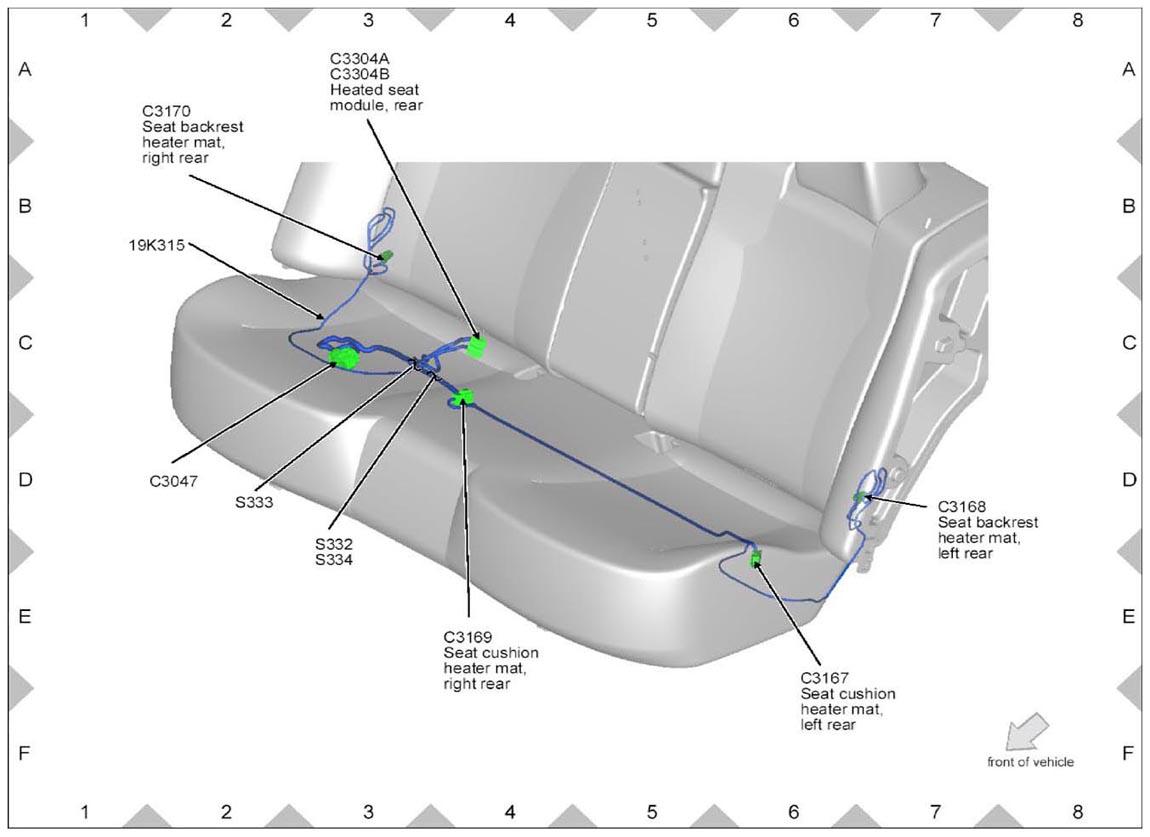

Fig 37: Rear Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

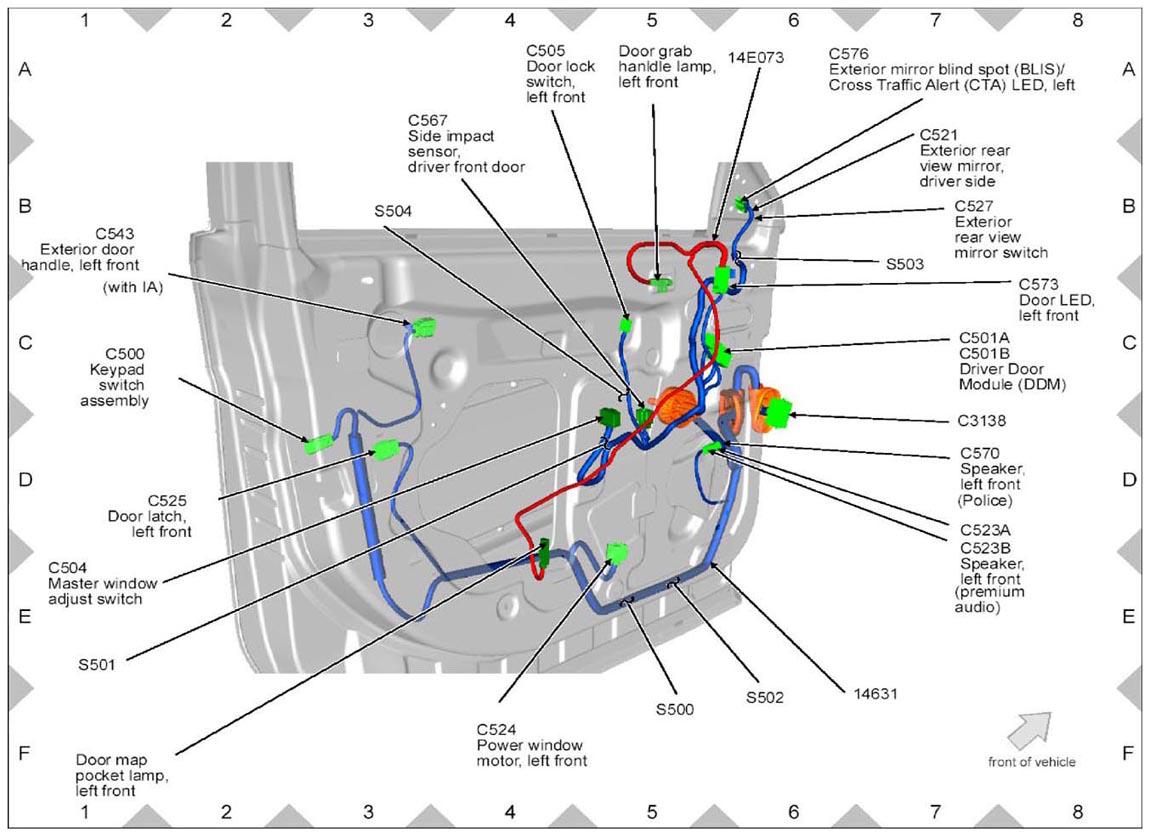

Fig 38: LH Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

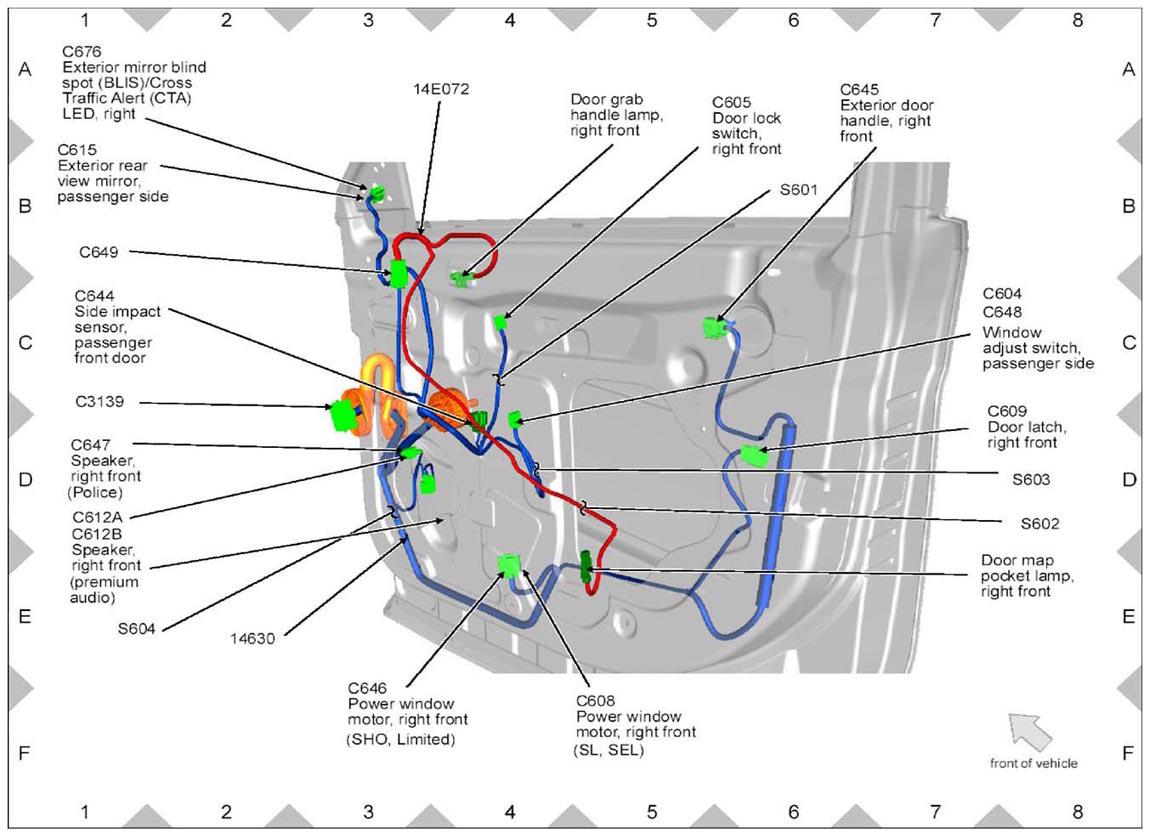

Fig 39: RH Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

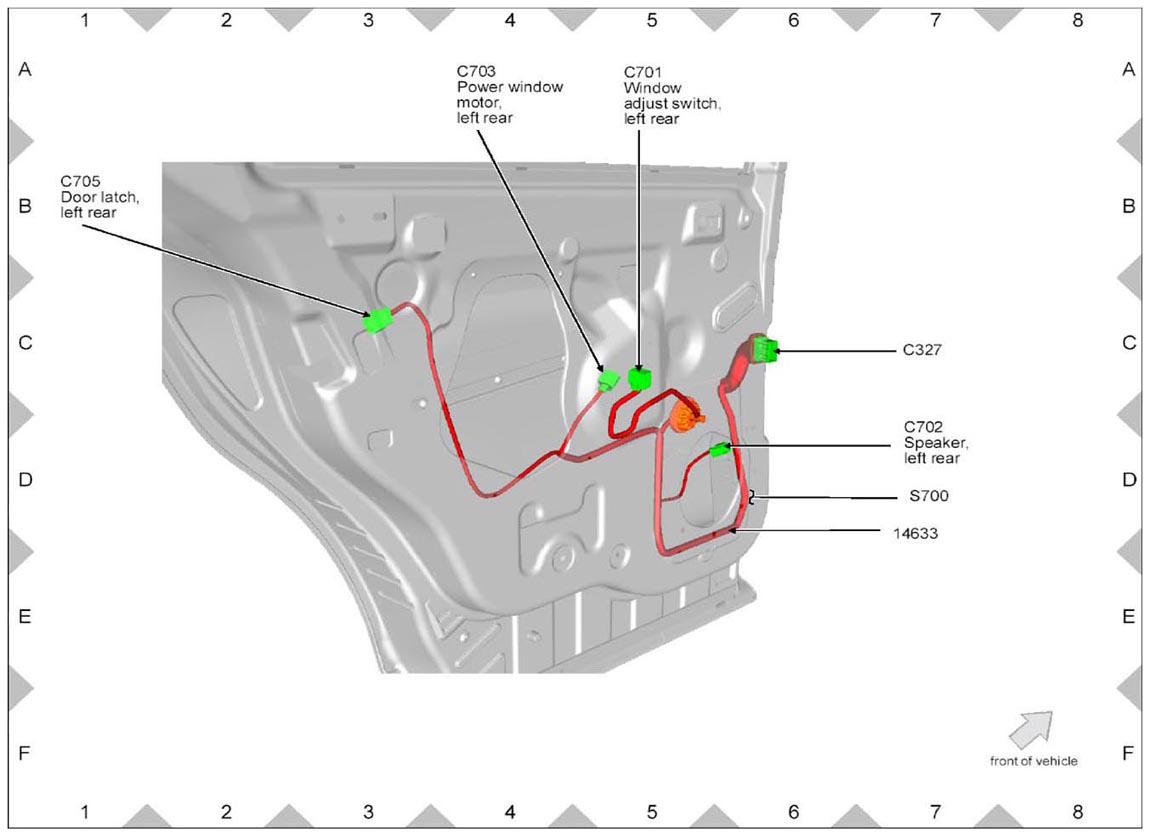

Fig 40: LH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

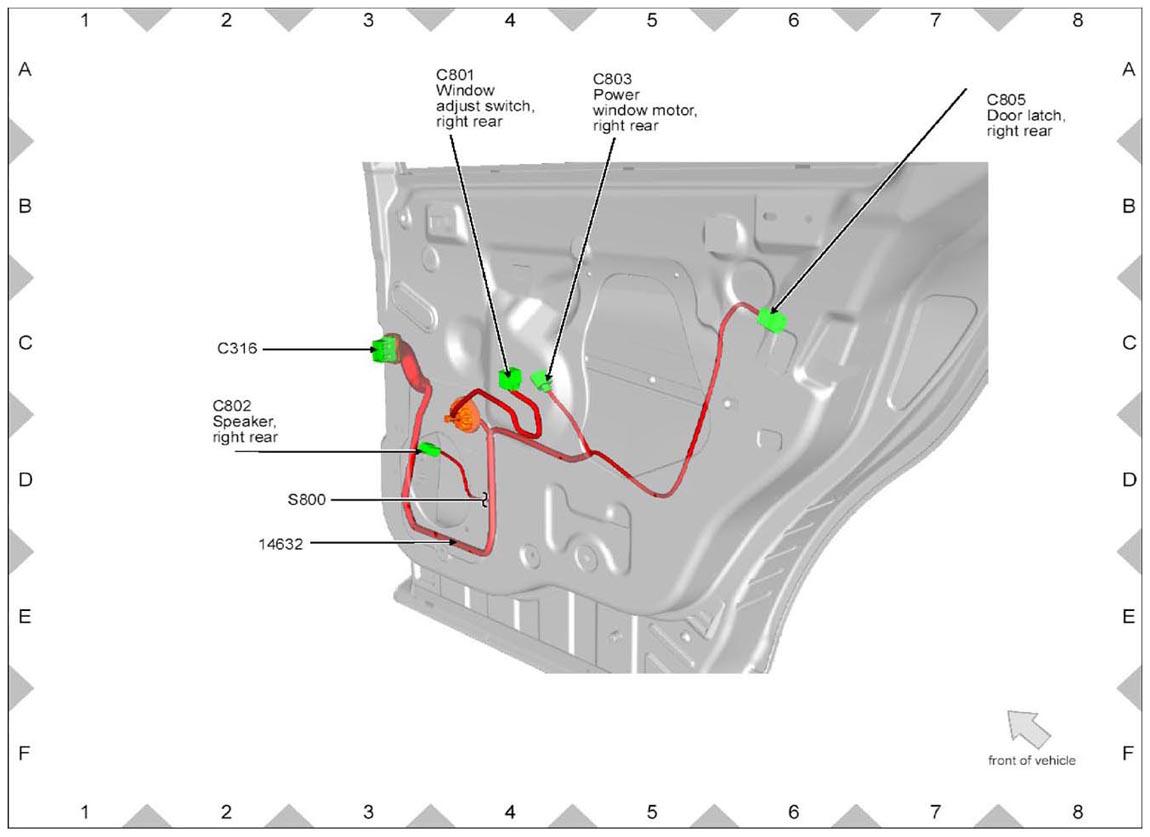

Fig 41: RH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

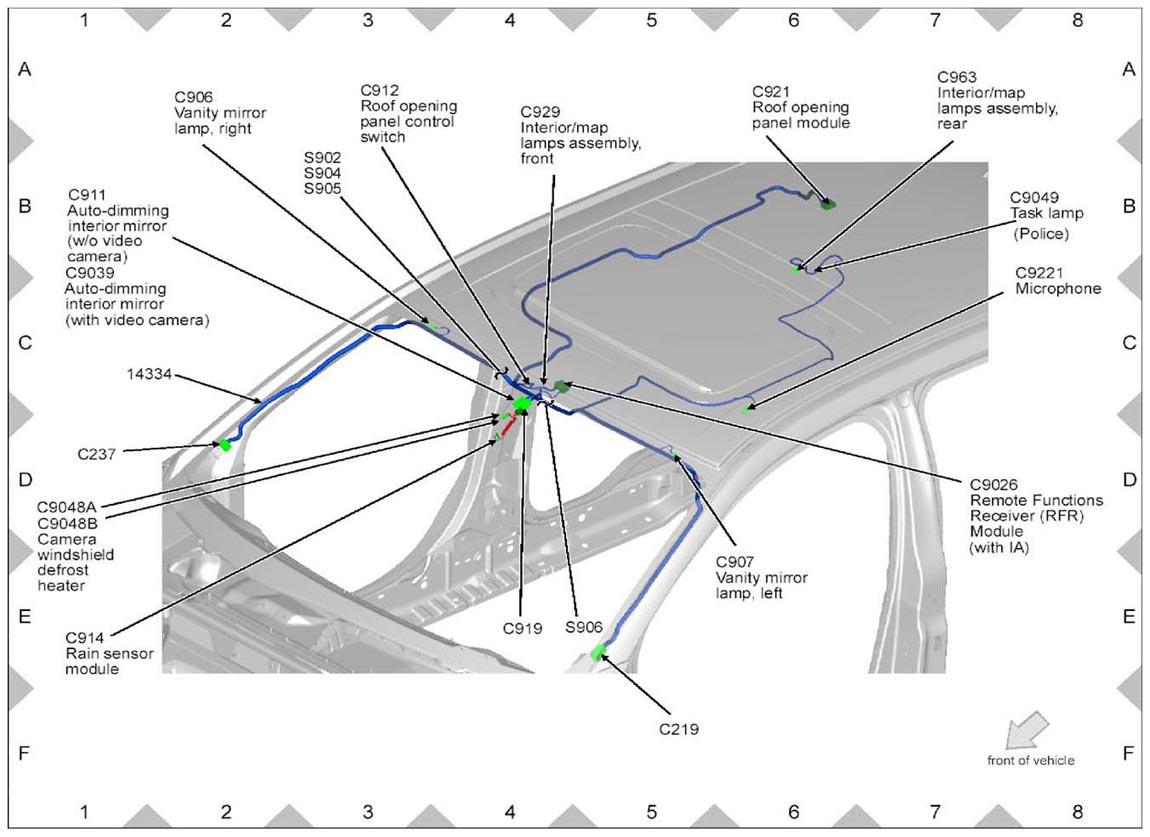

Fig 42: Roof Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
