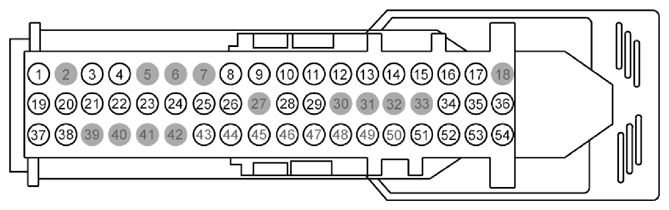

| 1 |
SBP09 (RD) |
22 |
FUSE - 9 OR CIRCUIT BREAKER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
VME80 (VT) |
26 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
|
| 4 |
RME80 (BU) |
26 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
LME89 (YE-BU) |
22 |
CTRL MOD. - MEDIA CONNECTIVITY POWER |
|
| 9 |
DME45 (*) |
18 |
JACK - AUDIO # EXT. AUX IN D |
|
| 10 |
VME45 (BU) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT (+) |
|
| 11 |
RME45 (YE-GN) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT (-) |
|
| 12 |
VMM23 (BN-VT) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + |
|
| 13 |
DMM23 (*) |
18 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D |
|
| 14 |
VMP19 (WH-GN) |
22 |
CAMERA - PARKING AID REAR VIDEO + |
|
| 15 |
RMP19 (BN-VT) |
22 |
CAMERA - PARKING AID REAR VIDEO - |
|
| 16 |
VDB06 (GY) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 17 |
VDB07 (VT) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
VDB13 (BU) |
26 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
| 20 |
VDB14 (VT) |
26 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
| 21 |
DME80 (*) |
18 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D |
|
| 22 |
DME52 (*) |
18 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D |
|
| 23 |
VME52 (BU) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
|
| 24 |
RME52 (GY) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
|
| 25 |
VME53 (VT) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
|
| 26 |
RME53 (BN) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
VME46 (BU-GN) |
22 |
JACK - AUDIO # EXT. AUX IN RIGHT (+) |
|
| 29 |
RME46 (WH-GN) |
22 |
JACK - AUDIO # EXT. AUX IN RIGHT (-) |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
VME88 (BU-WH) |
22 |
JACK - VIDEO # EXT. AUX IN (+) |
|
| 35 |
RME88 (GN-BU) |
22 |
JACK - VIDEO # EXT. AUX IN (-) |
|
| 36 |
DME88 (*) |
18 |
JACK - VIDEO # EXT. AUX IN D |
|
| 37 |
GD374 (BK-WH) |
22 |
GROUND - TUNNEL (BC3T) |
|
| 38 |
RME89 (WH-BU) |
22 |
CTRL MOD. - MEDIA CONNECTIVITY GROUND |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
* |
* |
Not Used |
|
| 42 |
* |
* |
Not Used |
|
| 43 |
* |
* |
Not Used |
|
| 44 |
* |
* |
Not Used |
|
| 45 |
* |
* |
Not Used |
|
| 46 |
* |
* |
Not Used |
|
| 47 |
* |
* |
Not Used |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
* |
* |
Not Used |
|
| 51 |
VME90 (GY-BU) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) |
|
| 52 |
VME91 (WH-BN) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) |
|
| 53 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 54 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
