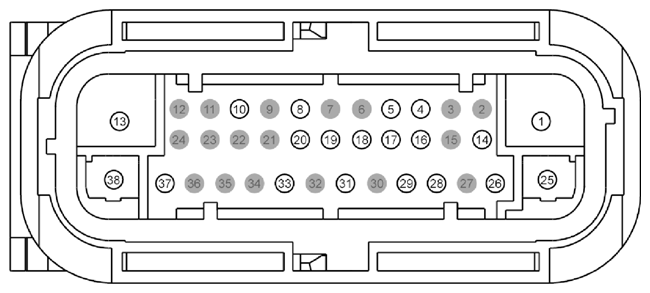

| 1 |
SBB05 (GY-RD) |
10 |
FUSE - 5 OR CIRCUIT BREAKER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
RCA19 (VT) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT |
|
| 5 |
VCA36 (YE-GN) |
20 |
CTRL MOD. - BRAKE BOOSTER CONTROL VALVE + |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
RCA17 (YE) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
RCA36 (GY-OG) |
20 |
CTRL MOD. - BRAKE BOOSTER CONTROL VALVE - |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
GD120 (BK-GN) |
10 |
GROUND - FENDER FRONT LEFT |
|
| 14 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
VCA05 (GY-VT) |
20 |
SENSOR - WHEEL SPEED RIGHT FRONT |
|
| 17 |
VCA06 (WH-OG) |
20 |
SENSOR - WHEEL SPEED RIGHT REAR |
|
| 18 |
RCA18 (BN-GN) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR |
|
| 19 |
VCA03 (VT-WH) |
20 |
SENSOR - WHEEL SPEED LEFT FRONT |
|
| 20 |
VCA24 (GN-OG) |
20 |
CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
SBB43 (BU-RD) |
12 |
FUSE - 43 OR CIRCUIT BREAKER |
|
| 26 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
CBB92 (GN-WH) |
20 |
FUSE - 92 OR CIRCUIT BREAKER |
|
| 29 |
RCA20 (BN) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
VCA04 (BU-OG) |
20 |
SENSOR - WHEEL SPEED LEFT REAR |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
VCA23 (BU-WH) |
20 |
CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH |
|
| 34 |
* |
* |
Not Used |
|
| 35 |
* |
* |
Not Used |
|
| 36 |
* |
* |
Not Used |
|
| 37 |
LCA37 (YE-OG) |
20 |
CTRL MOD. - SENSOR BRAKE VACUUM + |
|
| 38 |
GD120 (BK-GN) |
12 |
GROUND - FENDER FRONT LEFT |
|
