Body Control Module (BCM) Connector End View (C2280E)

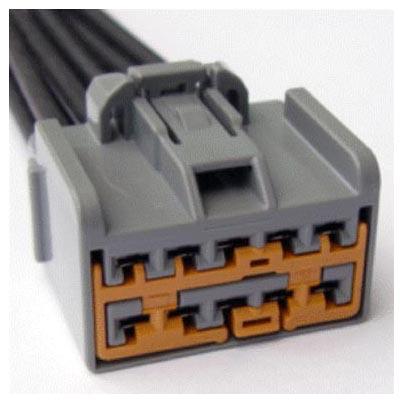

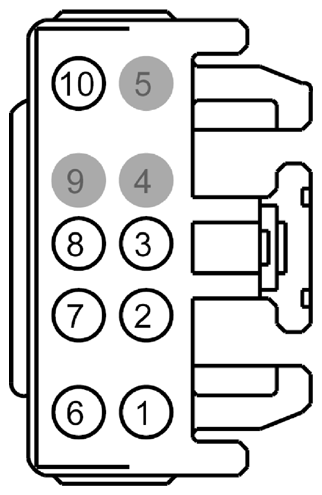

Fig 1: Identifying Body Control Module (BCM) Connector (C2280E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF05 (BU-GN)	20	CTRL MOD. - BEAM LOW RIGHT
2	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT
3	SRH01 (YE-RD)	14	RELAY - HORN
4	*	*	Not Used
5	*	*	Not Used
6	CBP30 (YE-BU)	20	FUSE - 30 OR CIRCUIT BREAKER
7	CLF03 (VT-OG)	20	CTRL MOD. - BEAM HIGH RIGHT
8	CLF02 (GY-BN)	20	CTRL MOD. - BEAM HIGH LEFT
9	*	*	Not Used
10	CDC21 (GY-BN)	12	RELAY - IGNITION

Available Pigtail Kits
Pigtail Kit Part Number WPT-516	Service Part Number: 3U2Z-14S411-TJA  Gauge: 12  Pin material: Tin  Cavities: 9  Vehicle Uses Switch - Headlamp Switch - Ignition Switch - Multifunction Switch - Seat (driver) Switch - Seat (passenger) Switch - Windshield Wiper/Washer
