Body Control Module (BCM) Connector End View (C2280G)

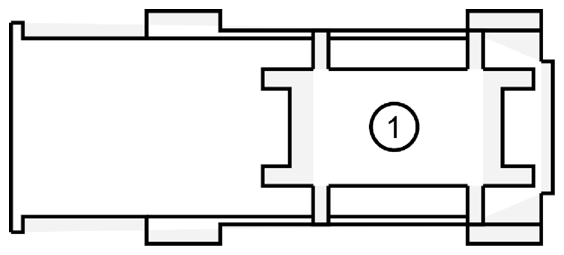

Fig 1: Identifying Body Control Module (BCM) Connector (C2280G)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF16 (RD)	06	FUSE - 16
