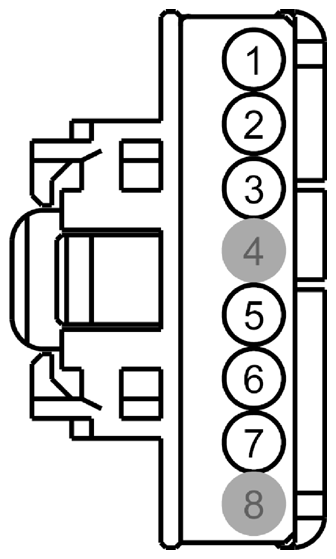

Memory Set Switch Connector End View (C3246)

Fig 1: Identifying Memory Set Switch Connector (C3246)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS55 (YE-GY)	20	CTRL MOD. - MEMORY SET INDICATOR	10-way seats
2	CPS16 (YE)	20	SWITCH - MEMORY DRIVER P2	10-way seats
2	GD904 (BK-BU)	20	GROUND - DRIVER SEAT # SEAT SWITCH	14-way seats
3	CPS15 (VT-WH)	20	SWITCH - MEMORY DRIVER P1	14-way seats
4	*	*	Not Used
5	CPS14 (GY-VT)	20	SWITCH - MEMORY SET +	10-way seats
6	CPS15 (VT-WH)	20	SWITCH - MEMORY DRIVER P1	10-way seats
7	CPS16 (YE)	20	SWITCH - MEMORY DRIVER P2	14-way seats
7	GD904 (BK-BU)	20	GROUND - DRIVER SEAT # SEAT SWITCH	10-way seats
8	*	*	Not Used

Available Pigtail Kits

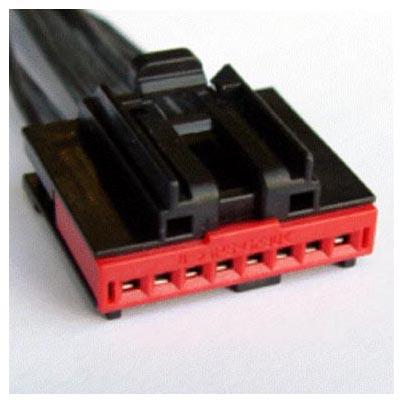

Pigtail Kit Part Number WPT-1219	Service Part Number: 3U2Z-14S411-DAAC Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Switch - Ambient Lighting Dimmer Switch - Door Lock (LH) Switch - Message Center Switch - Moon Roof/Sun Roof Switch - Seat Memory

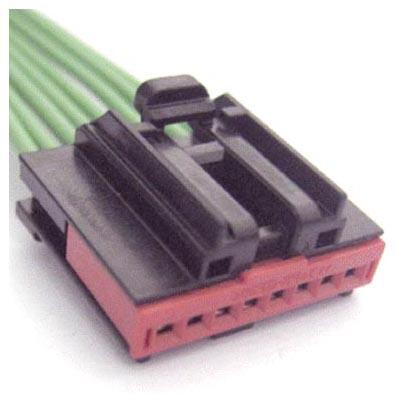

Pigtail Kit Part Number WPT-941	Service Part Number: 3U2Z-14S411-DAAB Gauge: 18 Pin material: Tin Cavities: 8 Vehicle Uses Module - Seat Memory Switch - Dimmer Switch - Message Center Switch - Moon Roof/Sun Roof Switch - Seat Memory

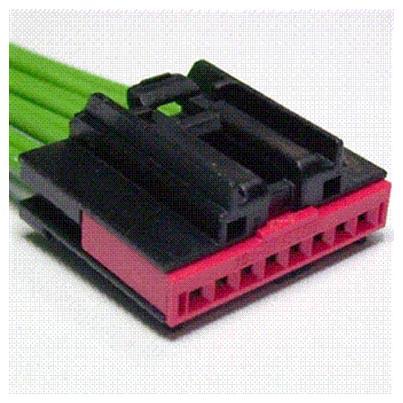

Pigtail Kit Part Number WPT-699	Service Part Number: 3U2Z-14S411-DAAA Gauge: 20 Pin material: Tin Cavities: 8 Vehicle Uses Switch - Moon Roof/Sun Roof
