Side Obstacle Detection Control Module, Left (Sod-L) Connector End View (C4369)

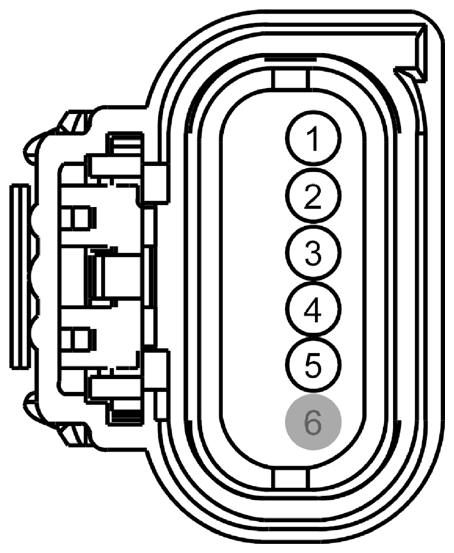

Fig 1: Identifying Side Obstacle Detection Control Module - Left (SOD-L) Connector (C4369)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRB04 (YE-GN)	22	SENSOR - BLINDSPOT WARNING LEFT HAND # WARNING ALERT
2	CBP34 (VT-BN)	22	FUSE - 34 OR CIRCUIT BREAKER
3	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
4	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
5	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T)
6	*	*	Not Used
