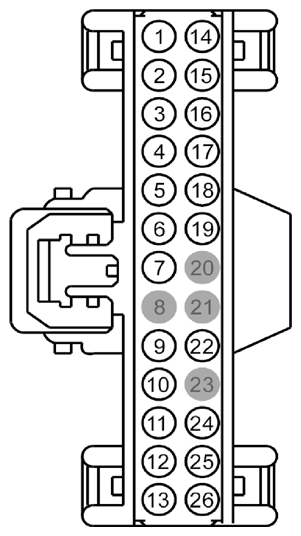

| 1 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 2 |
GD375 (BK-BU) |
22 |
GROUND - TUNNEL # 2ND POINT (BC3T) |
|
| 3 |
CLF19 (VT-GN) |
26 |
SWITCH - AUTOLAMP (1) ON |
|
| 3 |
CLF19 (VT-GN) |
22 |
SWITCH - AUTOLAMP (1) ON |
|
| 4 |
CLF24 (YE-BU) |
26 |
SWITCH - HEADLAMP ON |
|
| 4 |
CLF24 (YE-BU) |
22 |
SWITCH - HEADLAMP ON |
|
| 5 |
SBP23 (WH-RD) |
22 |
FUSE - 23 OR CIRCUIT BREAKER |
|
| 6 |
CLS34 (GY) |
26 |
SWITCH - PARK LAMPS |
|
| 6 |
CLS34 (GY) |
22 |
SWITCH - PARK LAMPS |
|
| 7 |
CLF23 (WH-VT) |
26 |
SWITCH - HEADLAMP OFF |
|
| 7 |
CLF23 (WH-VT) |
22 |
SWITCH - HEADLAMP OFF |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
CRH04 (VT-GN) |
22 |
CTRL MOD. - RELAY HORN |
|
| 10 |
CAP18 (GN-OG) |
22 |
POLICE - SWITCH 4-FUNCTION CONTROL AUX1 |
police |
| 10 |
CET43 (GY) |
26 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
|
| 10 |
CET43 (GY) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
|
| 11 |
CAP19 (GY-VT) |
22 |
POLICE - SWITCH 4-FUNCTION CONTROL AUX2 |
police |
| 11 |
CET42 (GN-VT) |
26 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
|
| 11 |
CET42 (GN-VT) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
|
| 12 |
RAP18 (BN-BU) |
22 |
POLICE - SWITCH 4-FUNCTION CONTROL |
police |
| 12 |
RES09 (GN-VT) |
22 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) - |
|
| 13 |
CRW15 (BN-WH) |
26 |
CTRL MOD. - FRONT WIPER HIGH |
|
| 13 |
CRW15 (BN-WH) |
22 |
CTRL MOD. - FRONT WIPER HIGH |
|
| 14 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 15 |
RLN29 (WH-OG) |
26 |
CTRL MOD. - DOME LAMP |
|
| 15 |
RLN29 (WH-OG) |
22 |
CTRL MOD. - DOME LAMP |
|
| 16 |
VDN05 (YE-GY) |
26 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 |
|
| 16 |
VDN05 (YE-GY) |
22 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 |
|
| 17 |
CLN56 (BN-VT) |
26 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
|
| 17 |
CLN56 (BN-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
|
| 18 |
CLN55 (YE-VT) |
26 |
DIMMER - IP/SWITCH ILLUMINATION # DIM UP |
|
| 18 |
CLN55 (YE-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM UP |
|
| 19 |
VLN36 (GY-OG) |
26 |
SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE) |
|
| 19 |
VLN36 (GY-OG) |
22 |
SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE) |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
RPP06 (GN) |
22 |
CTRL MOD. - SENSOR ADJUSTABLE PEDAL - |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
VPP17 (VT-BN) |
22 |
SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) |
|
| 25 |
VPP08 (WH) |
20 |
SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE) |
|
| 26 |
LPP06 (YE-BU) |
26 |
CTRL MOD. - SENSOR ADJUSTABLE PEDAL + |
|
