Steering Column Control Module (SCCM) Connector End View (C2414D)

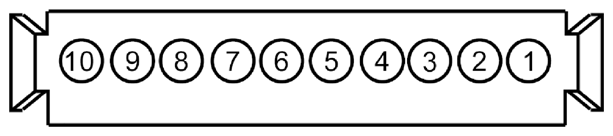

Fig 1: Identifying Steering Column Control Module (SCCM) Connector (C2414D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	SWITCH - HORN
2	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)
3	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)
4	* (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)
5	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3
6	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1
7	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4
8	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2
9	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)
10	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)
