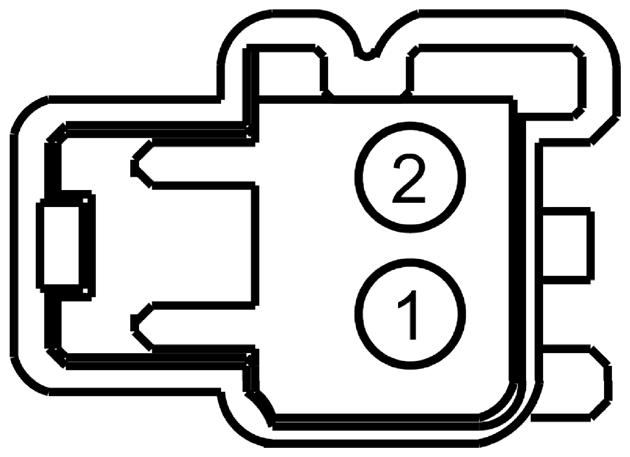

Strobe Control Module Connector End View (C4231)

Fig 1: Identifying Strobe Control Module Connector (C4231)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CAP14 (GY-BN)	22	POLICE - BUTTON FUNCTION 1
2	CAP14 (GY-BN)	22	POLICE - BUTTON FUNCTION 1

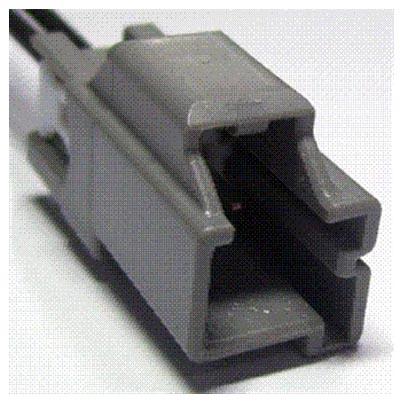

Available Pigtail Kits
Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar
