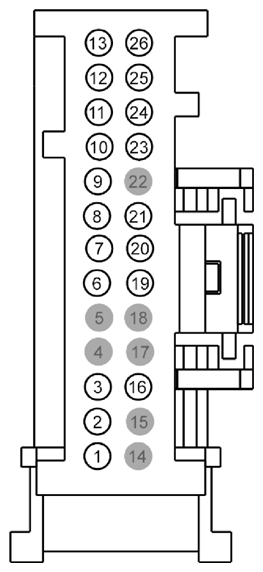

| 1 |
VH101 (WH-VT) |
22 |
CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL |
|
| 2 |
CH207 (BU-GY) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS) |
|
| 3 |
CH208 (GN-OG) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS) |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
CH228 (YE-GY) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1/CLOSE (IF PLUS) |
|
| 7 |
CH229 (WH-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2/OPEN (IF PLUS) |
|
| 8 |
CH238 (YE-OG) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS) |
|
| 9 |
CH239 (BU-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS) |
|
| 10 |
GD374 (BK-WH) |
20 |
GROUND - TUNNEL (BC3T) |
|
| 11 |
CH123 (VT-GN) |
26 |
CTRL MOD. - BLOWER MOTOR RELAY |
|
| 12 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 13 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
VH438 (GN-VT) |
26 |
SENSOR - DOOR POSITION RECIRC. |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
VH406 (VT-BN) |
22 |
SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) |
|
| 20 |
VH440 (BU-BN) |
22 |
SENSOR - DOOR POSITION TEMP. LEFT |
|
| 21 |
VH436 (YE-VT) |
26 |
SENSOR - DOOR POSITION DEFROST |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
RH111 (GY-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
|
| 24 |
LH111 (BN-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
|
| 25 |
CH122 (WH-OG) |
26 |
CTRL MOD. - CLIMATE # HEATER REAR WINDOW REQUEST |
|
| 26 |
SBP46 (BN-RD) |
22 |
FUSE - 46 OR CIRCUIT BREAKER |
|
