Lumbar Control Module, Driver Seat Connector End View (C3385A)

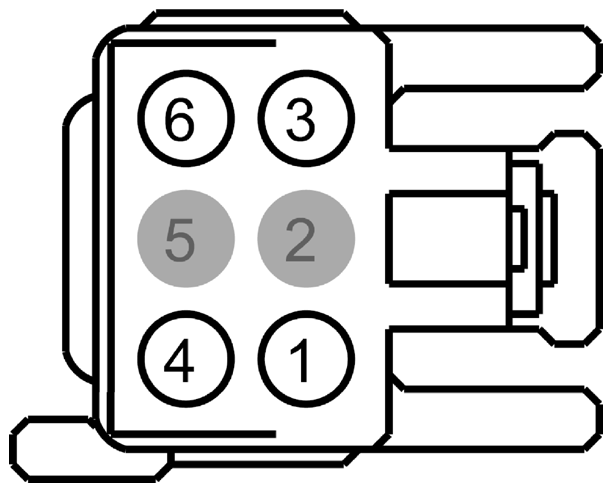

Fig 1: Identifying Lumbar Control Module - Driver Seat Connector (C3385A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBX06 (GY-RD)	18	POWER - SEAT # HEATED SEAT MODULE
2	*	*	Not Used
3	GD904 (BK-BU)	16	GROUND - DRIVER SEAT # SEAT SWITCH
4	CPT05 (YE)	20	CTRL MOD. - LUMBAR PUMP
5	*	*	Not Used
6	RPT05 (BU)	20	CTRL MOD. - LUMBAR PUMP RETURN

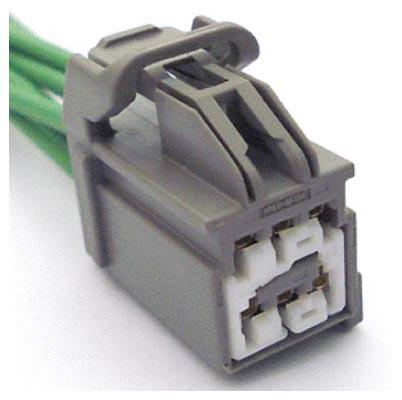

Available Pigtail Kits
Pigtail Kit Part Number WPT-962	Service Part Number: 3U2Z-14S411-JBB  Gauge: 14  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Gear Shift Select/Neutral Safety Switch - Overdrive Cancel Switch - Power Sliding Door
