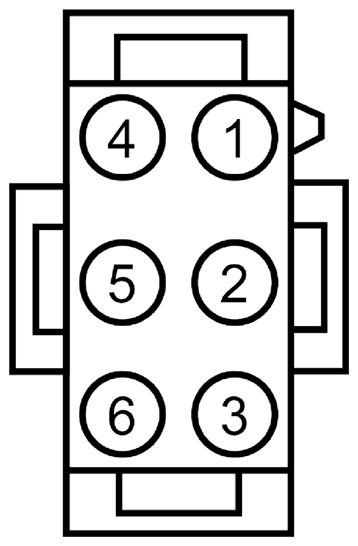

Warn Module Connector End View (C1829)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBB74 (WH-VT) | 18 | FUSE - 74 OR CIRCUIT BREAKER | |
| 2 | CAP04 (GY) | 20 | POLICE - WIGWAG SCANLOCK POWER LEFT HAND | |
| 3 | CAP03 (WH-GN) | 20 | POLICE - WIGWAG SCANLOCK POWER RIGHT HAND | |
| 4 | GD123 (BK) | 18 | GROUND - FENDER FRONT RIGHT | |
| 5 | SAP05 (VT) | 20 | POLICE - WIGWAG SWITCH POWER | |
| 6 | CAP14 (WH-BN) | 20 | POLICE - BUTTON FUNCTION 1 |
