PINPOINT TEST HP: High Pressure Fuel Delivery System: Introduction: Notes
NOTE:
Do not apply battery voltage across the fuel injection pump circuits. Damage to the fuel volume regulator solenoid may result.
This pinpoint test is intended to diagnose the following:
- fuel injection pump (9D376)
- harness circuits: FVR and FVRRTN
- powertrain control module (PCM) (12A650)

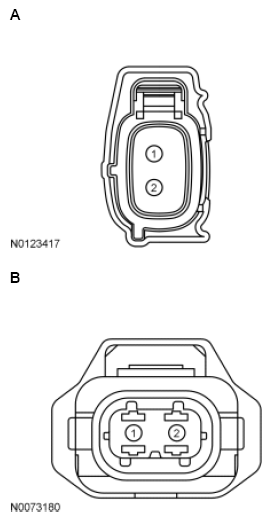

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-150, Focus GDI 2.0L |
A | 2 1 |
FVRRTN FVR |
| Fiesta, Focus GTDI 2.0L |
B | 2 1 |
FVRRTN FVR |
| All other vehicles | B | 1 2 |
FVRRTN FVR |
