PINPOINT TEST KC: Fuel Pump Control Module: Introduction: Notes

This pinpoint test is intended to diagnose the following:

fuel pump (9H307)
fuel pump control module (9D412)
fuel pump control module 2 (9D412)
fuel pump control module relay
fuel pump control module relay 2
inertia fuel shutoff (IFS) switch (9341)
harness circuits: B+, GND, FPC, FPM, FPM2, FPPWR, FP2PWR, FPRTN, FP2RTN, IES, VPWR, and VPWR Fuel
powertrain control module (PCM) (12A650)

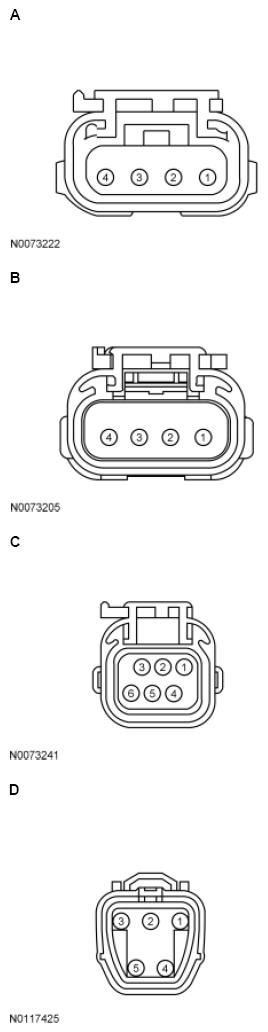

Fig 1: Identifying Fuel Pump Connector Terminals
Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series, F-150, Mustang 3.7L, Mustang 5.0L	A	3 4	FPRTN FPPWR
F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van	B	3 4	FPRTN FPPWR
Mustang 5.8L	C	6 3 1 4	FPRTN FPPWR FP2RTN FP2PWR
All other vehicles	D	4 5	FPRTN FPPWR

Fig 2: Identifying Fuel Pump Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-650/F-750, Focus, Fusion, MKZ, Motorhome/Stripped Chassis/Step Van	A	8 5 7 3 4 1	FPRTN FPPWR FPM FPC GND VPWR Fuel
All other vehicles	A	6 8 5 7 3 4 1	ENS FPRTN FPPWR FPM FPC GND VPWR Fuel

Fig 3: Identifying Fuel Pump Control Module 2 Module Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
6	ENS (Event Notification Signal)
8	FP2RTN (Fuel Pump 2 Return)
5	FP2PWR (Fuel Pump 2 Power)
7	FPM2 (Fuel Pump Monitor 2)
3	FPC (Fuel Pump Command)
4	GND (Ground)
1	VPWR Fuel

Refer to the OEM Wiring Diagrams article for schematic and connector information.

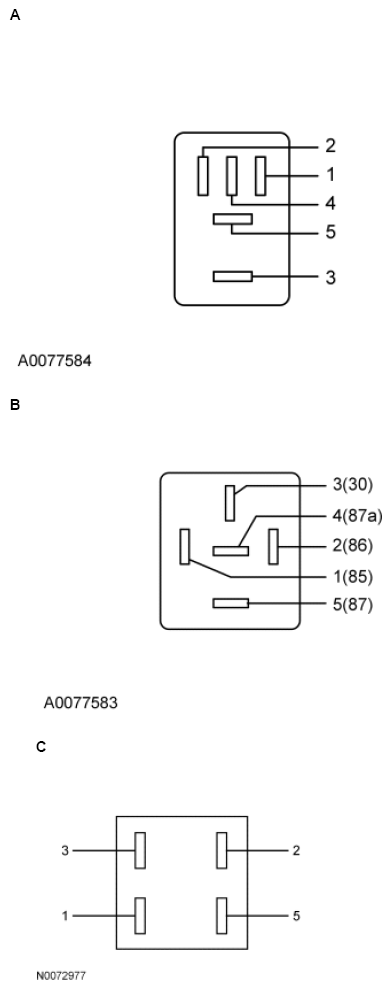

Fig 4: Identifying Fuel Pump Control Module Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series, Expedition, Motorhome/Stripped Chassis/Step Van, Navigator	A	2 1 3 5	GND VPWR B+ VPWR Fuel
F-150	A	2 1, 3 5	FP B+ VPWR Fuel
F-650/F-750	B	86 30, 85 87	GND B+ VPWR Fuel
F-Series Super Duty, Flex, MKT	C	2 1, 3 5	FP B+ VPWR Fuel
Fiesta, Mustang	C	2 1 3 5	GND VPWR B+ VPWR Fuel
All other vehicles	C	1 2, 3 5	FP B+ VPWR Fuel

Fig 5: Identifying Fuel Pump Control Module 2 Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Inertia Fuel Shutoff Switch Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	VPWR Fuel - B (Vehicle Power)
1	VPWR Fuel - A (Vehicle Power)

Fig 7: Identifying Body Control Module-C Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
29	IES (Impact Event Signal)
26	FP (Fuel Pump)

Fig 8: Identifying Body Control Module-E Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
E9	VPWR (Vehicle Power)

Fig 9: Identifying Body Control Module-F Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
6	FP (Fuel Pump)

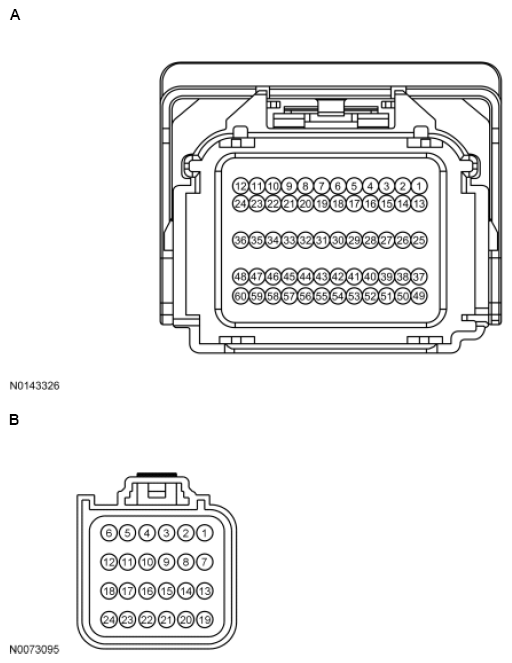

Fig 10: Identifying Restraints Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Explorer, Fiesta, MKS, Taurus	A	42	ENS
All other vehicles	B	19	ENS
