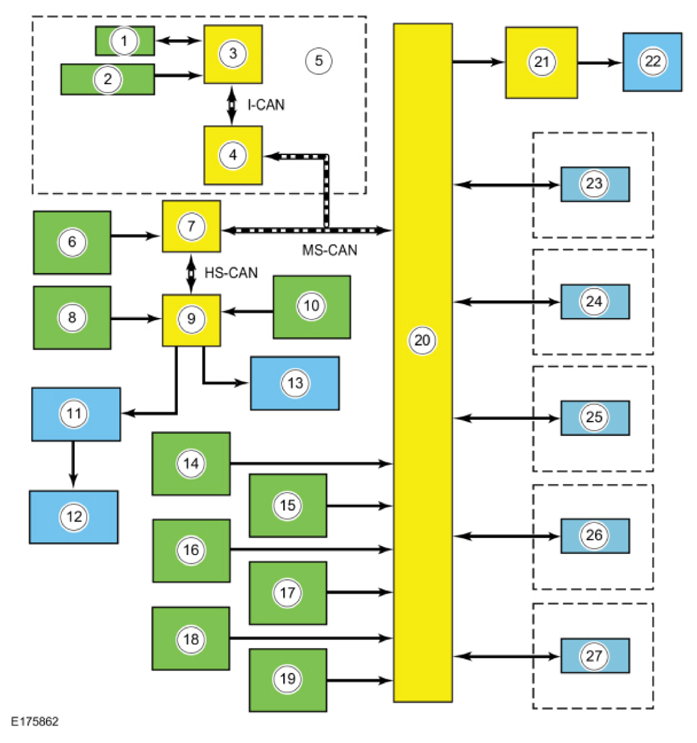

| 1 |
FDIM |
| 2 |
Microphone |
| 3 |
APIM |
| 4 |
IPC |
| 5 |
SYNC® system |
| 6 |
Evaporator temperature sensor |
| 7 |
BCM |
| 8 |
Ambient air temperature sensor |
| 9 |
PCM |
| 10 |
A/C
pressure transducer |
| 11 |
A/C
clutch relay |
| 12 |
A/C
compressor clutch field coil |
| 13 |
Externally Controlled Variable Displacement Compressor (EVDC) |
| 14 |
Autolamp-sunload sensor |
| 15 |
In-vehicle temperature and humidity sensor |
| 16 |
Driver side footwell air discharge temperature sensor |
| 17 |
Passenger side footwell air discharge temperature sensor |
| 18 |
Driver side center register air temperature sensor |
| 19 |
Passenger side center register air temperature sensor |
| 20 |
HVAC
control module |
| 21 |
Blower motor control module |
| 22 |
Blower motor |
| 23 |
Air inlet door actuator |
| 24 |
Defrost vent/register door actuator |
| 25 |
Footwell vent door actuator |
| 26 |
Driver side temperature door actuator |
| 27 |
Passenger side temperature door actuator |
