Dc To Dc Converter Control Module Connector End View (C3428)

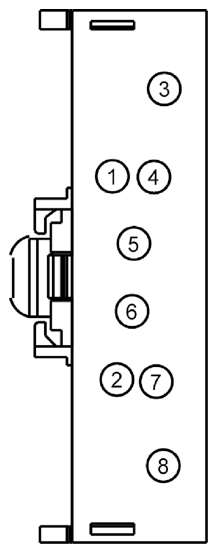

Fig 1: Identifying DC To DC Converter Control Module Connector (C3428)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VYD01 (GY-VT)	20	LIN
2	CBR11 (BU-RD)	20	FUSE - 11 OR CIRCUIT BREAKER
3	SYV02 (RD-YE)	6	POWER OUT
4	VE213 (BU-WH)	20	IGNITION SWITCH SIGNAL
5	CYD05 (YE)	12	CTRL MOD. - DC/DC CONVERTER # CHARGE PLUG PROXIMITY SENSOR
6	GD348 (BK-YE)	4	GROUND - PILLAR C OR QUARTER PANEL RIGHT
7	CYD05 (YE)	22	CTRL MOD. - DC/DC CONVERTER # CHARGE PLUG PROXIMITY SENSOR
8	SYV01 (RD)	4	FUSE - 15 OR CIRCUIT BREAKER
