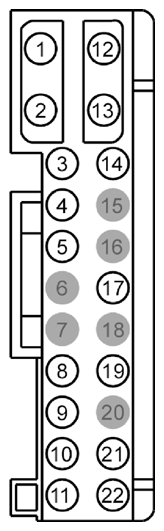

| 1 |
CPW34 (BK) |
14 |
CTRL MOD. - WINDOW MOTOR DRIVER # UP |
|
| 2 |
SBR01 (BK) |
12 |
FUSE - 1 OR CIRCUIT BREAKER |
|
| 3 |
CPL02 (BK) |
20 |
CTRL MOD. - DOOR LOCK # DRIVER LOCK |
|
| 4 |
CPL51 (BK) |
20 |
CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
|
| 5 |
CPL06 (BK) |
20 |
CTRL MOD. - DOOR LOCK # DOUBLE LOCK DRIVER |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
VPW32 (BK) |
22 |
CTRL MOD. - REAR DOOR CTRL MOD. DRIVER SIDE LIN BUS |
|
| 9 |
VPW39 (BK) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 |
|
| 10 |
VPW38 (BK) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1 |
|
| 11 |
CPL43 (BK) |
20 |
SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK |
|
| 12 |
CPW35 (BK) |
14 |
CTRL MOD. - WINDOW MOTOR DRIVER # DOWN |
|
| 13 |
GD134 (BK) |
12 |
GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT (OBSOLETE) |
|
| 14 |
RPL63 (BK) |
20 |
CTRL MOD. - DOOR LOCK # LATCH DRIVER |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
RPW37 (BK) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
CPL30 (BK) |
20 |
SWITCH - LATCH DRIVER # UNLOCK |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
LPW36 (BK) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
|
| 22 |
CPL42 (BK) |
20 |
SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK |
|
