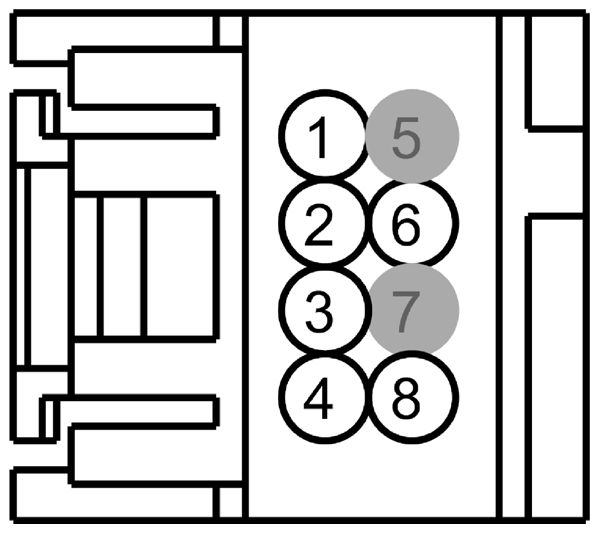

Image Processing Module B (IPMB) Connector End View (C9058)

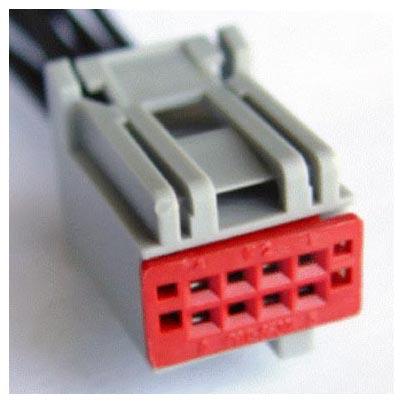

Fig 1: Identifying Image Processing Module B Connector (C9058)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD349 (BK-GY)	22	GROUND - PILLAR D LEFT
2	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
3	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	CBR99 (BU)	22	FUSE OR CIRCUIT BREAKER	wagon
4	SMP22 (VT)	22	CAMERA - REAR PARK ASSIST # POWER	van without start stop
4	SMP22 (YE-VT)	22	CAMERA - REAR PARK ASSIST # POWER	van with start stop
5	*	*	Not Used
6	VMP35 (WH-BU)	26	CAMERA - SIDE 360 RIGHT VIDEO-
7	*	*	Not Used
8	CMP10 (WH)	22	REAR CAMERA POWER

Available Pigtail Kits
Pigtail Kit Part Number WPT-998	Service Part Number: 3U2Z-14S411-DLB  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Radio Radio - Amplifier Switch - Fuel Filler Door Switch - Message Center Switch - Power Mirror Switch - Power Window - Driver Switch - Seat Lumbar Switch - Steering Column Tilt/Telescope Switch - Upfitter
Pigtail Kit Part Number WPT-219	Service Part Number: 3U2Z-14S411-DLA  Gauge: 18  Pin material: Tin  Cavities: 8  Vehicle Uses Radio Radio - Amplifier Switch - Fuel Filler Door Switch - Message Center Switch - Power Mirror Switch - Power Window Switch - Seat Lumbar Switch - Steering Column Tilt/Telescope
