Powertrain Control Module (Pcm) Connector End View (C1381E)

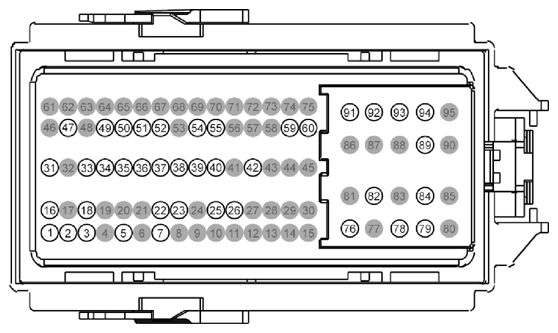

Fig 1: Identifying Powertrain Control Module Connector (C1381E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE827 (WH-GN)	20	SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21)
2	CE148 (VT-OG)	20	CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE
3	LE135 (GY)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +
4	*	*	Not Used
5	CE426 (BU-GN)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)
6	*	*	Not Used
7	LE142 (GY-VT)	20	CTRL MOD. - POWERTRAIN # ENGINE OIL QUALITY SENSOR +
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	CE501 (GY)	20	CONTROL - INTAKE AIR
17	*	*	Not Used
18	RE427 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPRTN)
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	RE238 (BU-GN)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -
23	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)
24	*	*	Not Used
25	LE448 (GY-BU)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11)
26	VE826 (BN-VT)	20	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11)
27	*	*	Not Used
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	CE508 (VT-BN)	20	CTRL MOD. - EXHAUST GAS RECIRCULATION
32	*	*	Not Used
33	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)
34	CE412 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)
35	VE803 (YE)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +
36	RE143 (VT)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 -
37	RE144 (BN)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 -
38	VE727 (BU-BN)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)
39	LE451 (BN-YE)	20	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11)
40	LE452 (GN)	20	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11)
41	*	*	Not Used
42	CE908 (BU-BN)	20	SWITCH - ENGINE OIL LEVEL (EOL)
43	*	*	Not Used
44	*	*	Not Used
45	*	*	Not Used
46	*	*	Not Used
47	CE844 (BU-RD)	20	SOLENOID - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE (TCWRVS)
48	*	*	Not Used
49	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +
50	CE303 (WH-VT)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)
51	CE304 (YE-BU)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)
52	CE305 (BU-OG)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)
53	*	*	Not Used
54	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -
55	VDC46 (BU-BN)	20	CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED)
56	*	*	Not Used
57	*	*	Not Used
58	*	*	Not Used
59	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]
60	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -
61	*	*	Not Used
62	*	*	Not Used
63	*	*	Not Used
64	*	*	Not Used
65	*	*	Not Used
66	*	*	Not Used
67	*	*	Not Used
68	*	*	Not Used
69	*	*	Not Used
70	*	*	Not Used
71	*	*	Not Used
72	*	*	Not Used
73	*	*	Not Used
74	*	*	Not Used
75	*	*	Not Used
76	RE207 (GN-VT)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -
77	*	*	Not Used
78	CBB12 (GN-WH)	18	FUSE - 12 OR CIRCUIT BREAKER
79	CE231 (BN-YE)	18	CTRL MOD. - POWERTRAIN # FUEL TANK SOLENOID VALVE (FSV)
80	*	*	Not Used
81	*	*	Not Used
82	RE206 (BU-OG)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -
83	*	*	Not Used
84	RE205 (YE-BU)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -
85	*	*	Not Used
86	*	*	Not Used
87	*	*	Not Used
88	*	*	Not Used
89	LE428 (BU-WH)	18	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPREF)
90	*	*	Not Used
91	CE205 (GN-BU)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +
92	CE206 (GY-YE)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +
93	CE207 (VT-GY)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +
94	VE819 (GN-VT)	18	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS)
95	*	*	Not Used
