Restraints Control Module (RCM) Connector End View (C310A)

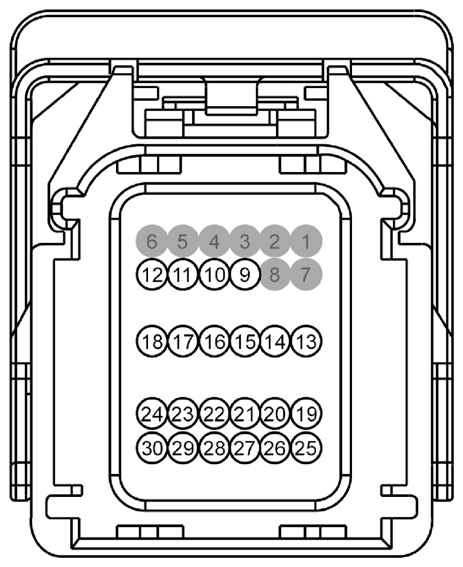

Fig 1: Identifying Restraints Control Module Connector (C310A)
G09429823Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 * * Not Used
2 * * Not Used
3 * * Not Used
4 * * Not Used
5 * * Not Used
6 * * Not Used
7 * * Not Used
8 * * Not Used
9 RR103 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 -
10 CR103 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 +
11 CR104 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
12 RR104 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 -
13 CR114 (YE-OG) 22 CTRL MOD. - INDICATOR AIR BAG
13 CR114 (YE-OG) 22 CTRL MOD. - INDICATOR AIR BAG SYNC 2
14 RR129 (YE-GY) 22 CTRL MOD. - SENSOR IMPACT FRONT 1ST -
15 RRP01 (VT-WH) 20 SENSOR - PEDESTRIAN CRASH LEFT HAND -
16 VRP01 (WH-GN) 20 SENSOR - PEDESTRIAN CRASH LEFT HAND +
17 VRP01 (WH-GN) 20 SENSOR - PEDESTRIAN CRASH LEFT HAND +
18 RRP01 (VT-WH) 20 SENSOR - PEDESTRIAN CRASH LEFT HAND -
19 CBP02 (GN) 20 FUSE - 2 OR CIRCUIT BREAKER
20 CR114 (YE-OG) 22 CTRL MOD. - INDICATOR AIR BAG SYNC 2
20 CR116 (GN-WH) 22 CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +
21 RR102 (WH) 20 CTRL MOD. - AIR BAG DRIVER 2 - 12 loop
21 RR109 (BU-GN) 20 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - 8 loop/10 loop
22 CR102 (BU) 20 CTRL MOD. - AIR BAG DRIVER 2 + 12 loop
22 CR109 (BN-BU) 20 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + 8 loop/10 loop
23 CR104 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 + 12 loop
23 CR112 (BU-GY) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2 + 8 loop/10 loop
24 RR104 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 + 12 loop
24 RR112 (GN-OG) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2 - 8 loop/10 loop
25 CR224 (GN) 22 SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG ON (A)
26 CR225 (YE) 22 SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG OFF (B)
27 RR103 (VT-GN) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 - 12 loop
27 RR120 (BN-GN) 20 CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - 8 loop/10 loop
28 CR103 (GY-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 + 12 loop
28 CR120 (BU-OG) 20 CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + 8 loop/10 loop
29 CR101 (VT-BN) 20 CTRL MOD. - AIR BAG DRIVER 1+
30 RR101 (YE-GN) 20 CTRL MOD. - AIR BAG DRIVER 1 -
