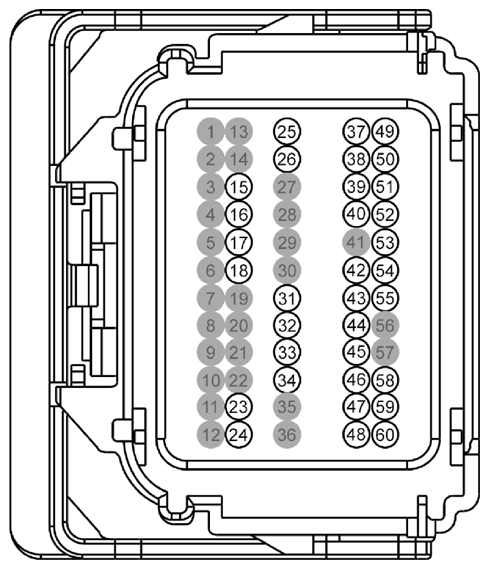

Restraints Control Module (RCM) Connector End View (C310B)

Fig 1: Identifying Restraints Control Module Connector (C310B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	RR147 (YE-VT)	20	CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD -
16	CR147 (GN-OG)	20	CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD +
17	CR111 (BN-WH)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE +
18	RR111 (YE-VT)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE -
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER
24	CR234 (BU)	20	SENSOR - SEAT OCCUPANT (SEAT BELT REMINDER) FRONT MIDDLE
25	CR109 (BN-BU)	20	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE +
26	RR109 (BU-GN)	20	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE -
27	*	*	Not Used
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	RR132 (BU-WH)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE -	LHD
31	RR152 (YE-VT)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE -	RHD
32	CR152 (GY-YE)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE +	RHD
32	VR218 (YE-OG)	20	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE	LHD
33	CR153 (GN-WH)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) +	RHD
33	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	LHD
34	RR131 (VT-GY)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -	LHD
34	RR153 (GY-BU)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) -	RHD
35	*	*	Not Used
36	*	*	Not Used
37	CR106 (VT-GY)	22	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD +
38	RR106 (YE-OG)	22	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD -
39	RR105 (GY-YE)	22	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE -
40	CR105 (GN-BU)	22	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE +
41	*	*	Not Used
42	CR115 (BN)	22	CTRL MOD. - INDICATOR DEPLOYMENT (RDI)
43	RR132 (BU-WH)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE -	12 loop
43	RR153 (GY-BU)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) -	8 loop/10 loop
44	CR153 (GN-WH)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) +	8 loop/10 loop
44	VR218 (YE-OG)	20	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE	12 loop
45	CR152 (GY-YE)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE +	8 loop/10 loop
45	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	12 loop
46	RR131 (VT-GY)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -	12 loop
46	RR152 (YE-VT)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE -	8 loop/10 loop
47	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
48	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
49	CR122 (WH-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD +
50	RR122 (BN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD -
51	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -
52	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +
53	GD902 (BK-YE)	22	GROUND - DRIVER SEAT # RESTRAINTS CLEAN	cargo doors
53	RR155 (GY)	20	CTRL MOD. - SENSORS SEAT BELT BUCKLE -
54	CR201 (GN-BU)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE
55	CR203 (GY-VT)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD
56	*	*	Not Used
57	*	*	Not Used
58	CR228 (BN-VT)	22	SENSOR - SEAT OCCUPANT (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD
59	VCA24 (GN-OG)	22	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW
60	VCA23 (BU-WH)	22	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH
