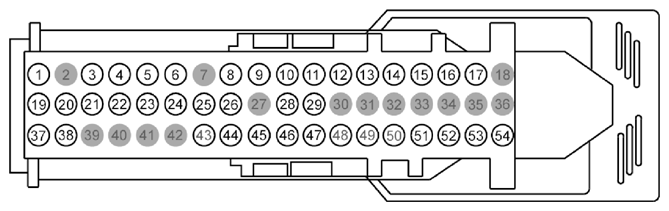

| 1 |
SBP06 (BN-RD) |
20 |
FUSE - 6 OR CIRCUIT BREAKER |
SYNC 2 |
| 1 |
SBP67 (BU-RD) |
22 |
FUSE - 67 OR CIRCUIT BREAKER |
SYNC 1 |
| 2 |
* |
* |
Not Used |
|
| 3 |
VME80 (VT-GN) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
|
| 4 |
RME80 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
|
| 5 |
VMM13 (YE-GN) |
20 |
MICROPHONE - PHONE/VOICE CONTROL + |
|
| 6 |
DMM13 (*) |
20 |
MICROPHONE - PHONE/VOICE CONTROL D |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
VME67 (VT-GY) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 RIGHT + |
|
| 9 |
DME45 (BARE) |
20 |
JACK - AUDIO # EXT. AUX IN D |
|
| 10 |
VME45 (BU) |
20 |
JACK - AUDIO # EXT. AUX IN LEFT (+) |
|
| 11 |
RME45 (YE-GN) |
20 |
JACK - AUDIO # EXT. AUX IN LEFT OR COMMON (-) |
|
| 12 |
VMM13 (YE-GN) |
20 |
MICROPHONE - PHONE/VOICE CONTROL + |
|
| 13 |
DMM13 (BARE) |
20 |
MICROPHONE - PHONE/VOICE CONTROL D |
|
| 14 |
VMP31 (BU) |
22 |
CAMERA - PARKING AID REAR VIDEO + |
|
| 15 |
RMP31 (GN) |
22 |
CAMERA - PARKING AID REAR VIDEO - |
|
| 16 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
SYNC 2 |
| 16 |
VDB13 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
SYNC 1 |
| 17 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
SYNC 2 |
| 17 |
VDB14 (VT-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
SYNC 1 |
| 18 |
* |
* |
Not Used |
|
| 19 |
VDB13 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
| 20 |
VDB14 (VT-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
| 21 |
DME80 (BARE) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D |
|
| 22 |
DME17 (BARE) |
22 |
CTRL MOD. - AUDIO # RADIO D |
SYNC 1 |
| 22 |
DME52 (BARE) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D |
SYNC 2 |
| 23 |
VME18 (VT) |
22 |
CTRL MOD. - AUDIO # RADIO RIGHT + |
SYNC 1 |
| 23 |
VME52 (BU) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
SYNC 2 |
| 24 |
RME18 (YE) |
22 |
CTRL MOD. - AUDIO # RADIO RIGHT - |
SYNC 1 |
| 24 |
RME52 (GY-OG) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
SYNC 2 |
| 25 |
VME17 (GN) |
22 |
CTRL MOD. - AUDIO # RADIO LEFT + |
SYNC 1 |
| 25 |
VME53 (VT-GN) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
SYNC 2 |
| 26 |
RME17 (GY) |
22 |
CTRL MOD. - AUDIO # RADIO LEFT - |
SYNC 1 |
| 26 |
RME53 (BN-WH) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
SYNC 2 |
| 27 |
* |
* |
Not Used |
|
| 28 |
VME46 (BU-GN) |
20 |
JACK - AUDIO # EXT. AUX IN RIGHT (+) |
|
| 29 |
RME46 (WH-GN) |
20 |
JACK - AUDIO # EXT. AUX IN RIGHT (-) |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
* |
* |
Not Used |
|
| 35 |
* |
* |
Not Used |
|
| 36 |
* |
* |
Not Used |
|
| 37 |
GD135 (BK-GY) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (OBSOLETE) |
SYNC 1 |
| 37 |
GD338 (BK-WH) |
20 |
GROUND |
SYNC 2 |
| 38 |
GD135 (BK-GY) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (OBSOLETE) |
SYNC 1 |
| 38 |
RME67 (BN-WH) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 RIGHT - |
SYNC 2 |
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
* |
* |
Not Used |
|
| 42 |
* |
* |
Not Used |
|
| 43 |
* |
* |
Not Used |
|
| 44 |
DME37 (BARE) |
22 |
CTRL MOD. - AUDIO # EXT. AUX IN D |
|
| 45 |
VME37 (GY-VT) |
22 |
CTRL MOD. - AUDIO # EXT. AUX IN L |
|
| 46 |
RME45 (YE-GN) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT OR COMMON (-) |
SYNC 1 |
| 46 |
VME14 (GY-YE) |
22 |
SWITCH - REDUNDANT AUDIO + |
SYNC 2 |
| 47 |
RME24 (BU-WH) |
22 |
CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO |
SYNC 2 |
| 47 |
VME38 (WH-OG) |
22 |
CTRL MOD. - AUDIO # EXT. AUX IN R |
SYNC 1 |
| 48 |
* |
* |
Not Used |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
* |
* |
Not Used |
|
| 51 |
VME58 (YE-VT) |
22 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 + |
|
| 52 |
VME59 (YE-OG) |
22 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 + |
|
| 53 |
VDB04 (VT-GY) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 54 |
VDB05 (BU-GY) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
