Trailer Module Connector End View (C4379A)

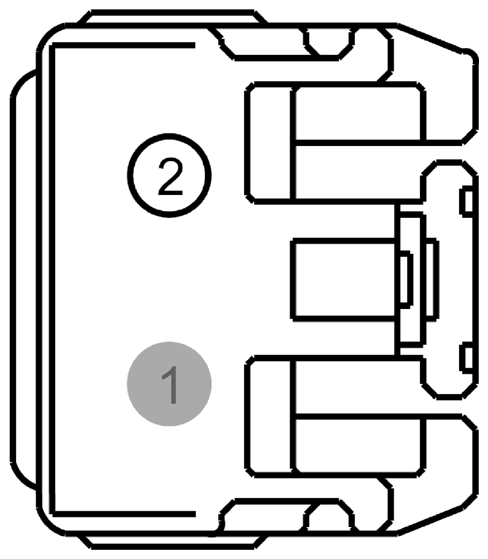

Fig 1: Identifying Trailer Module Connector (C4379A)
G09430451Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 * * Not Used
2 SBB07 (WH-RD) 4 FUSE - 7 OR CIRCUIT BREAKER
2 SBR11 (BU-RD) 4 FUSE - 11 OR CIRCUIT BREAKER
Available Pigtail Kits
Pigtail Kit Part Number WPT-236

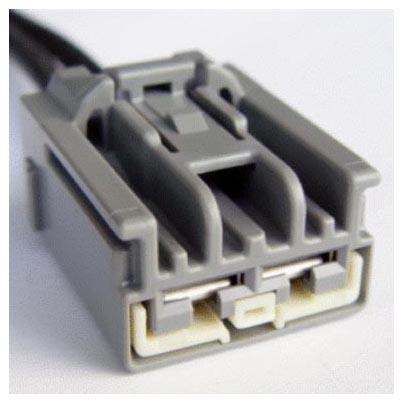

G09430452
 Service Part Number: 3U2Z-14S411-PA
Gauge: 10
Pin material: Tin
Cavities: 2
Vehicle Uses
  • Mirror - Vanity
  • Module - Seat Memory
  • Motor - Heater/AC Blower (Auxiliary)
  • Motor - Heater/AC Blower (Front)
  • Radio - Amplifier
  • Resistor - Blower Motor (Front)
  • Switch - Heater/A/C Blower (Front)
