Fuel System Pressure Release

Pressure release

• 1.

  Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

• 2.

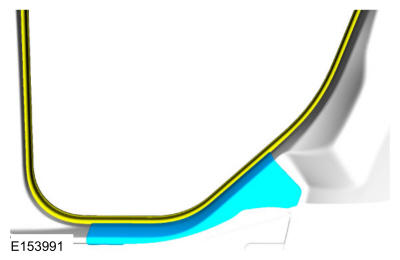

  NOTE: The FPDM is located under the carpet below the RH rear seat.

Courtesy of FORD MOTOR COMPANY

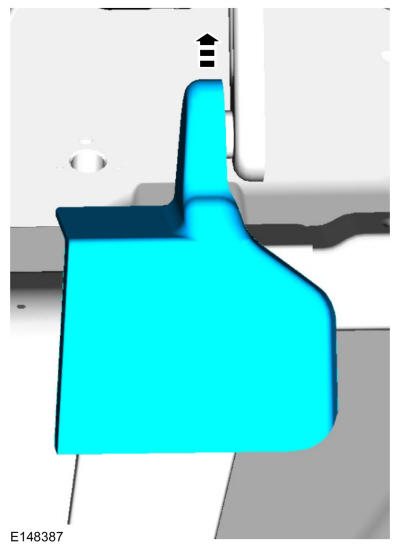

• 3.



Courtesy of FORD MOTOR COMPANY

• 4.

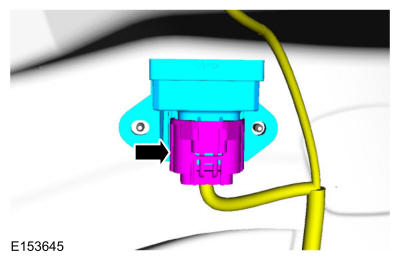

  Disconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 5.

  Start the engine and allow it to idle until it stalls.

• 6.

  Crank the engine for approximately five seconds to make sure that the fuel rail pressure is released.

• 7.

  When fuel system service is complete, reconnect the FPDM electrical connector.

• 8.


  NOTE: It may take more than one key cycle to pressurize the fuel system.

  Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
