Selector Lever Cable: Installation
- 4.

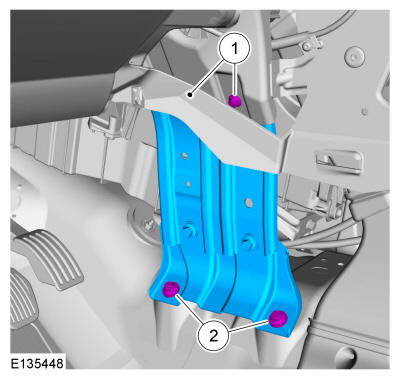

Install the instrument panel bracket and the bolts.- 1.
Torque: 89 lb.in (10 Nm)
- 2.
Torque: 18 lb.ft (25 Nm)
- 1.
- 5.

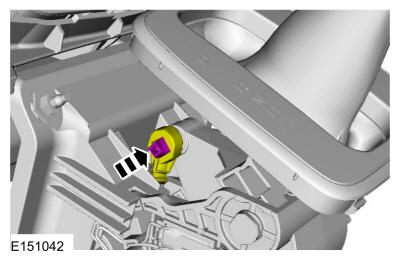

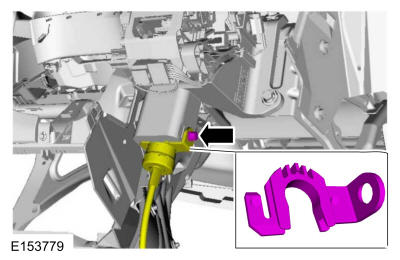

Connect the selector lever cable to the selector lever and install the bolt.Torque
: 62 lb.in (7 Nm)
- 7.
Install the floor console. Refer to: Floor Console .
- 13.

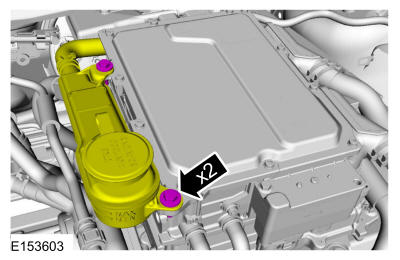

Install the air cleaner. Refer to: Air Cleaner .
- 15.

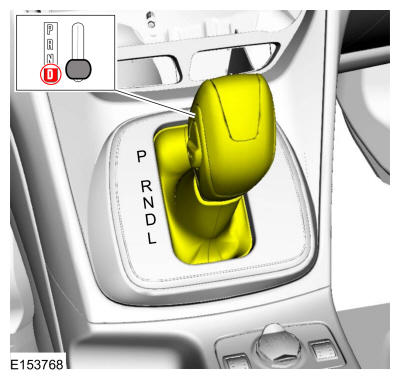

Position the transmission manual lever in D.- 1.

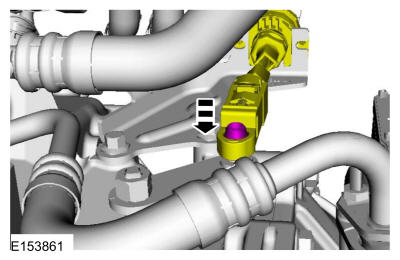

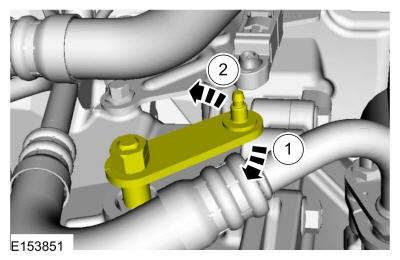

Rotate the selector shaft lever clockwise until it stops.
- 2.
Rotate the selector shaft lever counterclockwise 3 detents.
- 1.
- 16.

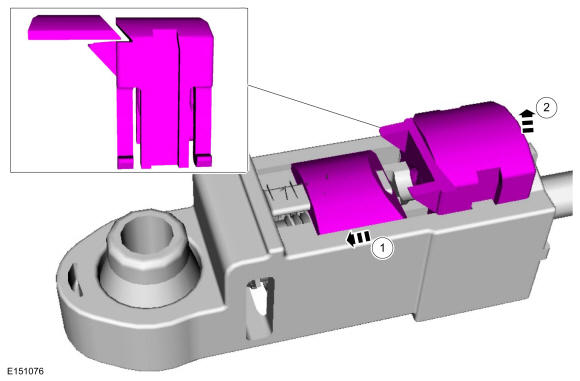

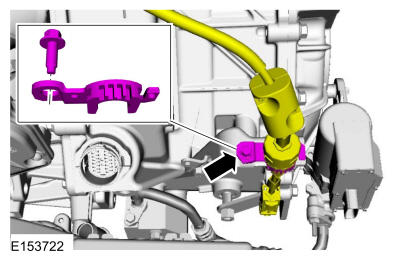

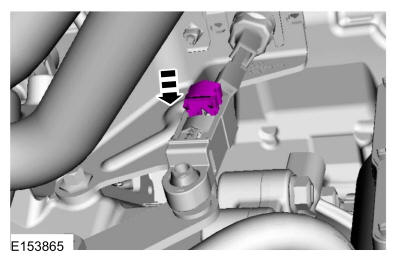

Unlock the selector lever cable adjuster.- 1.
Move the slide to the left.
- 2.
While holding the slide, position the adjuster lock upward.
- 1.
