Image Processing Module A (IPMA) Camera Heated Windshield Element: Installation

1.

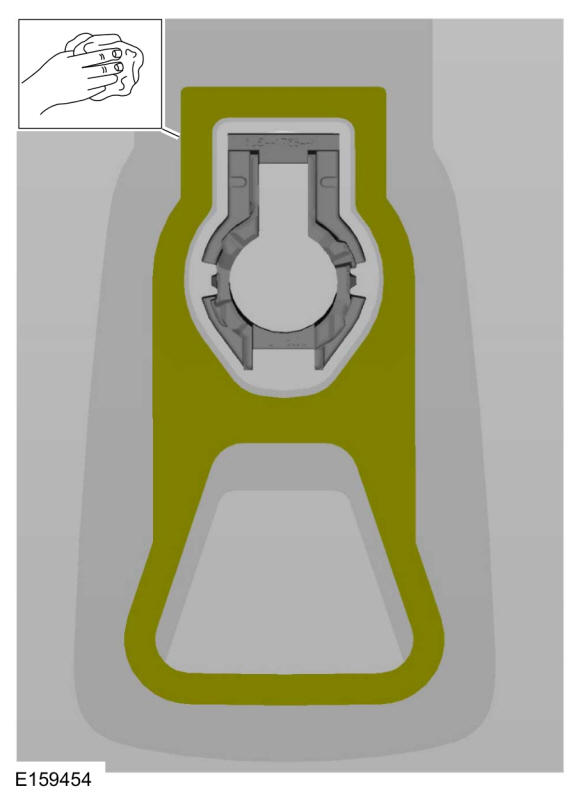

NOTE: Use an alcohol pad to remove the residual adhesive. If required, a plastic scraper may be used.

Clean and remove any residual adhesive.

GFD17987

Courtesy of FORD MOTOR COMPANY

2.

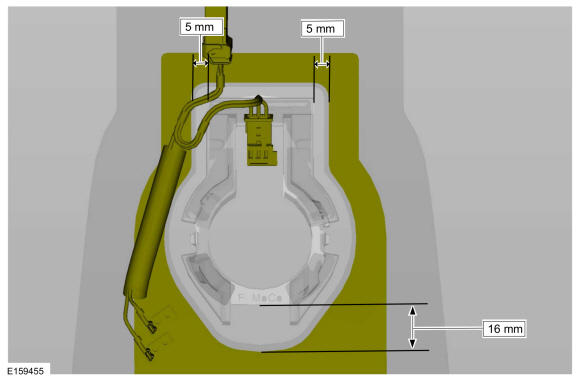

Remove the protective covering from the new camera windshield defrost heater and align the camera windshield defrost heater.

GFD17988

Courtesy of FORD MOTOR COMPANY

3.

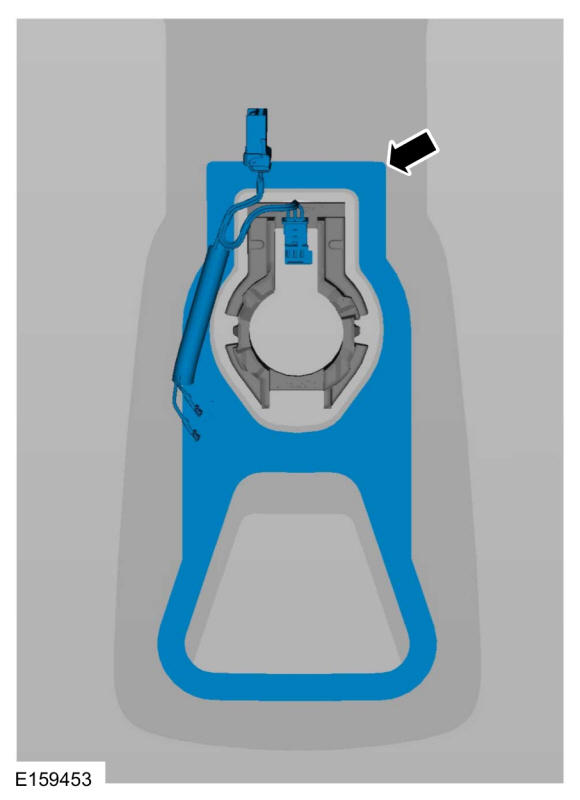

NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.

Install the IPMA camera heated windshield element.

GFD17986

Courtesy of FORD MOTOR COMPANY

4.

Install the interior rear view mirror. Refer to: Interior Rear View Mirror .
