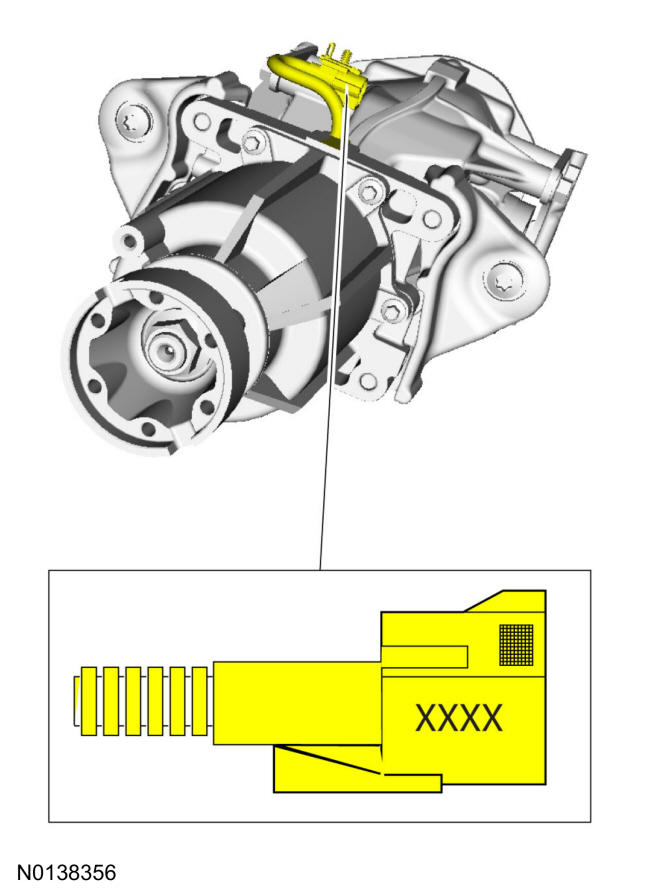

Automatic Torque Coupling Configuration Bar Code Label Location 3.5L Engine

GFD20996Courtesy of FORD MOTOR COMPANY

3.5L Engine

Item Description
1 Active Torque Coupling (ATC) solenoid bar code label
