Driver Front Seat Module (DSM): Removal

  1. 1.

    Position the driver front seat to the full rearward and full upward position.
GFD51241Courtesy of FORD MOTOR COMPANY

  1. 2.

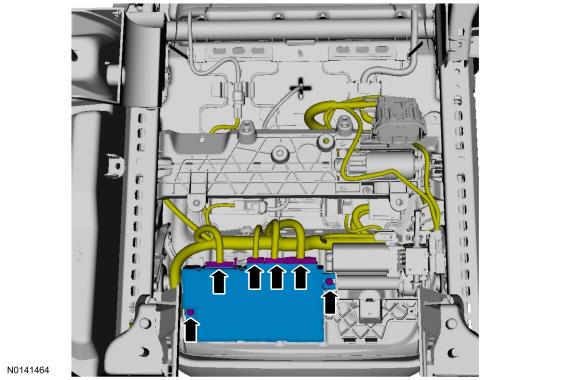

    Disconnect the DSM electrical connectors, remove the screws and the DSM.
GFD51245Courtesy of FORD MOTOR COMPANY
