Connector Repair Procedures

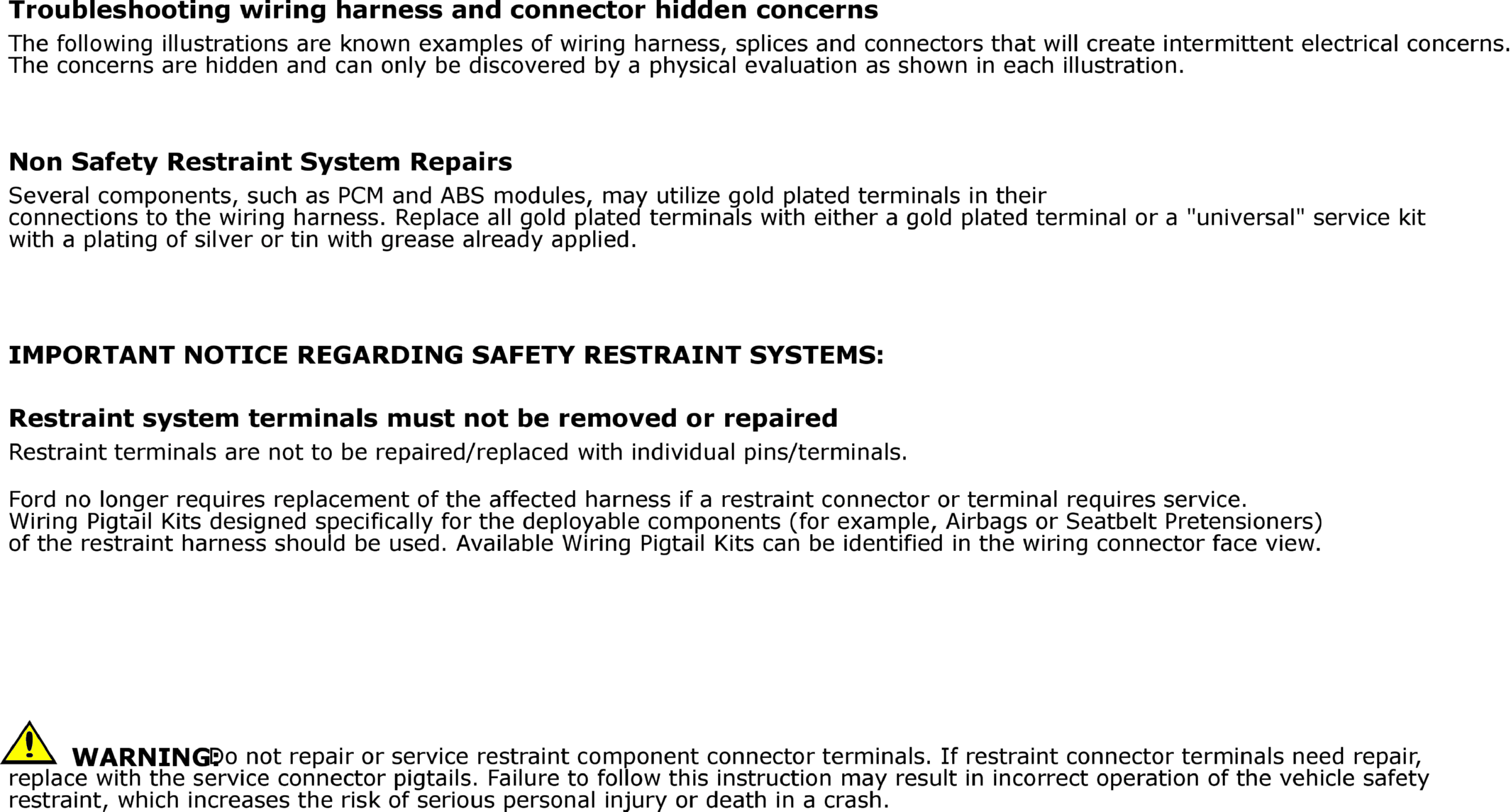

GFDW18441Courtesy of FORD MOTOR COMPANY

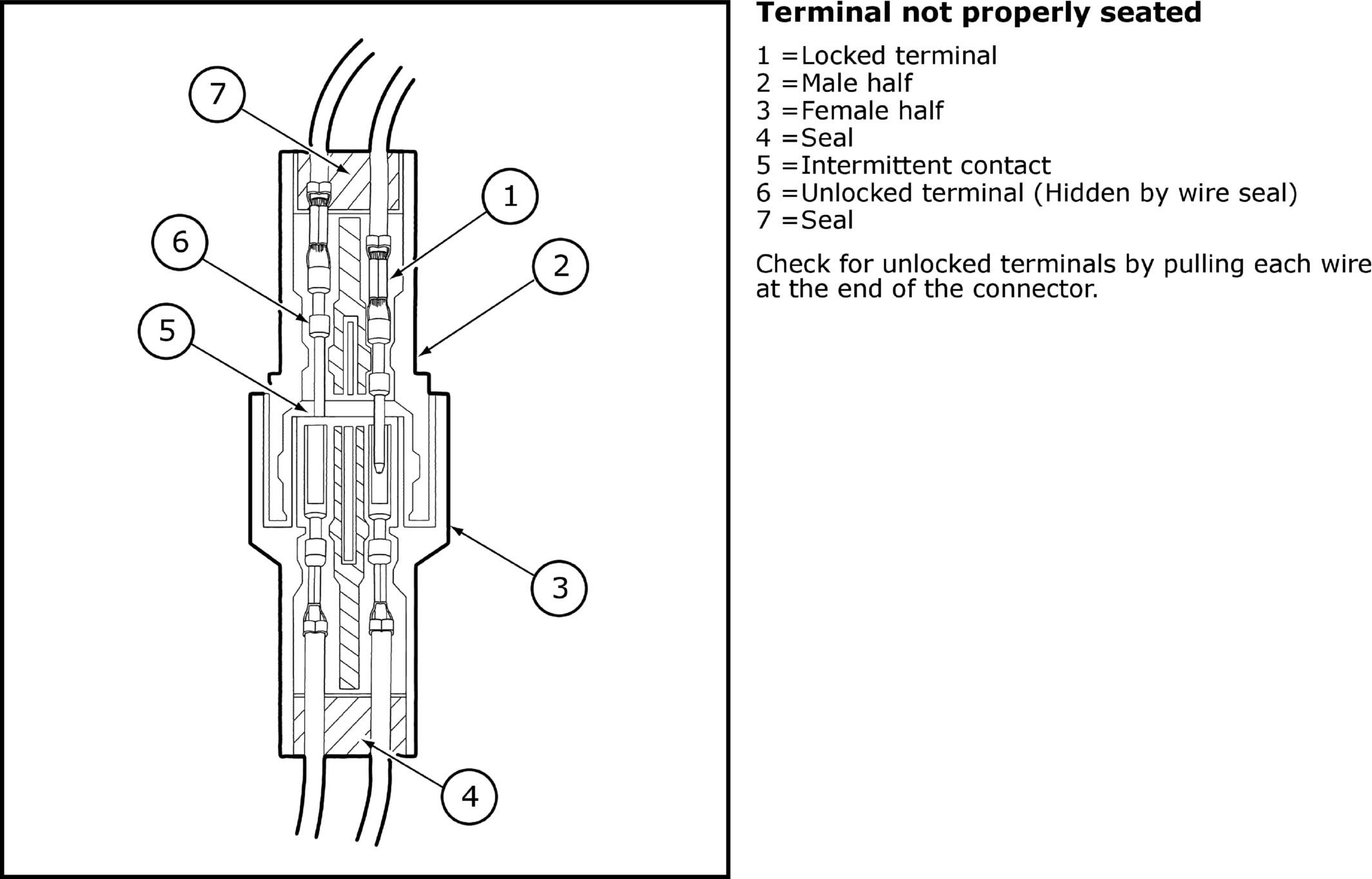

GFDW18442Courtesy of FORD MOTOR COMPANY

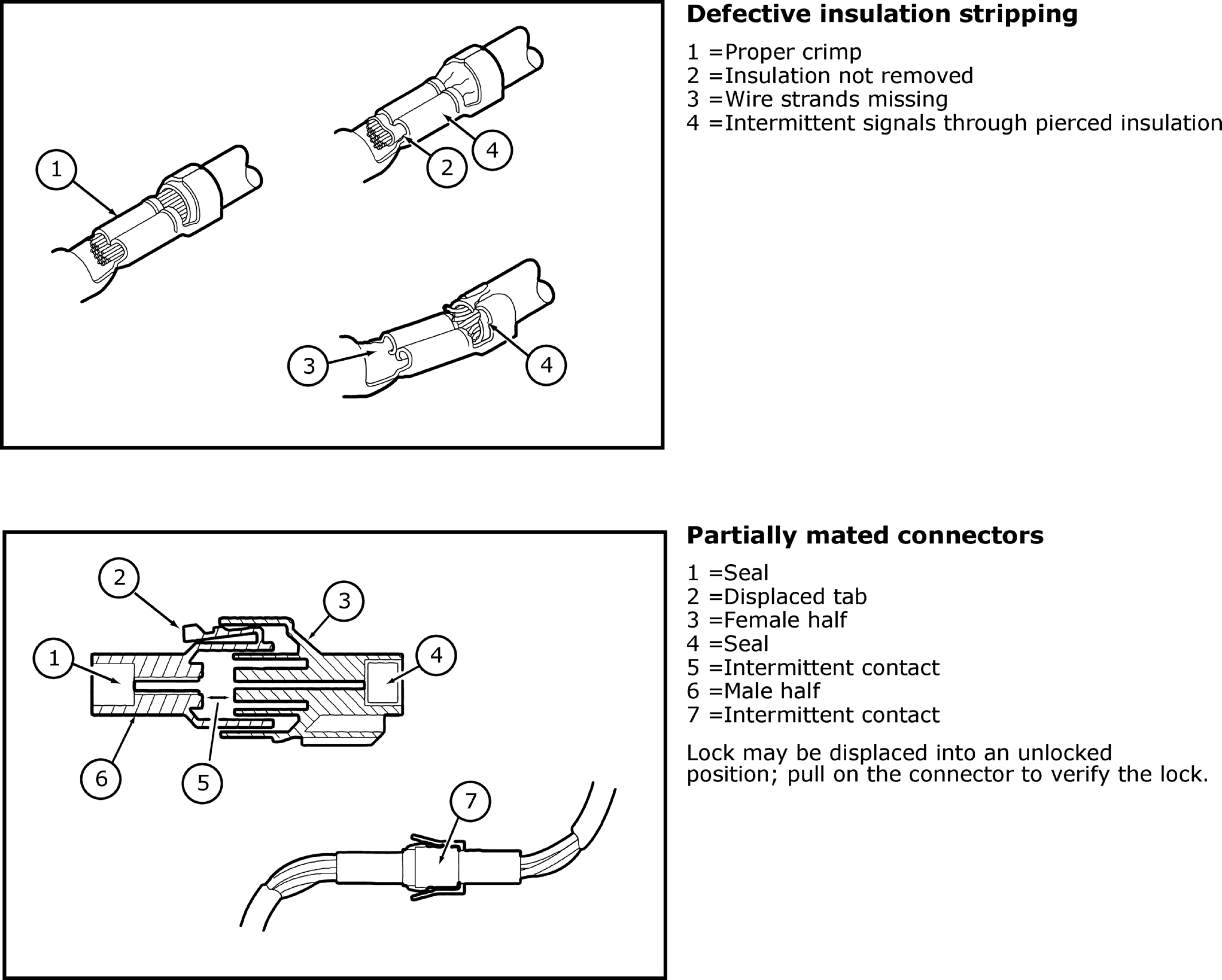

GFDW18443Courtesy of FORD MOTOR COMPANY

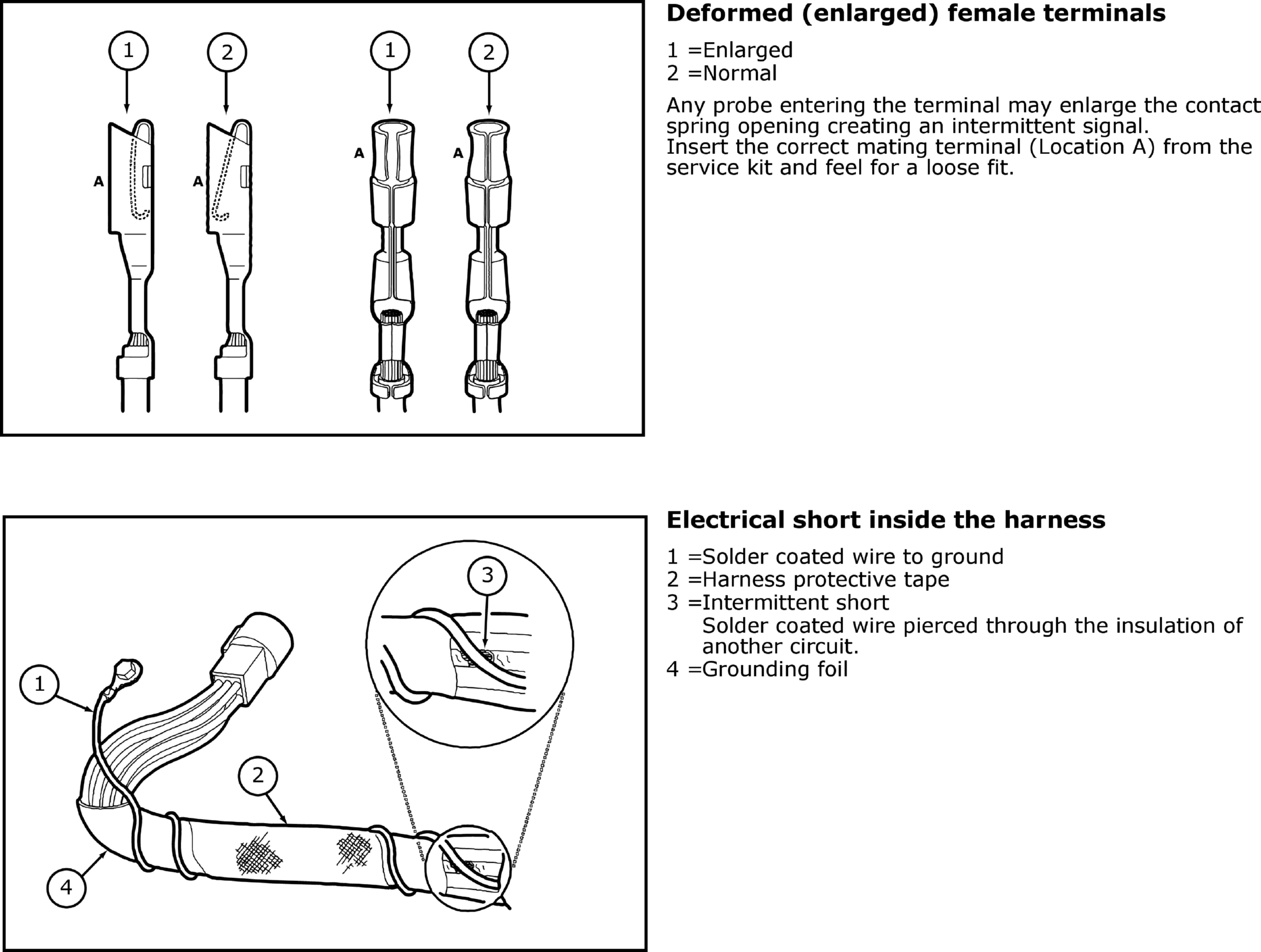

GFDW18444Courtesy of FORD MOTOR COMPANY

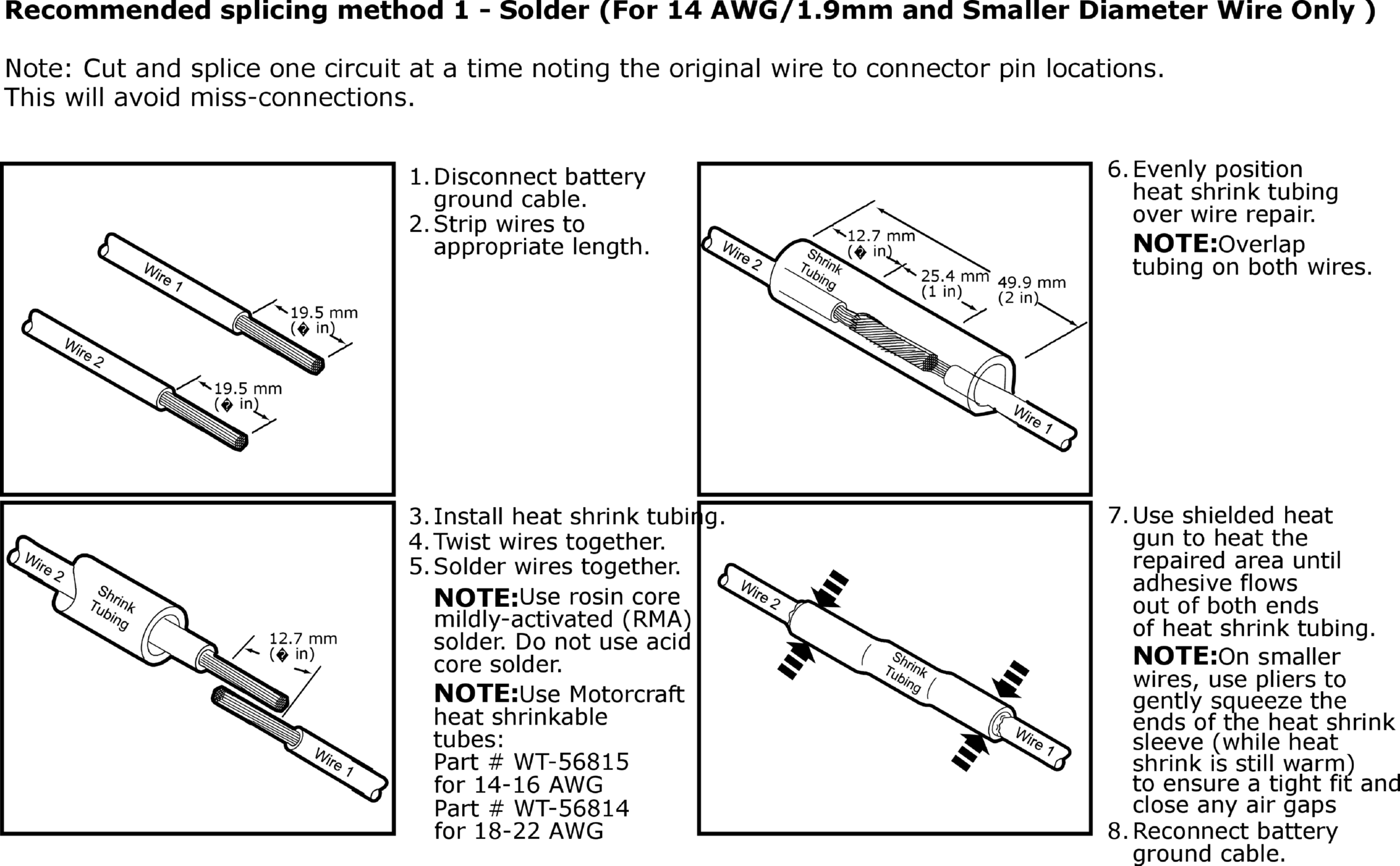

GFDW18445Courtesy of FORD MOTOR COMPANY

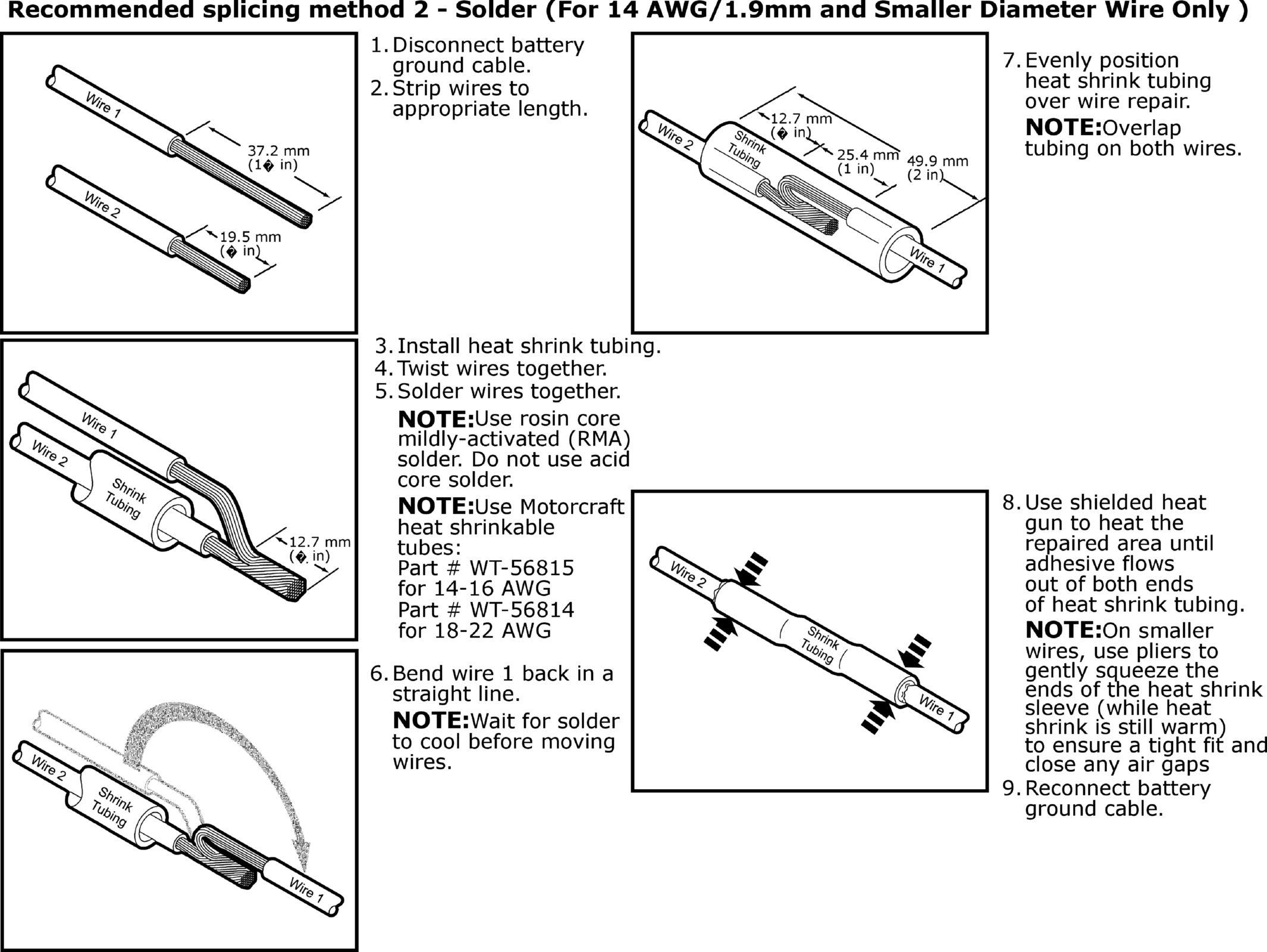

GFDW18446Courtesy of FORD MOTOR COMPANY

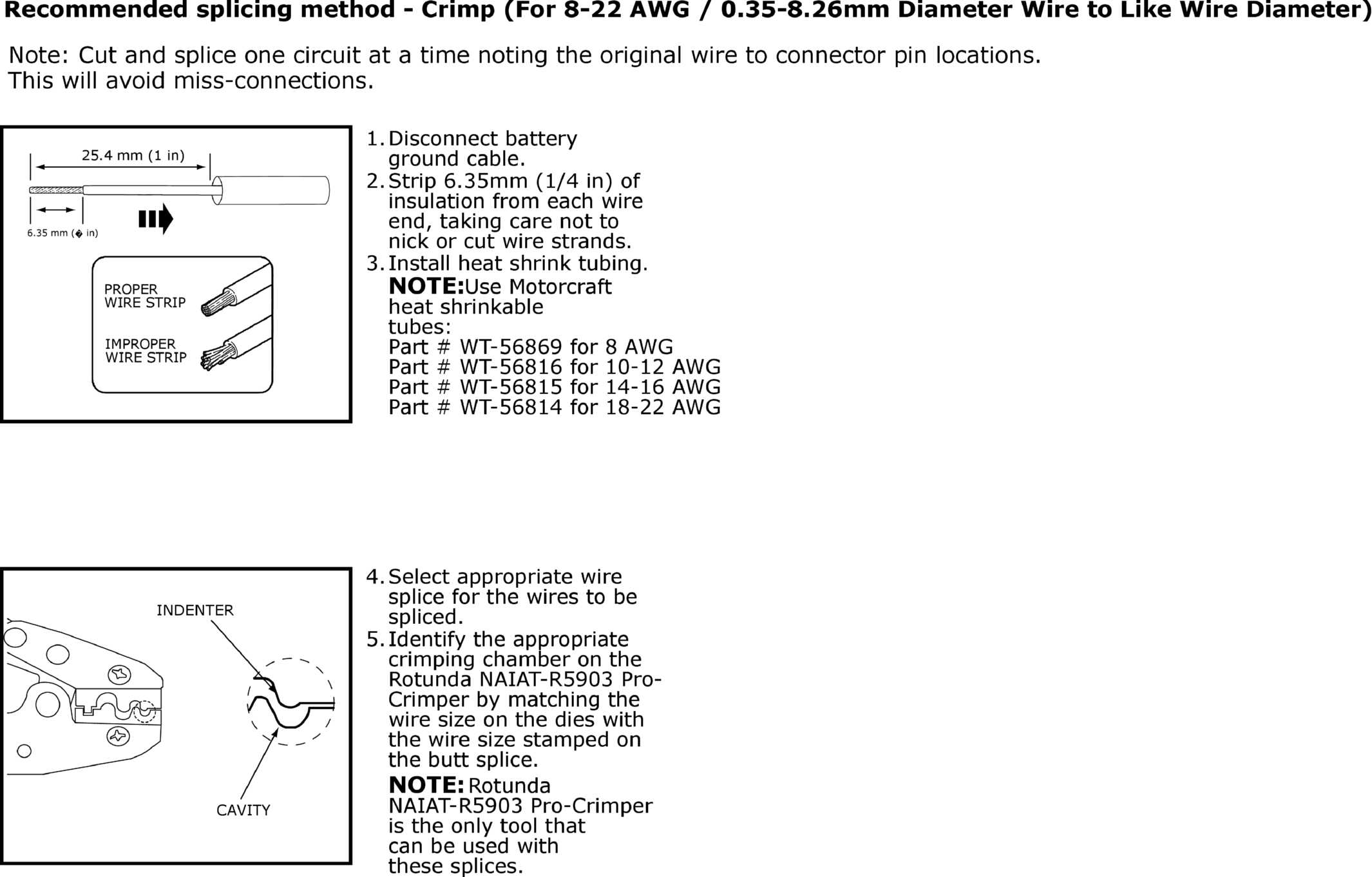

GFDW18447Courtesy of FORD MOTOR COMPANY

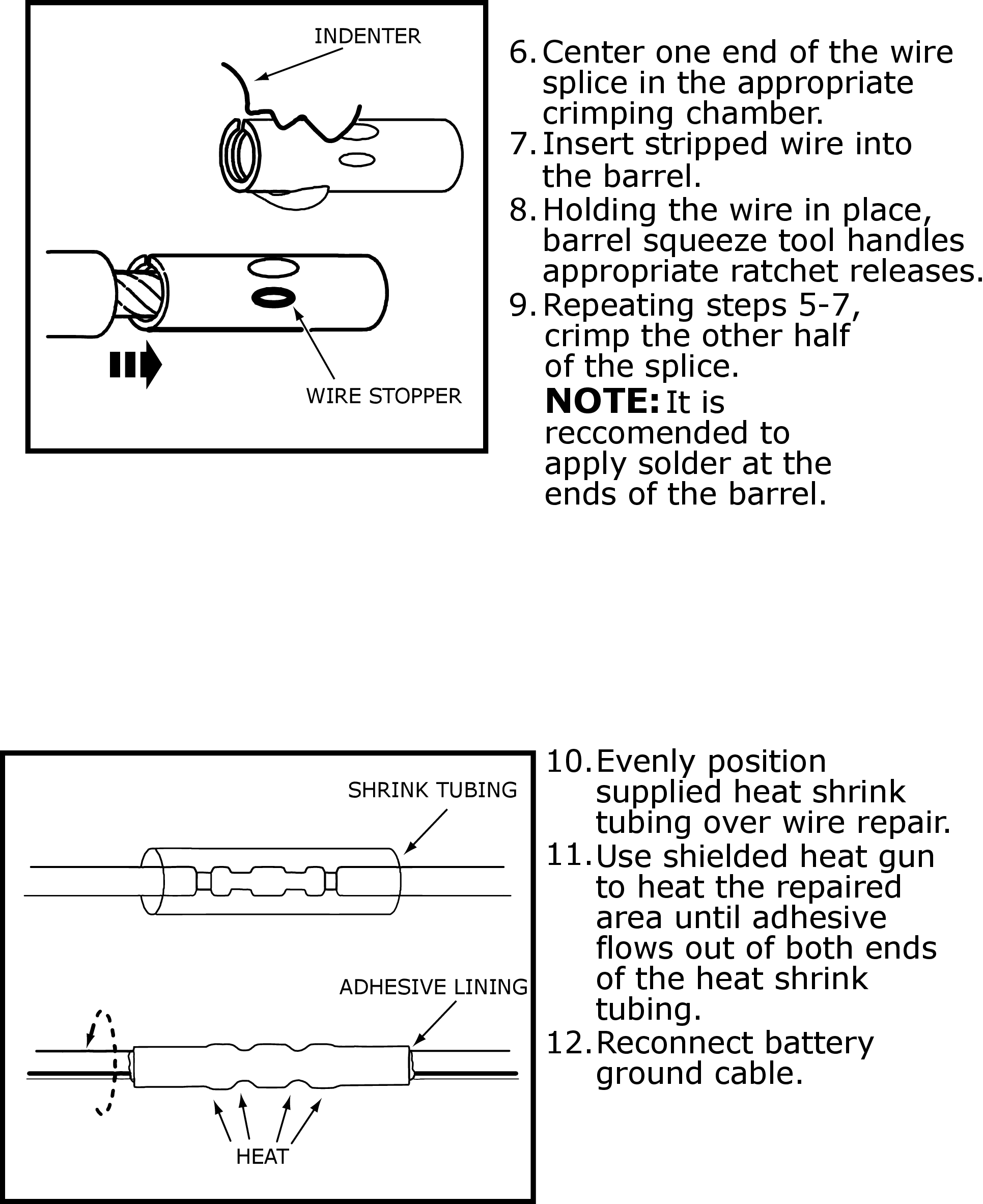

GFDW18448Courtesy of FORD MOTOR COMPANY

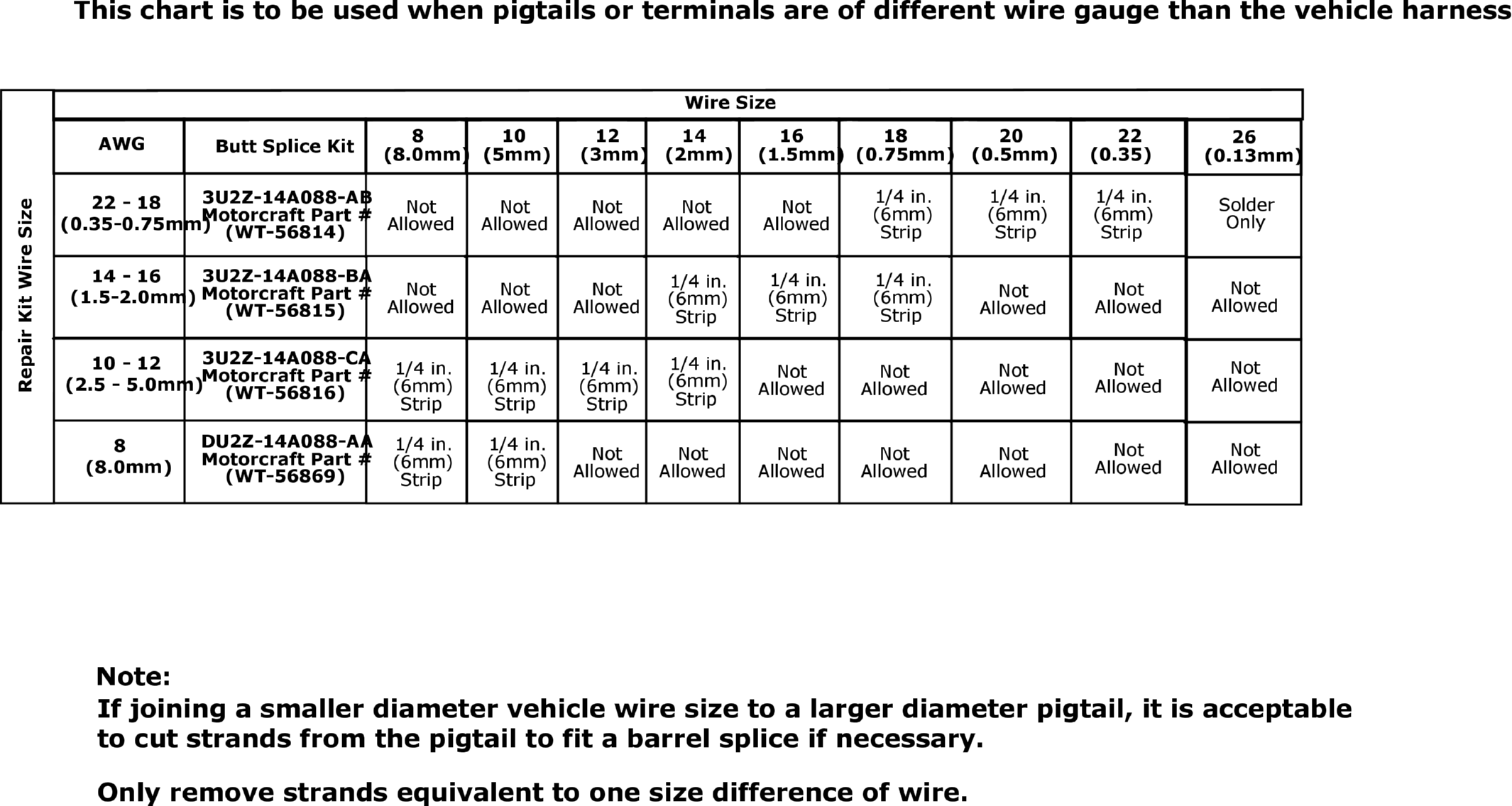

GFDW18449Courtesy of FORD MOTOR COMPANY
