Components Location

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

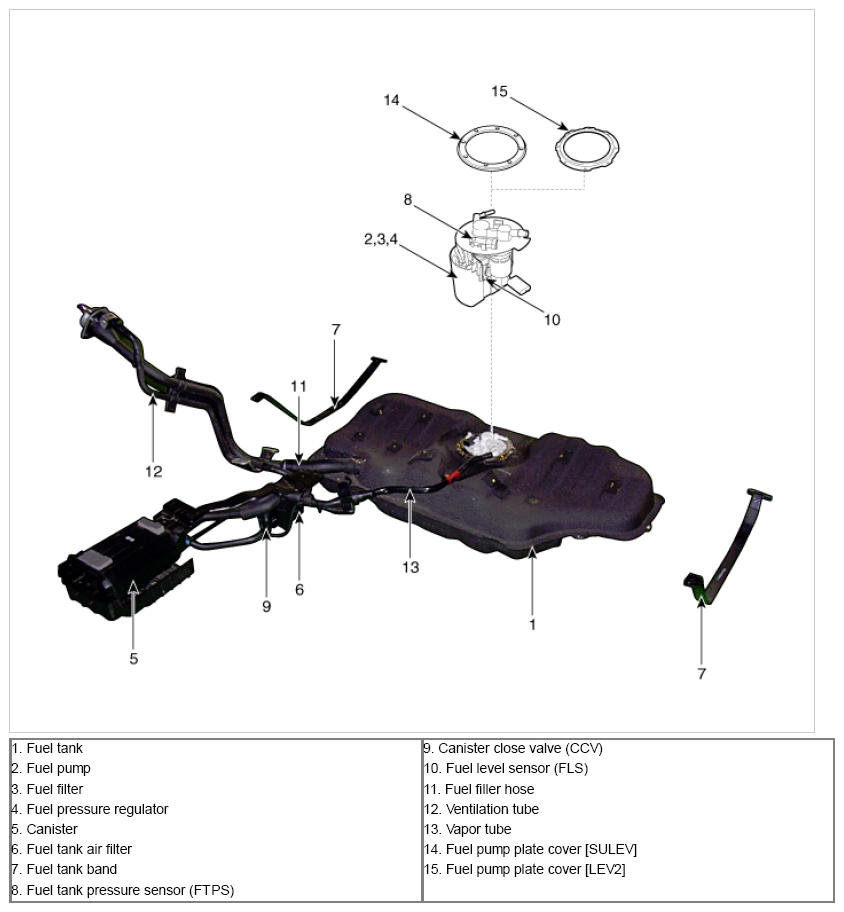

Fig 1: Fuel Delivery System Components Location
G09885967Courtesy of HYUNDAI MOTOR AMERICA
