Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
(Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

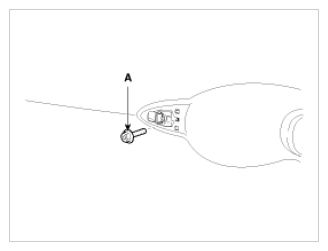

Loosen the outside handle base mounting bolt (A).

Fig 1: Identifying Outside Handle Base Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

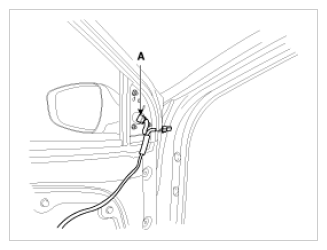

Disconnect the outside rear view mirror connector (A).

Fig 2: Identifying Outside Rear View Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA

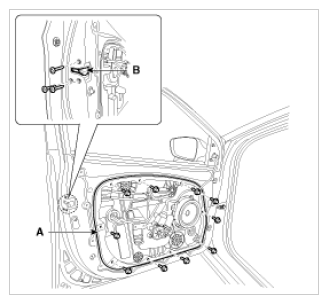

Loosen the front door latch (B) mounting screws.
After loosening the mounting bolts, then remove the front door module (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 3: Identifying Front Door Module And Front Door Latch
Courtesy of HYUNDAI MOTOR AMERICA

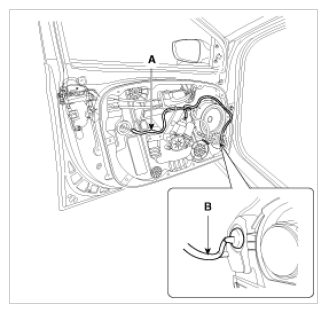

Disconnect the front door module mounting clip (B).
Disconnect the connectors and front door module wiring harness (A).

Fig 4: Identifying Front Door Module Wiring Harness And Mounting Clip
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
