OEM Ground Distribution: Grounds

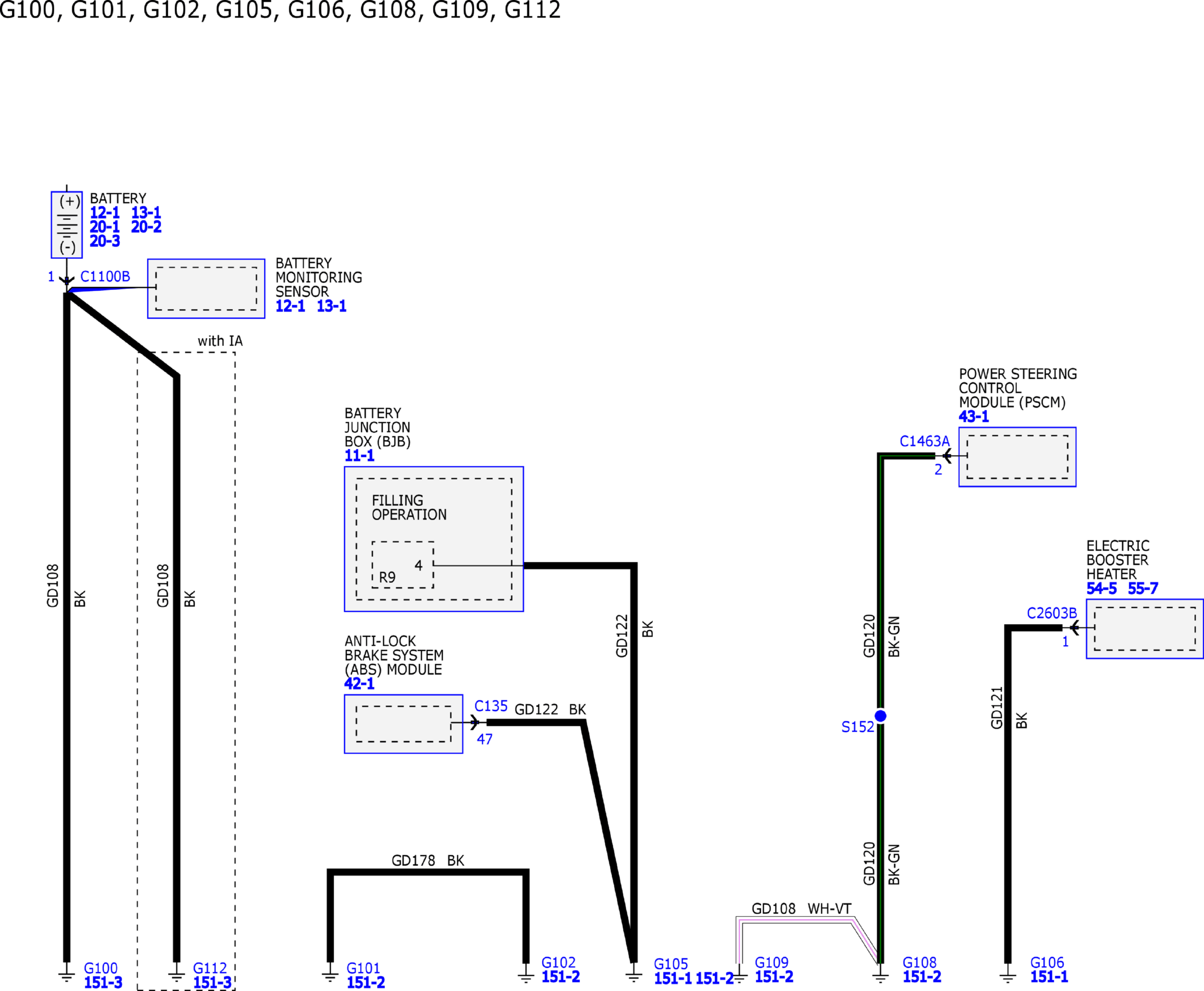

GFDW18464Courtesy of FORD MOTOR COMPANY

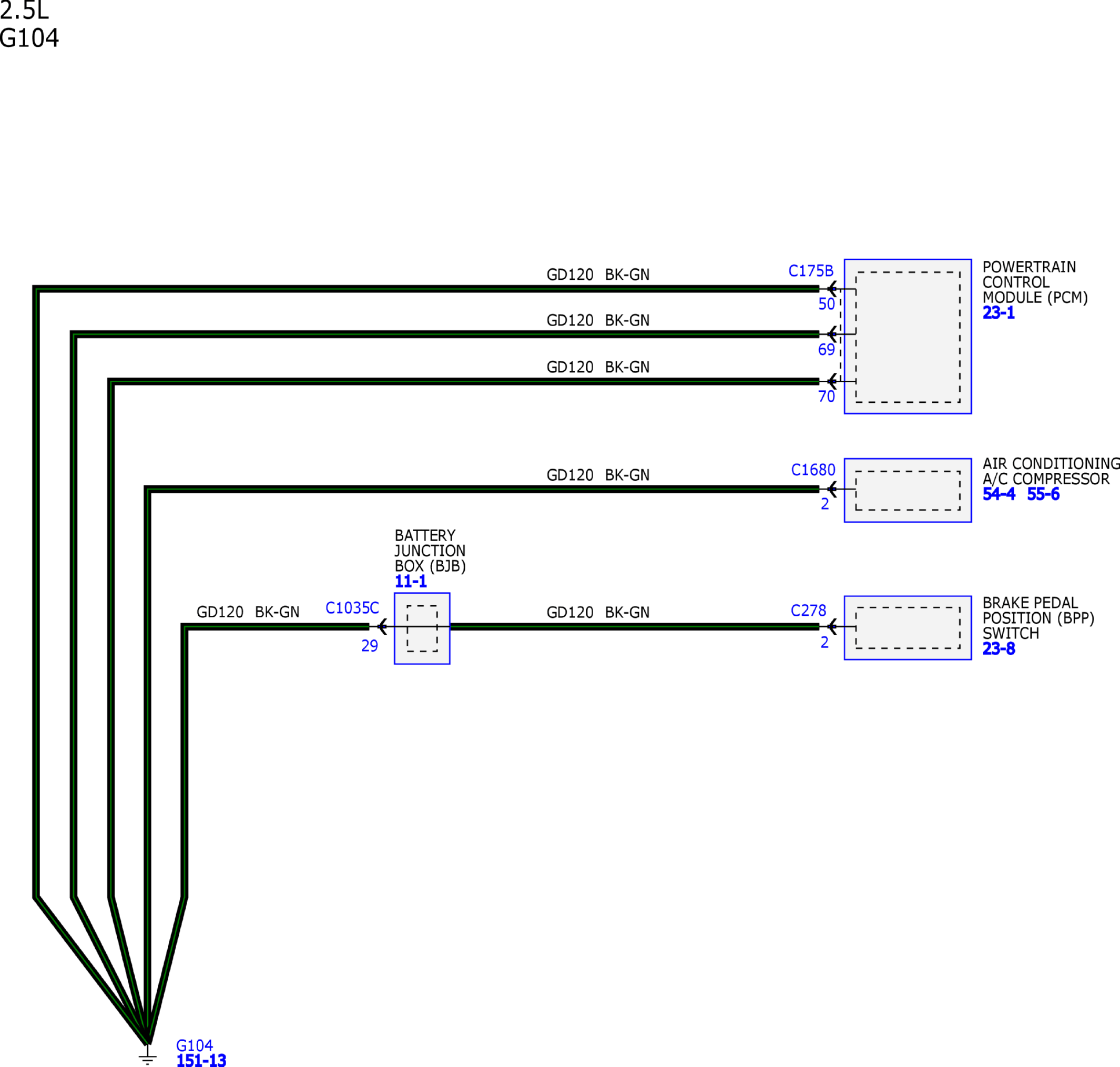

GFDW18465Courtesy of FORD MOTOR COMPANY

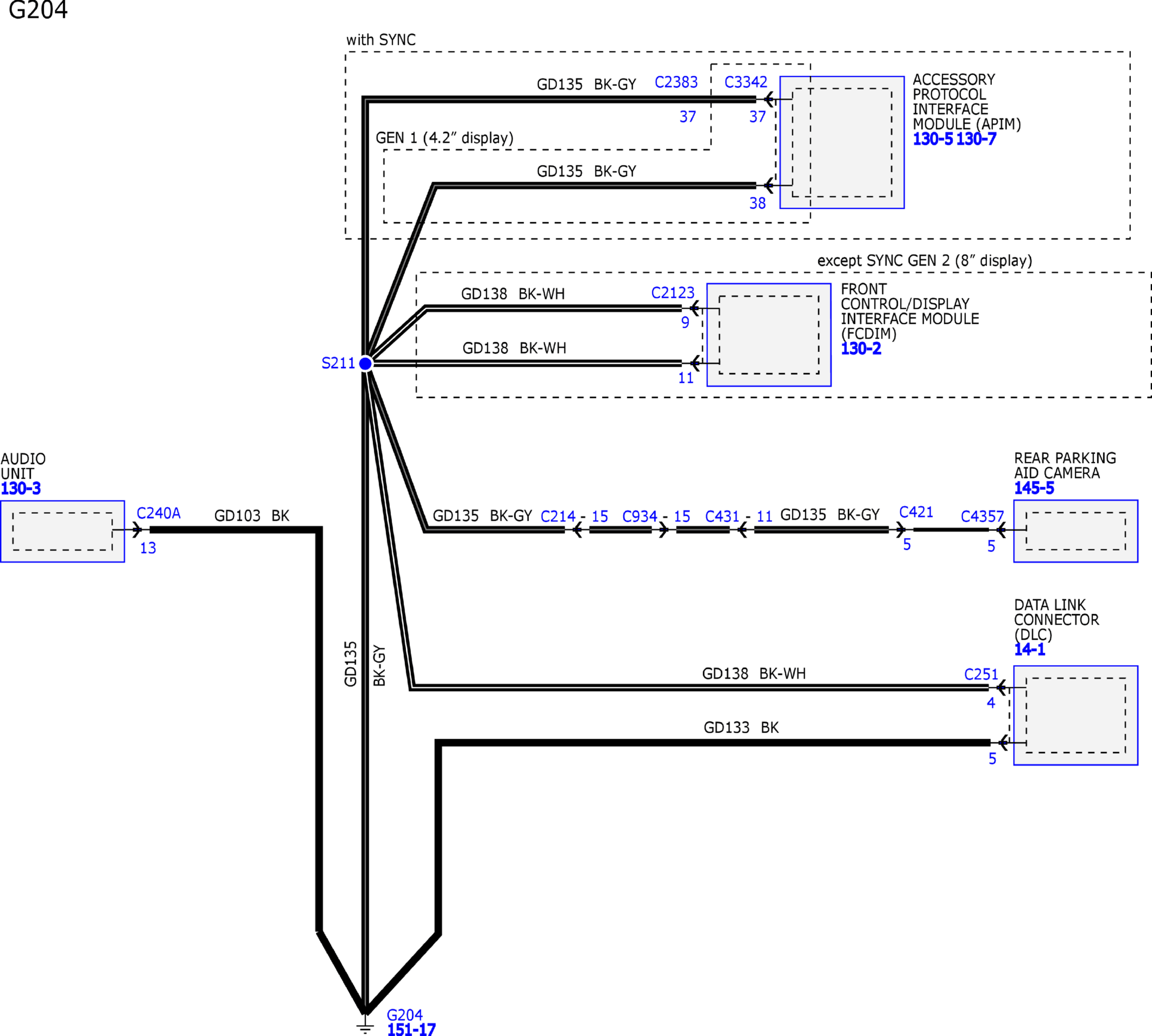

GFDW18466Courtesy of FORD MOTOR COMPANY

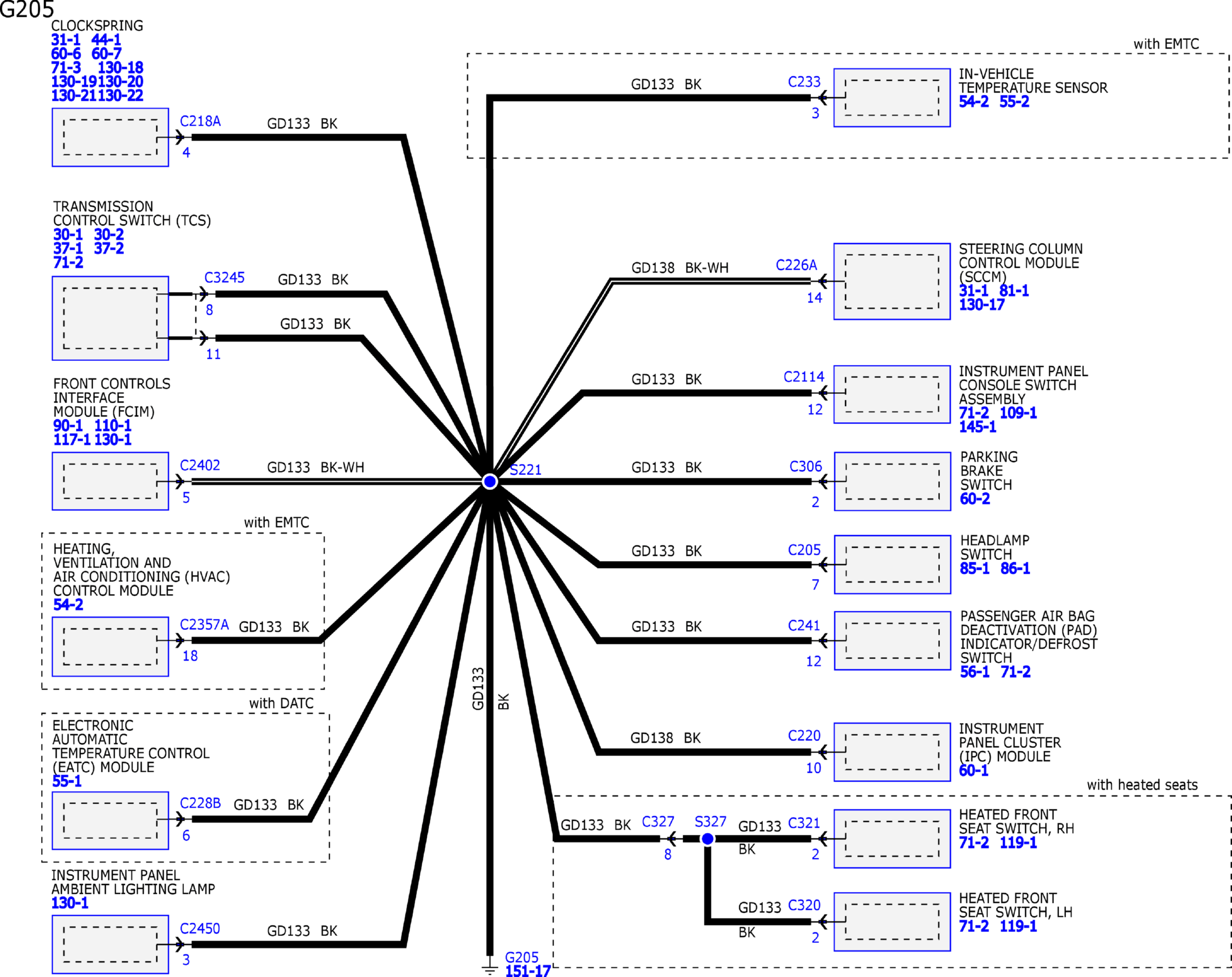

GFDW18467Courtesy of FORD MOTOR COMPANY

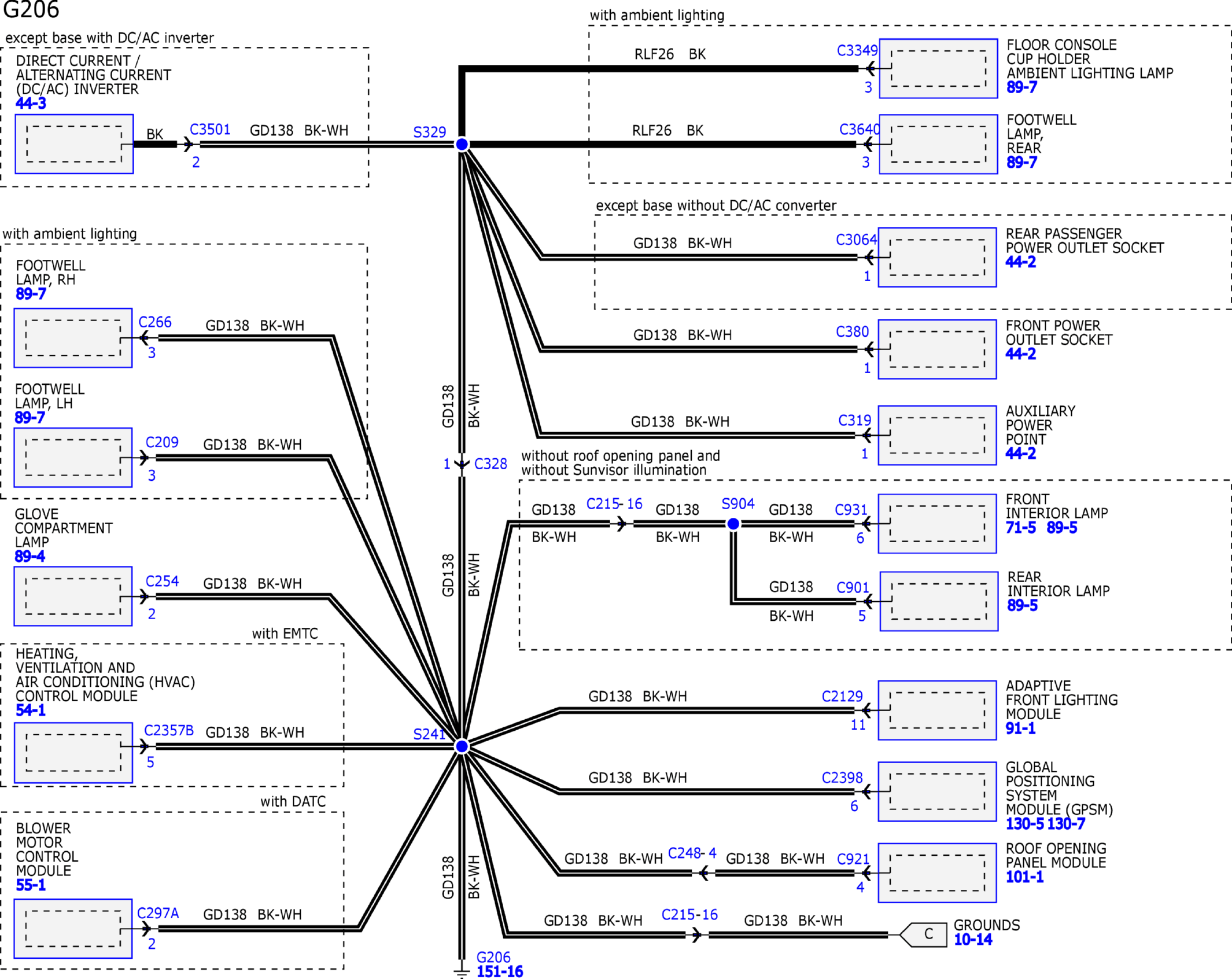

GFDW18468Courtesy of FORD MOTOR COMPANY

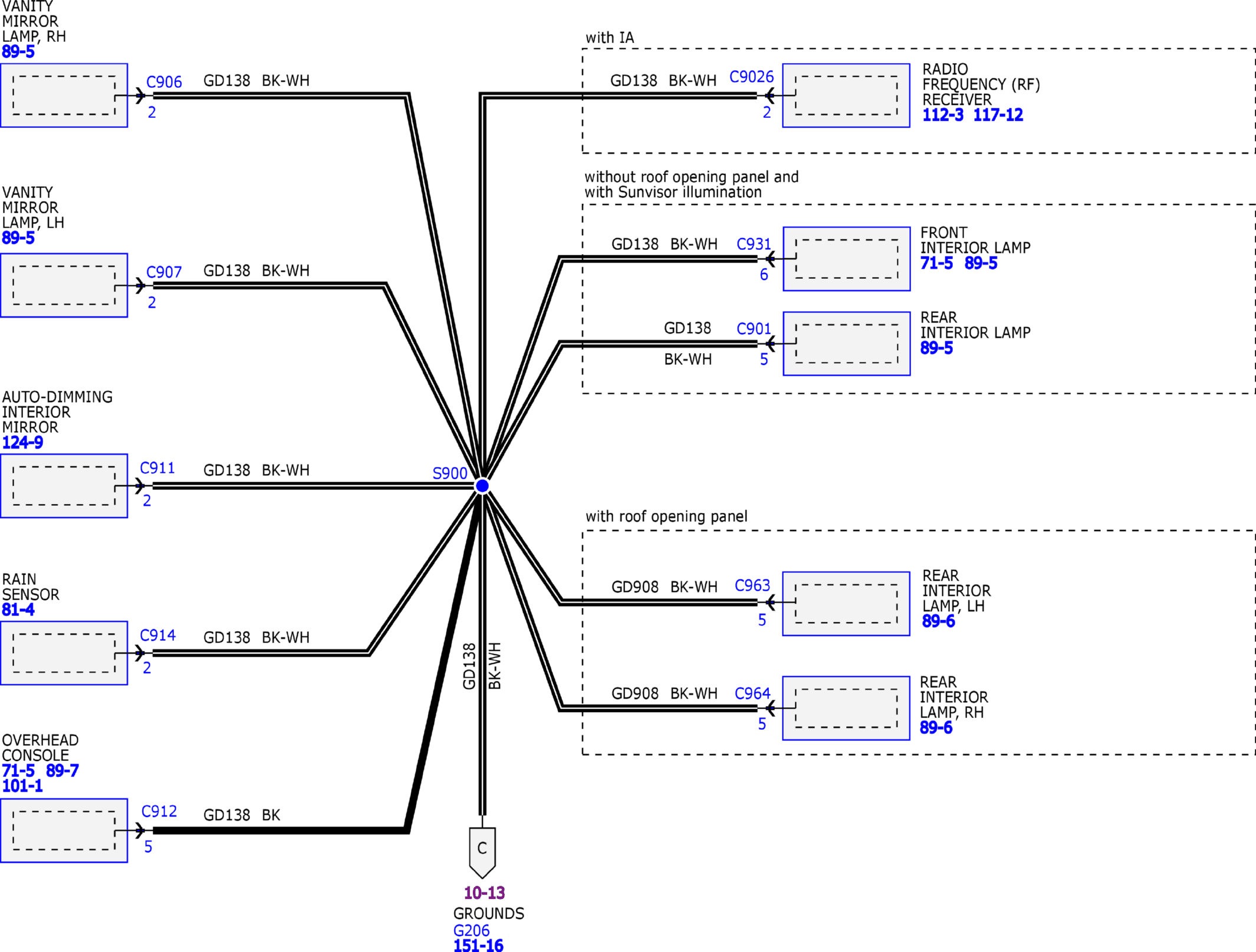

GFDW18469Courtesy of FORD MOTOR COMPANY

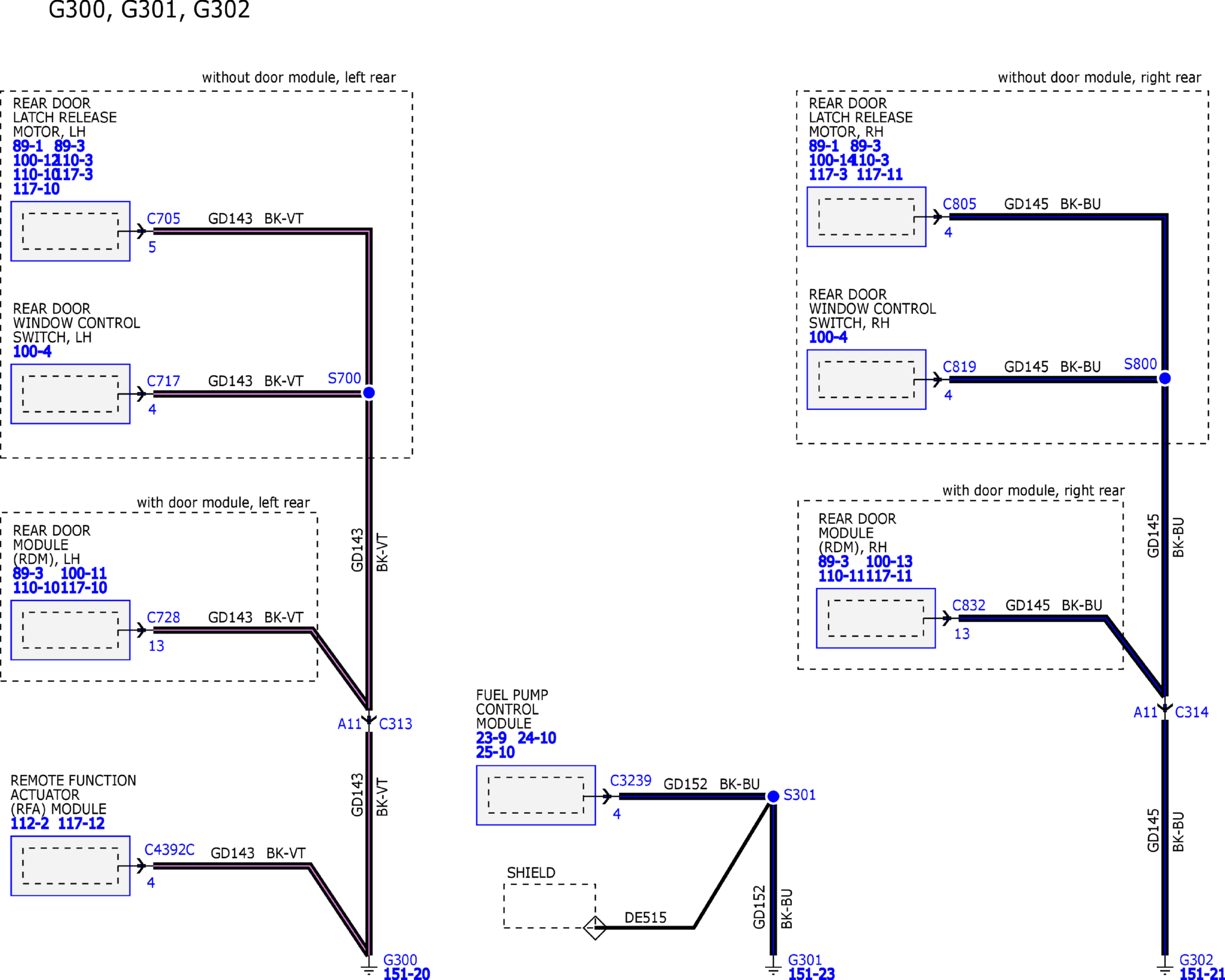

GFDW18470Courtesy of FORD MOTOR COMPANY

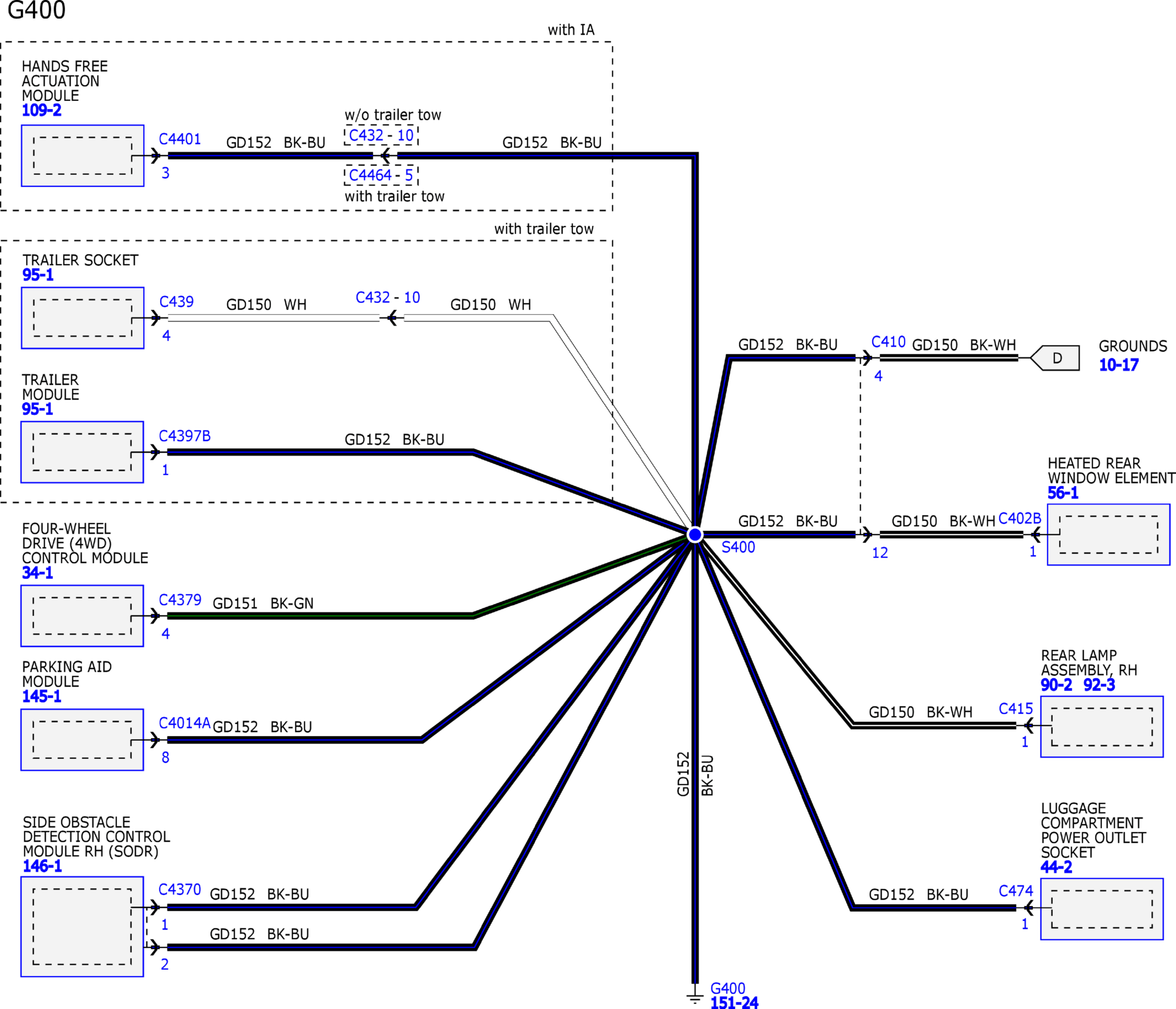

GFDW18471Courtesy of FORD MOTOR COMPANY

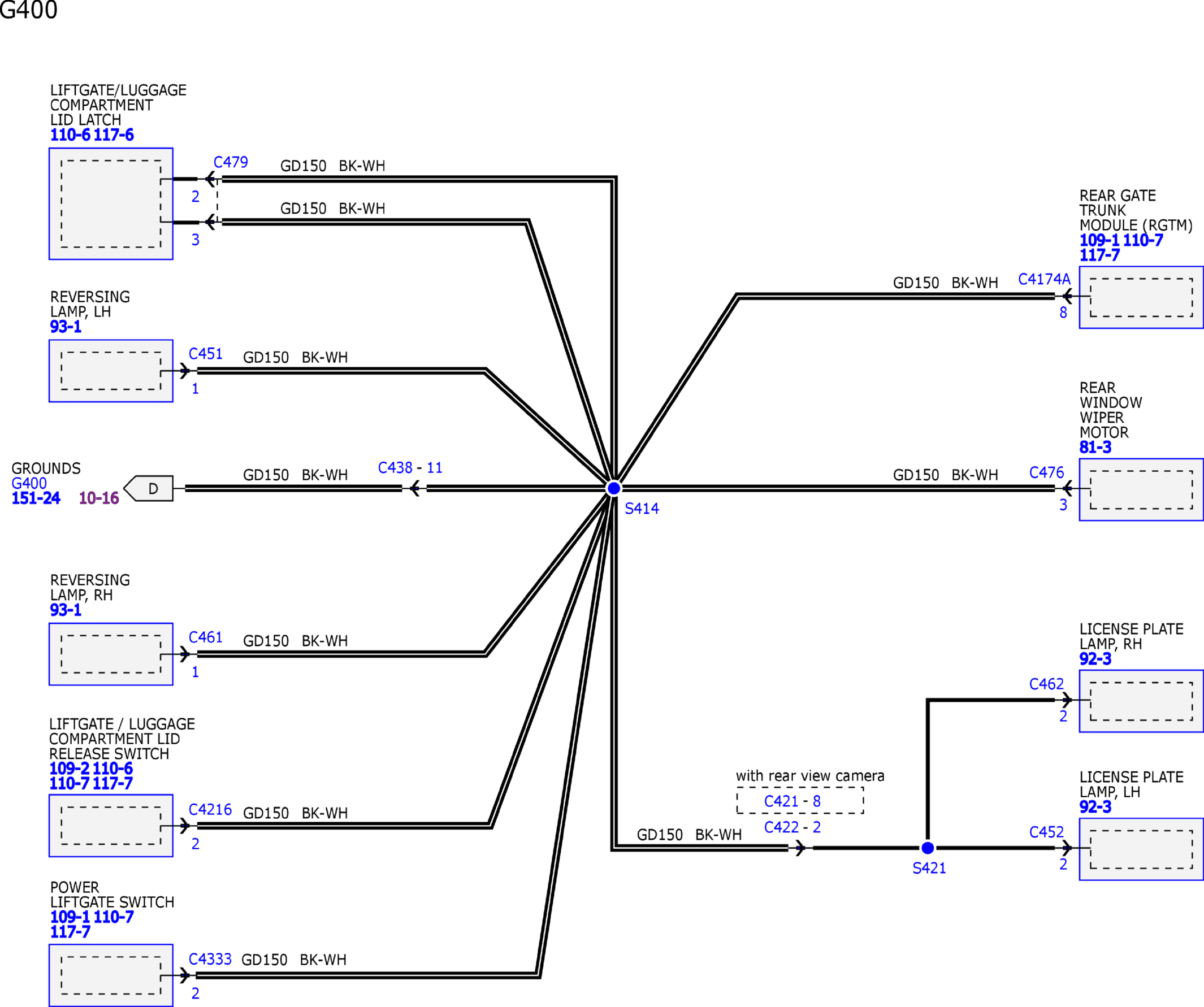

GFDW18472Courtesy of FORD MOTOR COMPANY

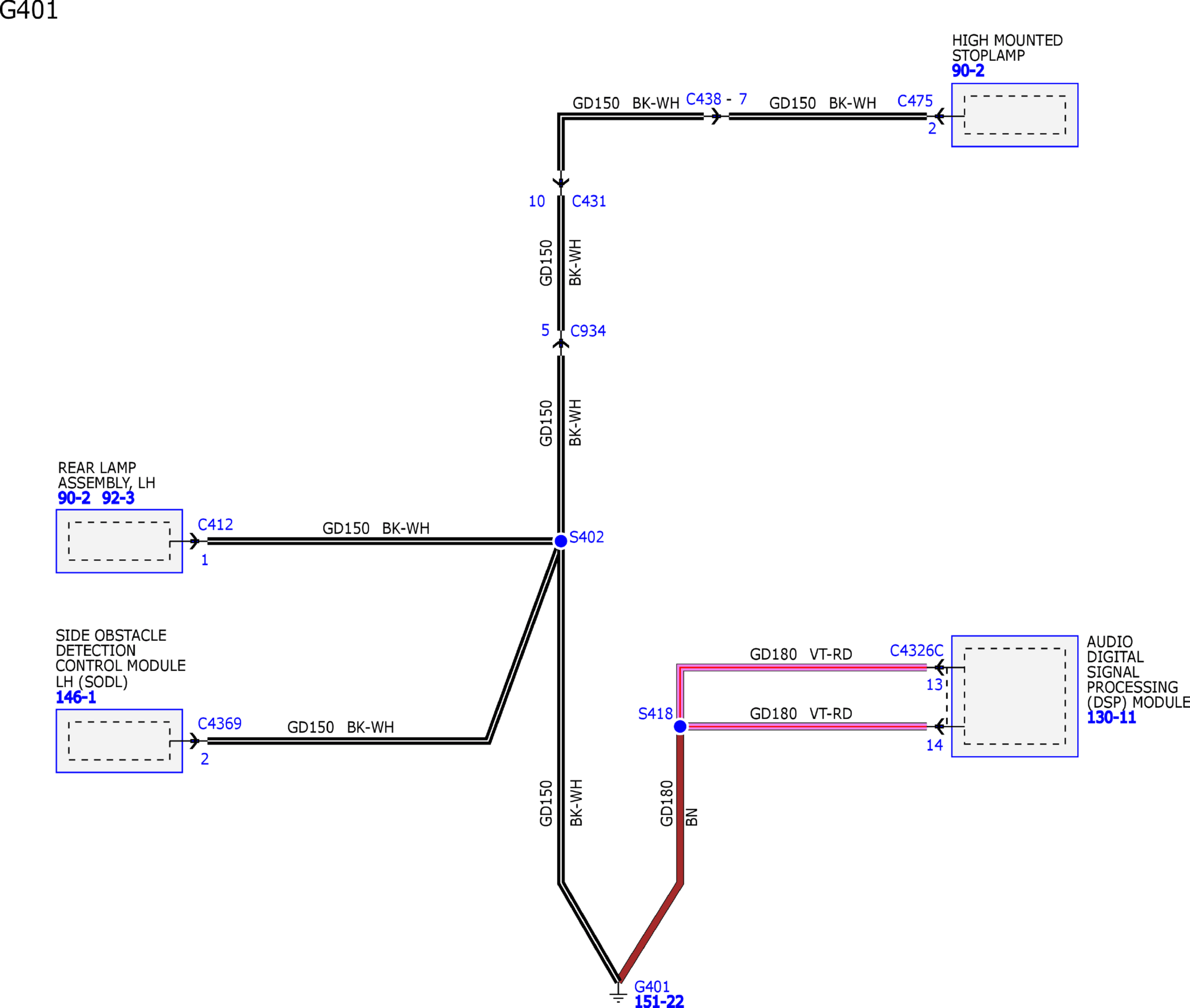

GFDW18473Courtesy of FORD MOTOR COMPANY

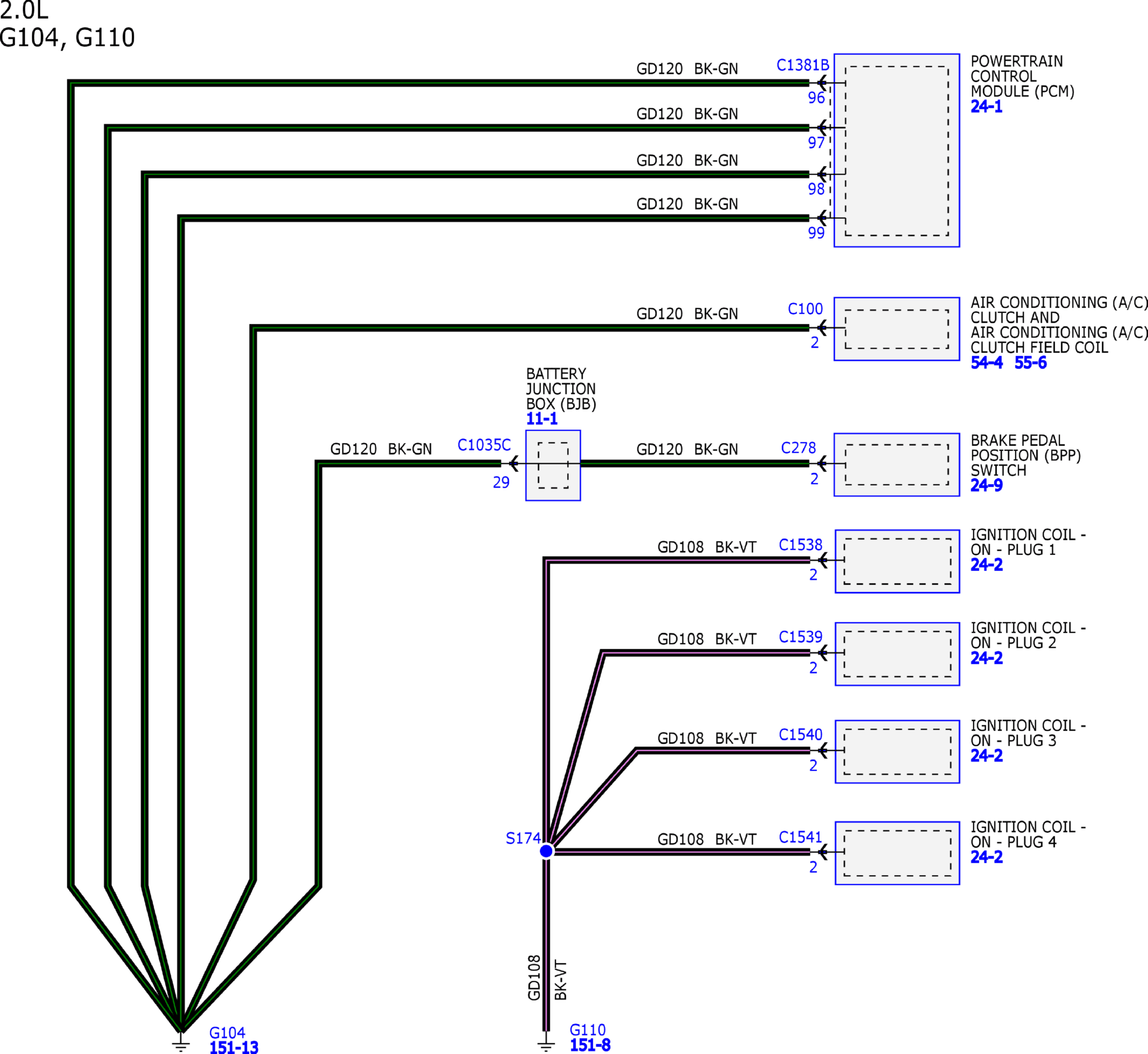

GFDW18474Courtesy of FORD MOTOR COMPANY

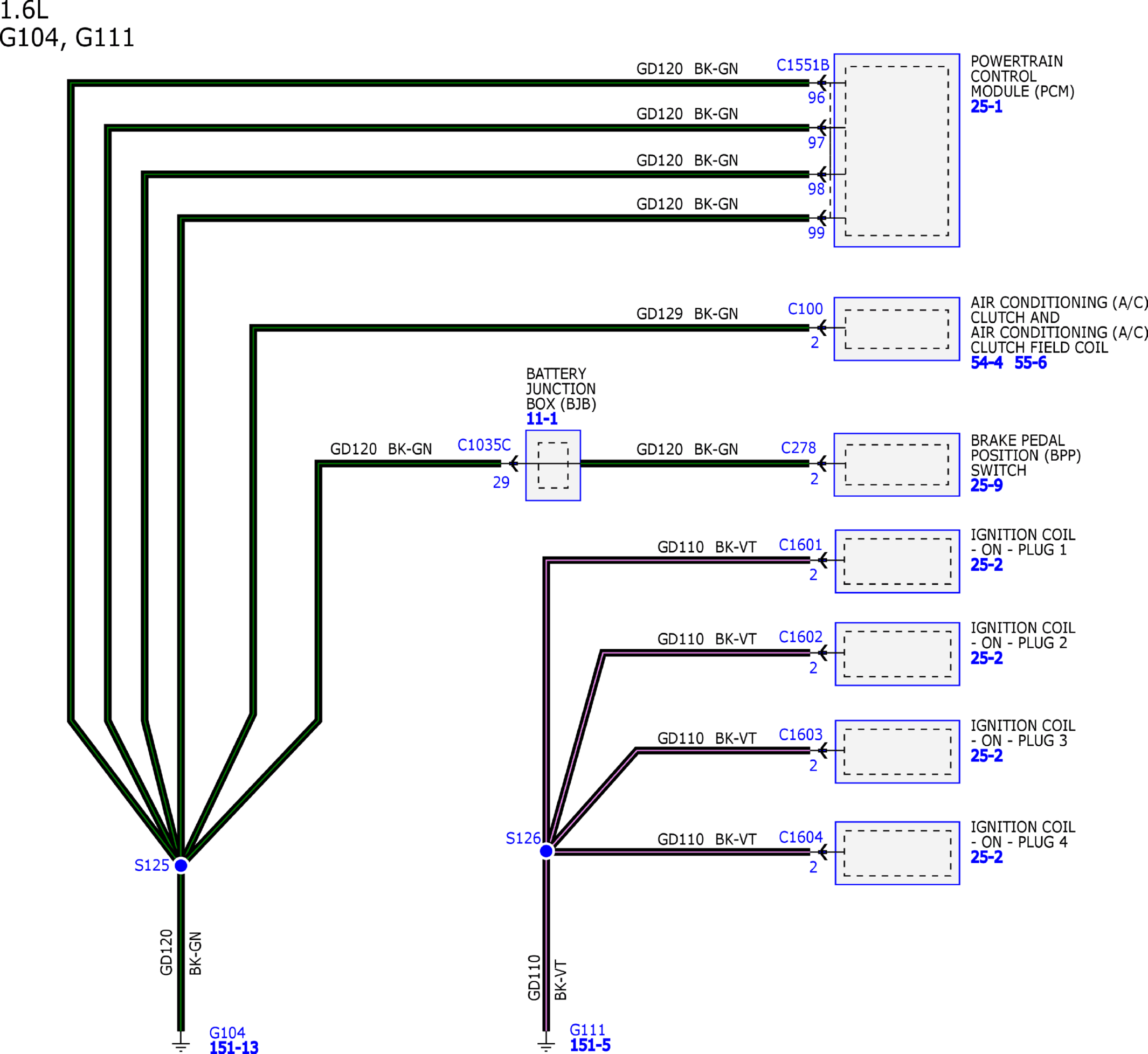

GFDW18475Courtesy of FORD MOTOR COMPANY

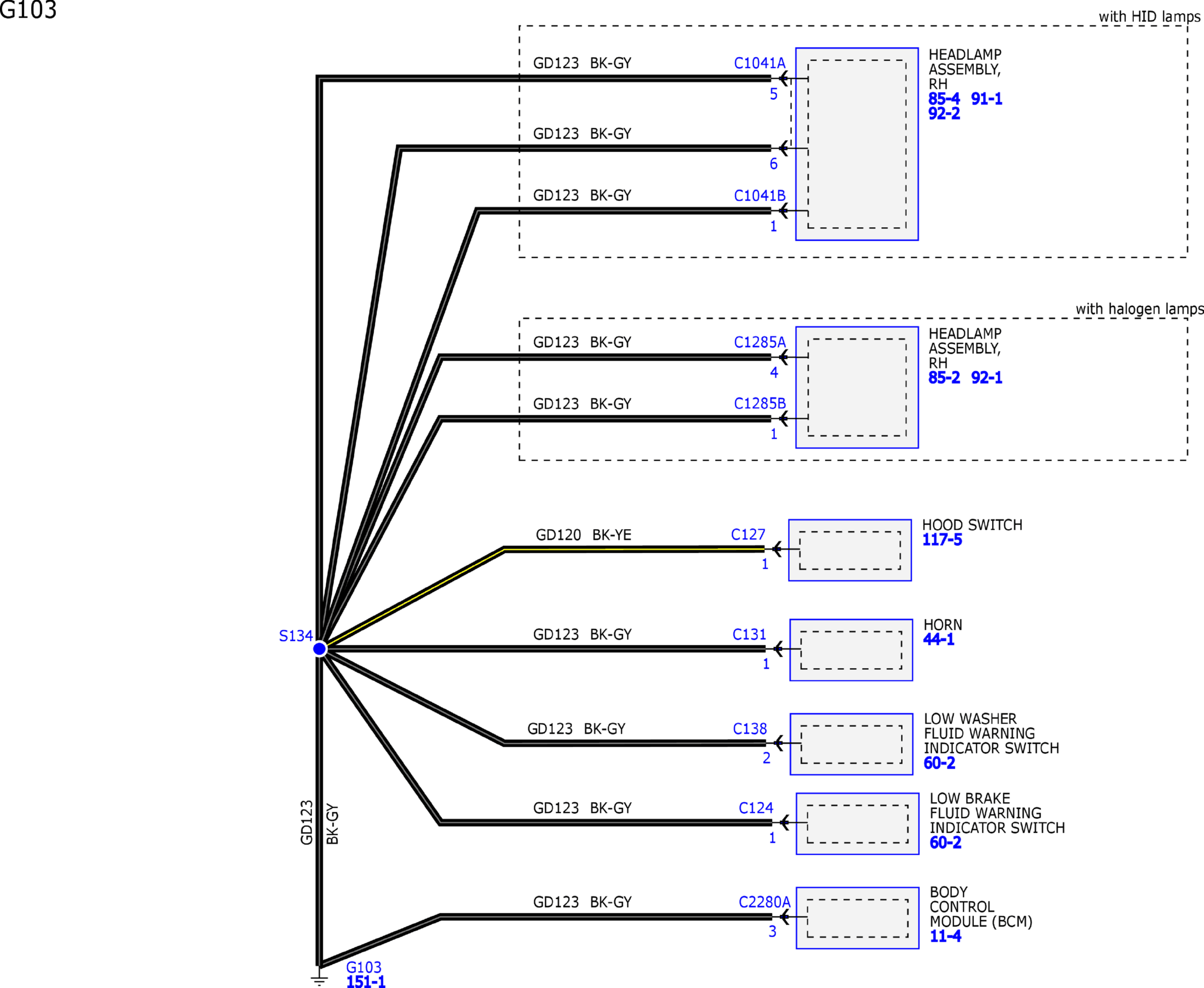

GFDW18476Courtesy of FORD MOTOR COMPANY

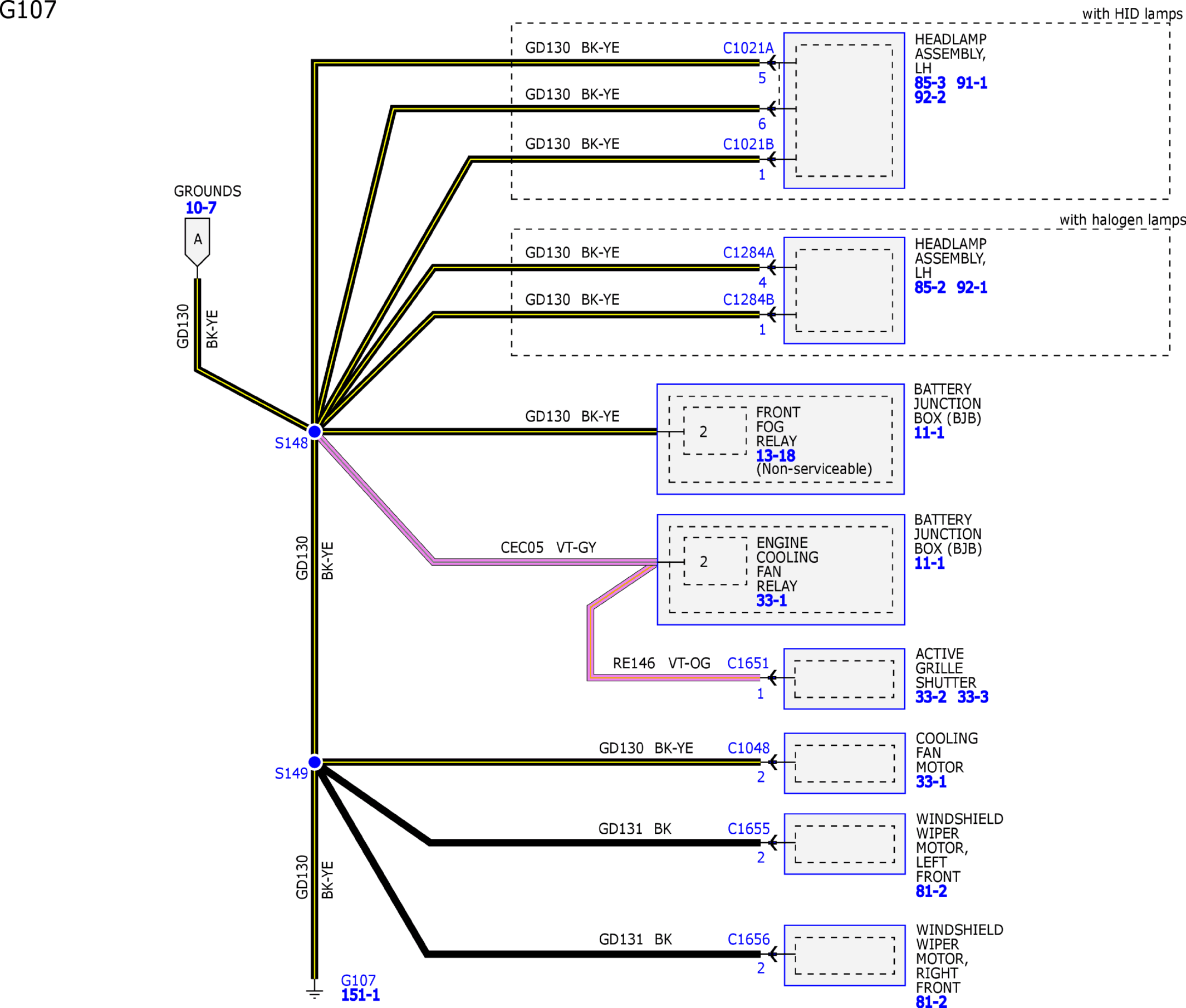

GFDW18477Courtesy of FORD MOTOR COMPANY

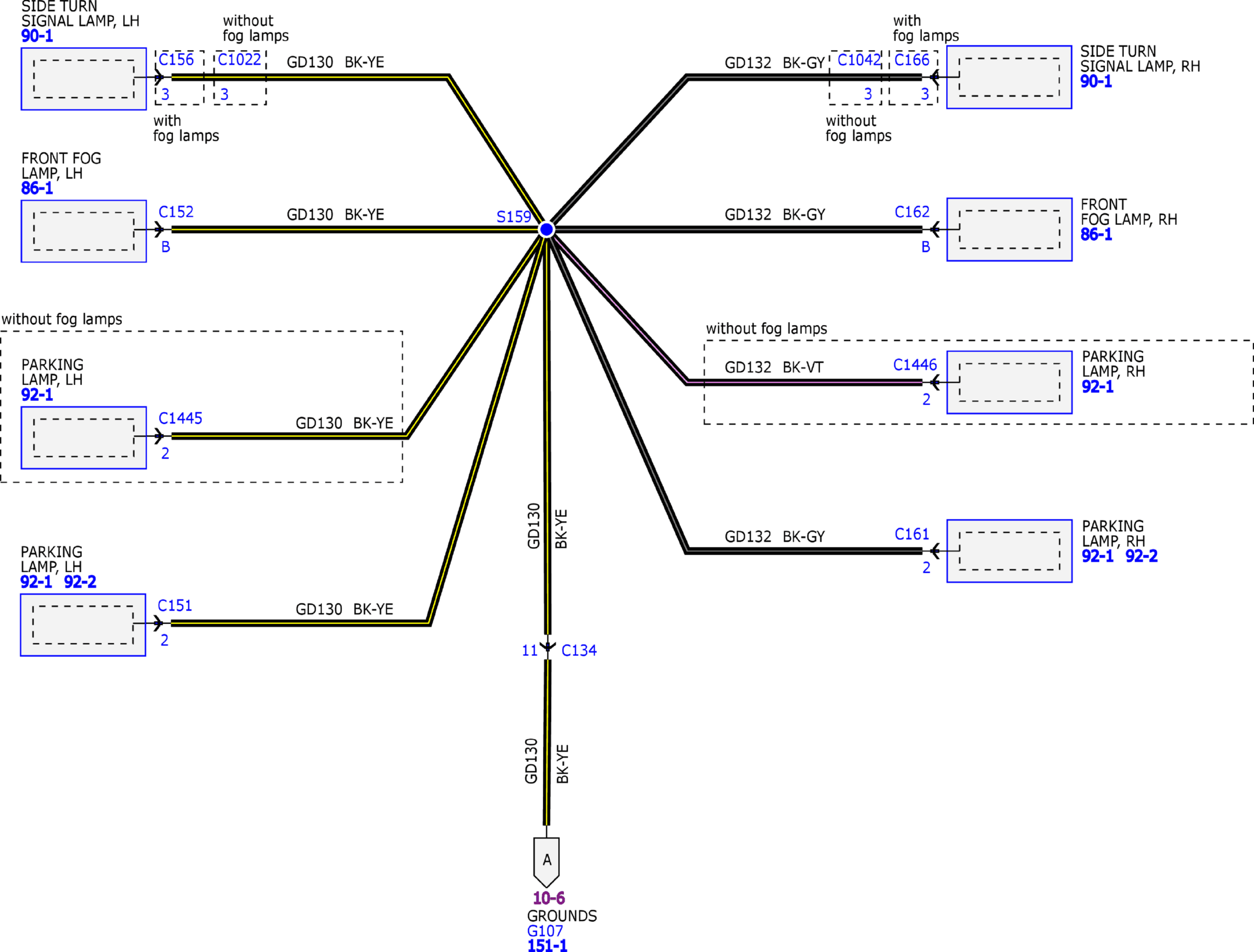

GFDW18478Courtesy of FORD MOTOR COMPANY

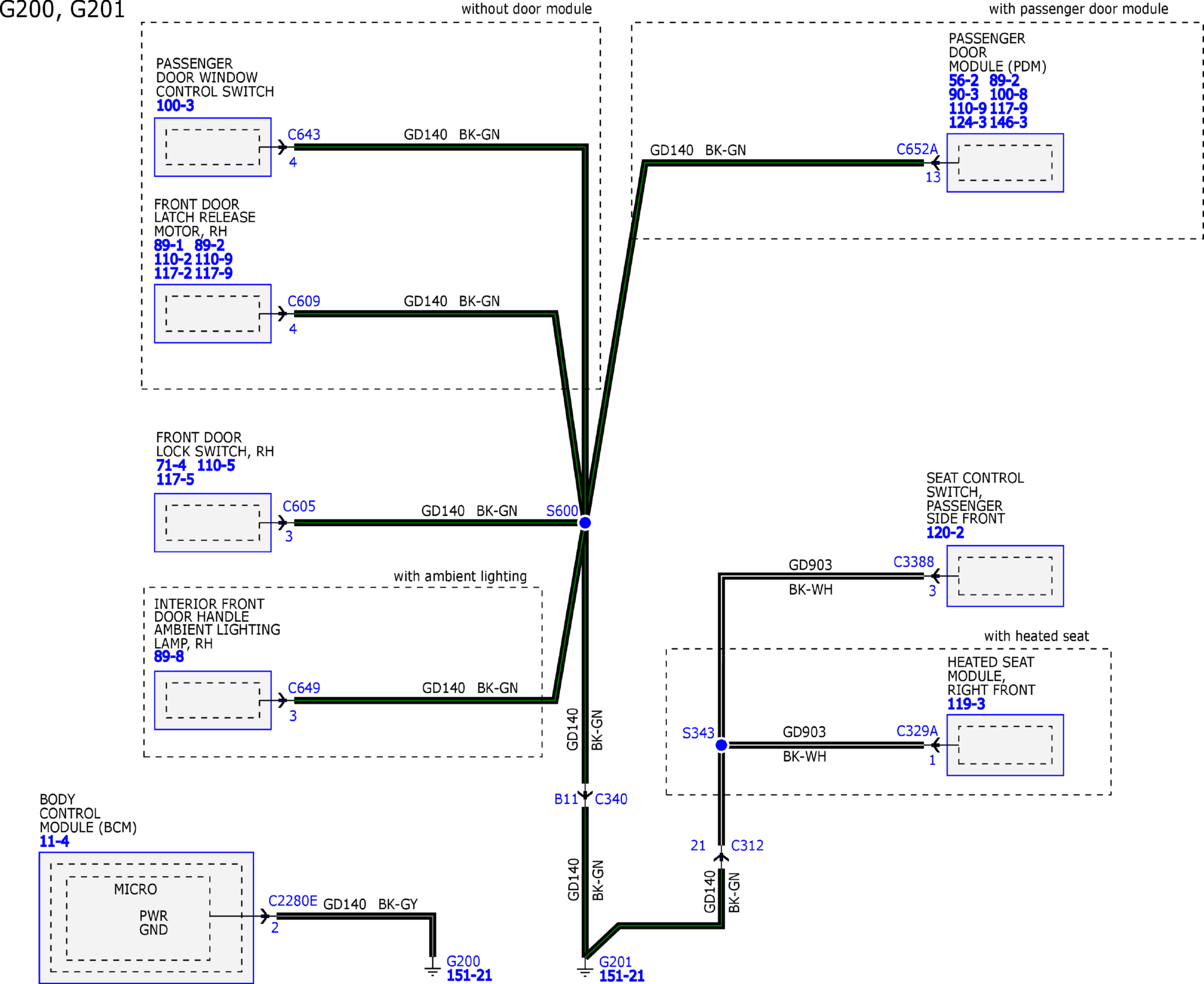

GFDW18479Courtesy of FORD MOTOR COMPANY
GFDW18480Courtesy of FORD MOTOR COMPANY

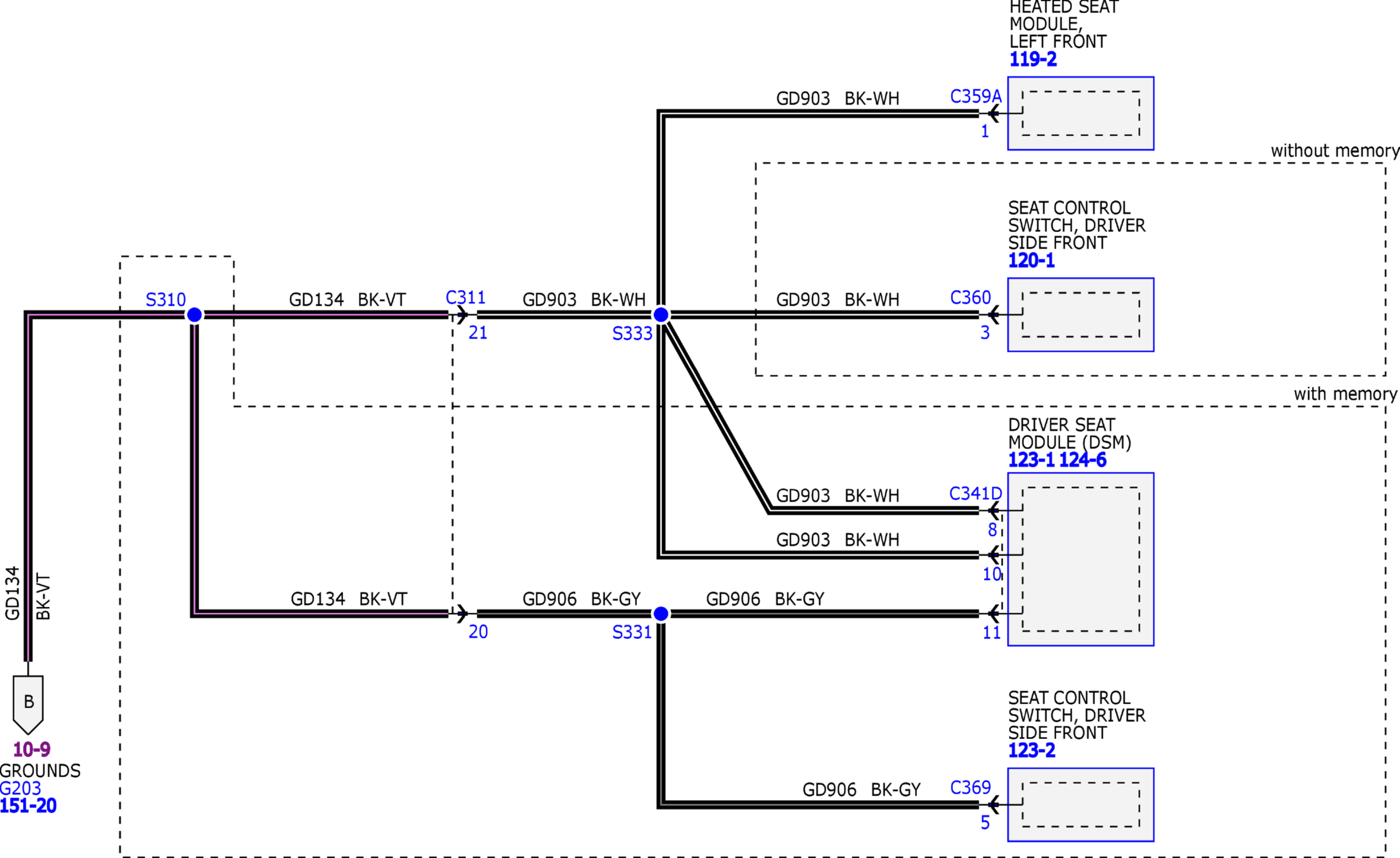

GFDW18481Courtesy of FORD MOTOR COMPANY
