Seat - Exploded View, Third Row

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Seat Backrest - 40 percent

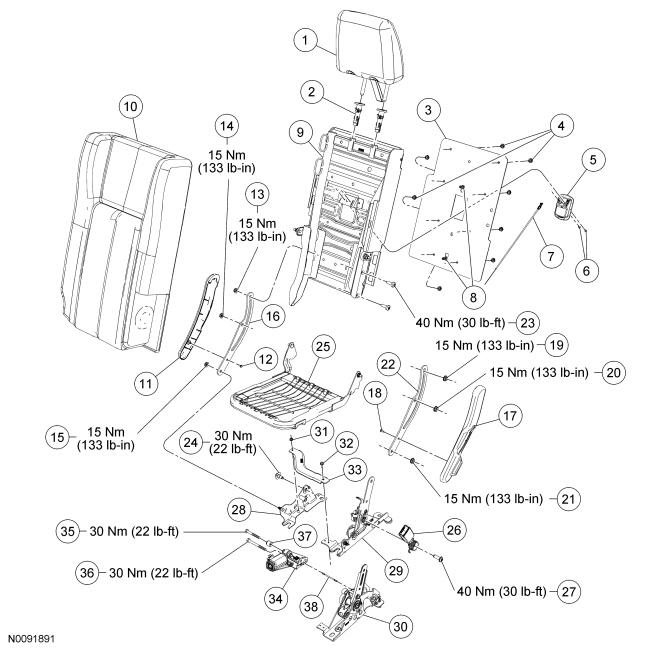

Fig 1: Third Row Seat Backrest (40 percent) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	Head restraint assembly
2	Head restraint guide
3	-	Backrest support panel (part of 613A38)
4	-	Backrest support panel-to-backrest frame screws (part of 613A38) (8 required)
5	Manual latch handle
6	Manual latch handle-to-backrest support panel screws (2 required)
7	-	Manual latch release cable
8	-	Pin-type retainers
9	Backrest frame
10	Backrest trim cover/foam pad
11	Outboard slide bracket cover
12	Outboard slide bracket cover-to-outboard slide bracket screw
13	Outboard slide bracket-to-backrest frame nut
14	Outboard slide bracket-to-cushion frame nut
15	Outboard slide bracket-to-outboard latch nut
16	Outboard slide bracket
17	Inboard slide bracket cover
18	Inboard slide bracket cover-to-inboard slide bracket screw
19	Inboard slide bracket-to-backrest frame nut
20	Inboard slide bracket-to-cushion frame nut
21	Inboard slide bracket-to-inboard latch nut
22	Inboard slide bracket
23	Inboard latch-to-backrest frame bolt (2 required)
24	Outboard latch-to-cushion frame bolt
25	Cushion frame
26	Safety belt buckle
27	-	Safety belt buckle bolt (part of 60044)
28	Outboard latch
29	Inboard manual latch
30	Inboard power latch
31	Nut, support bar
32	Bolt, support bar
33	-	Support bar
34	Power-fold seat motor and bracket
35	-	Bolt, bracket-to-pivot (part of 14547)
36	-	Bolt, bracket-to-latch (part of 14547)
37	-	Bushing, power-fold seat motor (part of 14547)
38	-	Torque shaft, power-fold seat motor (part of 14547)

Seat Cushion - 40 Percent

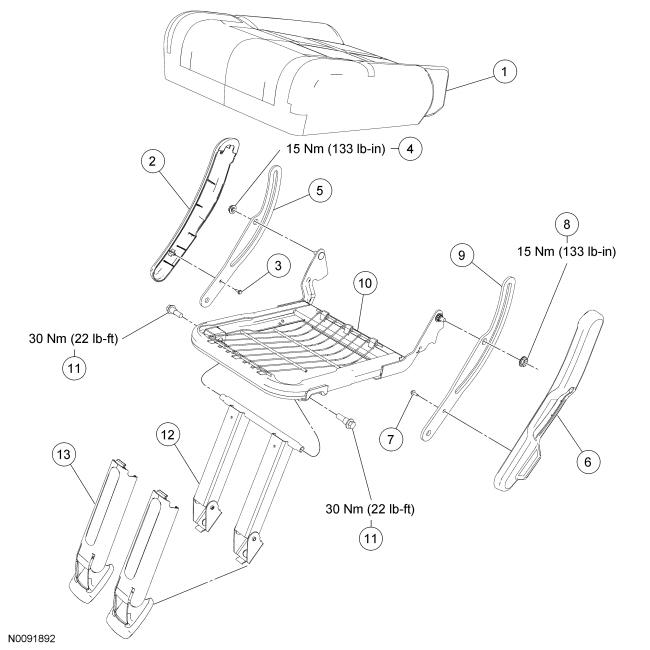

Fig 2: Third Row Seat Cushion (40 percent) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	Cushion trim cover/foam pad
2	Outboard slide bracket cover
3	Outboard slide bracket cover-to-outboard slide bracket screw
4	Outboard slide bracket-to-cushion frame nut
5	Outboard slide bracket
6	Inboard slide bracket cover
7	Inboard slide bracket cover-to-inboard slide bracket screw
8	Inboard slide bracket-to-cushion frame nut
9	Inboard slide bracket
10	Cushion frame
11	Riser-to-cushion frame bolts (2 required)
12	Riser
13	Riser cover (2 required)

Seat Backrest - 60 Percent

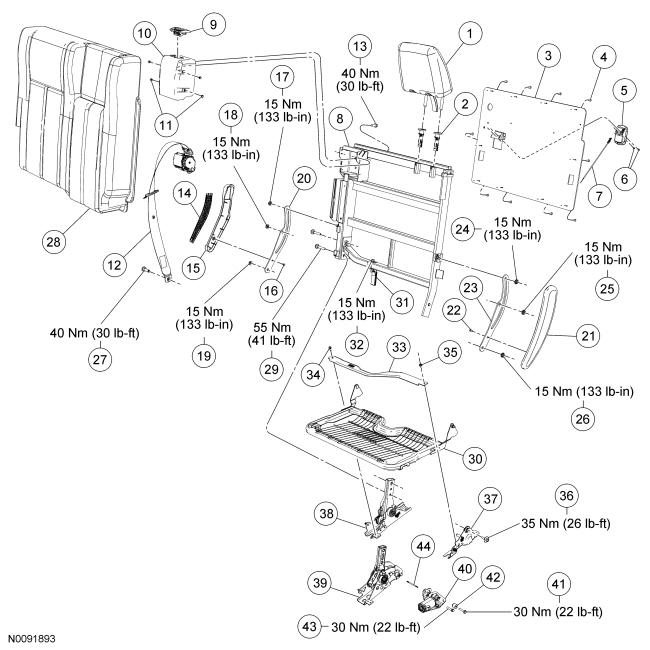

Fig 3: Third Row Seat Backrest (60 percent) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	Head restraint assembly
2	Head restraint guide (2 required)
3	-	Backrest support panel
4	Backrest support panel-to-backrest frame screw (15 required)
5	Manual latch handle
6	Manual latch handle-to-backrest support panel screws (2 required)
7	-	Backrest release cable
8	Backrest frame
9	Safety belt guide cover
10	Safety belt retractor cover
11	Safety belt retractor cover screws (4 required)
12	Safety belt retractor
13	Safety belt retractor bolt (part of 611B64)
14	Cover, safety belt webbing
15	Inboard slide bracket cover
16	Inboard slide bracket cover-to-inboard slide bracket screw
17	Inboard slide bracket-to-backrest frame nut
18	Inboard slide bracket-to-cushion frame nut
19	Inboard slide bracket-to-inboard latch nut
20	Inboard slide bracket
21	Outboard slide bracket cover
22	Outboard slide bracket cover-to-outboard slide bracket screw
23	Outboard slide bracket
24	Outboard slide bracket-to-backrest frame nut
25	Outboard slide bracket-to-cushion frame nut
26	Outboard slide bracket-to-outboard latch nut
27	-	Safety belt anchor bolt (part of 611B64)
28	Backrest trim cover/foam pad
29	Inboard latch-to-backrest frame bolt (2 required)
30	Cushion frame
31	-	Child safety seat tether anchor (part of 613A39)
32	-	Child safety seat tether anchor bolt (part of 613A39)
33	-	Support bracket
34	-	Bolt, support bracket
35	Nut, support bracket
36	Outboard latch-to-cushion frame bolt
37	Outboard latch
38	Inboard manual latch
39	Inboard power latch
40	Power-fold seat motor and bracket
41	-	Bolt, bracket-to-pivot (part of 14547)
42	-	Bushing, power-fold seat motor (part of 14547)
43	-	Bolt, bracket-to-latch (part of 14547)
44	-	Torque shaft, power-fold seat motor (part of 14547)

Seat Cushion - 60 Percent

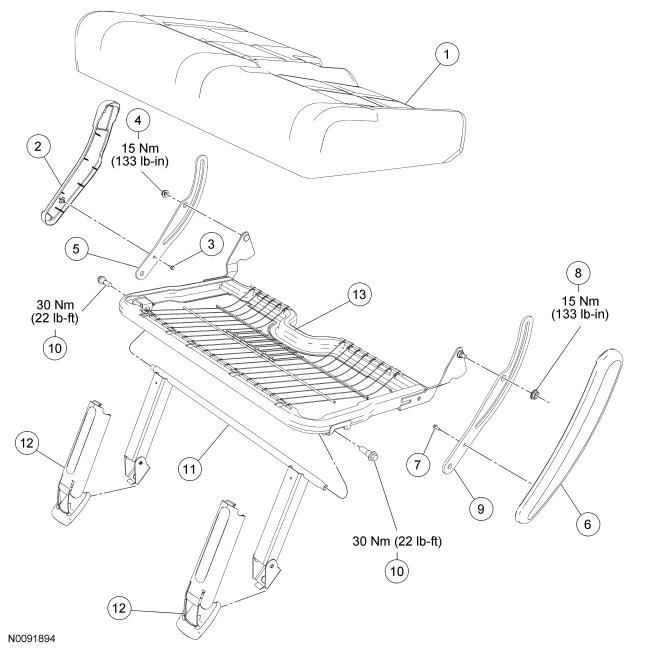

Fig 4: Third Row Seat Cushion (60 percent) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	Cushion trim cover/foam pad
2	Inboard slide bracket cover
3	Inboard slide bracket cover-to-inboard slide bracket screw
4	Inboard slide bracket-to-cushion frame nut
5	Inboard slide bracket
6	Outboard slide bracket cover
7	Outboard slide bracket cover-to-outboard slide bracket screw
8	Outboard slide bracket-to-cushion frame nut
9	Outboard slide bracket
10	Riser-to-cushion frame bolts
11	Riser
12	Riser covers (2 required)
13	Cushion frame

1.

For additional information, refer to the procedures in this article.
