Anti-Lock Brake System (ABS) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

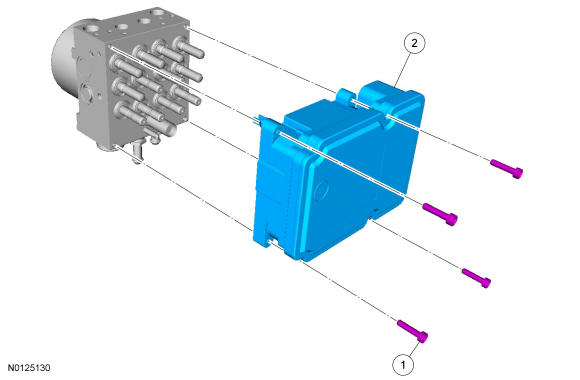

Exploded View

GFD33919Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Torque Material Name Notes
1 W302577 Anti-Lock Brake System (ABS) module screw (4 required) (also part of 2C219) 2 Nm (18 lb-in) - -
2 2C219 Anti-Lock Brake System (ABS) module - - -
