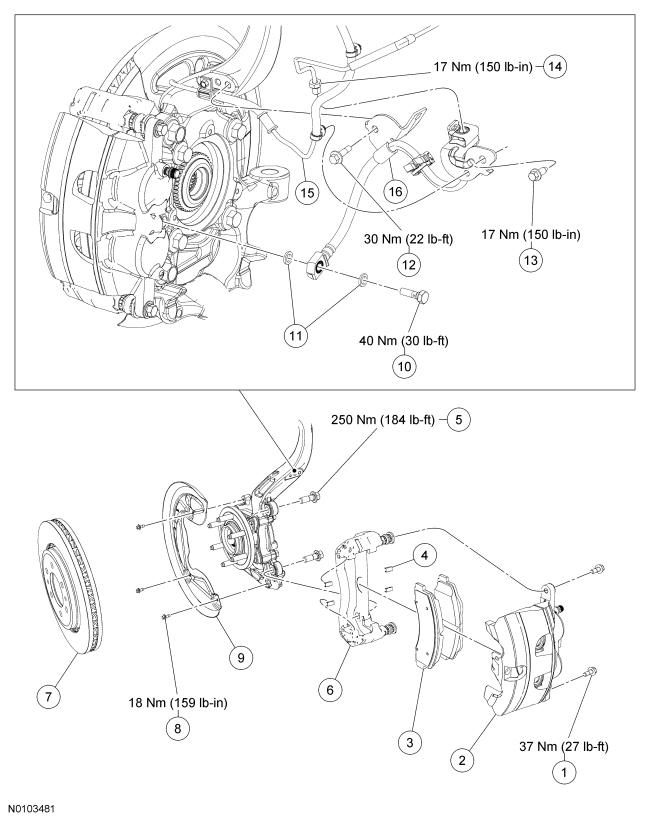

Front Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
Rear Wheel Drive(RWD) shown in illustration, Four-Wheel Drive(4WD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper guide pin bolt (part of kit 2C150) |
| 2 | Brake caliper | |
| 3 | Brake disc pad (2 required) | |
| 4 | - | Spring clip (part of 2C321) (2 required) |
| 5 | Brake caliper anchor plate bolt (2 required) | |
| 6 | Brake caliper anchor plate | |
| 7 | Brake disc | |
| 8 | Brake disc shield bolt (3 required) | |
| 9 | Brake disc shield | |
| 10 | Brake caliper flow bolt | |
| 11 | Copper washers | |
| 12 | Brake flexible hose bracket-to-wheel knuckle bolt | |
| 13 | Brake flexible hose bracket-to-frame bolt | |
| 14 | - | Brake tube fitting (part of 2263 RH/ 2264 LH) |
| 15 | Wheel speed sensor harness | |
| 16 | Brake flexible hose | |
