Connector Repair Procedures

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

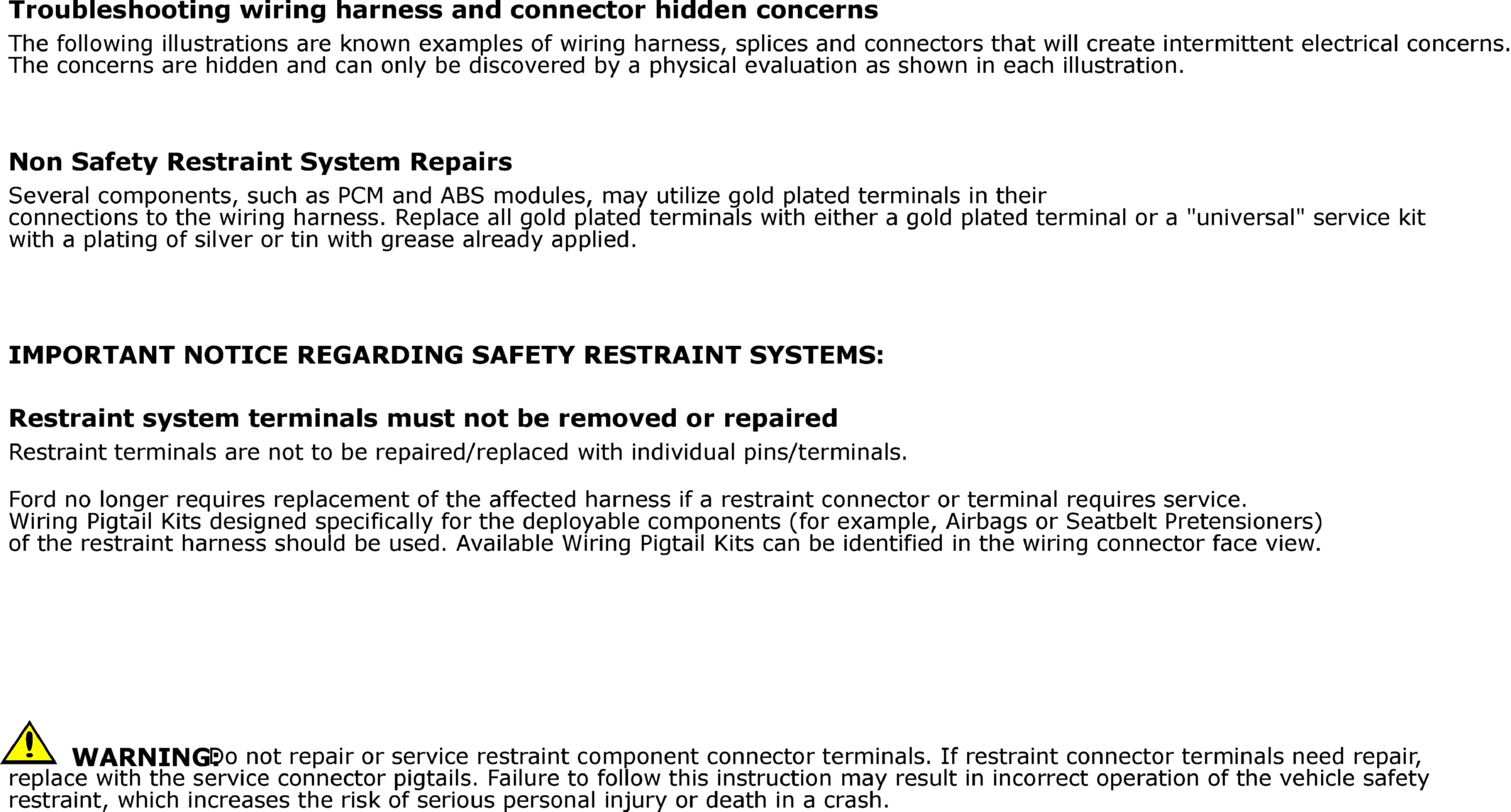

GFDW9462Courtesy of FORD MOTOR COMPANY

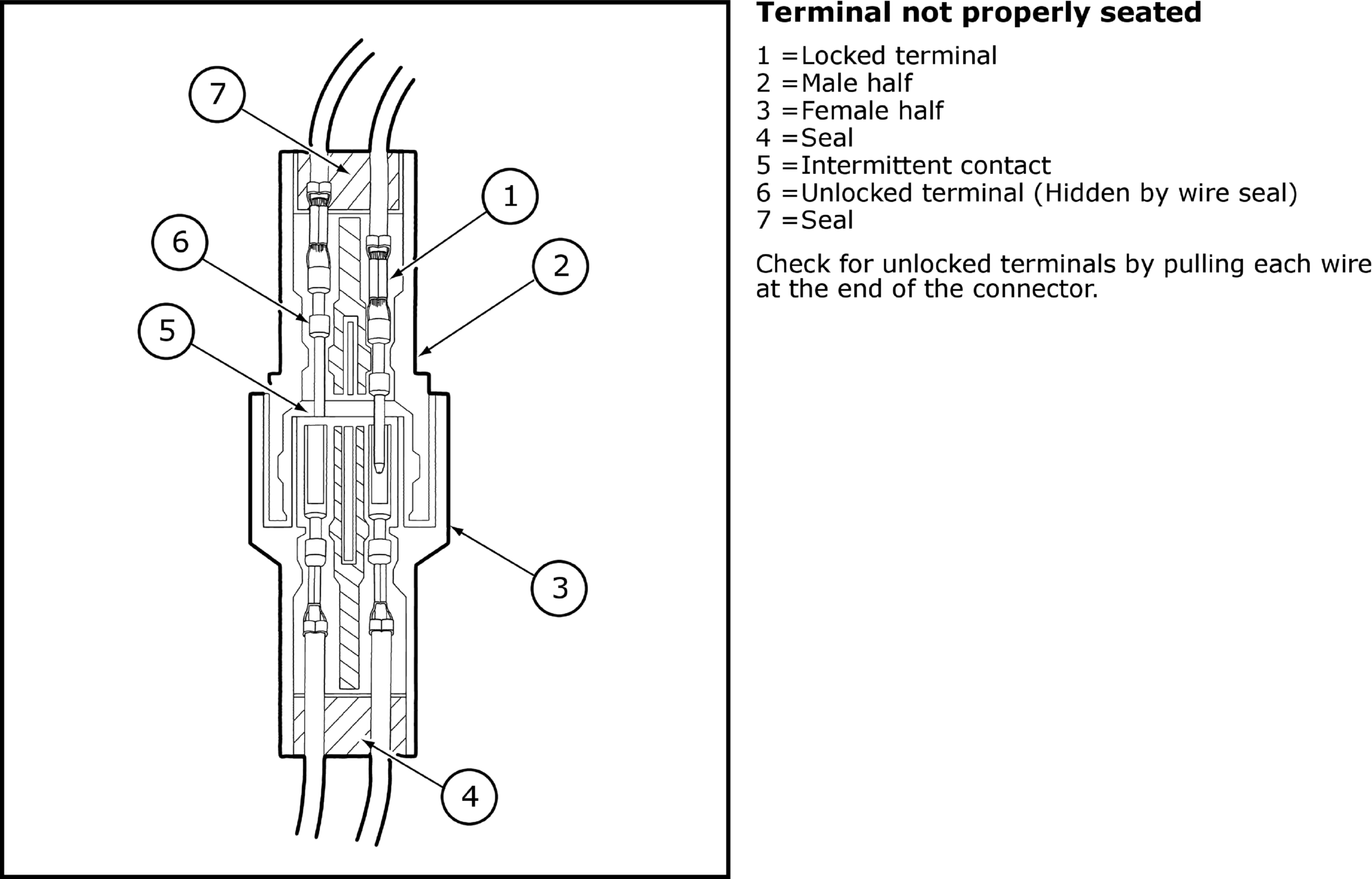

GFDW9463Courtesy of FORD MOTOR COMPANY

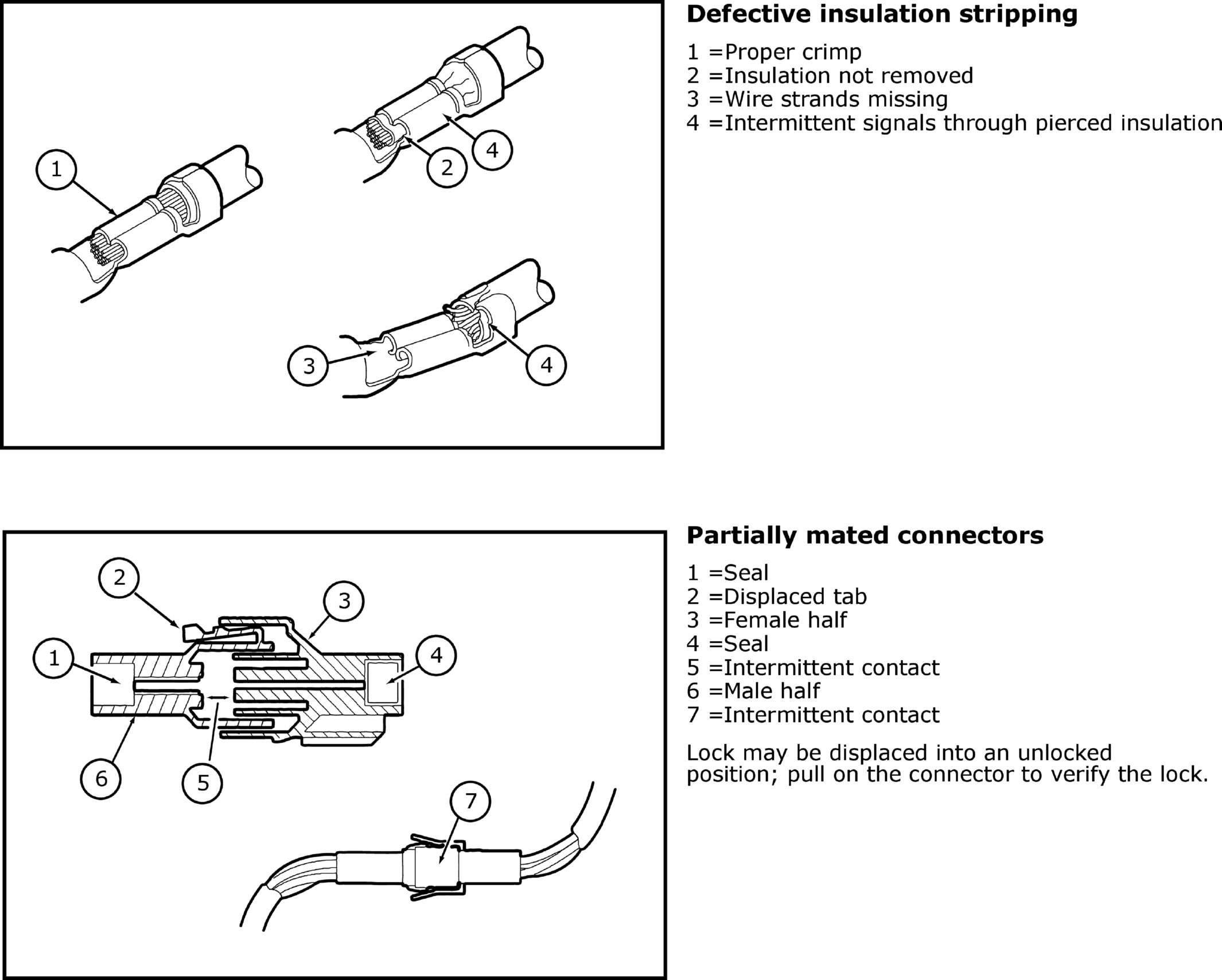

GFDW9464Courtesy of FORD MOTOR COMPANY

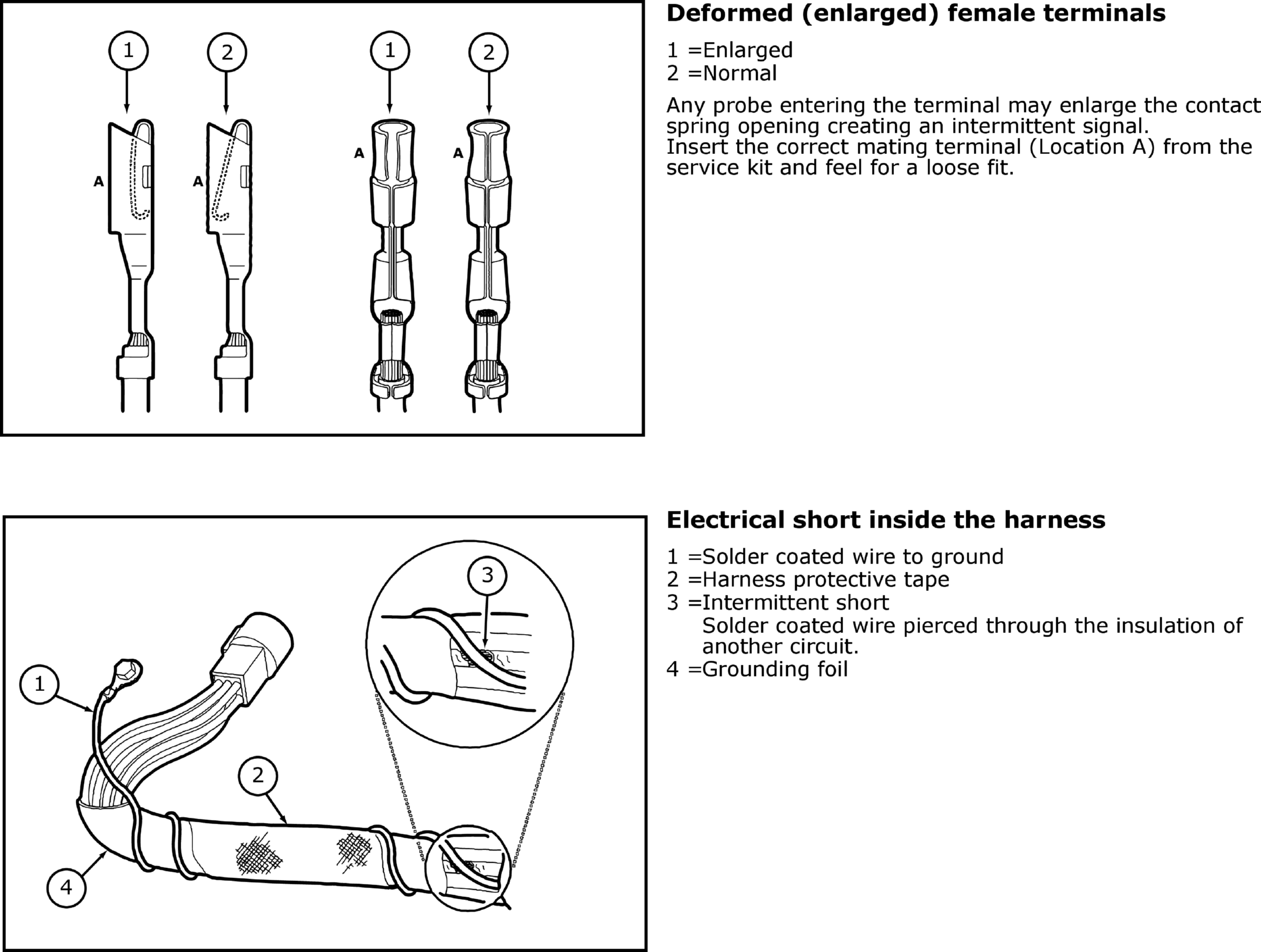

GFDW9465Courtesy of FORD MOTOR COMPANY

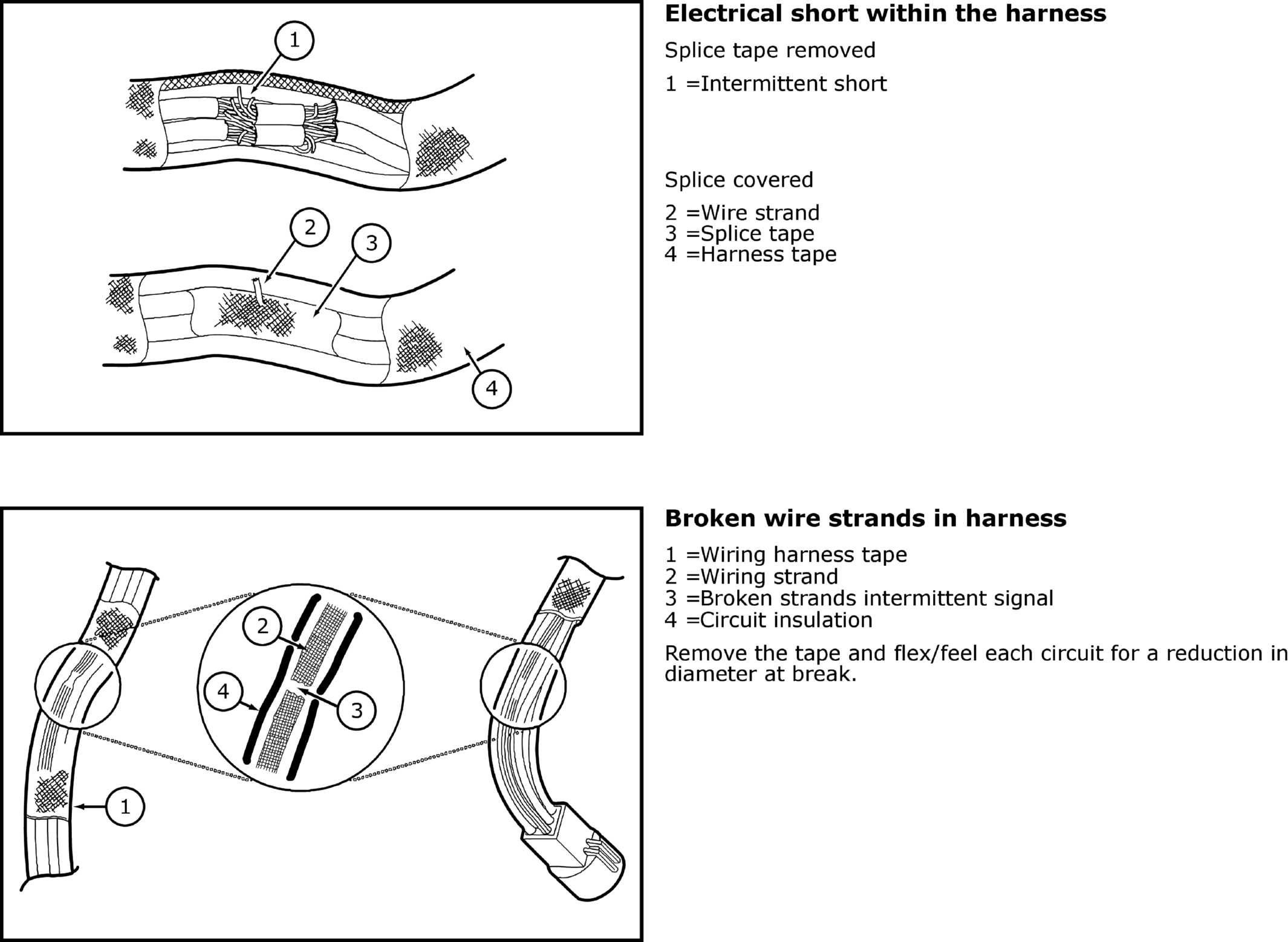

GFDW9466Courtesy of FORD MOTOR COMPANY

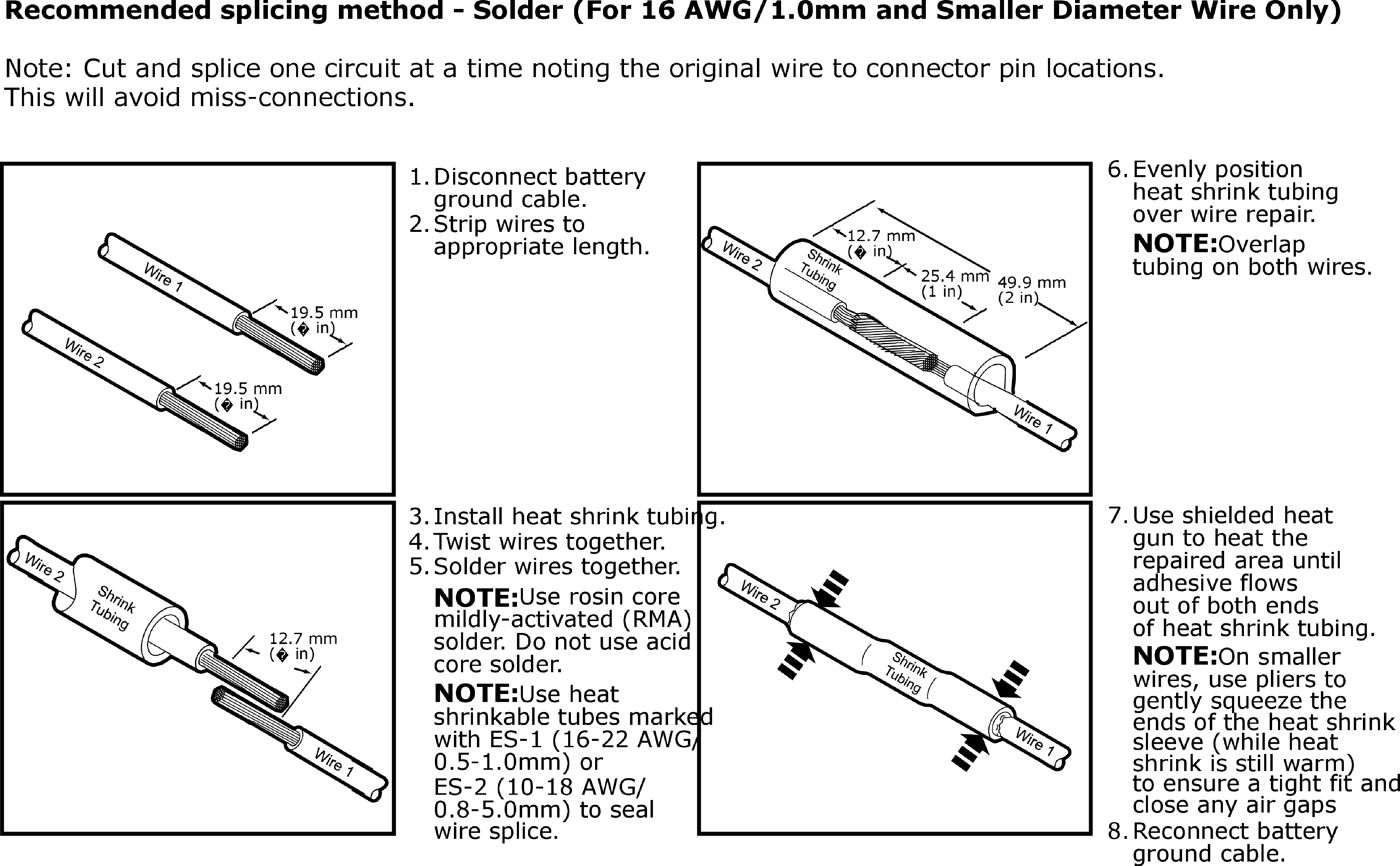

GFDW9467Courtesy of FORD MOTOR COMPANY

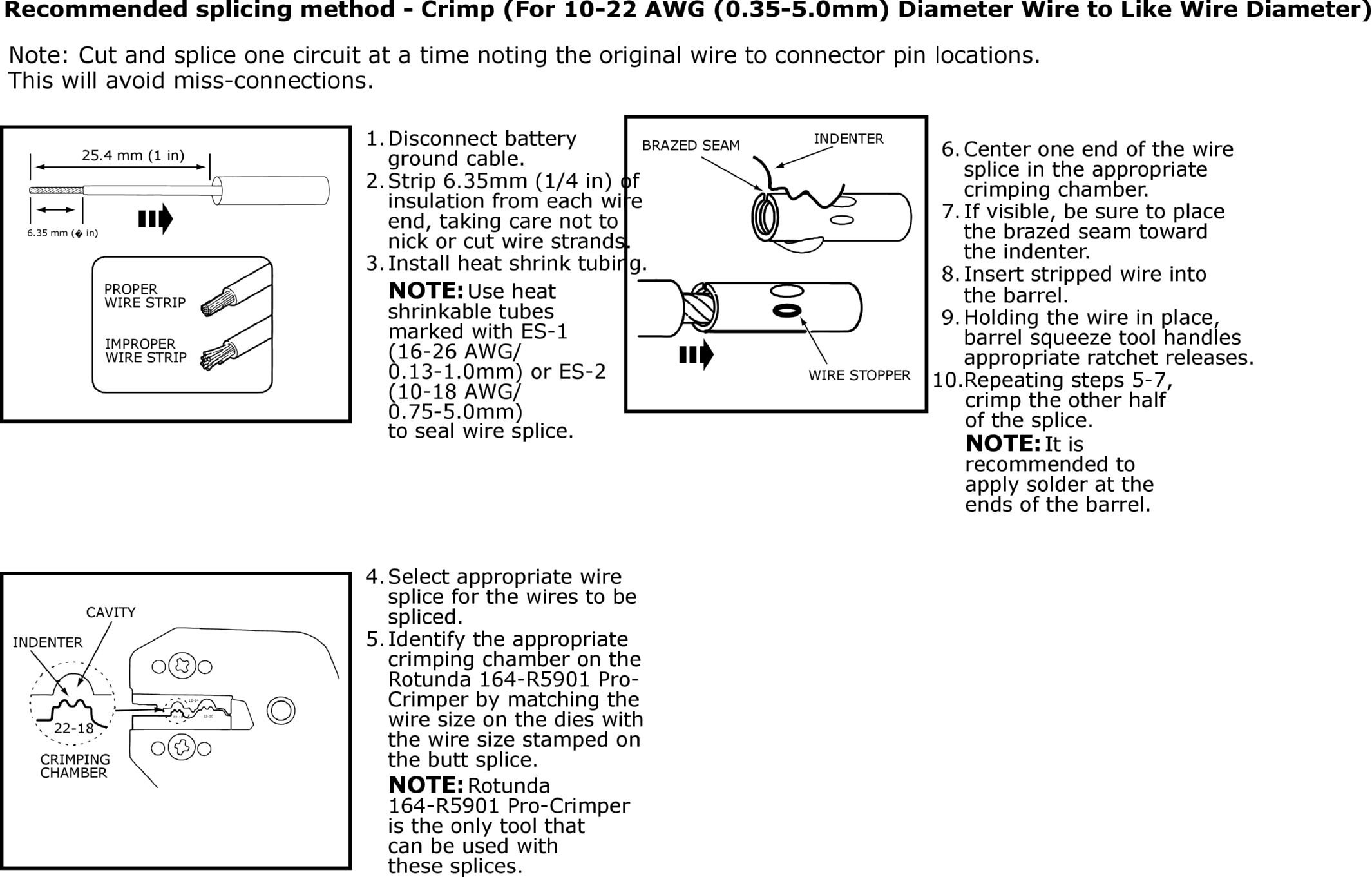

GFDW9468Courtesy of FORD MOTOR COMPANY

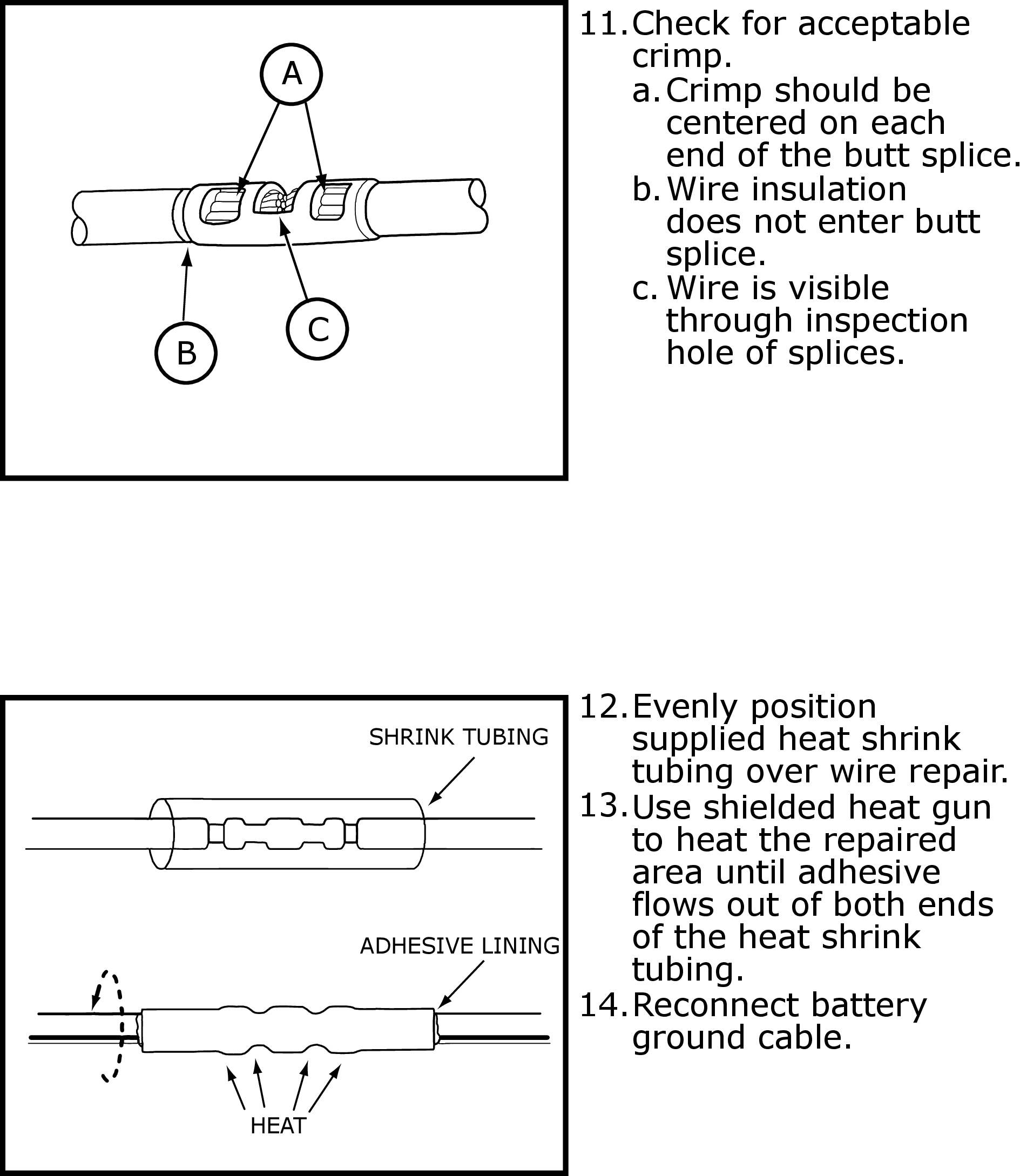

GFDW9469Courtesy of FORD MOTOR COMPANY

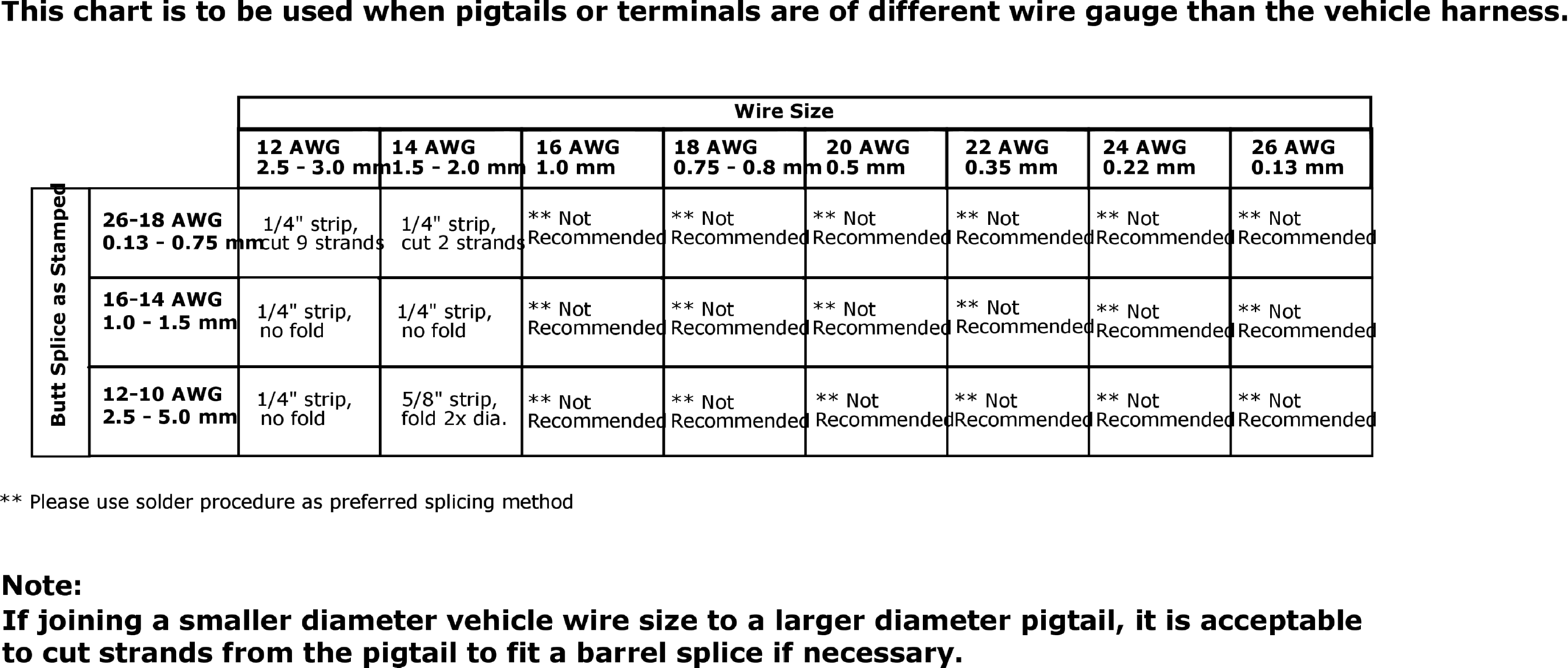

GFDW9470Courtesy of FORD MOTOR COMPANY
