OEM Ground Distribution: Grounds

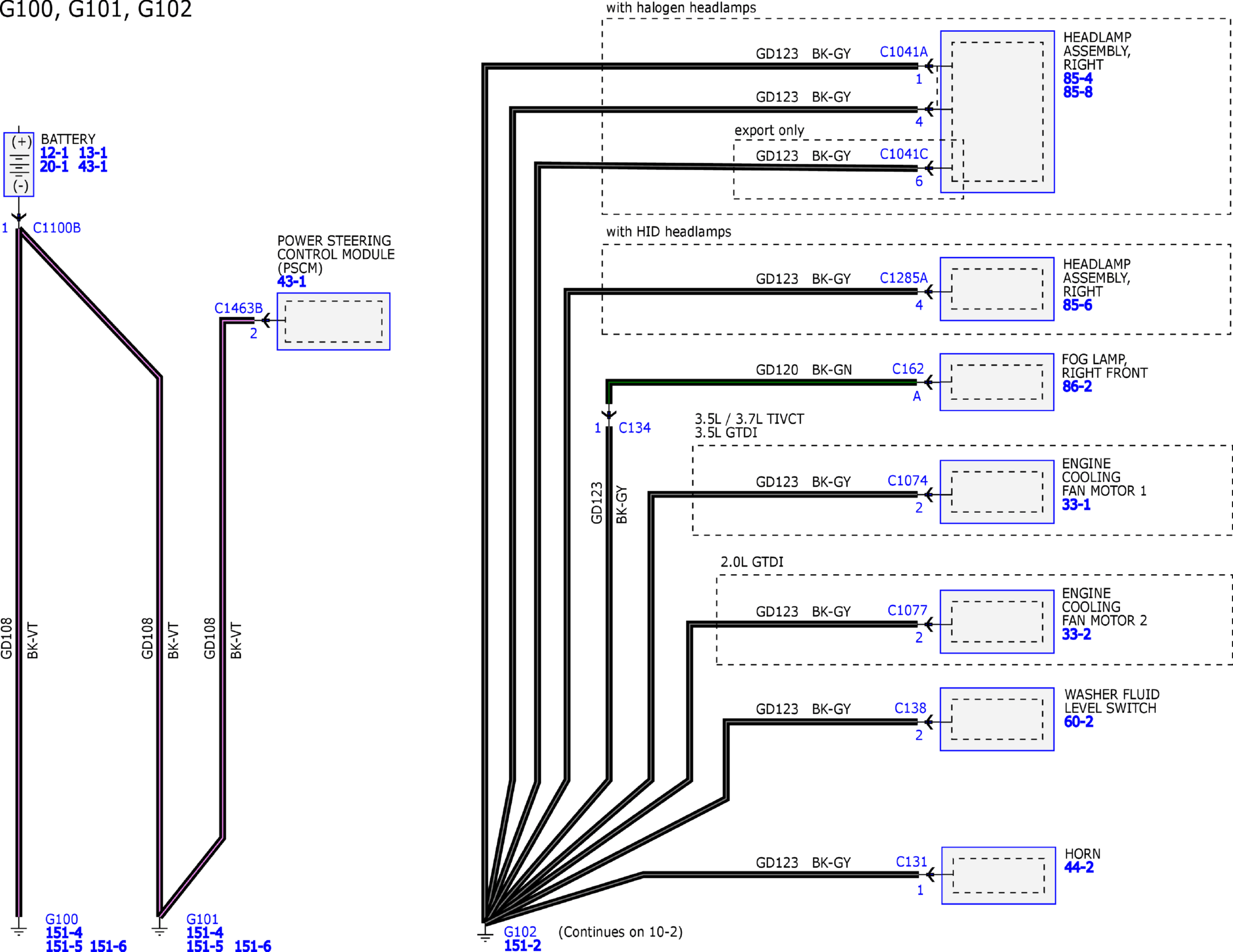

GFDW12294Courtesy of FORD MOTOR COMPANY

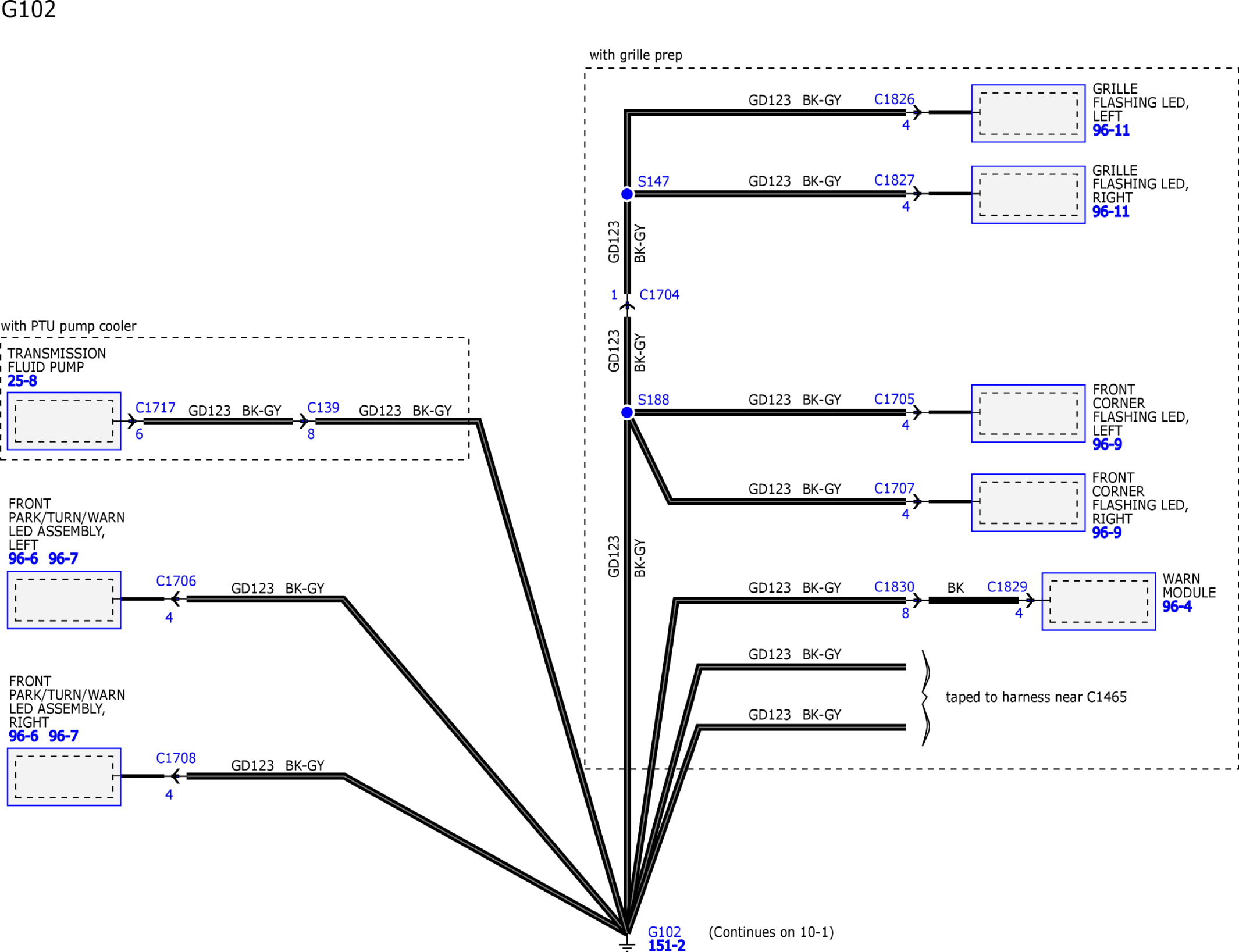

GFDW12295Courtesy of FORD MOTOR COMPANY

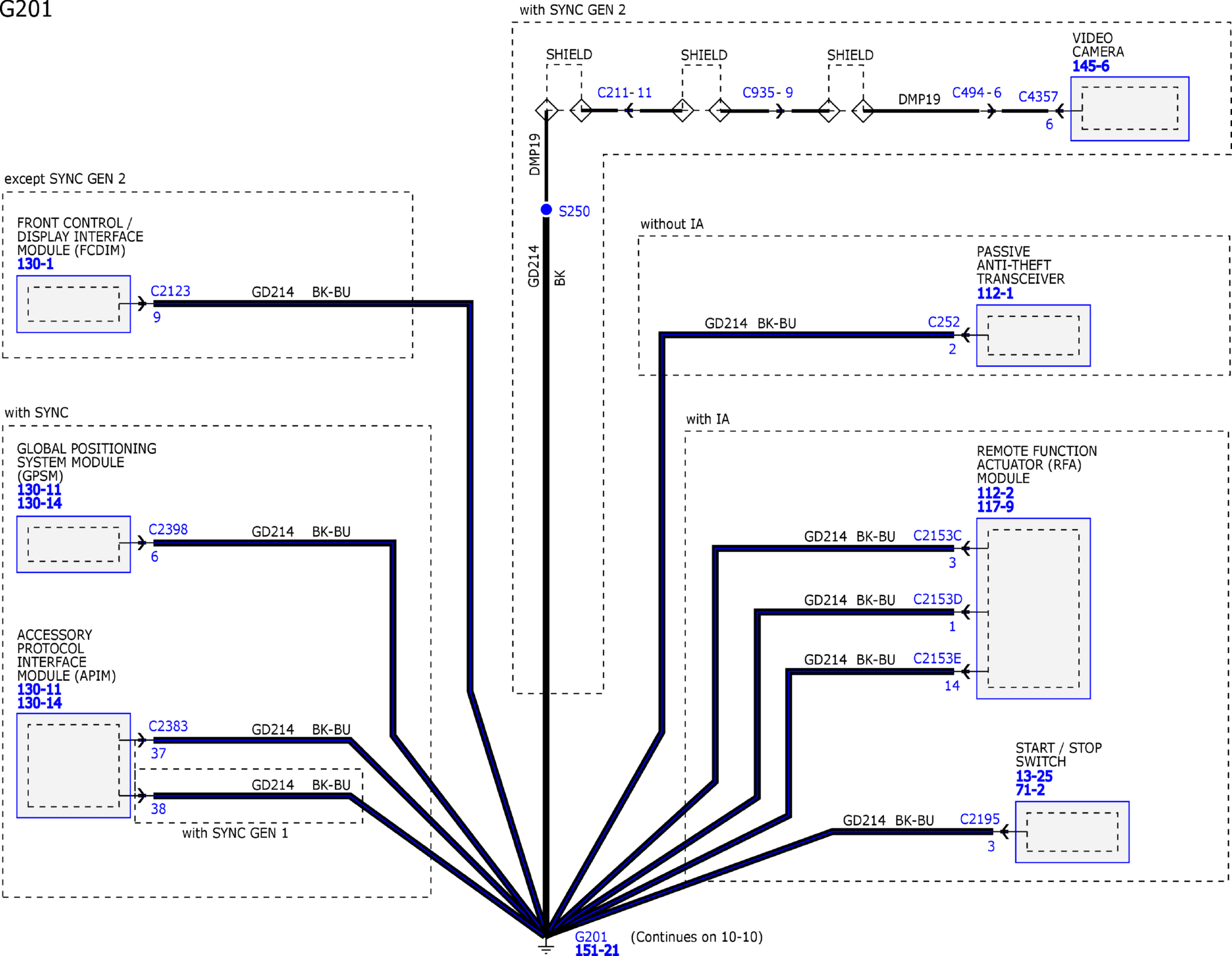

GFDW12296Courtesy of FORD MOTOR COMPANY

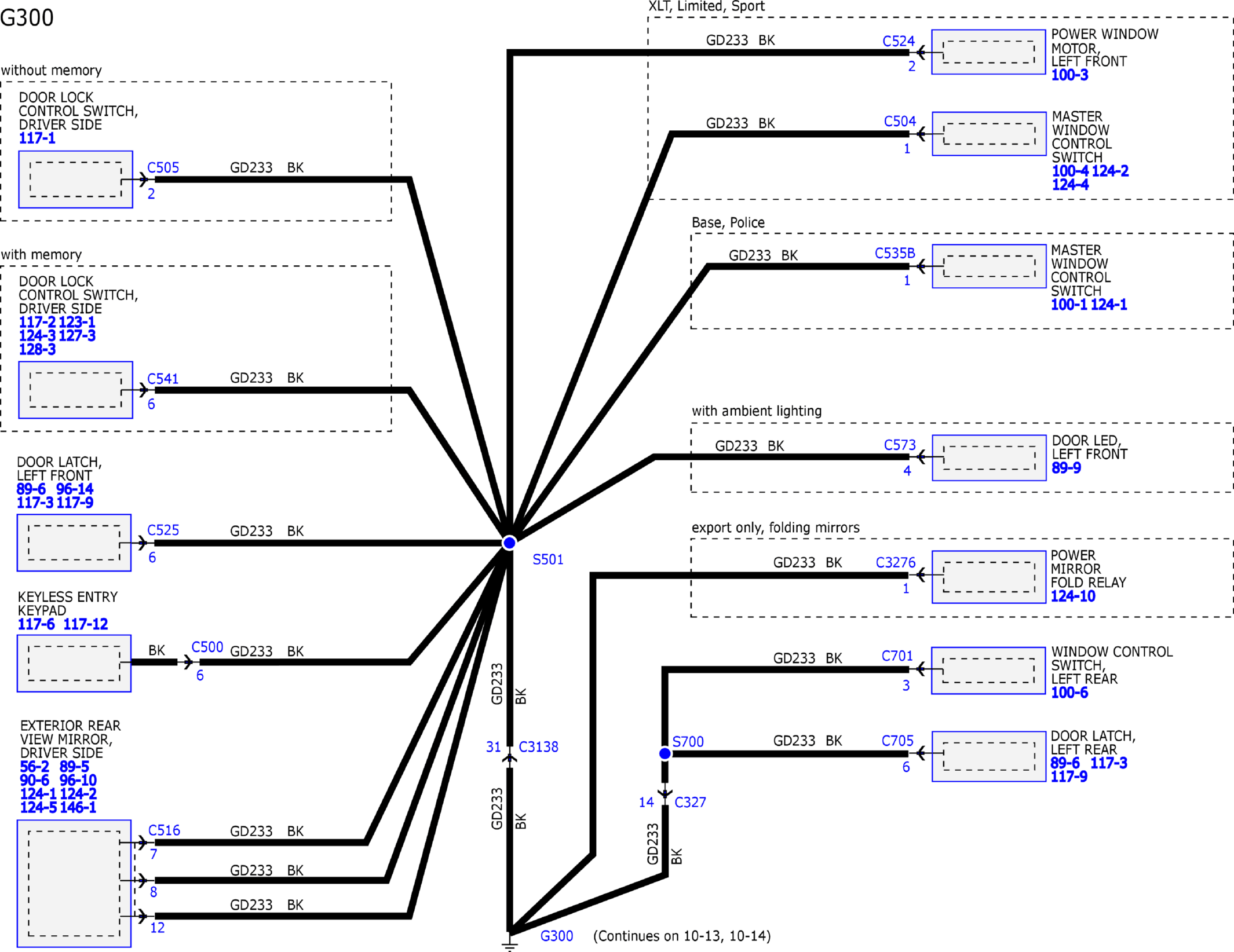

GFDW12297Courtesy of FORD MOTOR COMPANY

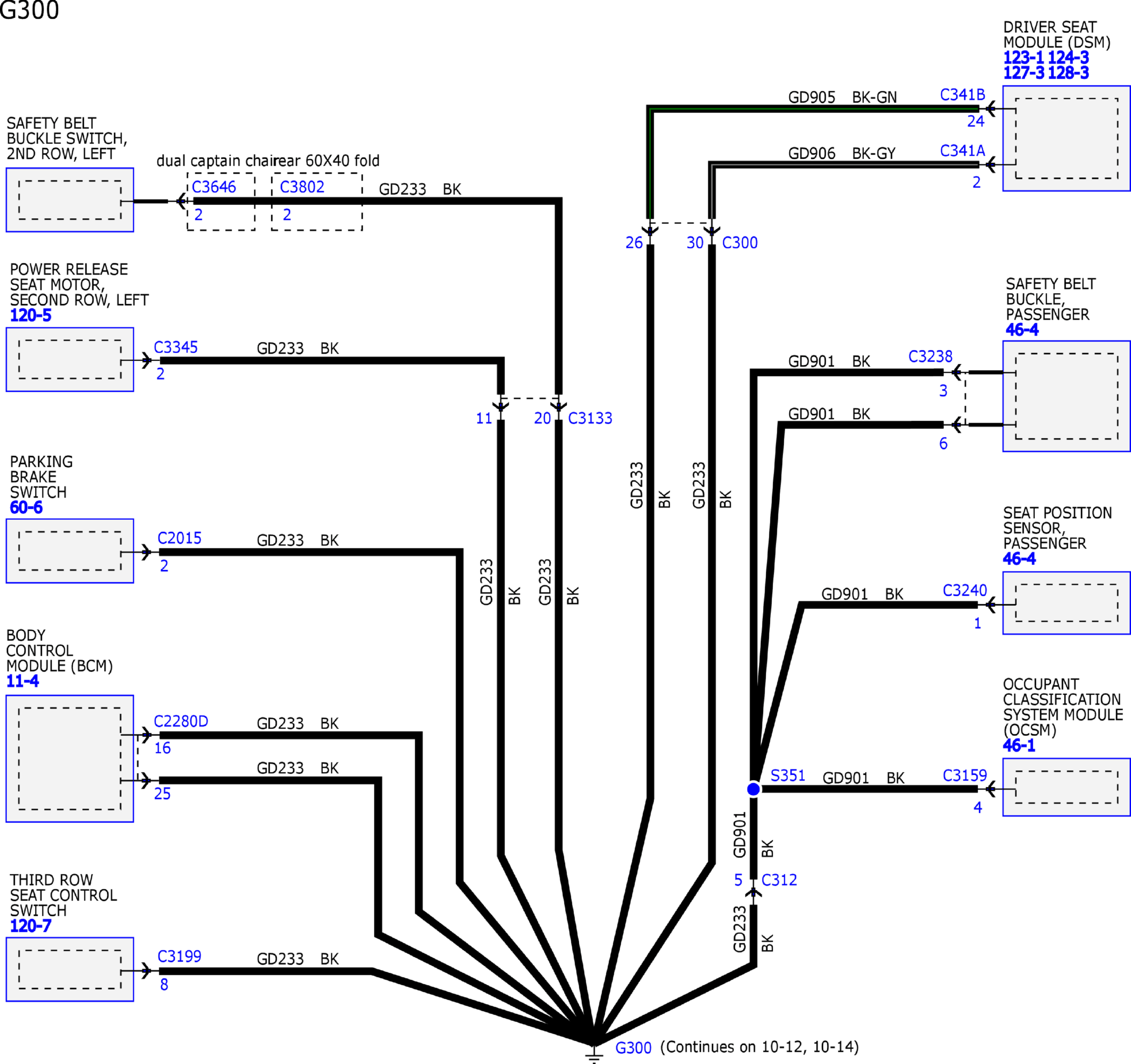

GFDW12298Courtesy of FORD MOTOR COMPANY

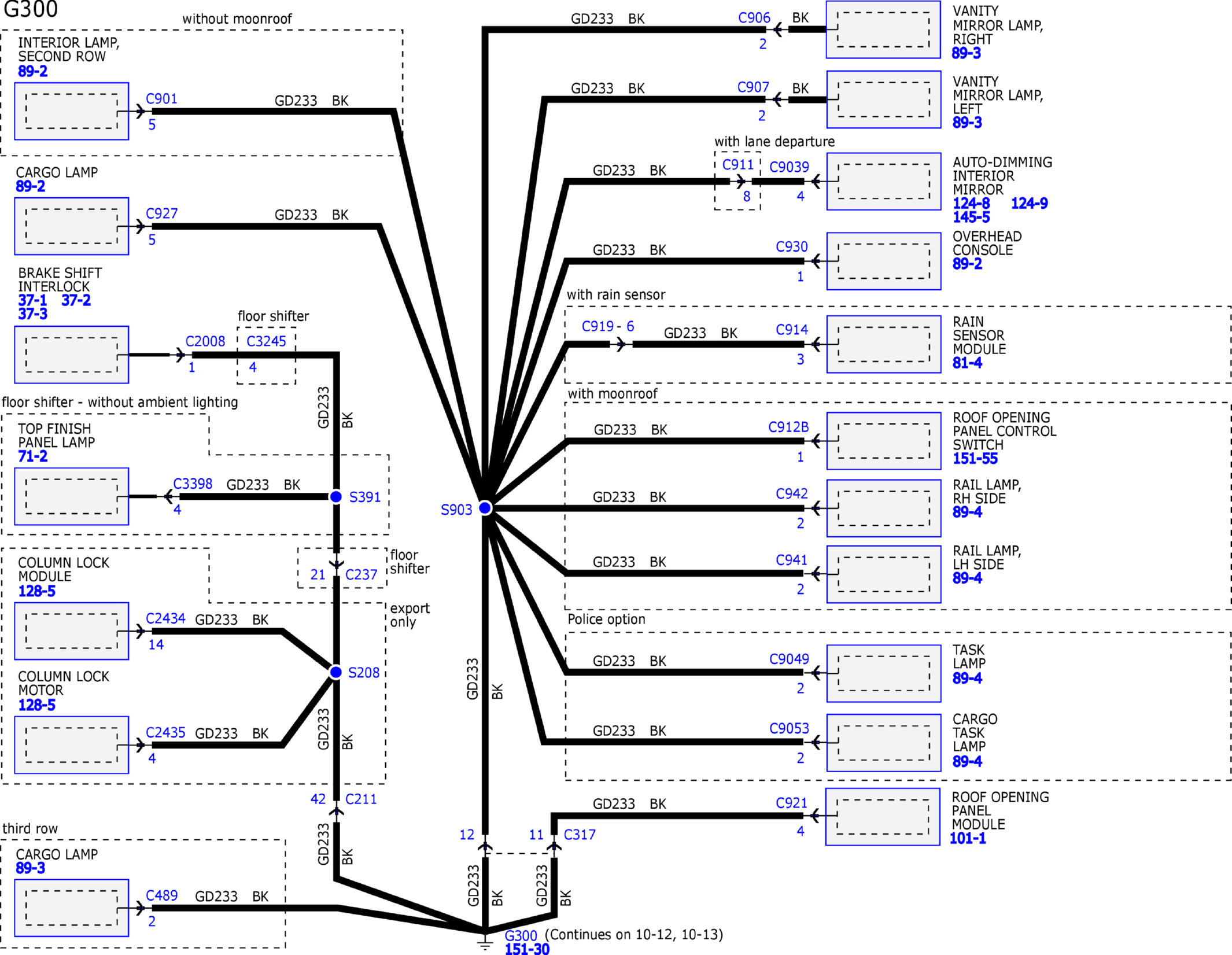

GFDW12299Courtesy of FORD MOTOR COMPANY

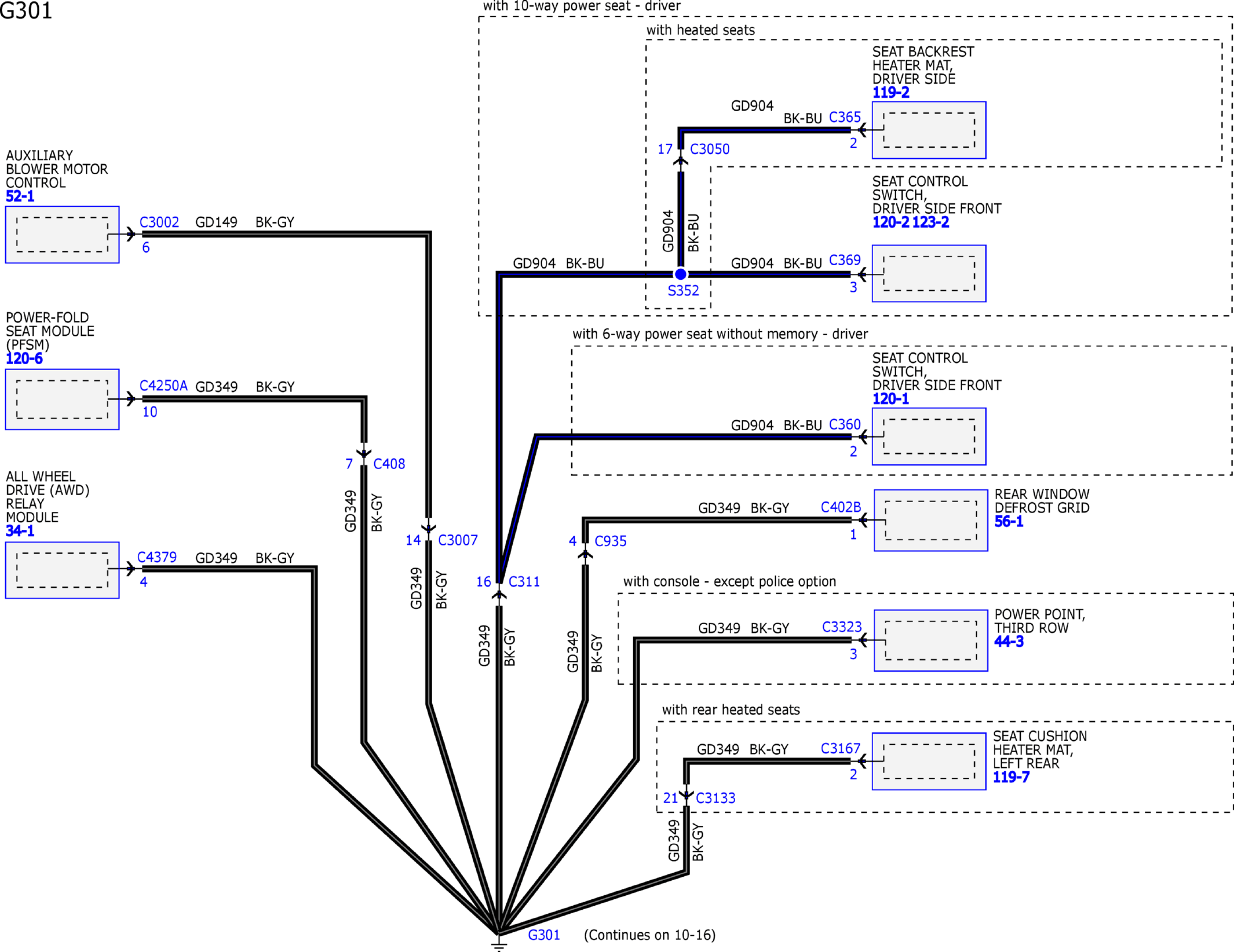

GFDW12300Courtesy of FORD MOTOR COMPANY

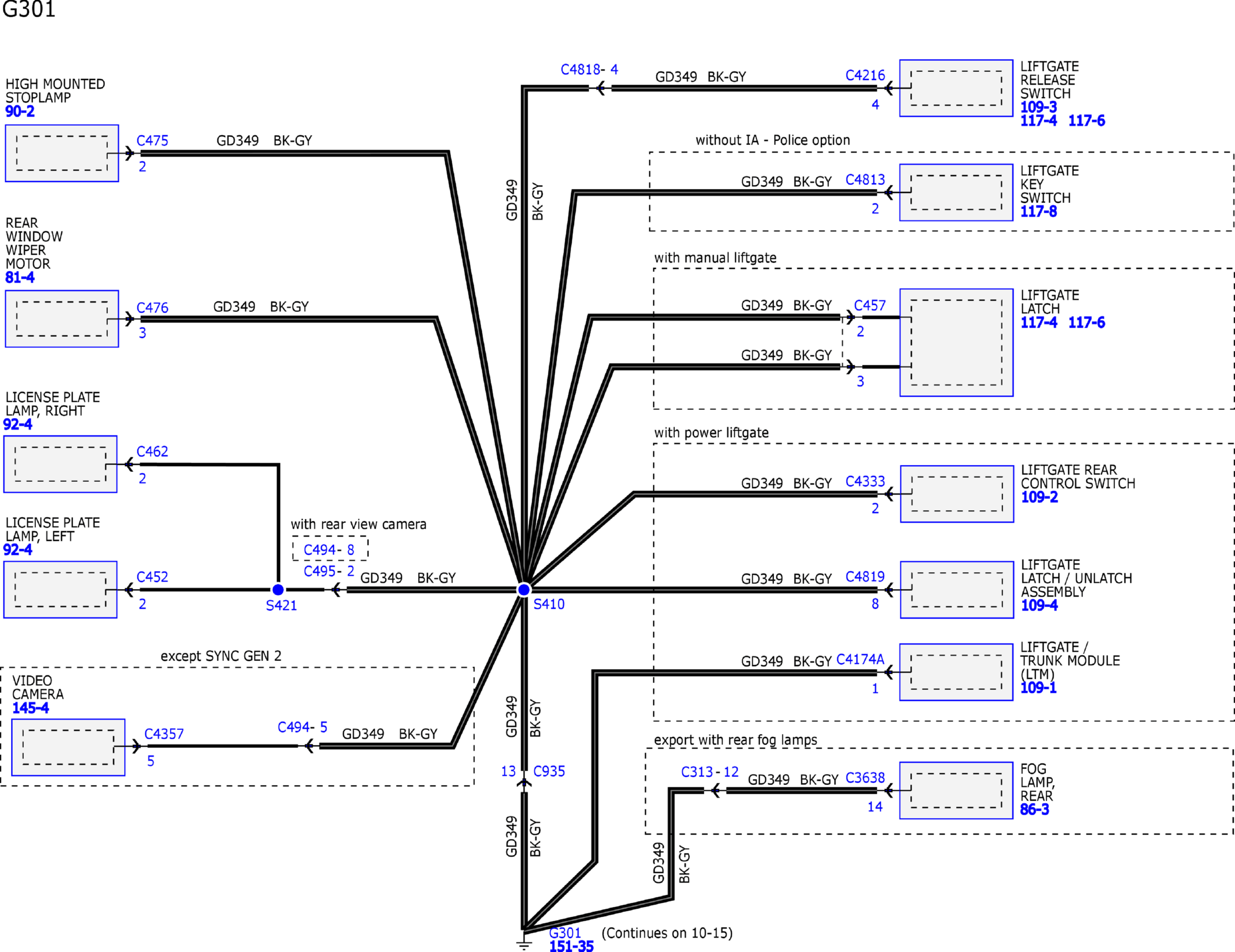

GFDW12301Courtesy of FORD MOTOR COMPANY

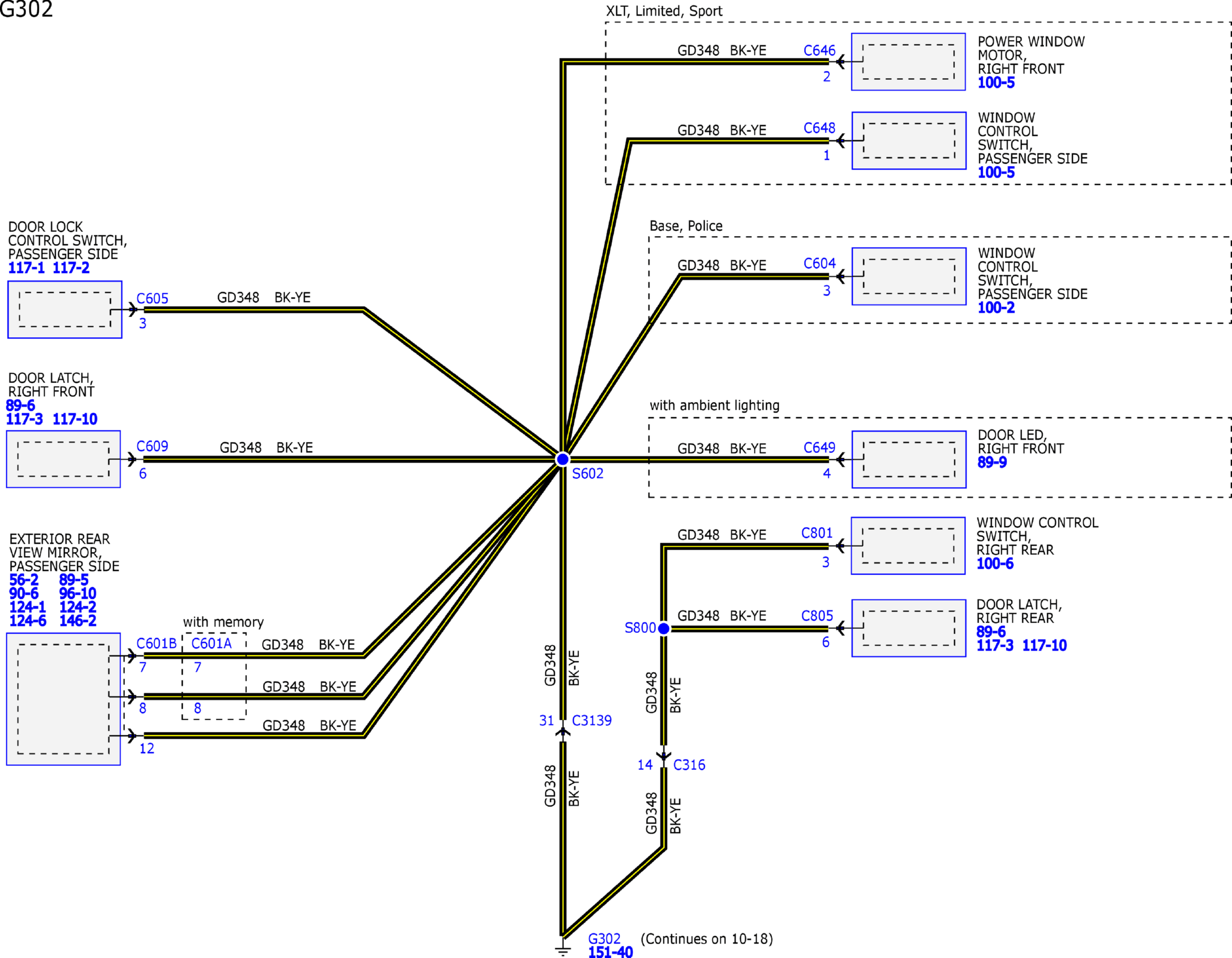

GFDW12302Courtesy of FORD MOTOR COMPANY

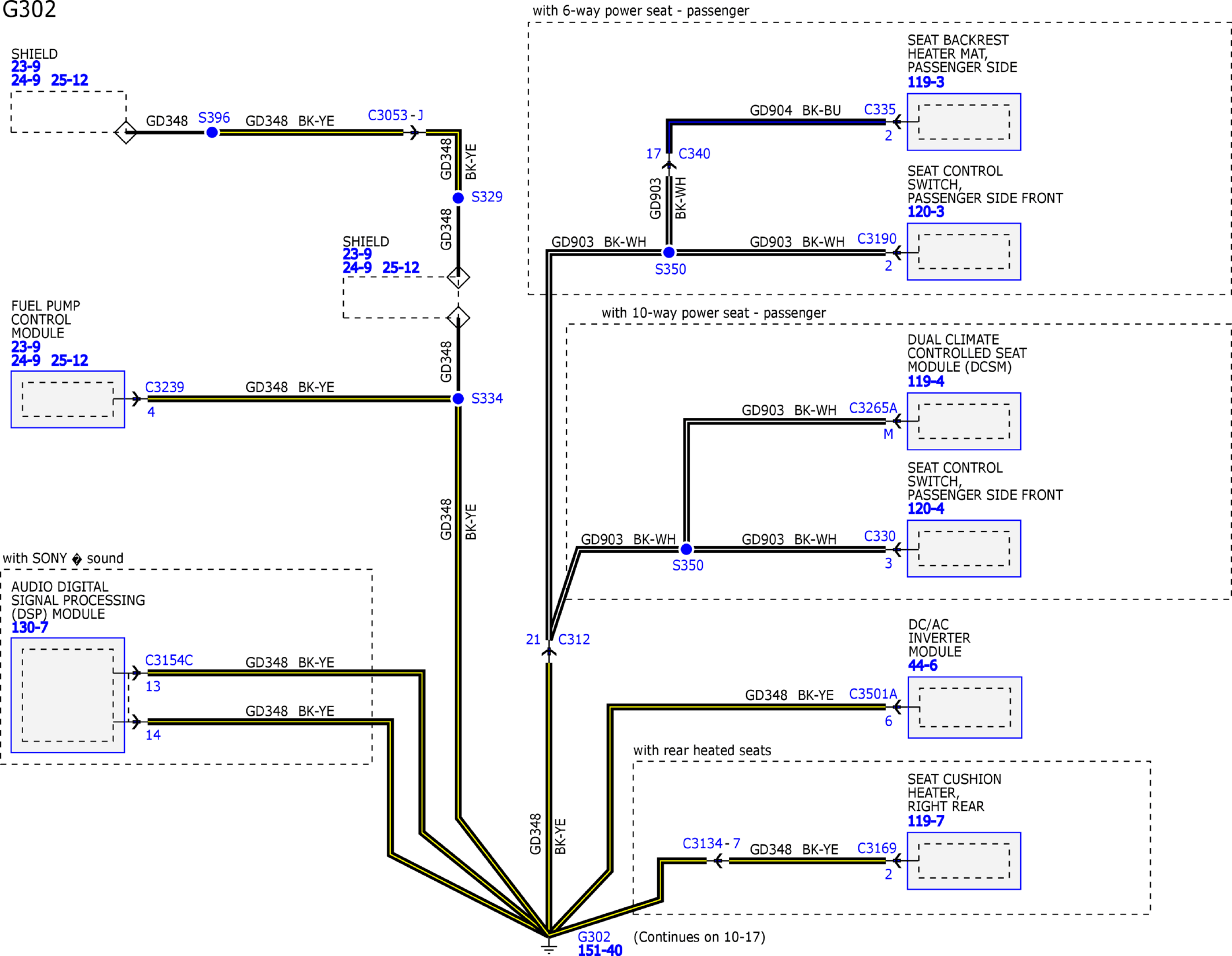

GFDW12303Courtesy of FORD MOTOR COMPANY

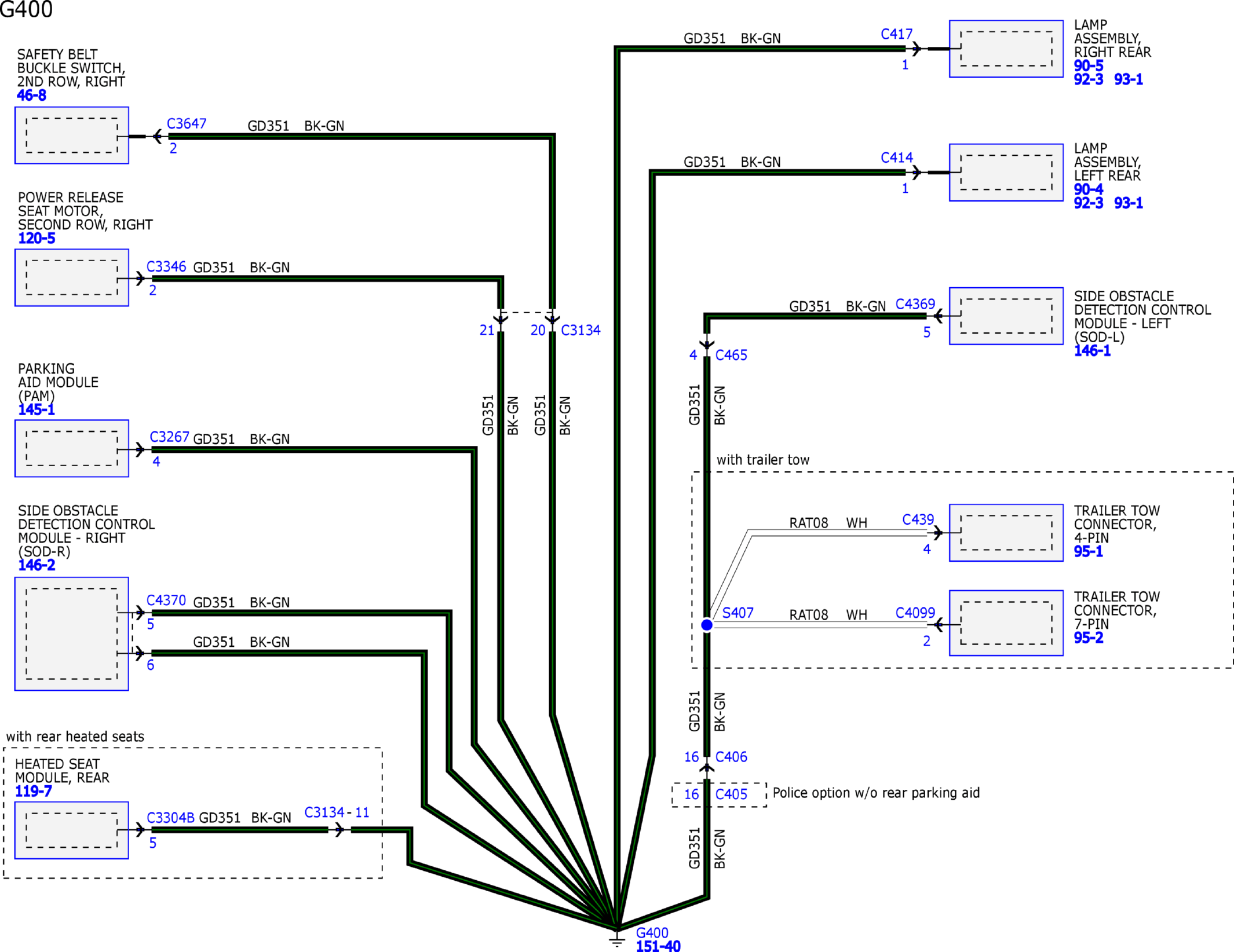

GFDW12304Courtesy of FORD MOTOR COMPANY

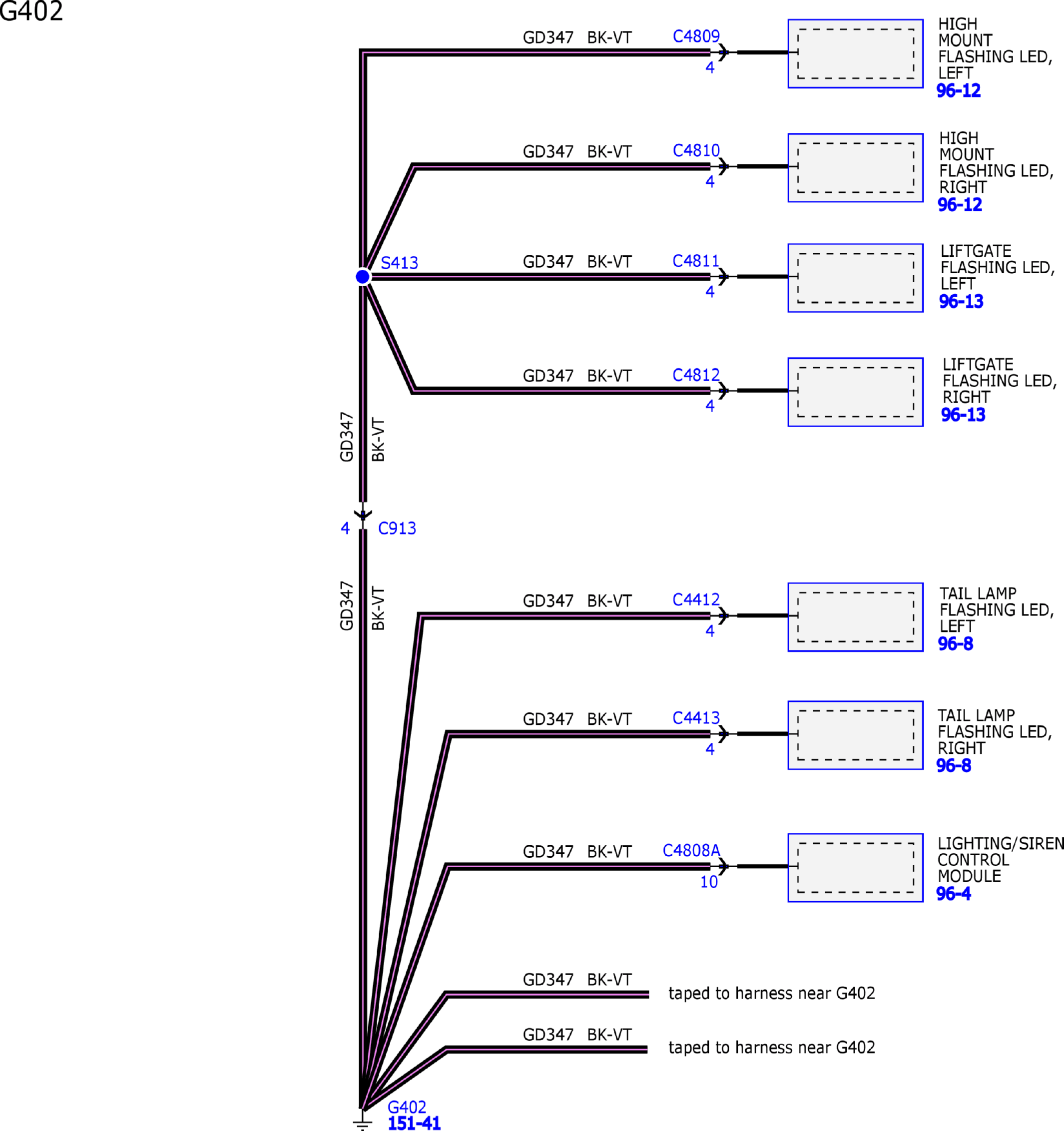

GFDW12305Courtesy of FORD MOTOR COMPANY

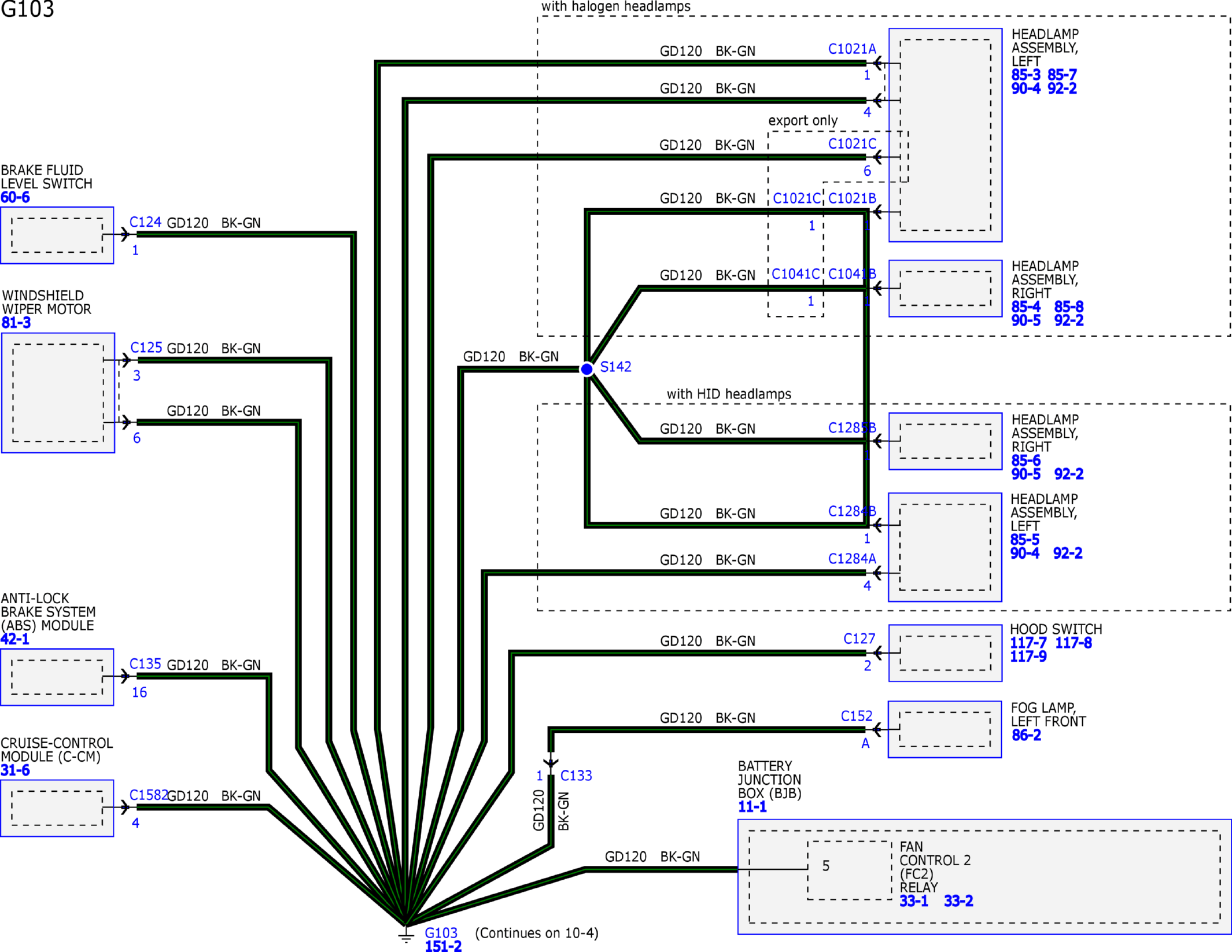

GFDW12306Courtesy of FORD MOTOR COMPANY

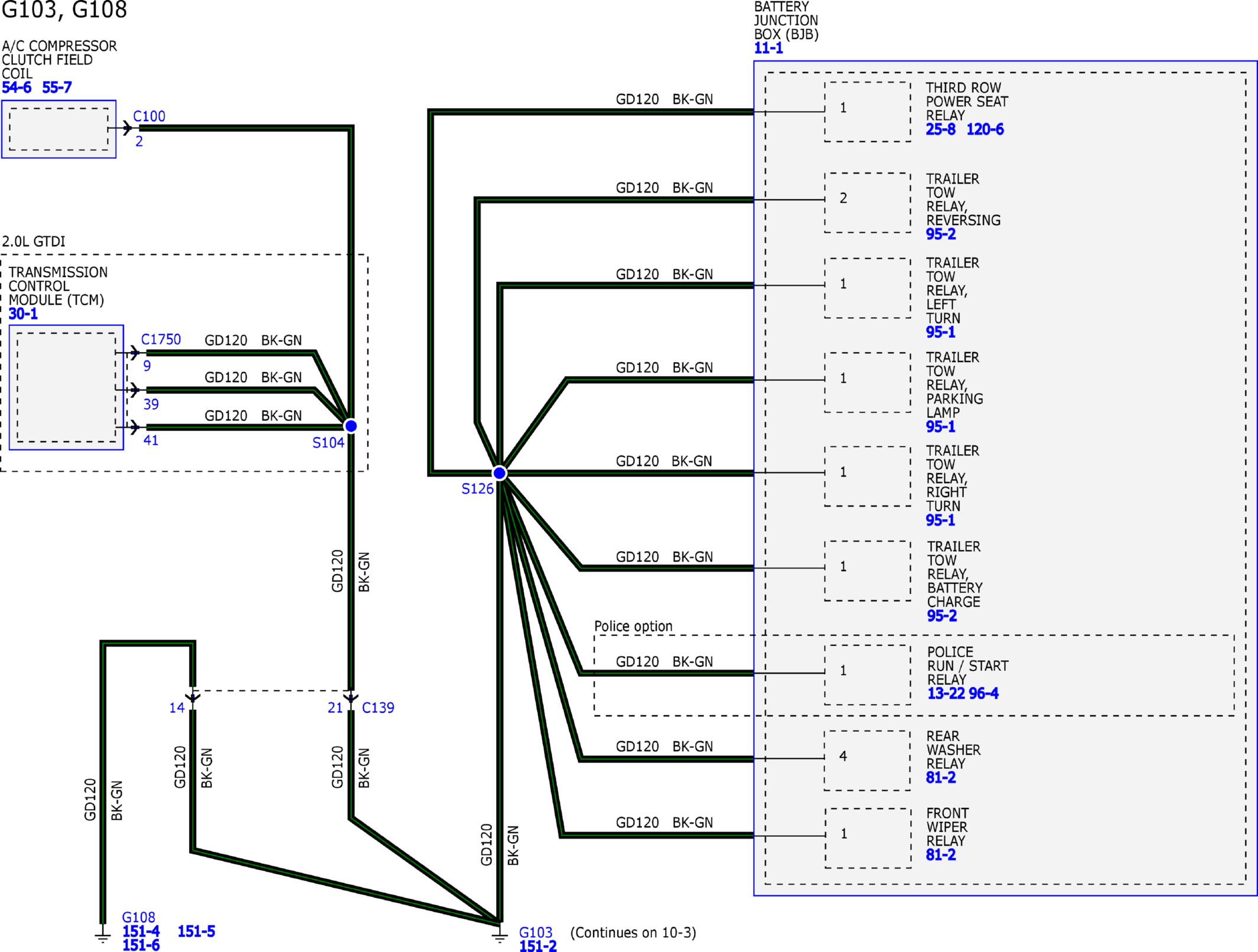

GFDW12307Courtesy of FORD MOTOR COMPANY

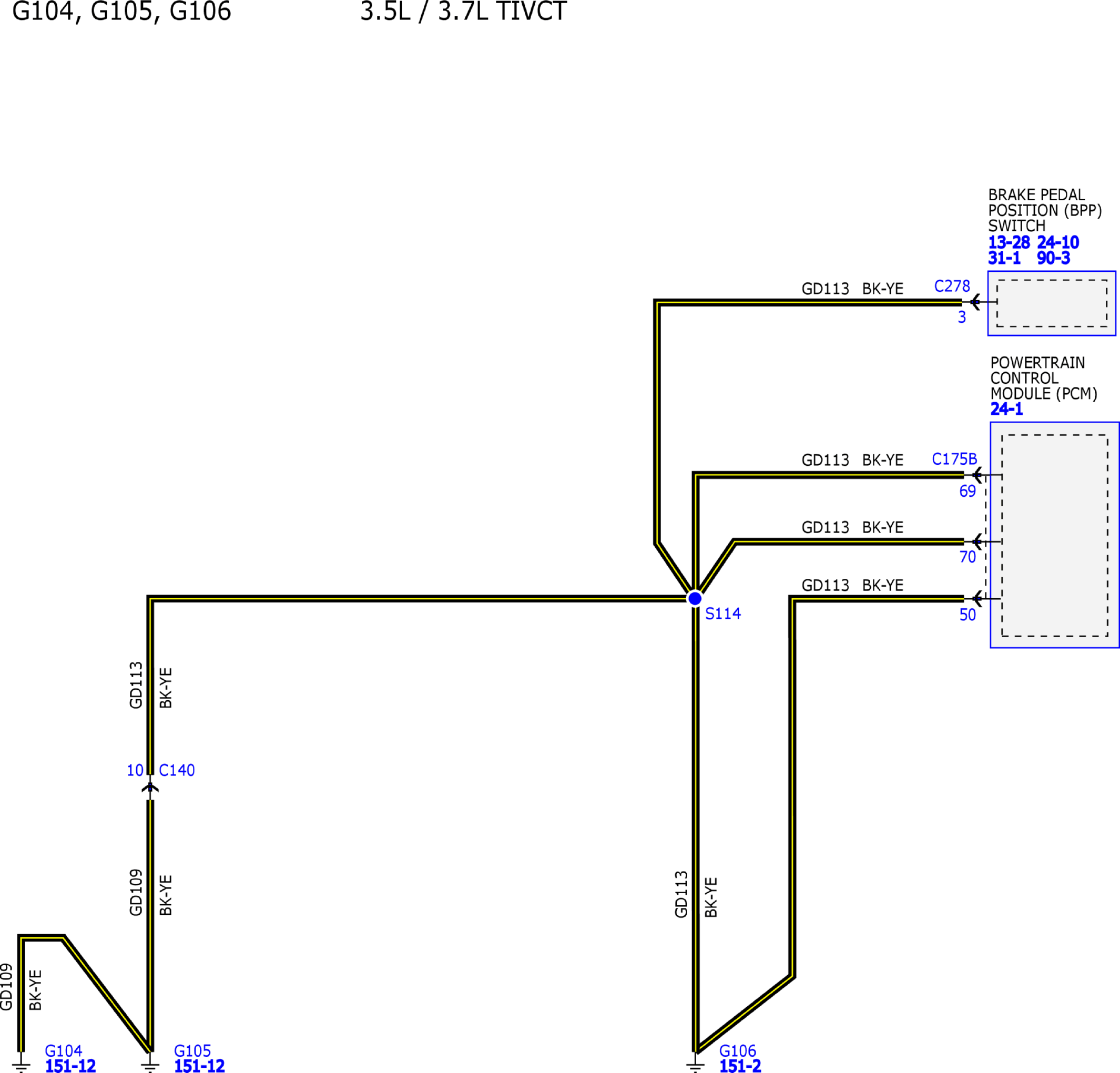

GFDW12308Courtesy of FORD MOTOR COMPANY

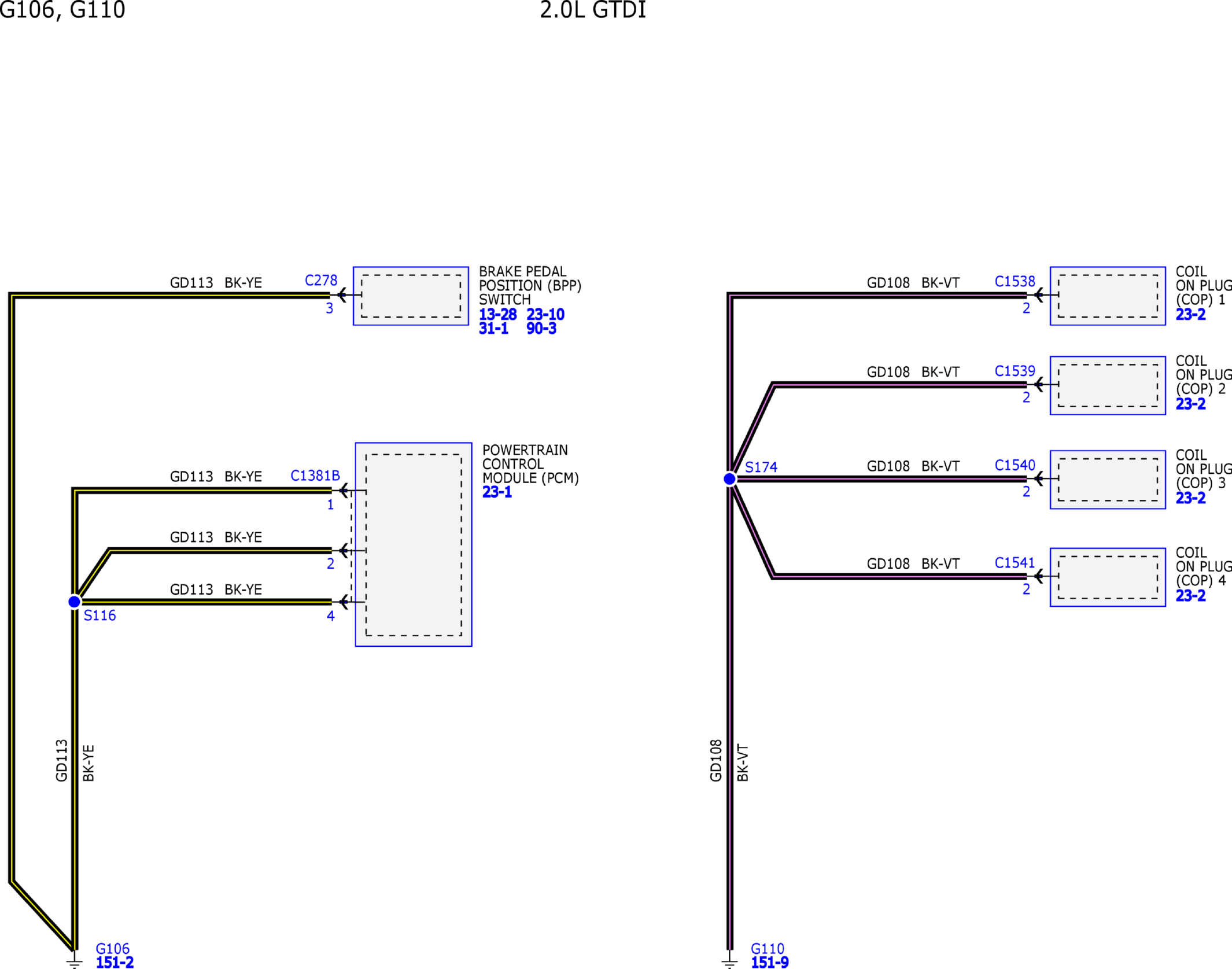

GFDW12309Courtesy of FORD MOTOR COMPANY

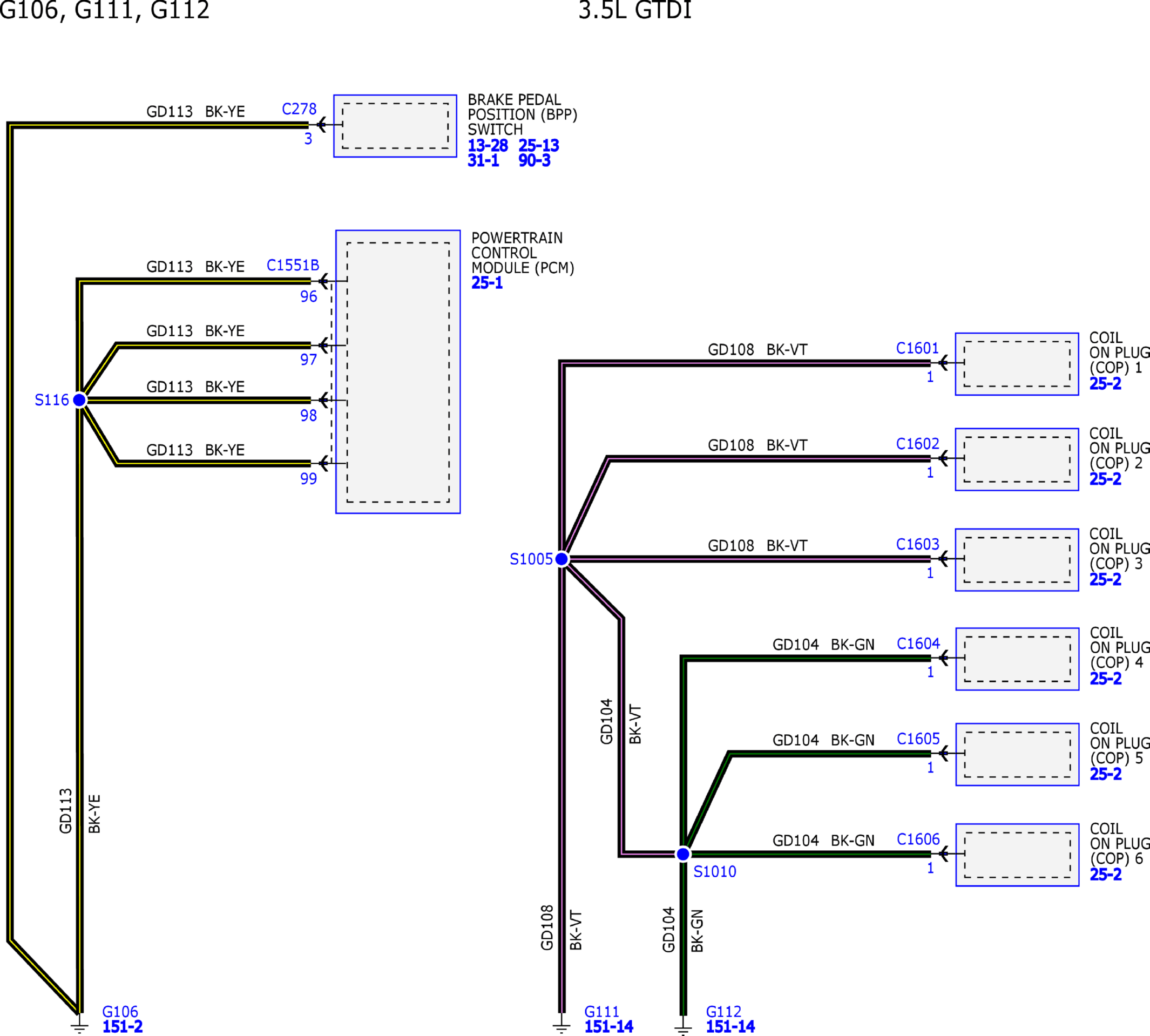

GFDW12310Courtesy of FORD MOTOR COMPANY

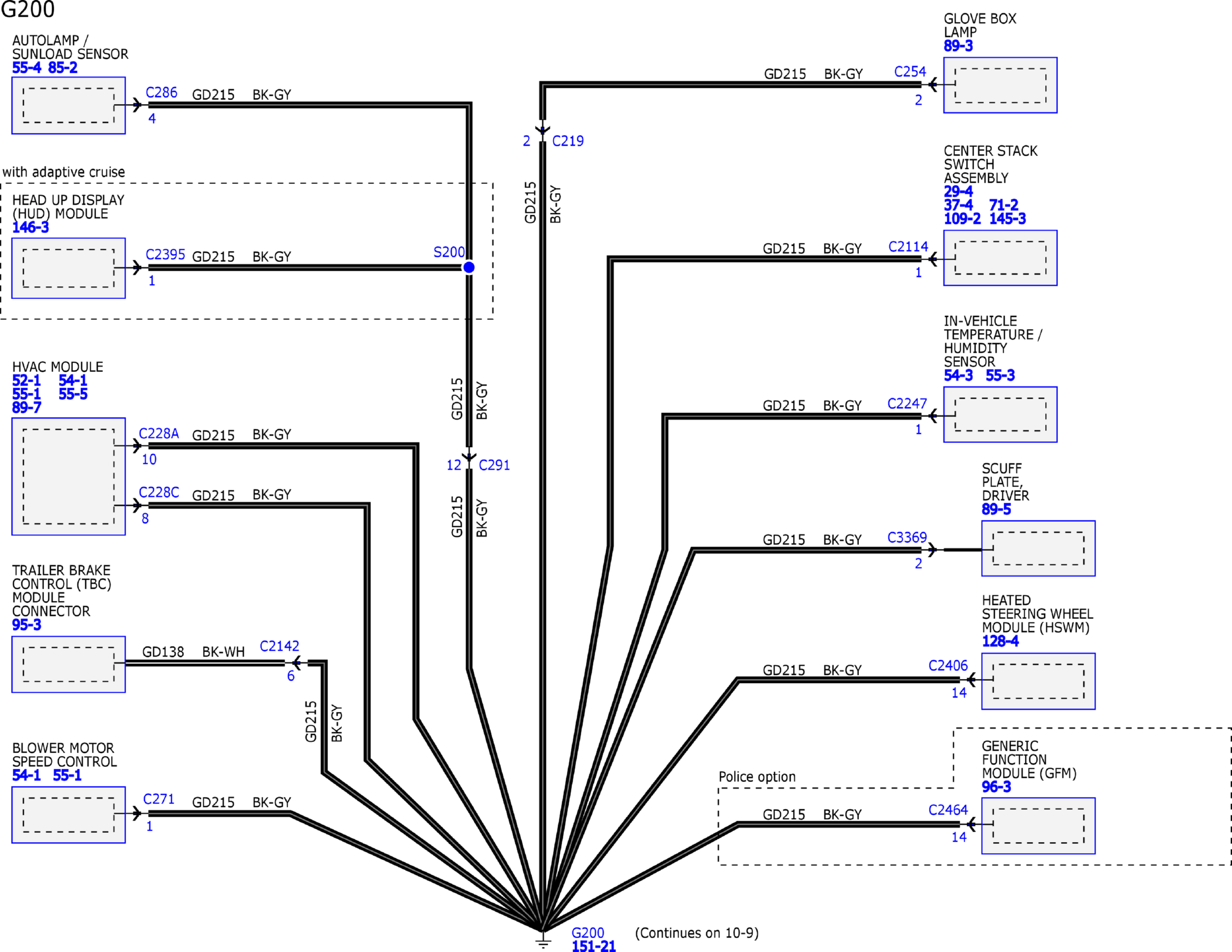

GFDW12311Courtesy of FORD MOTOR COMPANY

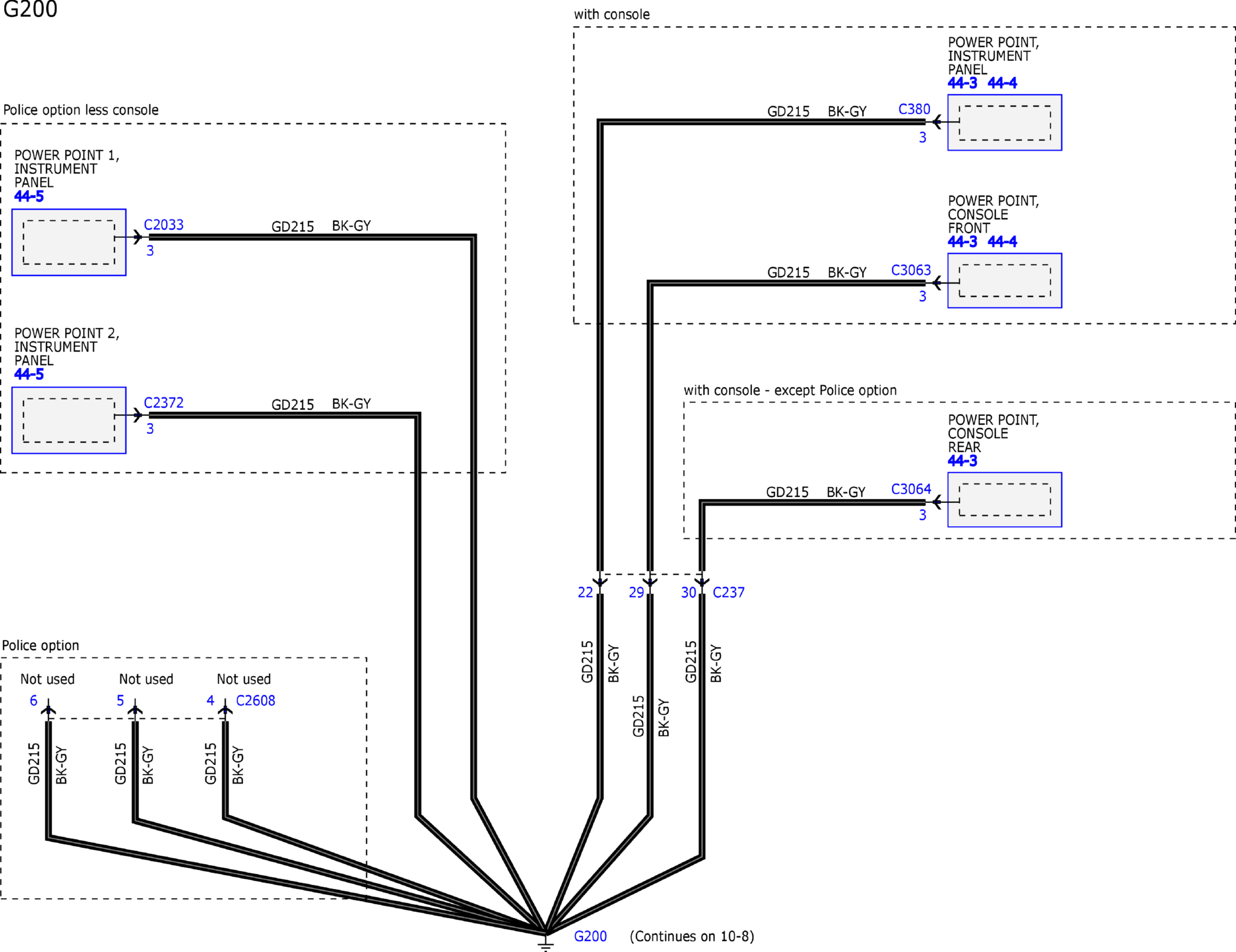

GFDW12312Courtesy of FORD MOTOR COMPANY

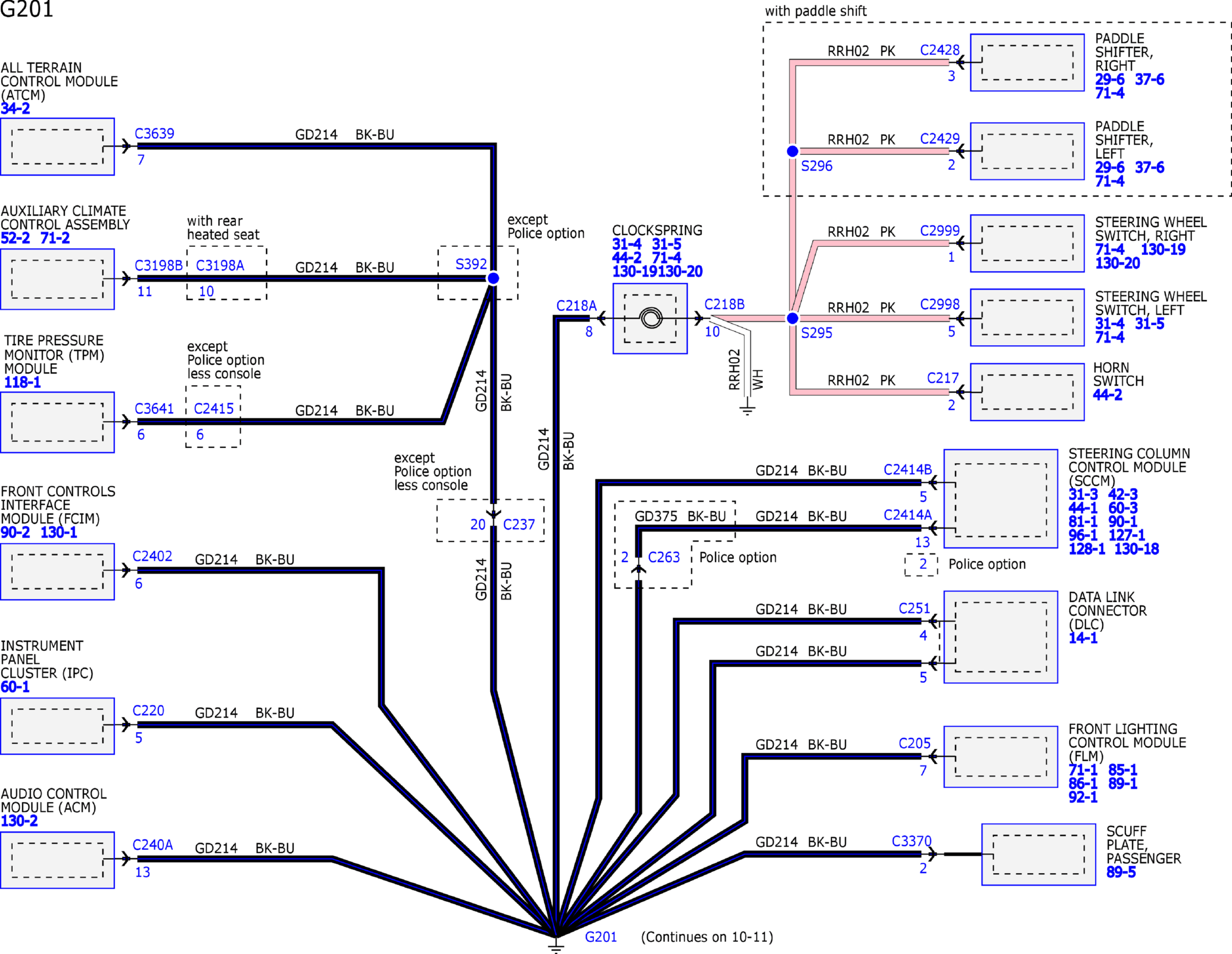

GFDW12313Courtesy of FORD MOTOR COMPANY
