Ignition Switch-Push Button Start

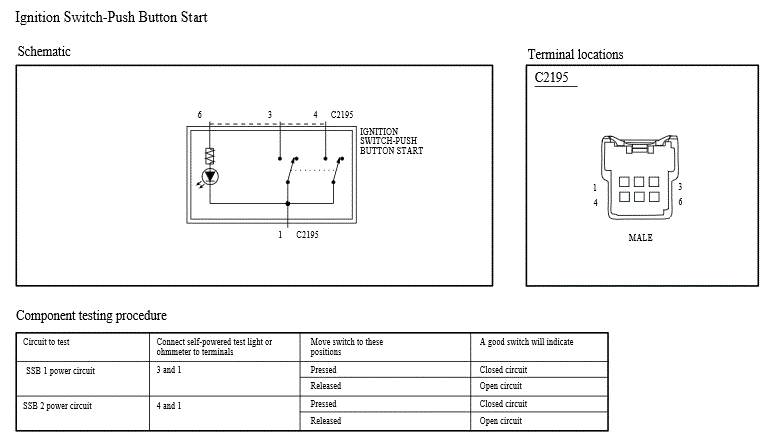

Fig 1: Ignition Switch-Push Button Start
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
