Master Window Control Switch

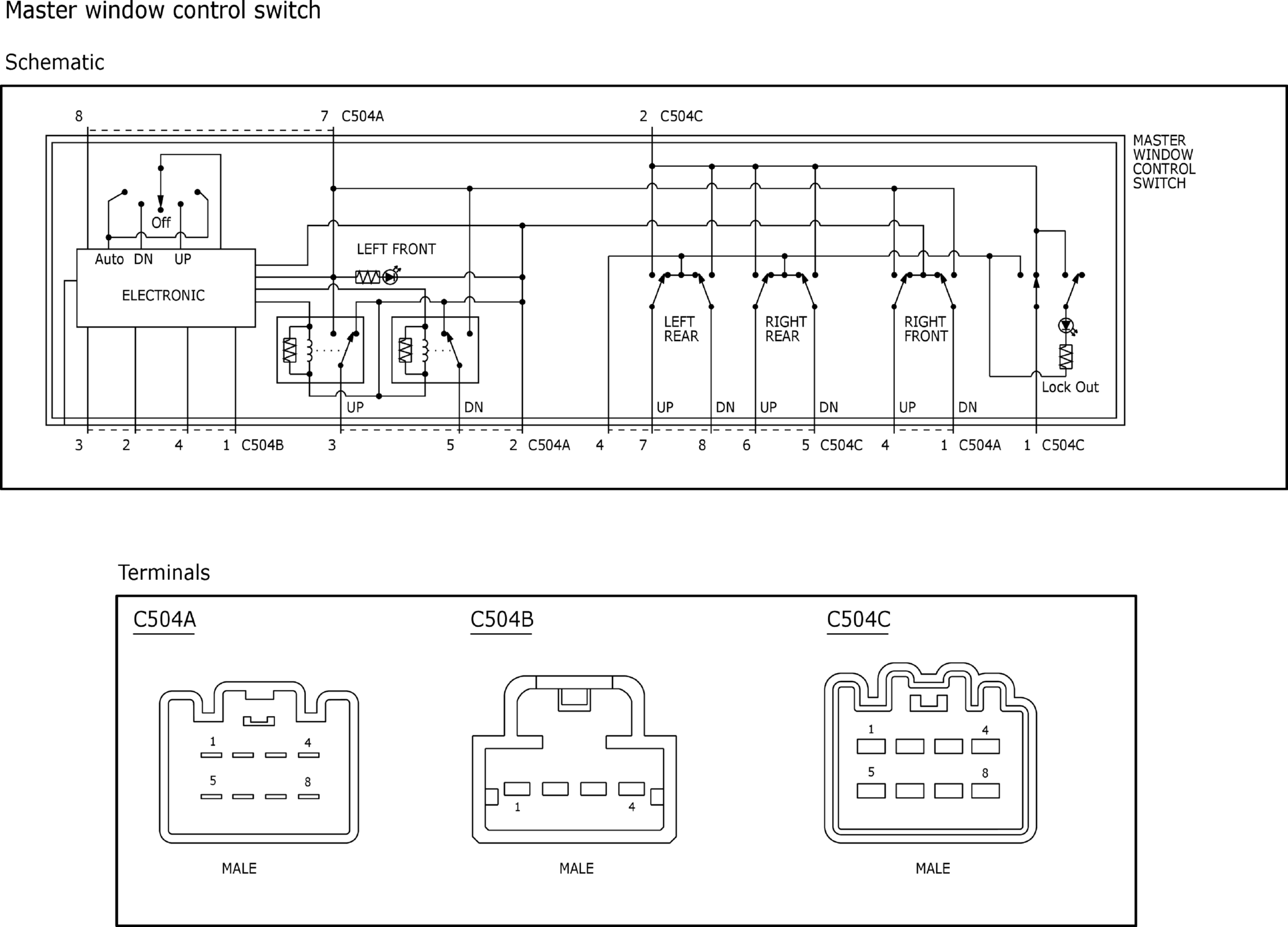

Fig 1: Master Window Control Switch (1 Of 2)
GFDW19908Courtesy of FORD MOTOR COMPANY

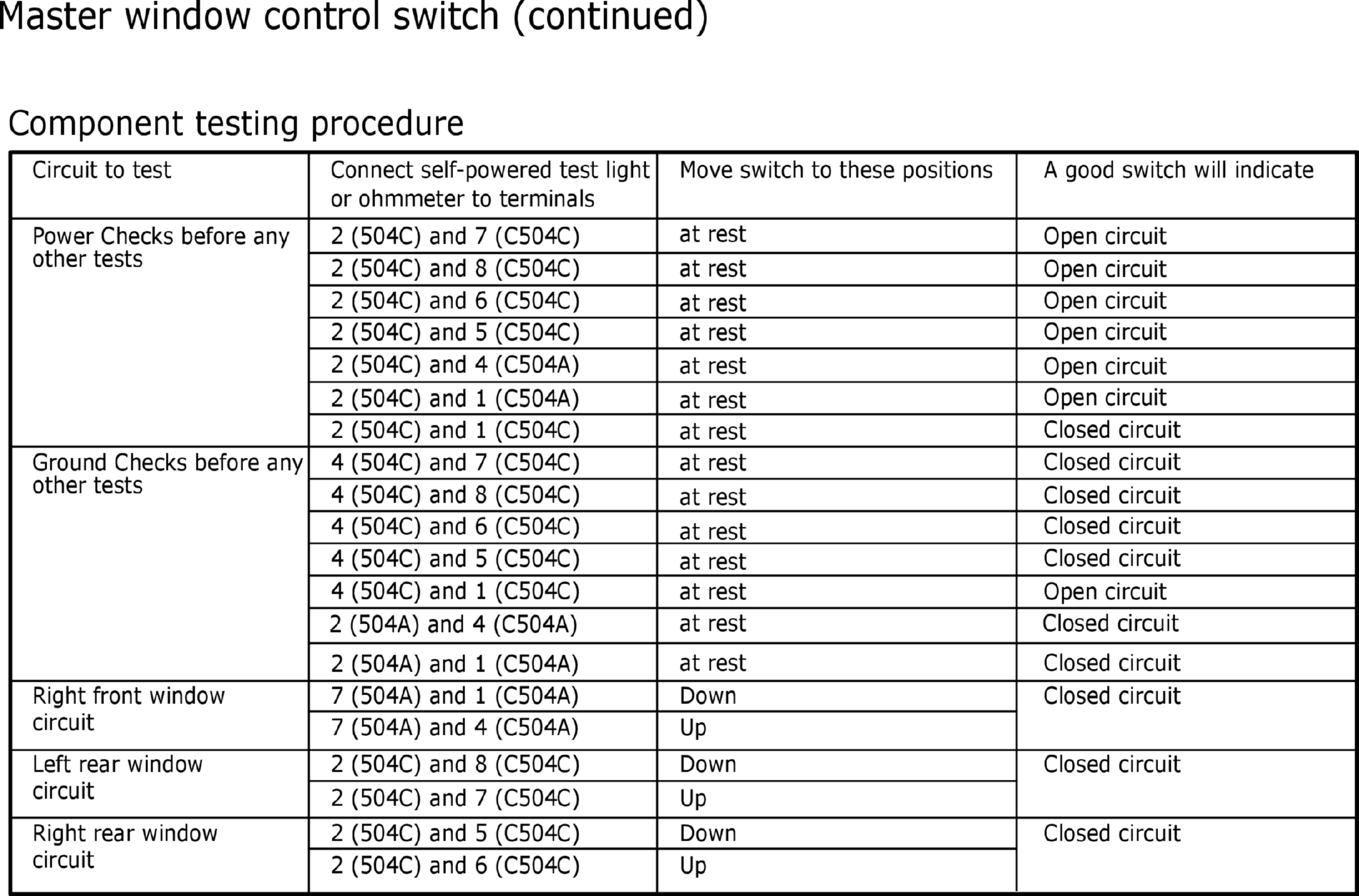

Fig 2: Master Window Control Switch (2 Of 2)
GFDW19909Courtesy of FORD MOTOR COMPANY
