Window Control Switch (W/ Door Modules)

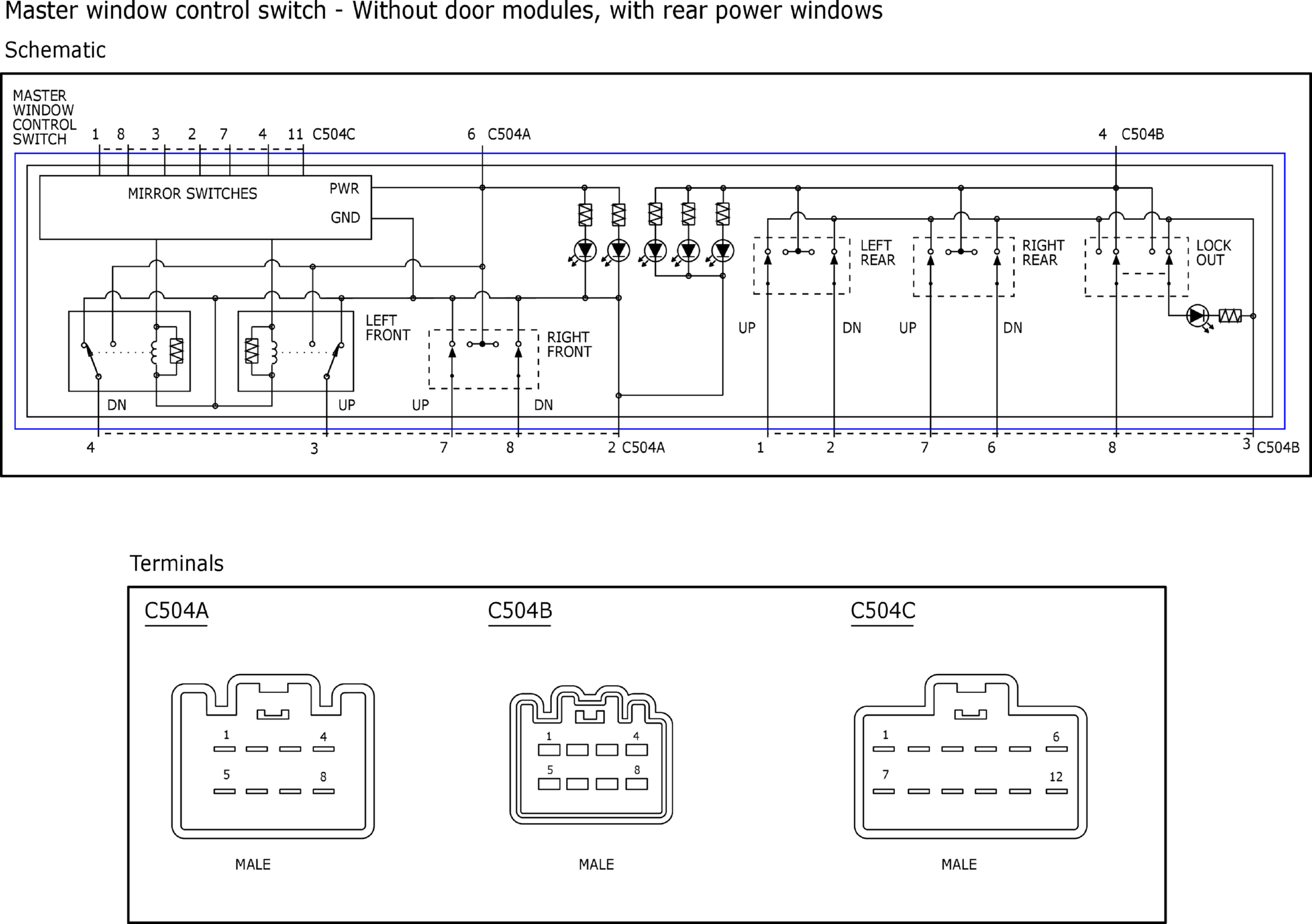

Fig 1: Master Window Control Switch (W/o Door Modules - W/ Rear Power Windows) (1 Of 2)
GFDW22867Courtesy of FORD MOTOR COMPANY

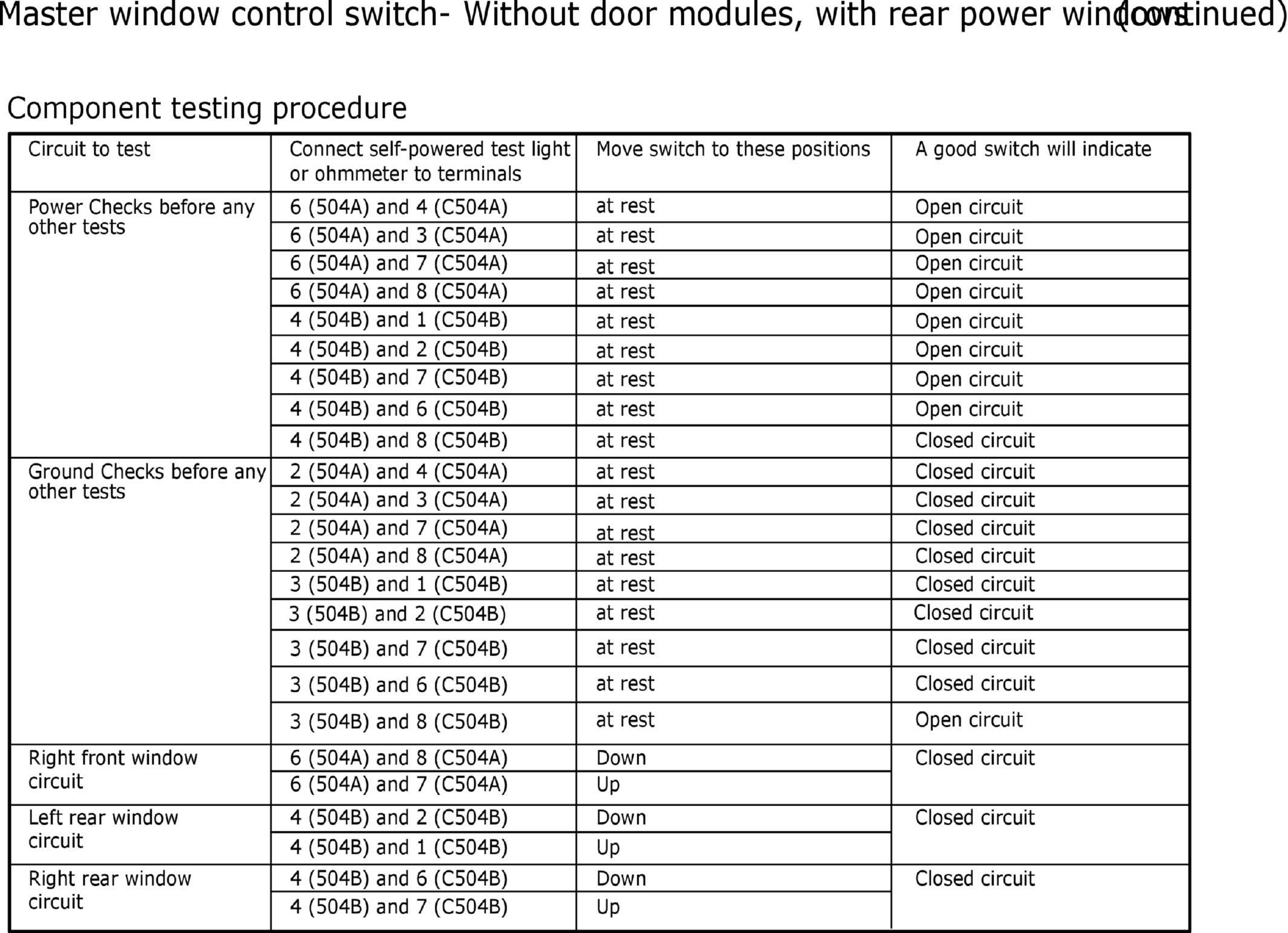

Fig 2: Master Window Control Switch (W/o Door Modules - W/ Rear Power Windows) (2 Of 2)
GFDW22868Courtesy of FORD MOTOR COMPANY

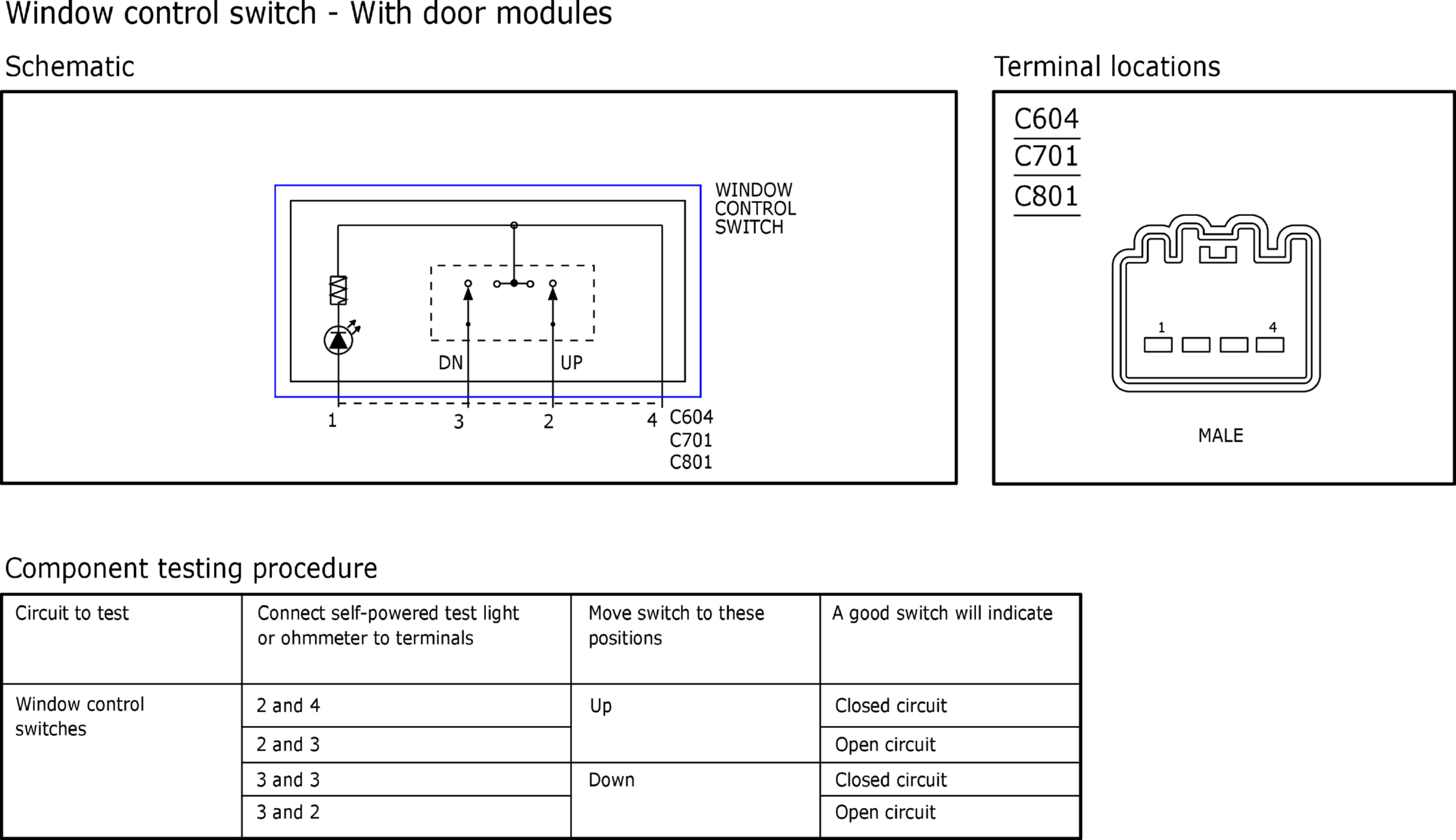

Fig 1: Window Control Switch (W/ Door Modules)
GFDW22869Courtesy of FORD MOTOR COMPANY
