Pinpoint Test I : The Defrost System Does Not Shut Off Automatically - DATC (Dual Automatic Temperature Control)

  1. I1 CHECK FOR BCM (BODY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

    • Ignition ON.
    • Using a scan tool, perform BCM self-test.

    Are any BCM Diagnostic Trouble Codes (DTCs) present?

    Yes  For DTC B1C84:11 or B1C84:14, GO to  I3For all other Diagnostic Trouble Codes (DTCs), REFER to: Body Control Module (BCM) .
    No  GO to  I2

  2. I2 CHECK FOR A SHORT TO VOLTAGE IN THE DEFROST GRID CIRCUIT

    • Ignition OFF.
    • Disconnect: Rear Window Defrost Relay.
    • Ignition ON.
    • Measure:
      Positive Lead Measurement / Action Negative Lead

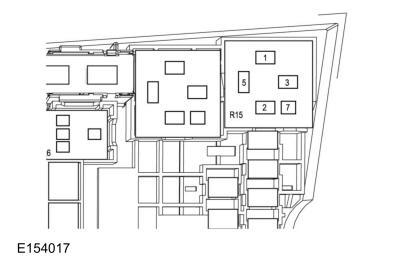

      GFD63983Courtesy of FORD MOTOR COMPANY

      Rear Window Defrost Relay, socket pin 5
      GFD60580Courtesy of FORD MOTOR COMPANY
      		 Ground

    Is any voltage present?

    Yes  REPAIR the circuit.
    No  INSTALL a new rear window defrost relay.

  3. I3 CHECK FOR A SHORT TO GROUND IN THE REAR WINDOW DEFROST RELAY CONTROL CIRCUIT WITH THE BCM (BODY CONTROL MODULE) DISCONNECTED

    • Ignition OFF.
    • Disconnect: Rear Window Defrost Relay.
    • Measure:
      Positive Lead Measurement / Action Negative Lead
      GFD63983Courtesy of FORD MOTOR COMPANY

      Rear Window Defrost Relay, socket pin 2
      GFD60581Courtesy of FORD MOTOR COMPANY
      		 Ground

    Is the resistance greater than 10, 000 ohms?

    Yes  GO to  I4
    No  REPAIR the circuit.

  4. I4 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

    • Ignition OFF.
    • Disconnect and inspect all the BCM connectors.
    • Repair:
      • corrosion (install new connector or terminals - clean module pins)
      • damaged or bent pins - install new terminals/pins as necessary
      • pushed-out pins - install new pins as necessary
    • Reconnect the BCM connectors and all previously disconnected rear window defrost system connectors. Make sure they seat and latch correctly.
    • Operate the system and determine if the concern is still present.

    Is the concern still present?

    Yes  CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM.
    No  The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.
