Connector Repair Procedures

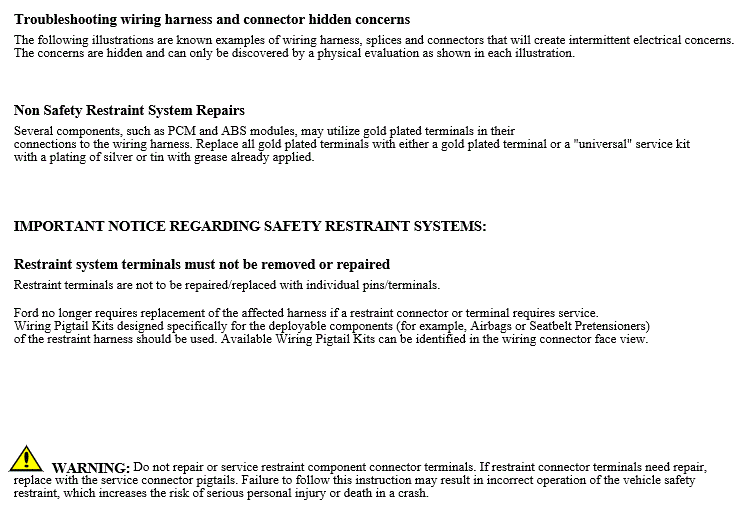

GFDW3056Courtesy of FORD MOTOR COMPANY

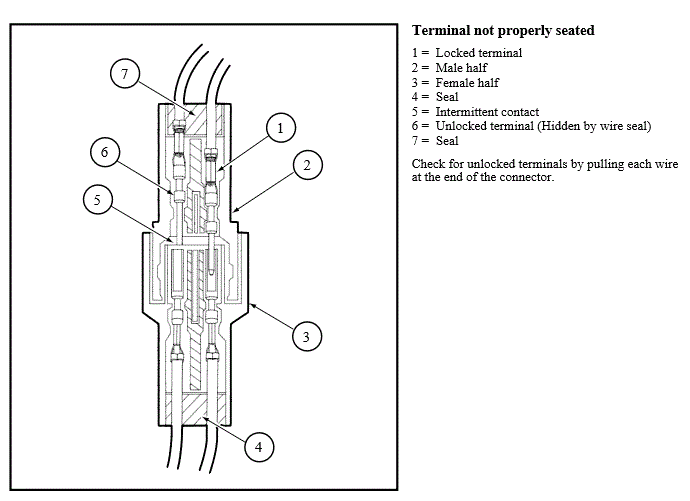

GFDW3057Courtesy of FORD MOTOR COMPANY

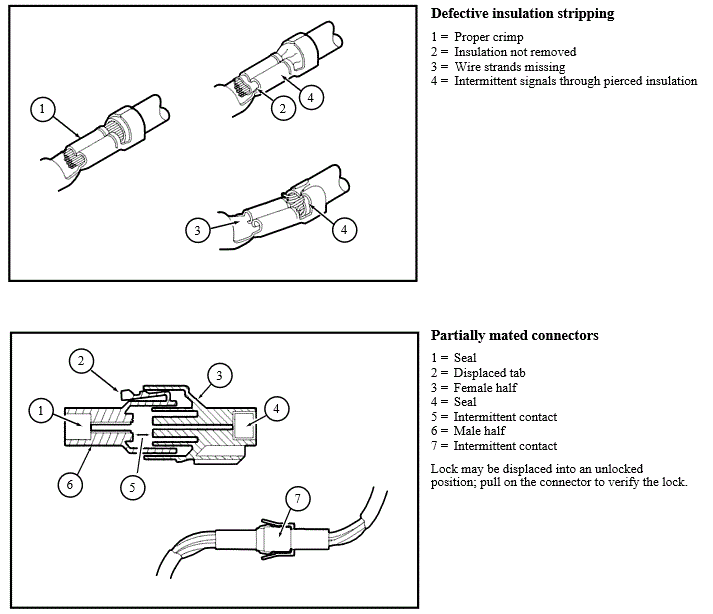

GFDW3058Courtesy of FORD MOTOR COMPANY

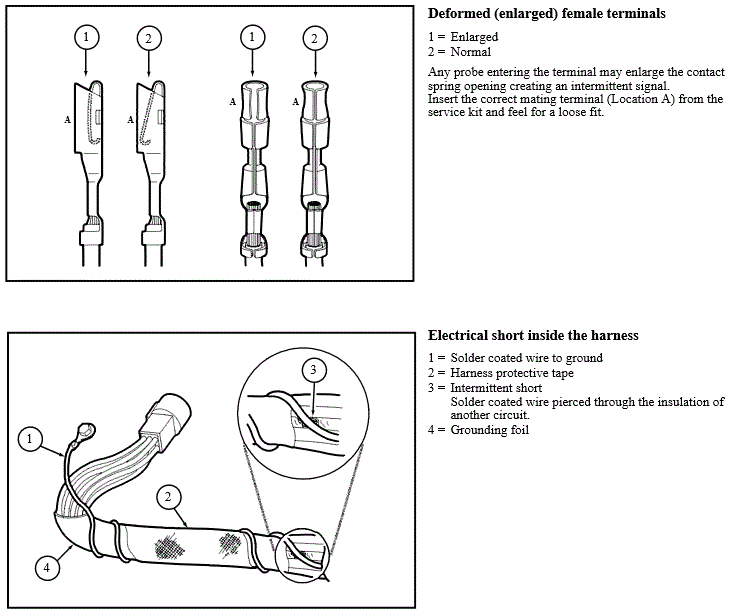

GFDW3059Courtesy of FORD MOTOR COMPANY

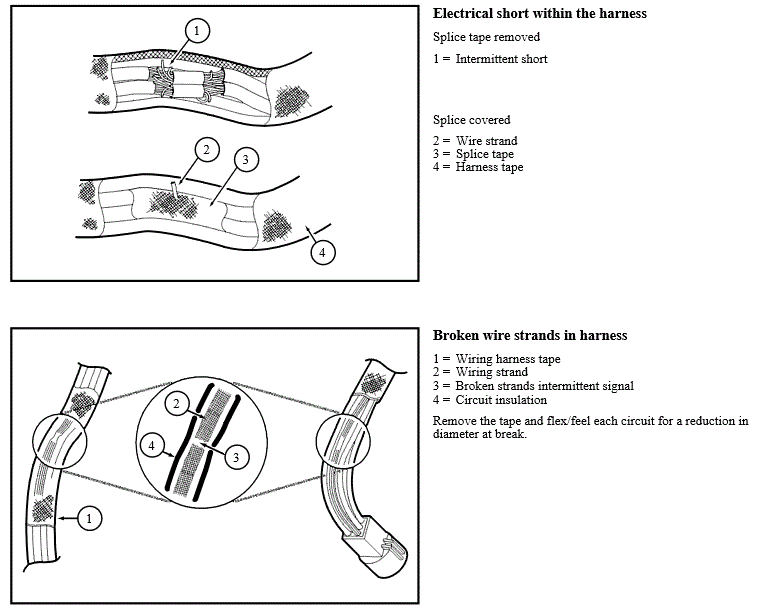

GFDW3060Courtesy of FORD MOTOR COMPANY

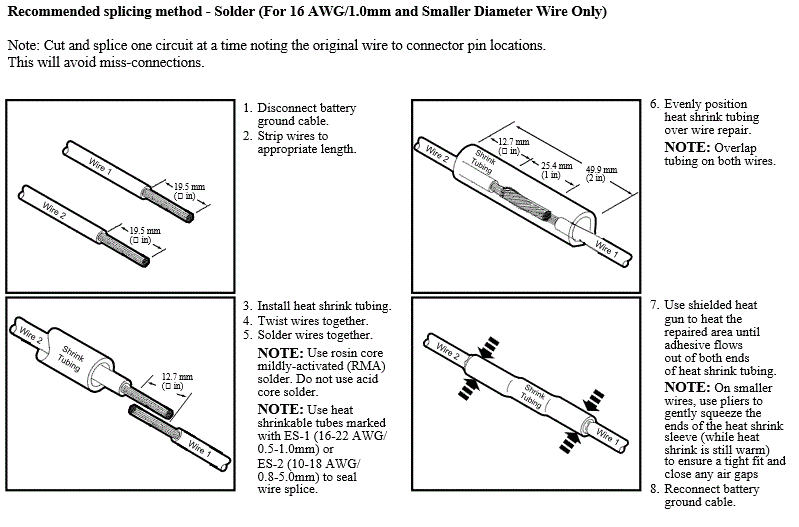

GFDW3061Courtesy of FORD MOTOR COMPANY

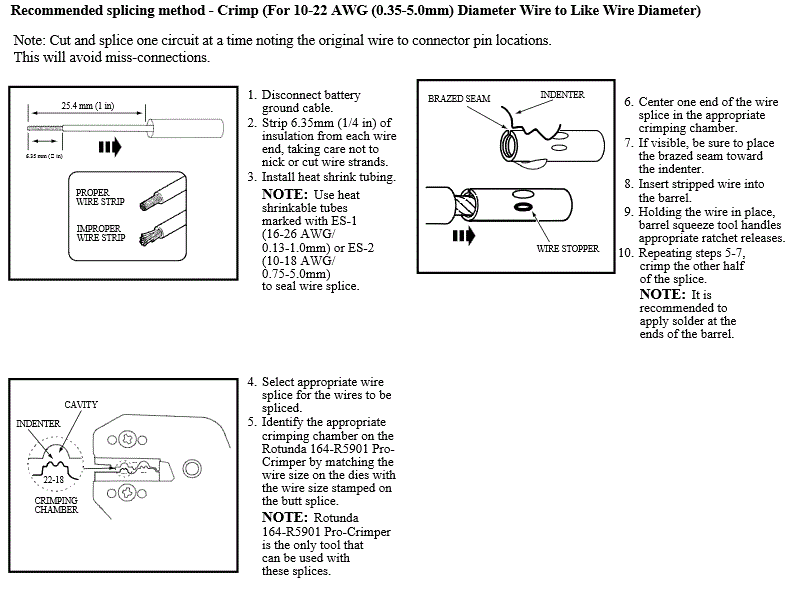

GFDW3062Courtesy of FORD MOTOR COMPANY

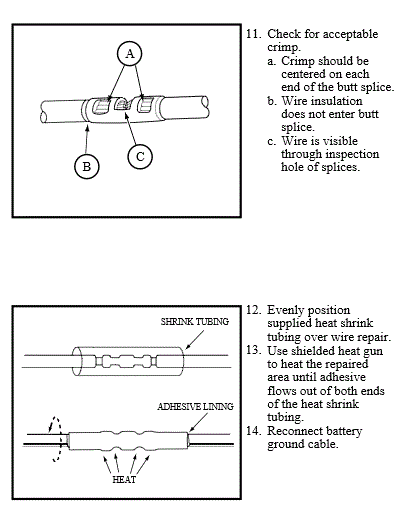

GFDW3063Courtesy of FORD MOTOR COMPANY

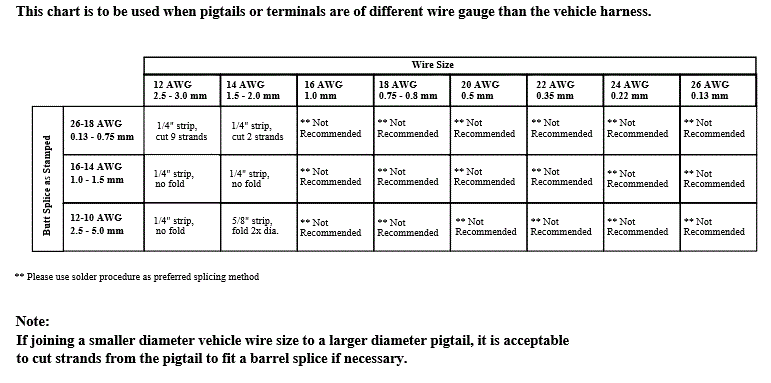

GFDW3064Courtesy of FORD MOTOR COMPANY
